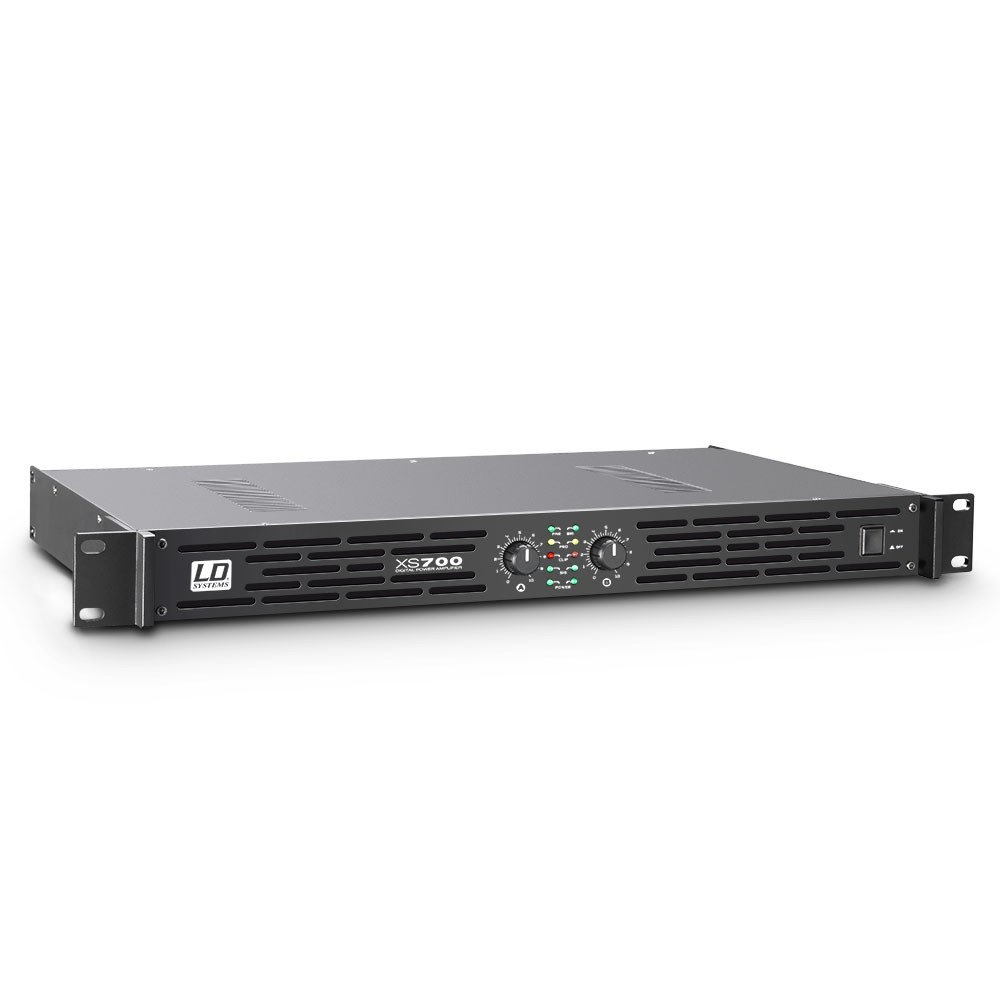

LD System XS700 Power Amplifier - 2 x 350W 4 Ohms

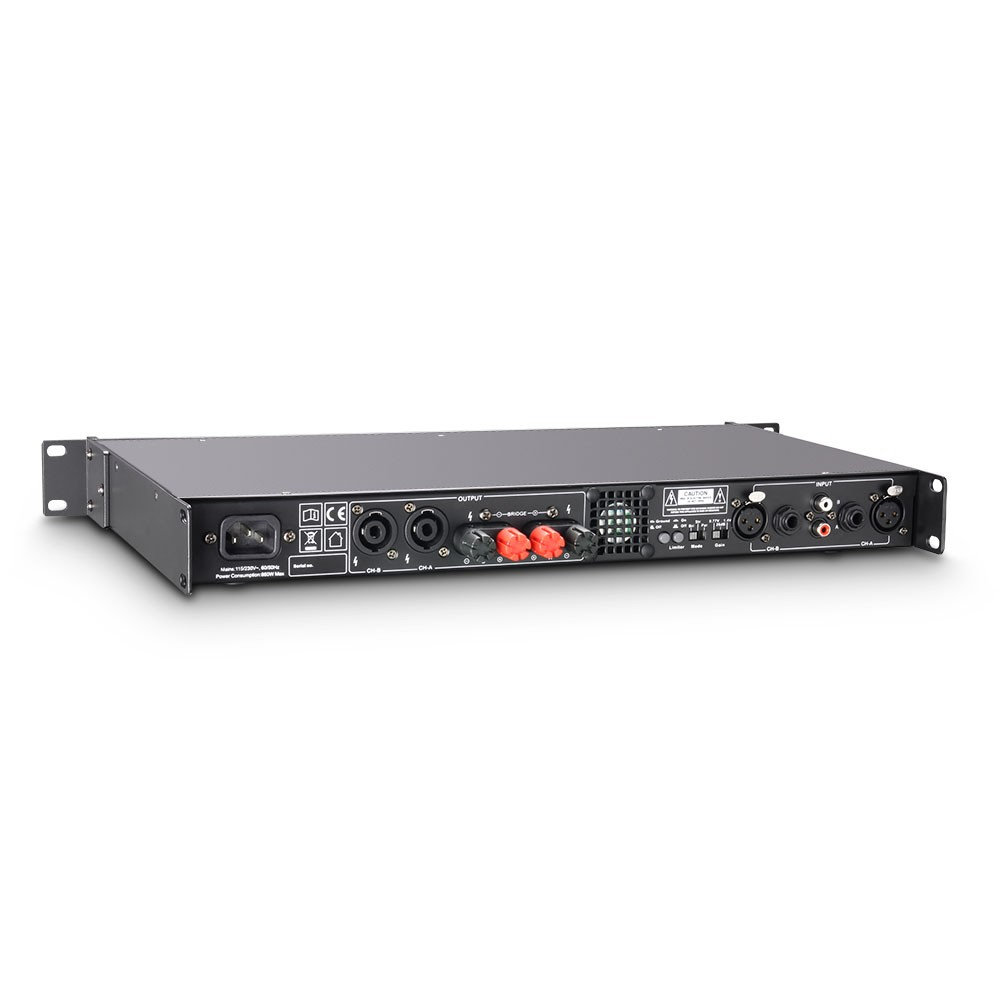

The XS700 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS700 impresses with operational dependability and a transmission range of 20Hz – 20kHz, which is reproduced transparently and dynamically with high impulse fidelity. Specifications General Product type: Power Amplifiers Type: PA Power Amplifiers Rated ouput power (1kHz @ 4 Ohms): 2 x 350 W Rated ouput power (1kHz @ 8 Ohms): 2 x 200 W Rated ouput power (1kHz @ 8 Ohms, bridged): 700 W Output circuitry: Class D Frequency response: 20 - 20000 Total Harmonic Distortion (THD): < 0.1 % Gain: 36 dB / 27 dB / 31 dB dB Input sensitivity: 0.6 V / 1.7 V / 1.1 V V Protection circuits: DC, over-current, Short circuit, soft start, thermal overload Controls: Gain, ground lift, limiter, Mode, On / Off, volume Indicators: clip, Mode, Power, Protect (protection circuit engaged), Signal Line inputs: 2 Line input connectors: 6.3 mm jack, RCA Loudspeaker outputs: 2 Speaker output connections: Speakon compatible, Terminal posts Cooling: low-noise fan Power supply: Switching power supply Power consumption @ full load: 860 Operating voltage: 115 V AC / 230 V AC (switchable) Width: 482 mm Height: 44 mm Depth: 244 mm Weight: 3,4 kg
