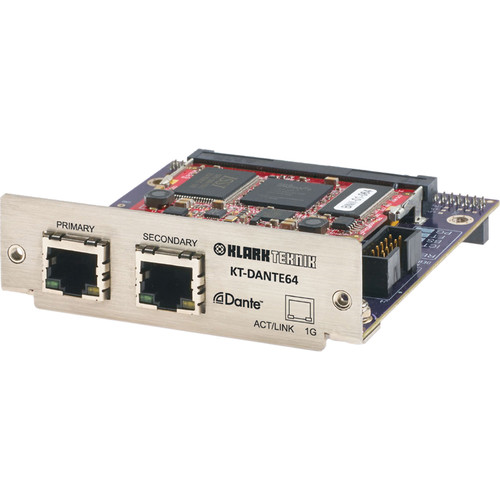

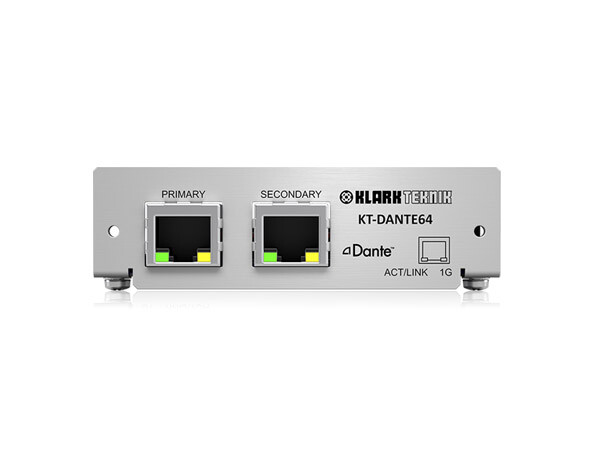

Klark Teknik KTDante64 Dante Network CM-1 Module

The Klark Teknik KT-DANTE64 is a high-performance Audinate Dante network module, designed for seamless multichannel recording and playback via Dante Virtual Soundcard on both Mac and Windows systems. Engineered for maximum compatibility, it supports the industry-standard Cirrus CM-1 format and integrates effortlessly into Klark Teknik DN9650/DN9652 network bridges or Midas NEUTRON-NB expansion modules.

Powered by Audinate’s cutting-edge technology, the KT-DANTE64 delivers direct-to-computer audio recording, flexible signal routing, and true plug-and-play connectivity with automatic device discovery. Offering up to 64 bidirectional channels at 48 kHz or 32 bidirectional channels at 96 kHz, this module ensures ultra-low latency, minimal jitter, and sub-microsecond synchronization for pristine audio performance.

Designed for reliability and ease of use, the KT-DANTE64 features primary and secondary Ethernet ports, LED indicators for network activity and speed, and internal or external clocking options. With Dante Controller software, users can remotely configure, manage, and route audio with ease from their Mac or Windows computer. Ideal for live sound, studio recording, and broadcast applications, the KT-DANTE64 redefines efficiency and versatility in digital audio networking

Features

• Audinate Dante network module for Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module
• Enables multichannel recording and playback through Dante Virtual Soundcard on a Mac or Windows computer
• Up to 64 bidirectional channels at 48 kHz or 32 bidirectional channels at 96 kHz
• Primary and secondary Ethernet interfaces for dual-redundant Dante networking
• Operates from internal Dante network Precision Time Protocol (PTP) clock or external clock via host unit
• Optional Dante Controller software for remote configuration via Mac or Windows computer
• LED indicators monitor network activity and speed

Specifications

• Compatibility: Klark Teknik DN9650 and DN9652 Network Bridges, Midas NEUTRON-NB Expansion Module
• Module Type: Cirrus CM-1 Compatible
• Ports: 2 x RJ45
• Channels: 64 (Bidirectional) at 48 kHz, 32 (Bidirectional) at 96 kHz
• Sample Rates: 44.1, 48, 88.2, and 96 kHz
• Bit Depth: 16-Bit, 24-Bit, and 32-Bit
• Audio Buffering: Up to 2000 Samples per Channel
• Clock Sources: PTP (Precision Time Protocol) or External Clock via Host Unit
• Dimensions: 1.2 x 4.3 x 3.5" / 3.1 x 11 x 8.9 cm
