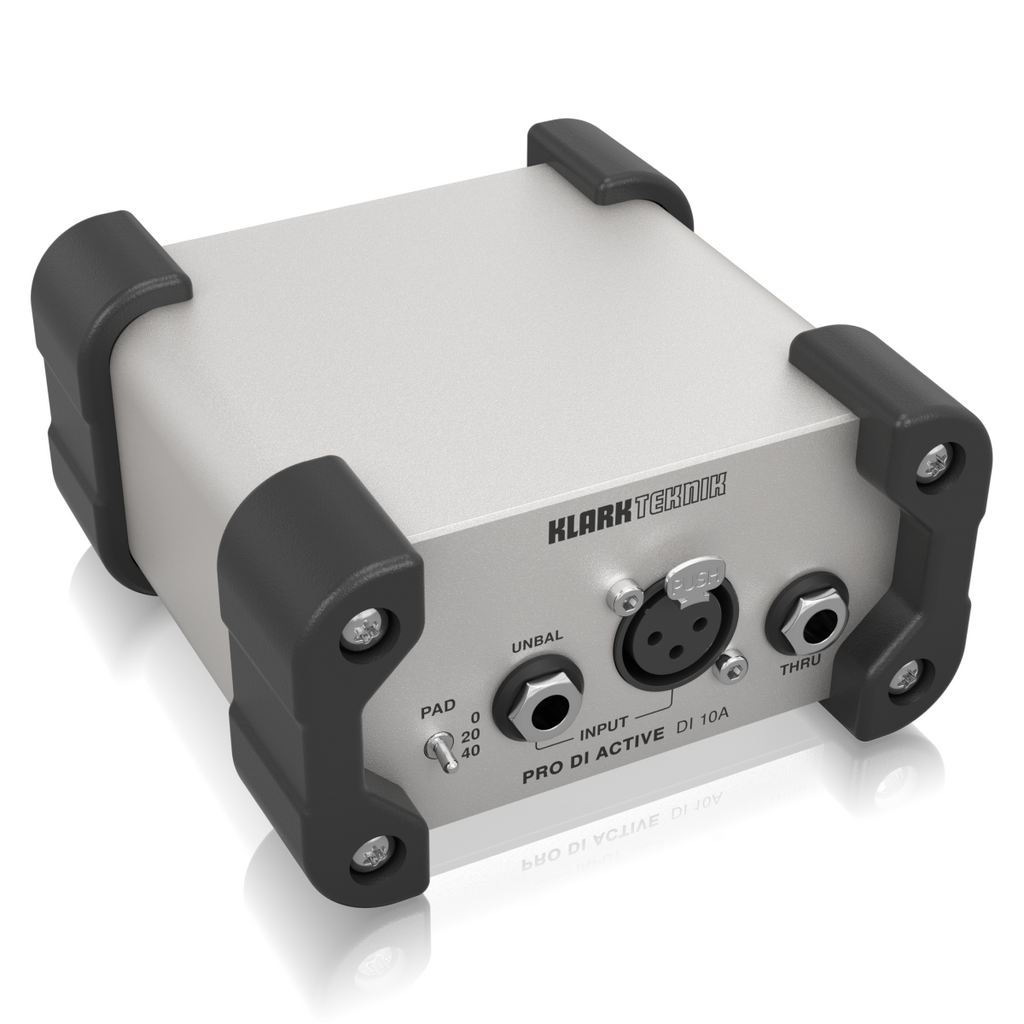

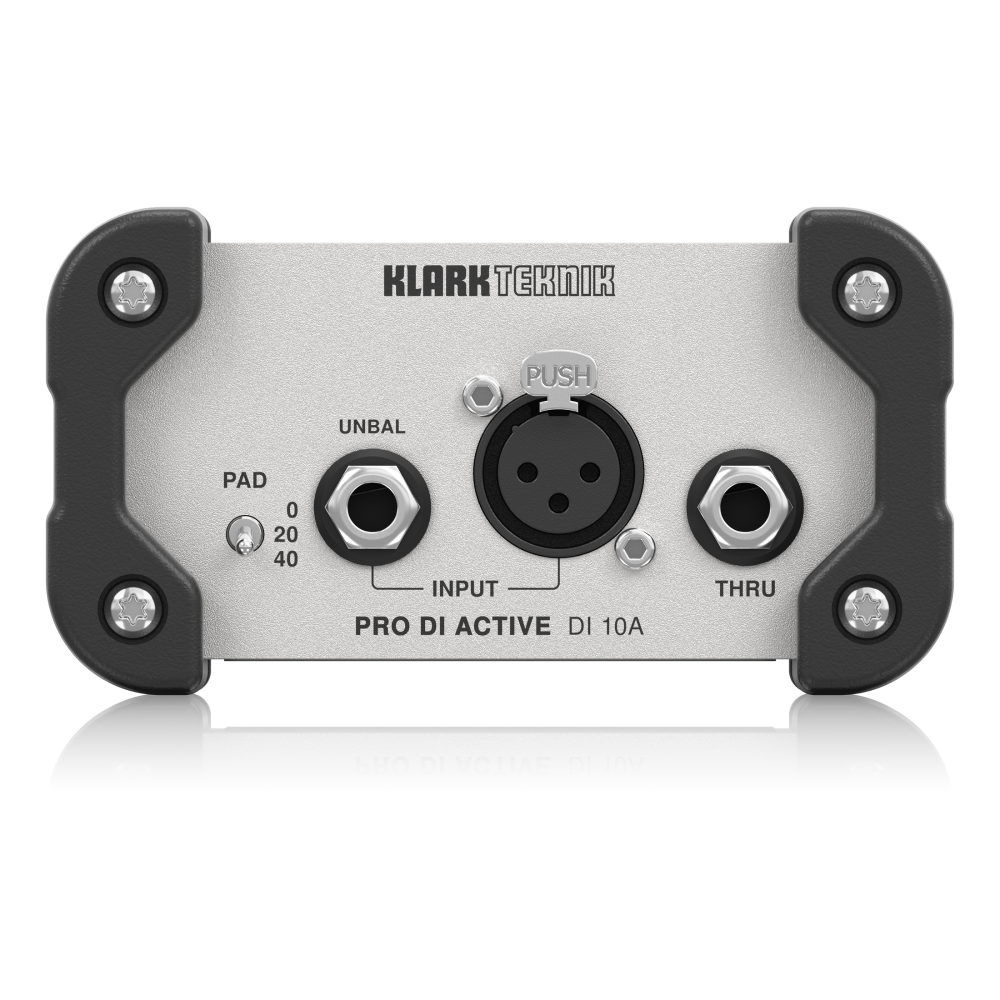

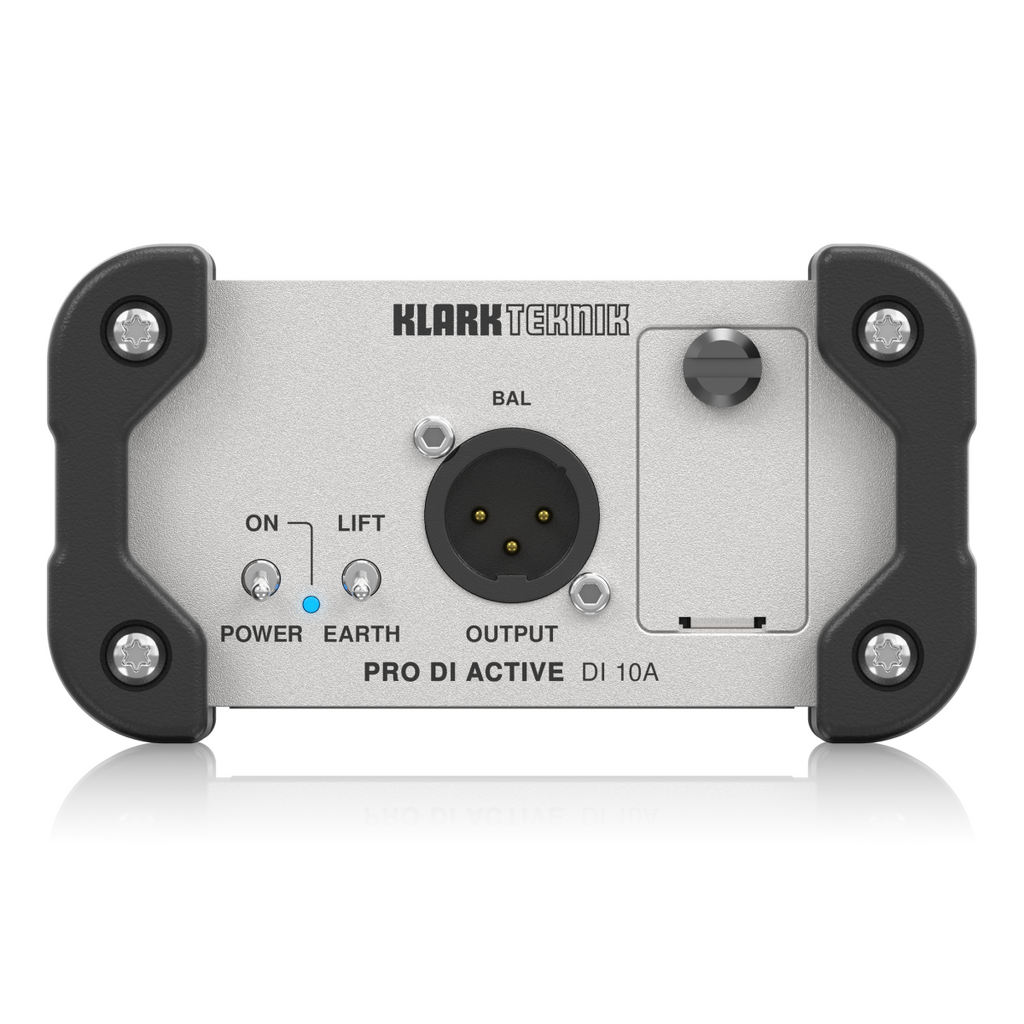

Klark Teknik DI10A Active DI Box
1/3
  • Klark Teknik DI10A Active DI Box
  • Klark Teknik DI10A Active DI Box
  • Klark Teknik DI10A Active DI Box
Klark Teknik DI10A Active DI Box
sold out

Klark Teknik DI10A Active DI Box

$109.00 AUD
Brand: Klark Teknik
SKU: 454010

or from $10/week with

or Rent from $30/week with
Out of stock

Mega Music Myaree

Out of stock in store

Mega Music Wangara

Out of stock in store

Klark Teknik DI10A Active DI Box

Default Title

Mega Music Myaree

Out of stock in store

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Out of stock in store

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236
Description
PRO DI ACTIVE DI 10A The DI 10A operates from +48V phantom power and a 9V battery backup, so the device continues to function even if phantom power fails or is unavailable. With a switchable input attenuator, the DI 10A can easily handle instrument, line and even speaker signals. And thanks to its extremely low-noise input circuit topology (-112 dBu), the DI 10A offers an extended dynamic range for flawless sound, making it ideal for professional audio and multimedia applications. Compact & Rugged Construction The ultra-compact DI 10A is designed to withstand the rigors of everyday life on the road thanks to its thick, sturdy aluminium profiles that protect the electronics. The enclosure’s roadworthiness is further improved by the use of robust rubber corner bumpers. MIDAS – The Legend in Sound Quality Since its founding in the 1970s, MIDAS has a long history of innovation and leadership in the world of audio mixing consoles. Legendary MIDAS consoles such as the XL4 and Heritage H3000 have quickly become the industry standard, used by some of the world's most famous touring acts and installations. MIDAS has earned an impeccable reputation through its uncompromising approach to audio and manufacturing quality, especially its award-winning products that are recognised by industry experts as the best sound designs in the industry. Building on this tradition, the XL8 and PRO Series live mixing systems continue the great tradition of award-winning audio quality. KLARK TEKNIK is proud to incorporate MIDAS designed transformers for the ultimate in high quality audio reproduction in both live and studio environments. To find out more about MIDAS’ incredible legacy, check out their extensive website

Features

  • Active DI Box for general purpose and multimedia applications
  • Custom-built Midas transformer for highest signal integrity
  • High headroom design offers superior sound quality
  • Powered from console +48 V phantom or internal battery (not included)
  • Automatic switchover to battery if phantom power fails
  • Matches the level and impedance with unity gain without loading the source
  • Switchable input attenuation for guitar, line and speaker levels
  • High quality Neutrik XLR and high impedance 1/4" TRS connectors
  • Earth Lift switch eliminates ground loop problems
  • Fully transformer-isolated design ensures electrical separation
  • Ultra-low noise and ultra-linear system for highest signal integrity
  • Aluminium extrusion casing with protective rubber corners
  • Compact and rugged design

Specifications

Audio Connections Input: 1 x XLR, unbalanced 1 x 1/4" TS, unbalanced Input Impedance : >250 kO Thru: 1 x 1/4" TS, unbalanced Output: 1 x XLR, balanced Load Impedance: > 600 O Maximum Input level: +10 / +30 / +50 dBu System Frequency Response: 10 Hz to 90 kHz, ±3 dB THD+N: < 0.02 % @ 1 kHz, 0 dBu Noise Leve: < -112 dBu PAD Switch: 0 / -20 / -40 dB Power Supply Phantom power: 18 V DC to 48 V DC Battery: 9 V Blockcell 6LR61 Dimension / Weight Dimensions (W x D x H) 118 x 120 x 64 mm (4.6 x 4.7 x 2.5") Weight 0.56 kg (1.2 lbs)
