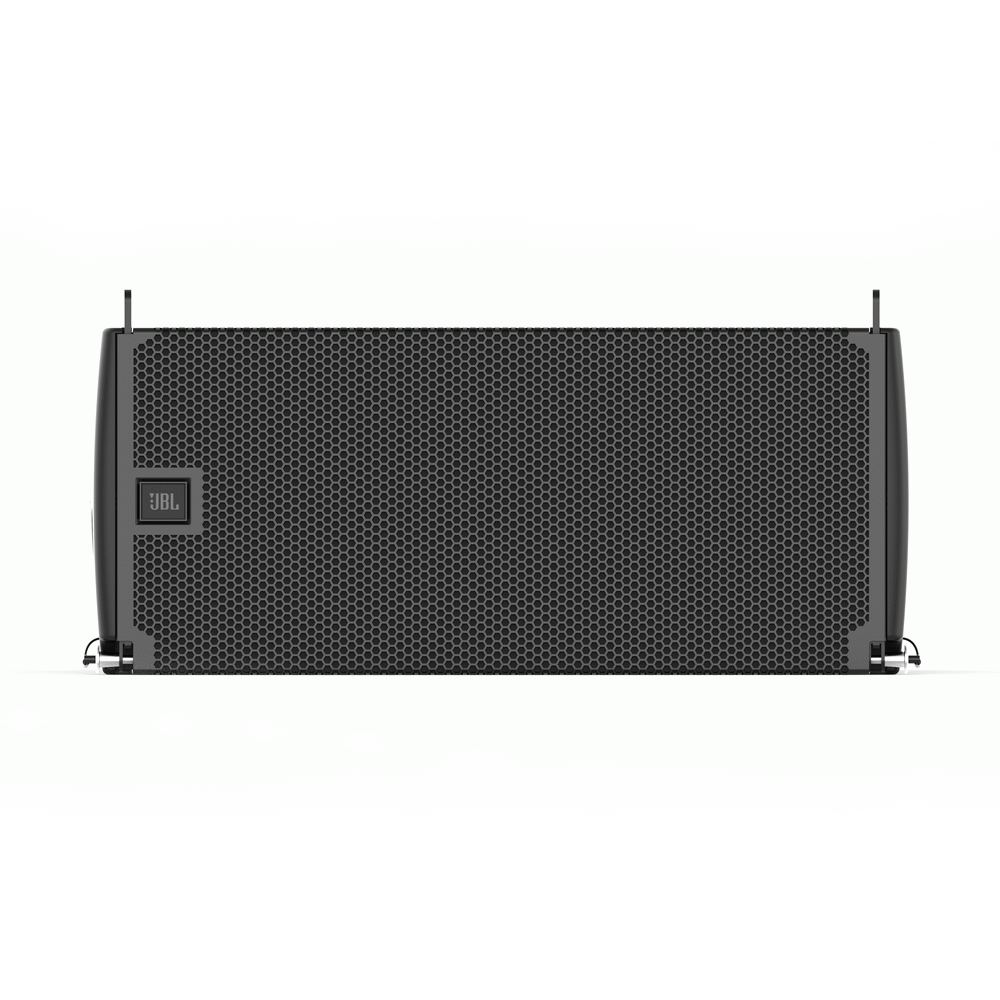

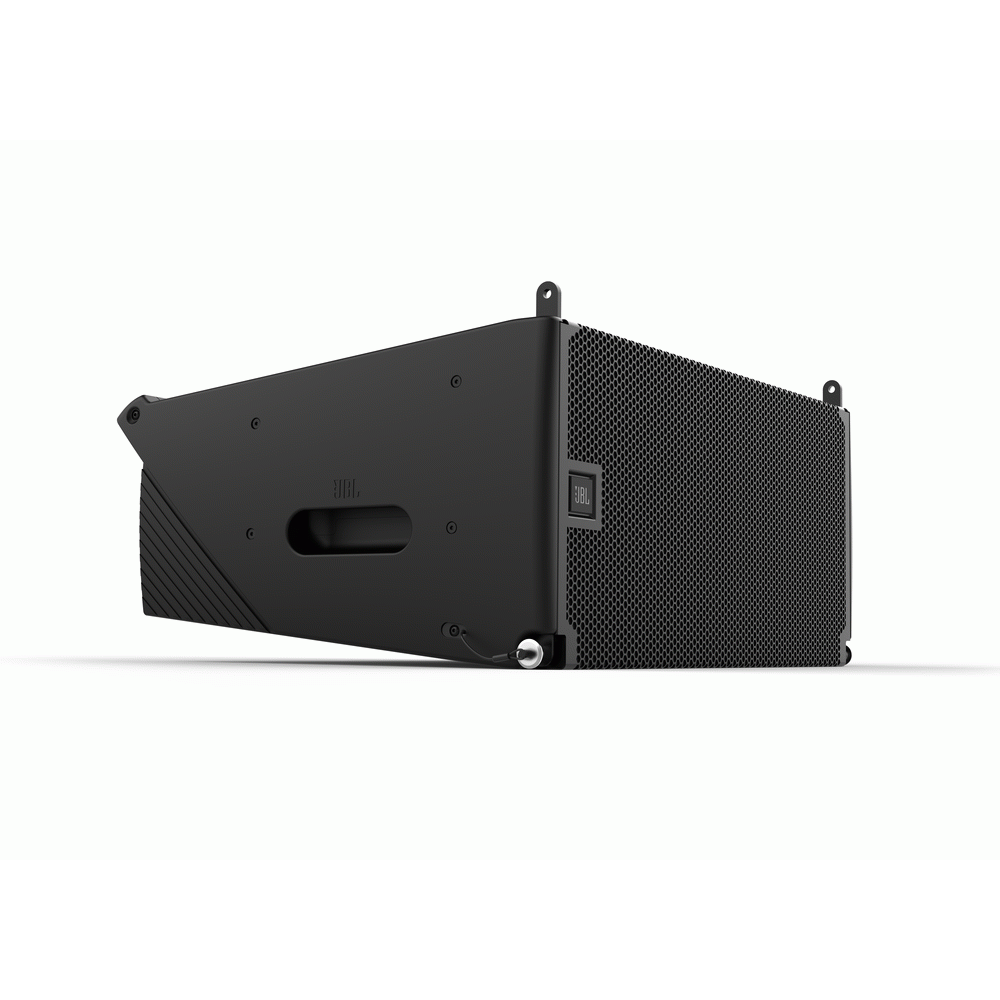

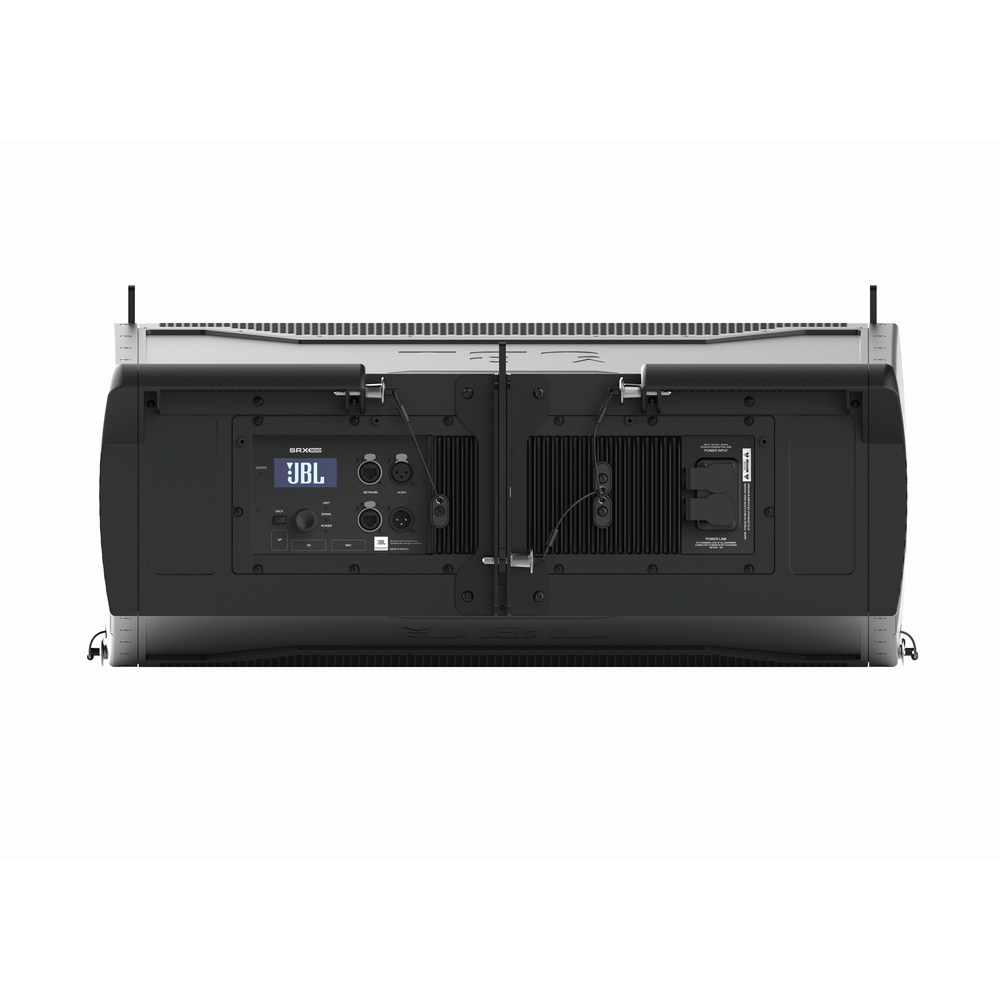

JBL SRX910LA Dual 10 inch Powered Line Array Loudspeaker

Features High-performance, high-density system solution in a truck-pack friendly format High-power-handling transducers deliver low distortion, high fidelity, and class-leading output Built-in, passively cooled Class D amplification with a universal power supply User-controllable DSP Specification Acoustical Frequency Range (-10 dB): 53 Hz-19 kHz (array preset) (-3 dB): 60 Hz-18 kHz (array preset) Coverage Pattern (-6 dB) Horizontal: 105 degrees nominal (400 Hz-16 kHz) Vertical: Varies with array size and configuration Maximum Peak Output: 135 dB System Type: Line Array, two-way active Transducers Low Frequency: (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive High Frequency: (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil Audio Input Input Type: Balanced line level Connectors: Neutrik XLR (IN/OUT) Nominal Input Sensitivity: +6 dBu (system starts limiting with broadband noise and music) Maximum Input Level: 21 dBu Input Impedance: 100 kO Amplifier Type : Class-D Number of Channels : (2) Continuous Power: 600 Watts // LF: 400 Watts | HF: 200 Watts Peak Power: 880 Watts // LF: 580 Watts | HF: 300 Watts Cooling Type: Convection, external aluminum heat sink, internal on-demand fan DSP Sample Rate: 48 kHz Bit Depth: 24 bit User Interface Type : LCD screen, encoder, Back button, (4) LED Indicators (3 single, 1 bi-color) Networking Type: TCP/IP Protocol: Harman HControl Speed: Dual 100 Mbps ports Connectors: Neutrik etherCON AC Power Voltage Range Nominal: 100-240 VAC, 50/60 Hz Limits: 80-260 VAC, 50/60 Hz Connectors: Dual (IN/OUT) Neutrik powerCON TRUE1 TOP Physical Enclosure: Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds IP Rating: IP54 Suspension: Three-point, captive suspension plates, quick release pins, steel with anti-corrosion coating Inter-enclosure Angle (deg): 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Grille: Powder coated 1.5 mm (16-gauge) hex perforated steel with acoustically transparent black cloth backing Dimensions (H x W x D): 305 mm x 716 mm x 519 mm, 12.0 in x 28.2 in x 20.5 in Net Weight: 26.7 kg (59 lbs) Shipping Weight: 30.3 kg (67 lbs)
