Combined IK Multimedia two decades of experience in software and hardware development with the expertise of Italian boutique synth-maker Soundmachines and IK’s synth guru, Erik Norlander (one of the brains behind acclaimed synths like the Alesis Andromeda).
The result is a no-compromise instrument with massive analog sound that’s also easy to use with hands-on programmability and advanced features at an unbeatable price.
Features
- All-analog audio path with 2 VCOs with continuously variable waveshape, noise generator, resonant multimode VCF and VCA
- 2 independent analog VCOs with Saw, Triangle and Pulse waveforms with continuously variable shape including PWM of the square wave and a separate white noise generator
- A 2-pole multimode OTA-based sweepable analog resonant multimode filter with LPF, HPF, BPF
- LFO with Sine, Triangle, Square, Up Saw, Down Saw, Random and Sample-and-Hold to modulate Pitch, Filter and Amp
- AD (Filter) + AR (Amp) envelopes (full ADSR control available via MIDI CC or software editor)

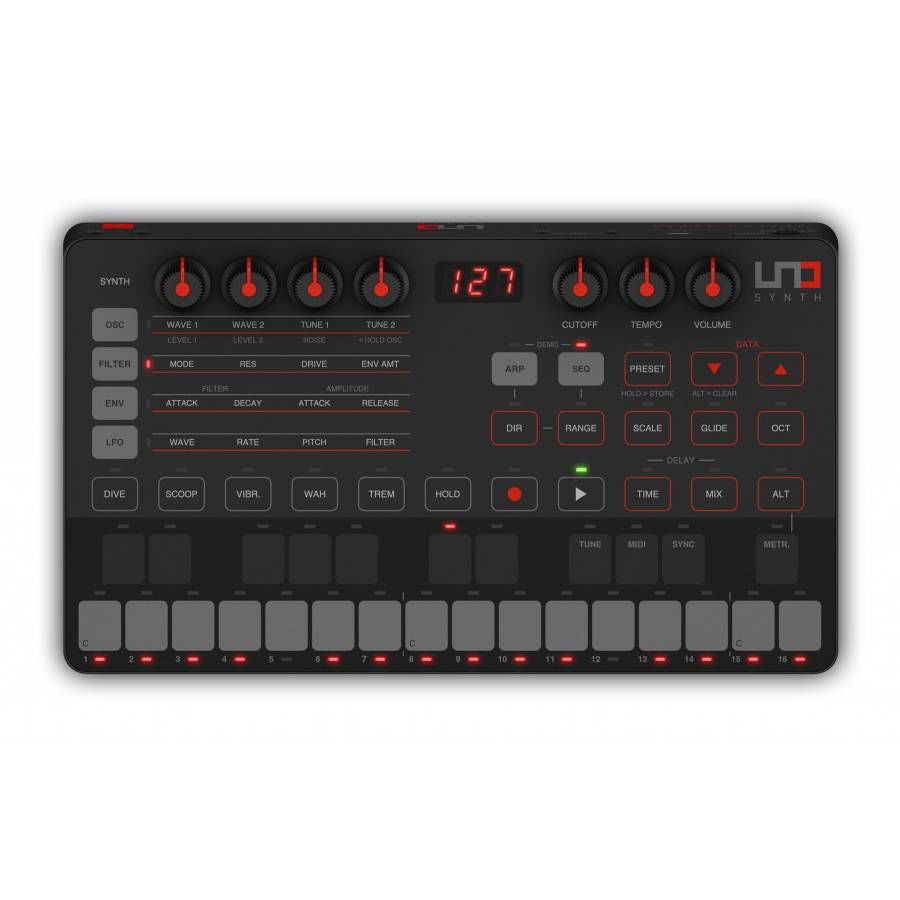

- 40 onboard controls and LED display
- 100 onboard presets
- 10 mode, 4-octave arpeggiator
- Real-time and step edit 16-step sequencer with 20 automatable parameters
- Onboard multi-touch 27-note chromatic and scale keyboard with 13 scales
- Sync Delay audio effect and 5 performance effects
- Self-tuning with auto-tune calibration
- USB MIDI and 2.5 mm jack MIDI IN/OUT (cables included)
- Audio In to daisy chain other audio devices with no need for a mixer
- Mac/PC/iOS Editor
- Complete MIDI implementation with all parameters and clock can be controlled via MIDI CC
- Battery (4xAA Alkaline, Ni-Mh) or USB powered
- Ultra-portable and lightweightDesigned and made in Italy
Specifications
- Type: Analog
- Polyphony: 1 voice
- Synthesis structure: 2 VCO, Noise generator, 1 VCF, 1 VCA, 2 EG, 1 LFO
- VCO variable shape waveforms: Triangle, Sawtooth, Pulse with variable pulse width
- VCF: 2-pole resonant multimode filter with Cutoff, Resonance, Env Amount, Drive
- LFO: 7 shapes (Sine, Triangle, Square, Saw Up, Saw Down, Random, Sample & Hold), Rate
- Modulation Destinations: Amp, Pitch, Filter, PWM, Waveshape (PWM and Waveshape via MIDI CC)
- EG: 2 for Filter and Amplitude (full ADSR is available via MIDI)
- Preset: 100 Presets (20 factory non-writable, 80 user)
- Keyboard Controls:
- 13 Selectable scales (Chromatic, Major, Minor, Major Pentatonic, Minor Pentatonic, Major Blues, Minor Blues, Harmonic Minor, Mixolydian, Dorian, Klezmer, Hungarian Gypsy, Spanish Gypsy, Japanese, South-East Asian)
- 7 Knobs (4 matrix, 3 fixed)
- Sequencer:
- 16-step sequencer
- Real-time and step recording with parameter recording
- Real-time parameter recording per-step
- 3 directions: Forward, Backward, Forward and Backward
- Selectable length between 1 and 16 steps
- Arpeggiator
- 10 Mode Arpeggiator
- 4 octave range
- Hold control
- Effects
- Delay
- Dive, Scoop, Vibrato, Wah, Tremolo

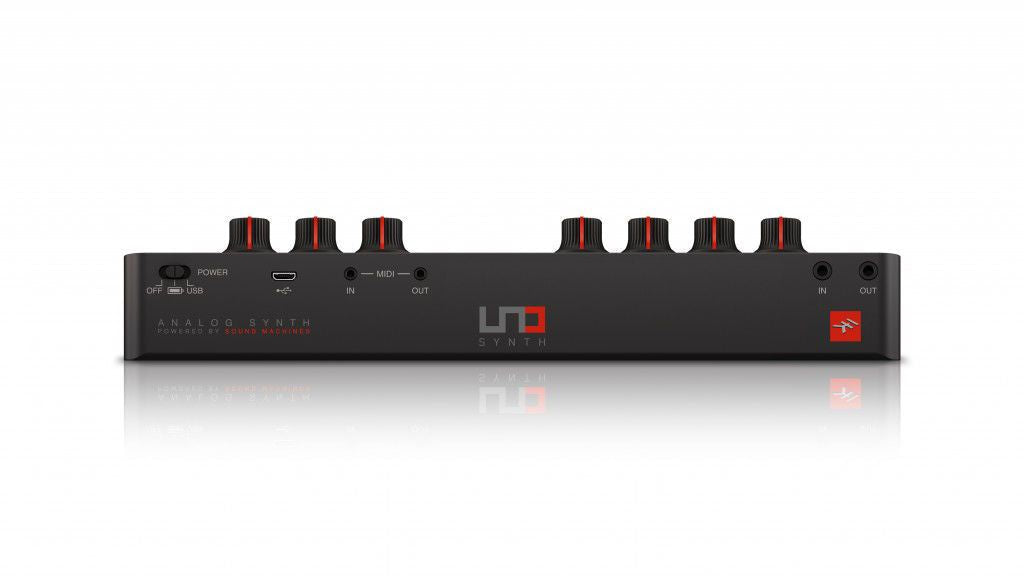

- Connections
- Audio Out: Mini-jack 3.5mm stereo (mono summed)
- Audio In: Mini-jack 3.5mm stereo (mono summed)
- 2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
- 1 Micro USB*
- Power
- 4x AA Batteries (Alkaline, Ni-Mh)
- Micro USB connector
- Optional UNO Synth Power Bank
- Package includes
- UNO Synth
- 1x Micro USB to USB-A cable (60cm/23.62")
- 2x 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
- 4x AA batteries (Alkaline)
- Dimensions
- Size: 25.6cm/10.1" x 15cm/5.91" x 5cm/1.96"
- Weight: 400g/14.1oz (excluded batteries)
