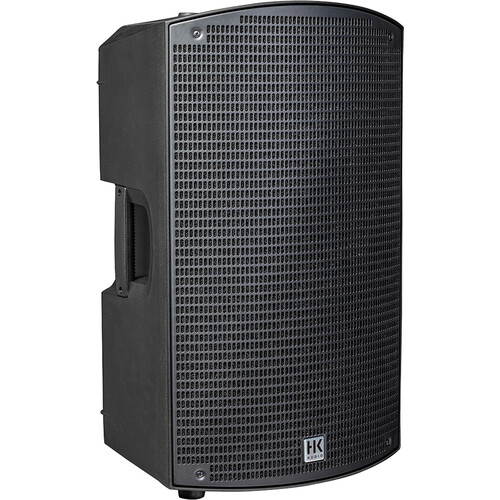

The HK Audio SONAR 112 Xi is a powerhouse active speaker designed for audio professionals who demand premium sound, seamless control, and unmatched versatility. Featuring an integrated DSP and Bluetooth connectivity, this high-performance speaker is perfect for a variety of applications, offering top-tier sound quality with effortless operation. Whether for live performances, DJ setups, or fixed installations, the HK Audio SONAR 112 Xi delivers outstanding clarity, power, and control in one sleek, easy-to-use package.
Features
- 1200W Class-AB + Class-D Amplifier
- 12" Woofer + 1" High-Frequency Driver
- 58 Hz to 18 kHz Frequency Response
- 130 dB Max SPL + 90 x 60° Dispersion
- Integrated DSP with 3-Band EQ, HPF
- BT Auto Pairing, Delay, Pre/Post Output
- Two Mic/Line Combo XLR-1/4" Inputs
- 3.5mm Aux Input + XLR Mix Output
- Bluetooth TWS + SONAR REMOTE App
Specifications
- Enclosure Type: Bass-Reflex Loudspeaker
- Total Power Capacity: 1200 W Peak
- Amplifier Class: Class-AB, Class-D
Drivers
- HF Driver: 1 x 1" / 25.4 mm Horn-Loaded Compression Driver
- HF Voice Coil: 1.35" / 34.29 mm
- MF Driver: No
- LF Driver: 1x 12" / 304.8 mm Woofer
- LF Voice Coil: 2.5" / 63.5 mm
Performance
- Frequency Range: 54 Hz to 20 kHz -10 dB
- Frequency Response: 58 Hz to 18 kHz ±3 dB
- Maximum SPL: 130 dB (Half-Space)
- Coverage Angle: 90° H x 60° V
- Protections: Infrasonic, Overcurrent, RMS, Short Circuit, Signal Limiter, Thermal, Ultrasonic, Undervoltage

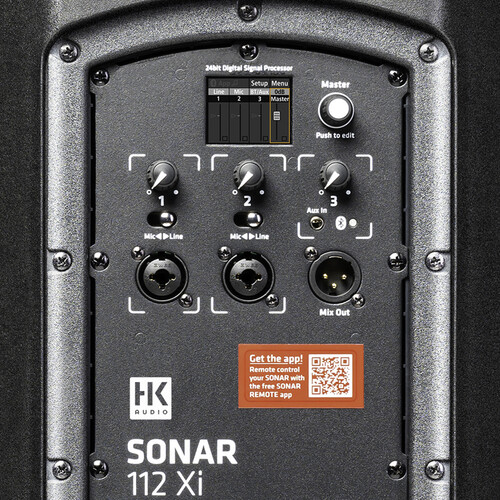

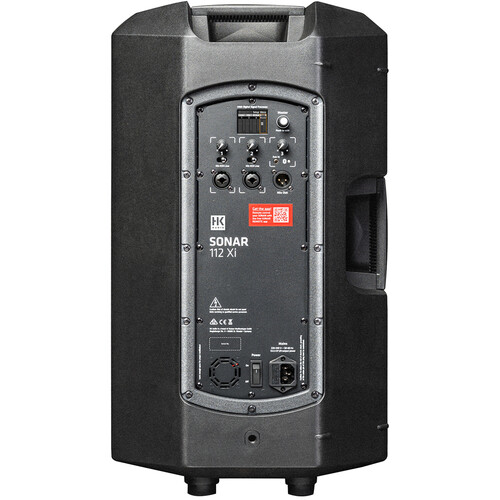

Connectivity
- Audio I/O: 2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1x 1/8" / 3.5 mm TRS Female Unbalanced Line Input
1x XLR 3-Pin Male Balanced Line Thru/Output
- Network I/O: No
- USB I/O: No
- Wireless Connectivity: Bluetooth
- Bluetooth: 5.0
- Mobile App Compatible:
Yes: Android & iOS
App Name: SONAR REMOTE
- Functionality: Adjust Settings, Remote Control, Setup
Signal Processing
- EQ: Yes
- Parametric EQ: No
- Semi-Parametric EQ: No
- Filters: 1x High-Pass
- Dynamic Processing: Multiband Limiter, Limiter
- Alignment Delay: Yes
- Phase Adjustment: No
- Digital Signal Processing: Delay, User Settings, Venue Settings
Power
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- AC Power I/O: 1x IEC Input
- Current Consumption:
120 VAC:
1.2 A
240 VAC:
0.6 A
Physical
- Mounting: 3 x M10 Fly Point, 1 x Pole Socket (Dual Angle, Bottom)
- Mounting/Monitor Angle: 35° (As Floor Wedge/Monitor)

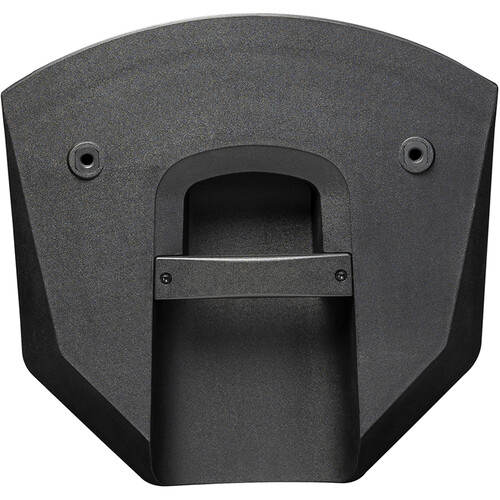

- Handles: 1x Top, 1x Side
- Dimensions: 14.4 x 24.8 x 14" / 36.5 x 62.9 x 35.5 cm
- Weight: 35.1 lb / 15.9 kg
