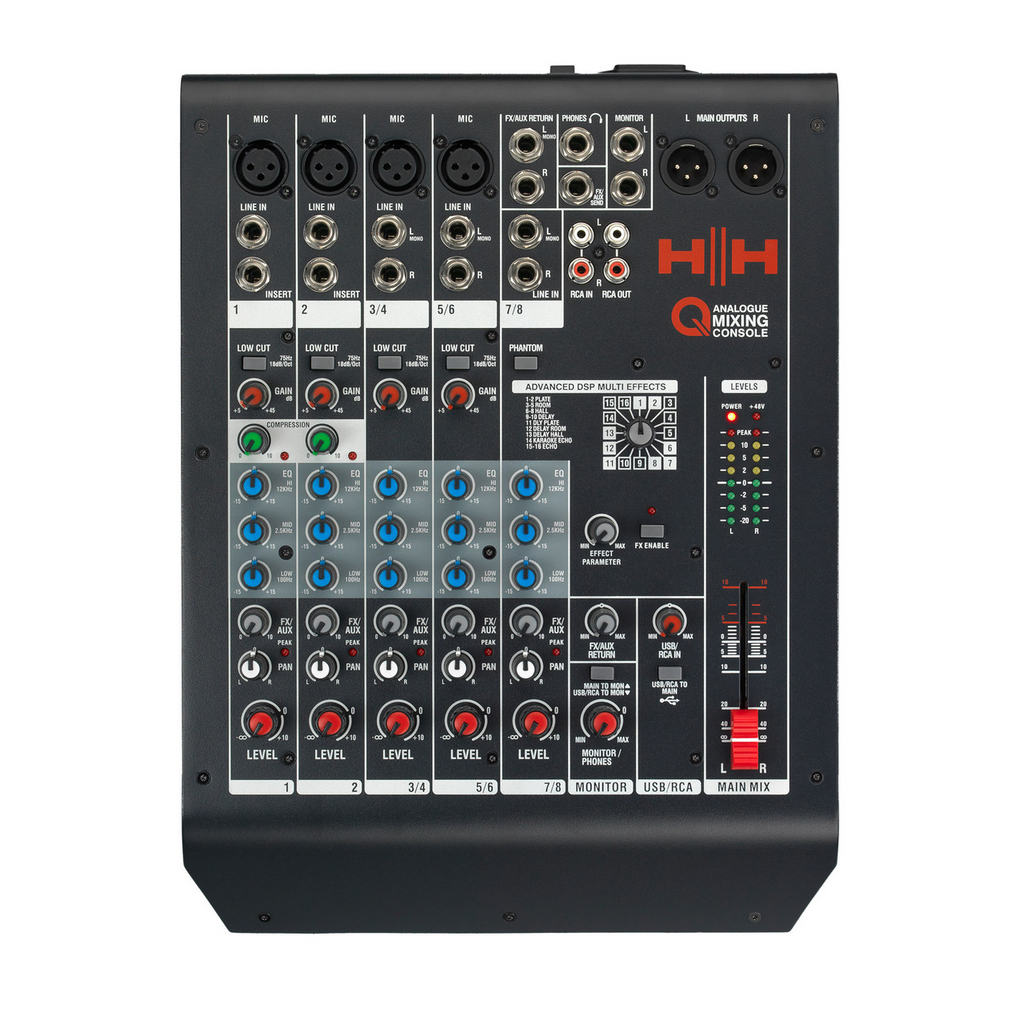

The Q8FX is a professional 8-channel analog mixing console, expertly designed and engineered in the UK for musicians, producers, and live sound engineers. It features four ultra-low-noise microphone preamps with dedicated line input options, plus mono inserts on channels 1 and 2 for added flexibility. Additionally, three stereo line input channels provide seamless connectivity for keyboards, synthesizers, drum machines, external media players, and other line-level sources.
Take full control of your mix with a simple yet powerful single-knob compressor on channels 1 and 2, ensuring smooth and dynamic sound. Each channel is equipped with a 3-band EQ and a 75Hz low-cut filter to fine-tune your audio, while the built-in 16-effect DSP engine—offering rich reverbs, delays, and echoes—adds depth and character to any performance.
Ideal for live sound, recording, and production, the Q8FX boasts 2-in/2-out USB functionality for seamless digital integration. Additional features include an auxiliary send with a stereo return, RCA in and out, global phantom power, pan controls on every channel, and an 8-point LED meter for accurate level monitoring. Built into a rugged, portable chassis, the Q8FX is the ultimate solution for musicians, podcasters, and sound engineers who demand performance and reliability.
Features
- High-Quality DSP Effects
- Stereo RCA In/Out
- Stereo Monitor Out
- Stereo Balanced XLR Main Out
- USB Audio I/O
- Comprehensive Monitoring
- Global Phantom Power
- Solid Construction
- Universal ~ 100-240V world-wide operation
Specifications
- Channels: 8
- Mono Inputs (Mic): 4
- Mono Inputs (Line): 2
- Stereo Inputs (Line): 3
- Insert Lines: 2
- Channel EQ: 3 Band
- Compressors: CH1-2 with indicator
- Phantom Power: Global Switch (+48V)
- Main Outs: Stereo balanced XLR sockets
- Phones: Yes (¼" 6.3mm TRS)
- Aux: 1
- FX: 16 Program DSP with Parameter Adjustment
- USB: 2in, 2out
- Master Faders: 60mm Master
- Meters: 8 Point LED
- Frequency Response (Main output): 20-20kHz (+-0.3 dBu)
- THD%: < 0.001% @ 1kHz
- Residual Output Noise: <15uV
- SNR: >110dB
- Channel Crosstalk: > -90dB
- EQ: Treble: 12kHz, +/-15dB, Mid: 2.5kHz, +/-15dB, Bass: 100Hz, +/-15dB
- Input & Output Levels: Mic: +13dBu, Line:+27dBu max, Stereo: >+27dBu, Main Output: +21dBu max, Phones (@
- 150ohms): 300mW
- Input & Output Impedances: Mic: 1.2kΩ, Line Input: 10kΩ, Stereo Input: 21.5kΩ, Outputs: 150Ω (balanced), 75Ω (unbalanced)
- USB Audio: Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sampling rate: 48kHz (Type B Connector)
- AC Power: Universal 100-240V ~ 50/60Hz (IEC C14 Socket, AC Cord included)
- Power Consumption: 20W
- Product Dimensions (HWD): 96 x 261.5 x 351mm / 3.8" x 10.3" x 13.8"
- Product Weight: 3.3kg / 7.3lbs
