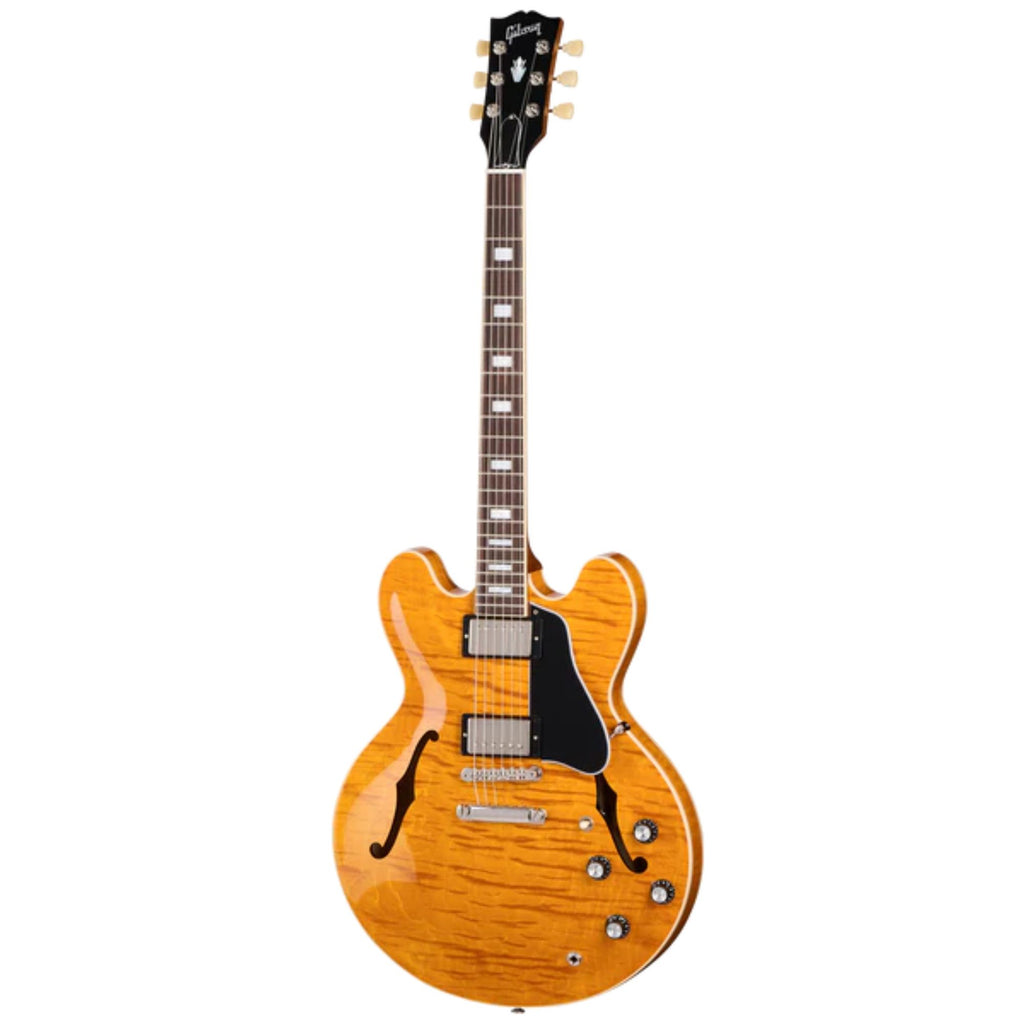

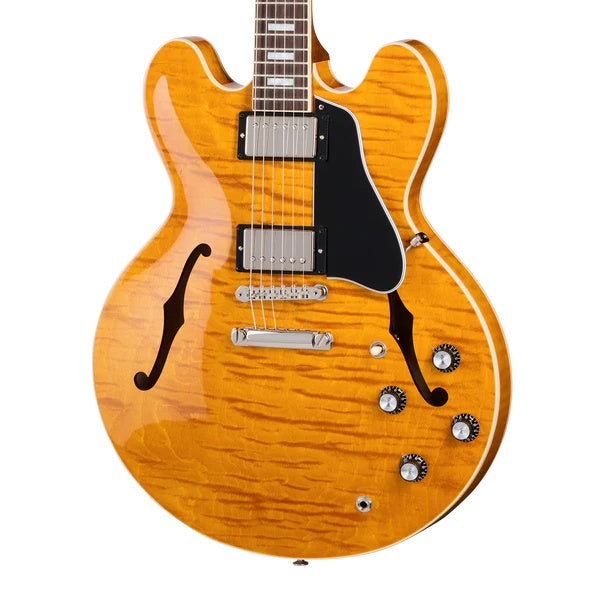

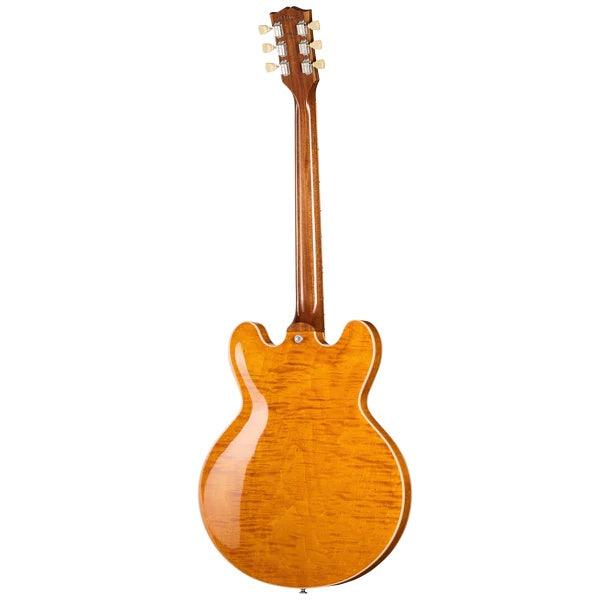

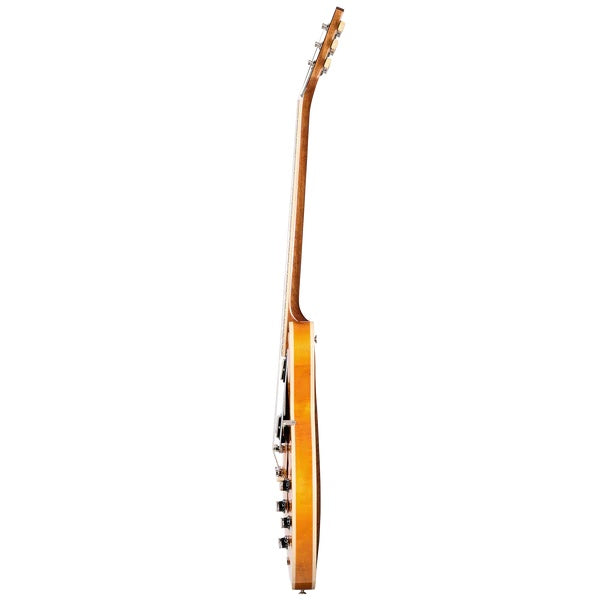

The Gibson ES-335 Figured combines iconic ES-335 tone and versatility with the stunning visual appeal of AAA figured maple, offering players a lightweight, high-performance semi-hollow guitar in striking custom finishes. Its classic design delivers rich, resonant sound, smooth playability, and timeless style, making it a standout choice for jazz, blues, rock, and beyond.
Features
- Semi-hollow body crafted from 3-ply AAA figured maple/poplar/maple with bound top and back.
- Solid maple centerblock for increased sustain and exceptional feedback resistance.
- Quarter-sawn Adirondack spruce bracing for tone and structural strength.
- Lightweight body design for comfortable playing and enhanced tonal range.
- Mahogany neck with Rounded C profile for smooth, comfortable grip.
- Bound rosewood fretboard with 22 medium jumbo frets and acrylic small block inlays.
- 12-inch fretboard radius suitable for both chords and expressive lead playing.
- Hand-wired control assembly with Orange Drop® tone capacitors.
- Equipped with Gibson Calibrated T-Type humbucking pickups for dynamic, versatile tone.
- Vintage Deluxe style tuners for smooth, precise tuning.
- Lightweight aluminum ABR-1 Tune-O-Matic bridge and Stop
- Bar tailpiece with steel thumbwheels and studs.
- Graph Tech® nut for stable tuning and enhanced sustain.
- Includes Gibson hardshell case for secure storage and transport.
Specifications
Body
Body Shape: ES-335
Body Material: 3-ply AAA Figured Maple/Poplar/Maple
Top: 3-ply AAA Figured Maple/Poplar/Maple
Back: 3-ply AAA Figured Maple/Poplar/Maple
Binding: Single-ply Cream, Top, Back, and Fretboard
Bracing: Quarter-Sawn Adirondack Spruce
Centerblock: Maple
Body Finish: Gloss Nitrocellulose Lacquer
Neck
Neck Material: Mahogany
Neck Joint: Glued In, Set Neck
Neck Profile: Rounded C
Scale Length: 628.65mm / 24.75in
End Of Board Width: 57.4mm / 2.26in
Fingerboard Material: Rosewood
Fingerboard Radius: 304.8mm / 12.0in
Fret Count: 22
Frets: Medium Jumbo
Inlays: Acrylic Small Block
Nut Material: Graph Tech
Nut Width: 43.05mm / 1.7in
Electronics
Neck Pickup: T-Type
Bridge Pickup: T-Type
Controls: 2 Volume, 2 Tone (Hand-wired with Orange Drop Capacitors)
Pickup Selector: 3-way Toggle
Output Jack: 1/4"
Hardware
Bridge: ABR-1 Tune-O-Matic
Tailpiece: Stop Bar

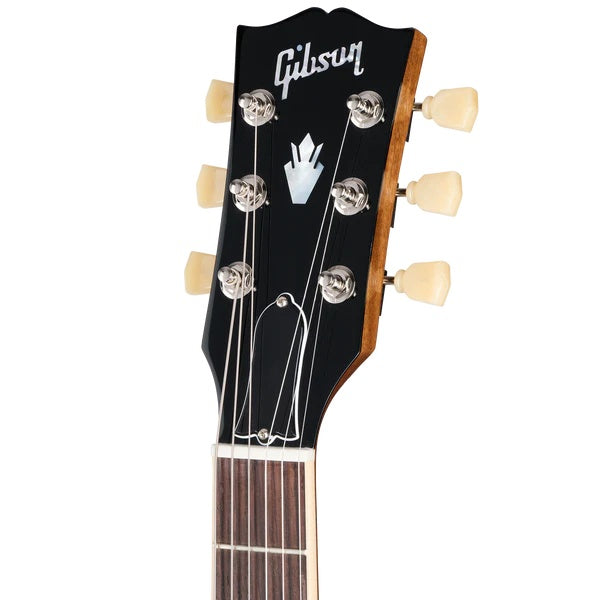

Tuning Machines: Vintage Deluxe with Keystone Button
Tuner Plating: Nickel
Control Knobs: Black Top Hat with Silver Insert
Switch Tip: Cream
Pickguard: Black 5-ply
Strap Buttons: 2
Truss Rod: Adjustable
Finish: Nickel
