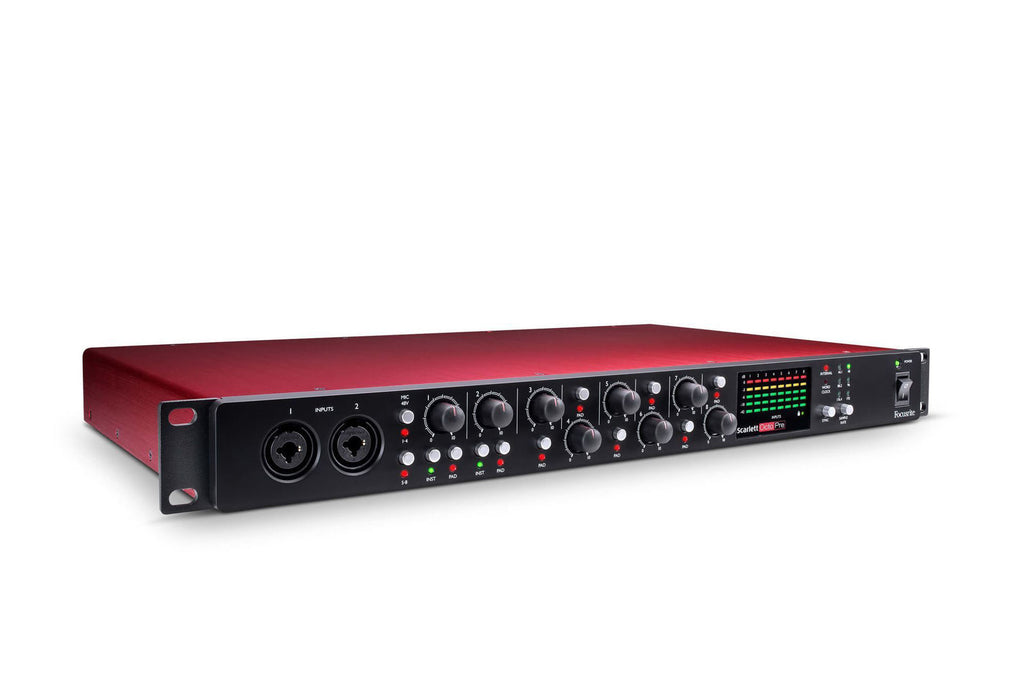

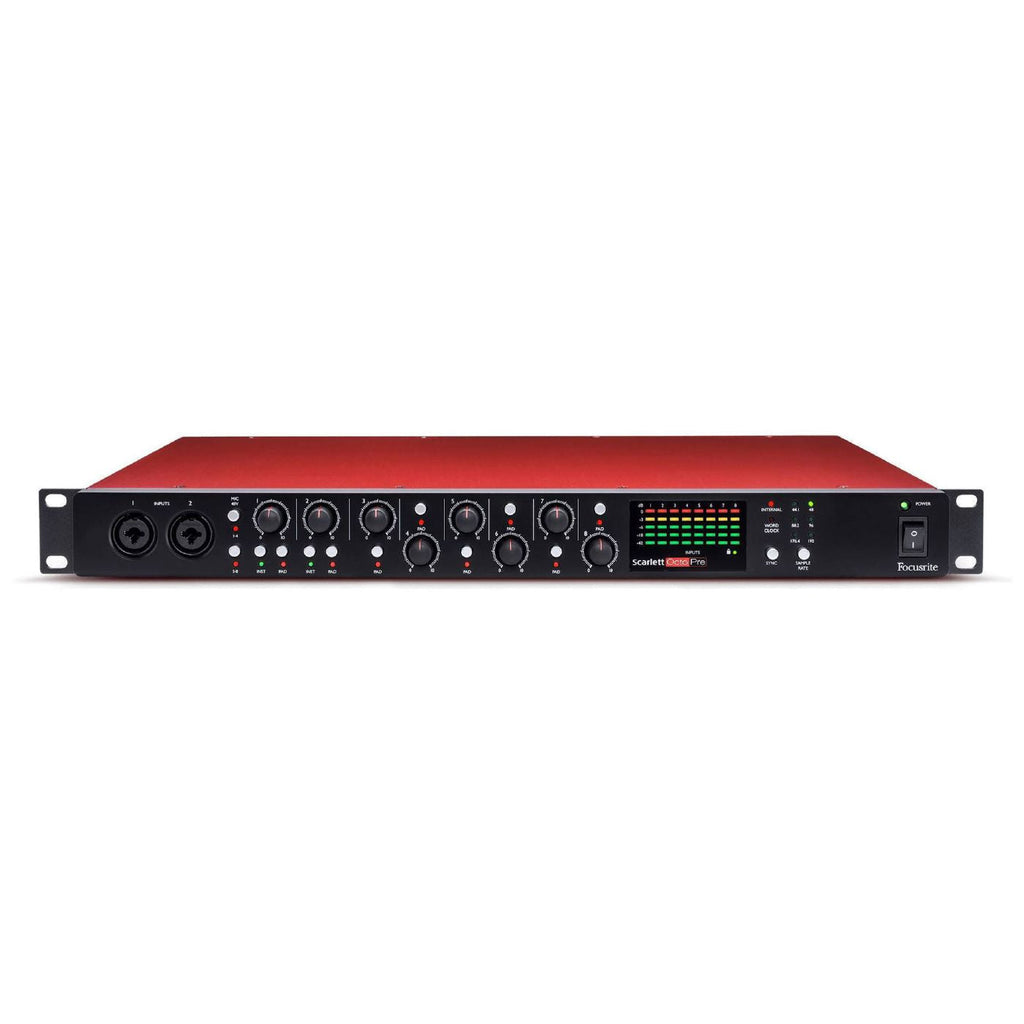

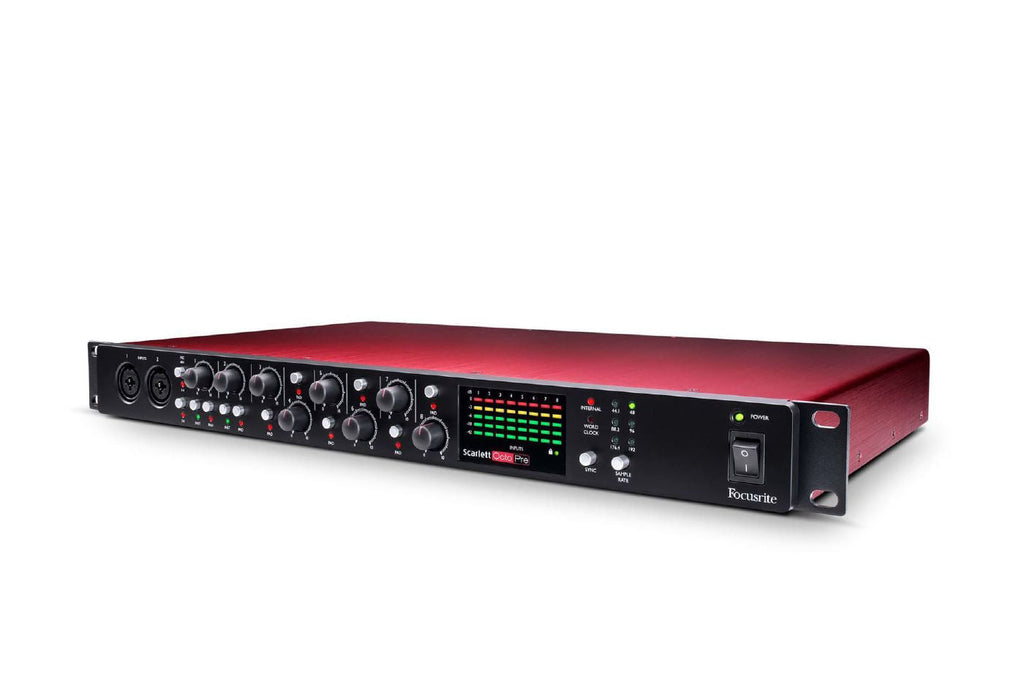

Focusrite Scarlett OctoPre 8ch Mic Pre-Amp with ADAT Connectivity

Features

• Eight natural-sounding Scarlett mic preamps
• Eight balanced line inputs
• Focusrite precision A-D conversion up to sample rates of 192kHz
• Dual front-panel instrument inputs

Specifications

SUPPORTED SAMPLE RATES

• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

MICROPHONE INPUTS

• Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
• Dynamic Range: 109 dB (A-Weighted)
• THD+N: <0.001%
• Noise EIN: -127 dBu
• Maximum input level (without pad): +8 dBu
• Maximum input level (with pad): +16 dBu
• Gain Range: 50 dB
• Input Impedance: 3 kΩ

LINE INPUTS

• Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
• Dynamic Range: 109 dB (A-Weighted)
• THD+N: <0.002%
• Maximum input level: +22 dBu
• Gain Range: 50 dB
• Input Impedance: 49 kΩ

INSTRUMENT INPUTS

• Frequency Response: 20Hz - 20kHz +0.5/-1.5dB
• Dynamic Range: 108 dB (A-Weighted)
• THD+N: <0.01%
• Maximum input level: +13 dBu
• Gain Range: 50 dB
• Input Impedance: 1 MΩ

LINE OUTPUTS

• Maximum Output Level (0 dBFS): +16dBu @ 0dBFS, or >21dBu where ADAT output is not used
• THD+N: <0.001%
• Ouput Impedance: 136 Ω (Balanced)
