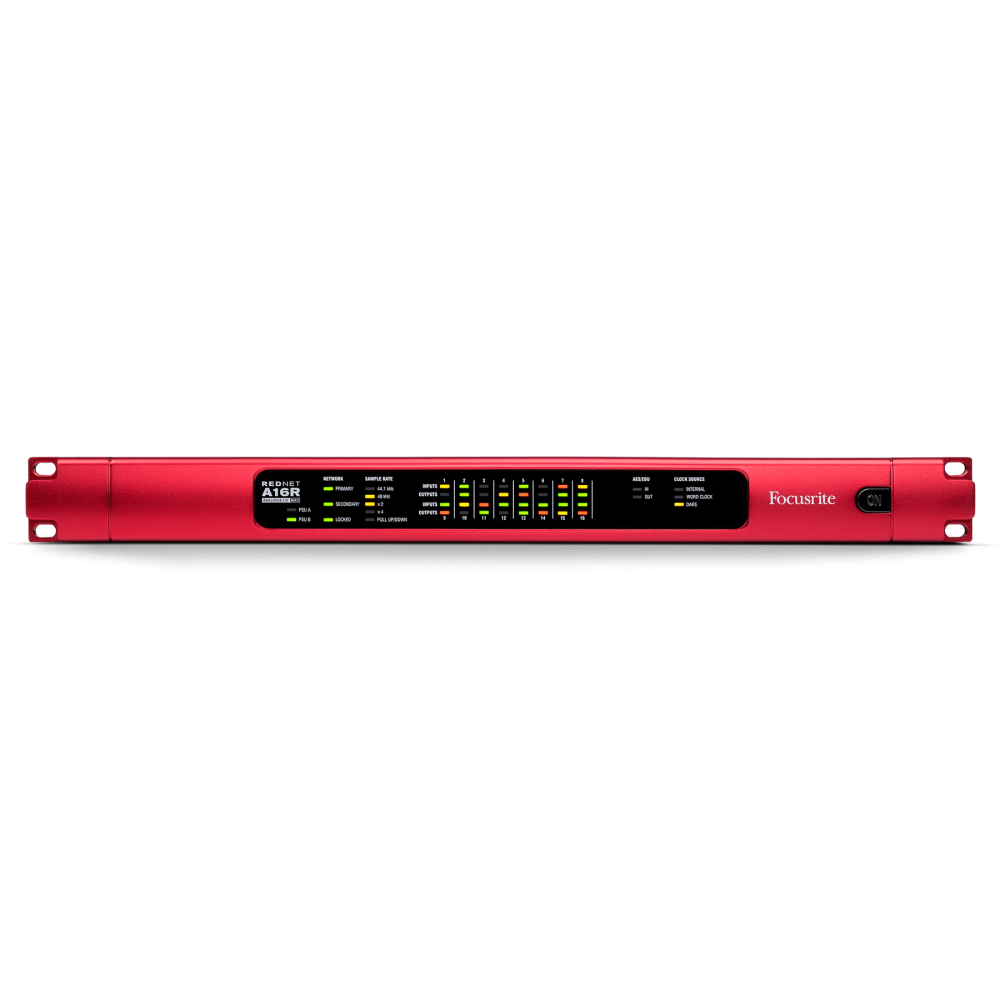

Focusrite REDNET A16R 16x16 Analogue I/O with Dual PSUs with Dante Audio over IP

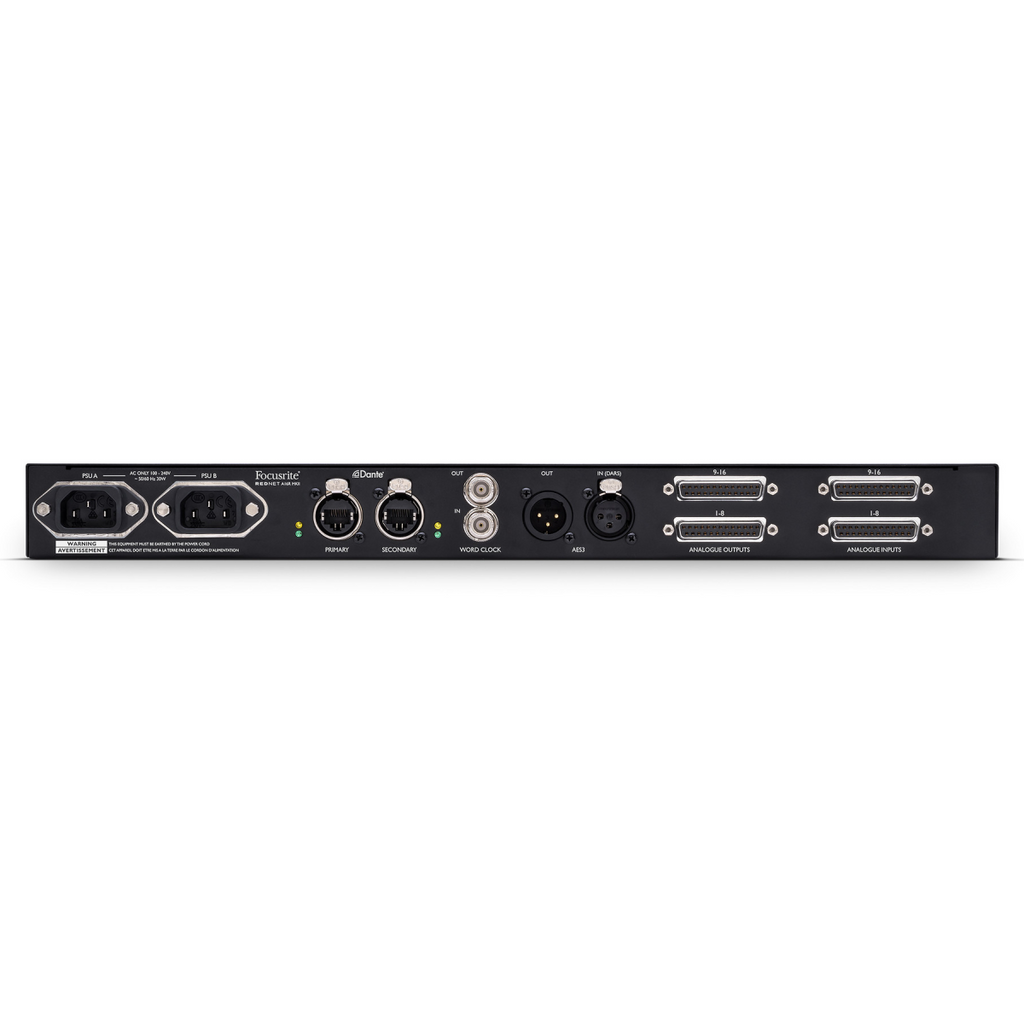

Analogue inputs and outputs are connected via four AES59-configured DB25 connectors on the rear panel, while an additional AES3 I/O pair is provided via male and female XLR connectors for further flexibility. The XLR inputs can receive DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows an external device to clock the RedNet A16R MKII or sync with the external input to act as the network clock grand master. RedNet A16R MKII is ideal for permanent installations and repeated power cycles. All connectors lock and stay connected even under load, ensuring hassle-free installation and peace of mind once in the rack. Plus, all Focusrite products are backed by a 3-year warranty and award-winning customer service. Features 16-channel bi-directional analogue interface for Dante networks, with additional two-channel AES3 I/O. Precision A-D and D-A conversion with 119dB dynamic range, flat from 20Hz - 20 kHz (+/- 0.15dB). Individual input/output channel level control using RedNet Control software. Dual PSUs with locking IEC inlets. Dual locking etherCON connectors for Primary and Secondary network connections. Power supply and ethernet redundancy with auto switchover in case of failure. Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status. Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate. Analogue I/O on four AES59 standard DB25 connectors. Digital I/O on a pair of XLR connectors (AES3). Rear panel XLR connector can either be used as a DARS input or as a traditional AES3 audio input. BNC connectors for Word Clock input and output. Compact 1U chassis allows maximum functionality in minimum rack space. AES67 and AES70 compliant. SMPTE ST 2110 compliant when used with Dante Domain Manager (sold separately). Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers. Remote control with RedNet Control, and route via Dante Control. Specification Line inputs 0 DBFS Reference Levels: +18 or 24dBu (switchable) Frequency Response: 20Hz – 20kHz ± 0.1dB THD+N: Less than -100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input EIN: -96dBu A-Weighted (typical) Signal-To-Noise Ratio: 120dB A-Weighted (typical) Converter Dynamic Range: 120dB A-Weighted (typical), 10Hz – 20kHz Line outputs 0 DBFS Reference Levels Outputs: 18 or 24dBu (switchable) Frequency Response Outputs: 20Hz – 20kHz ± 0.1dB THD+N Outputs: Less than -100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input Noise In Presence Of Signal: -94dBu A-Weighted (typical) Dynamic Range: 118 dB A-Weighted (typical) Converter Dynamic Range Output: 120dB A-Weighted (typical), 10Hz – 20kHz Digital input sample rate converters Sample Rate Range: 32kHz to 216kHz Gain Error: -0.3dB Dynamic Range Inputs: Greater than 138dB THD+N Inputs: Less than -130dB (0.00003) Latency: 11 to 45 samples (network and sample rate dependent) Digital performance Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit Clock Sources: Internal or from Dante Network Master External Word Clock Range: Nominal sample rate ±7.5 Rear panel connectivity Line Inputs: 2 x DB25 connectors Line Outputs: 2 x DB25 connectors Channel Count: 2 x 2 AES/EBU channels Input (Optional DARS): 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates) Output: 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates) Word Clock Input: 1 x BNC 75O port (switchable termination) Word Clock Output: 1 x BNC 75O port PSU: 2 x IEC Inputs with retaining clips Network: 2 x EtherCON NE8FBH, also compatible with standard RJ45 connectors
