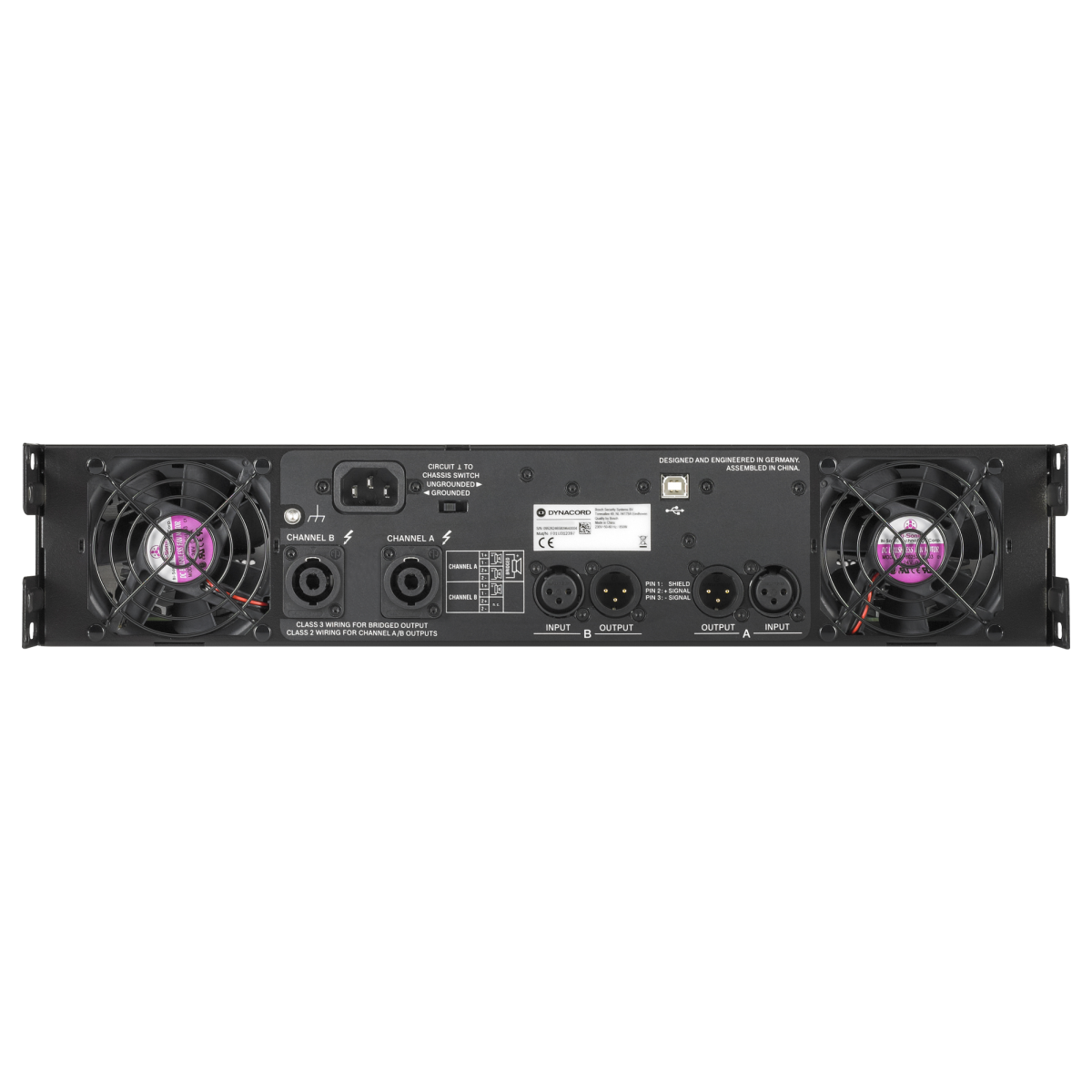

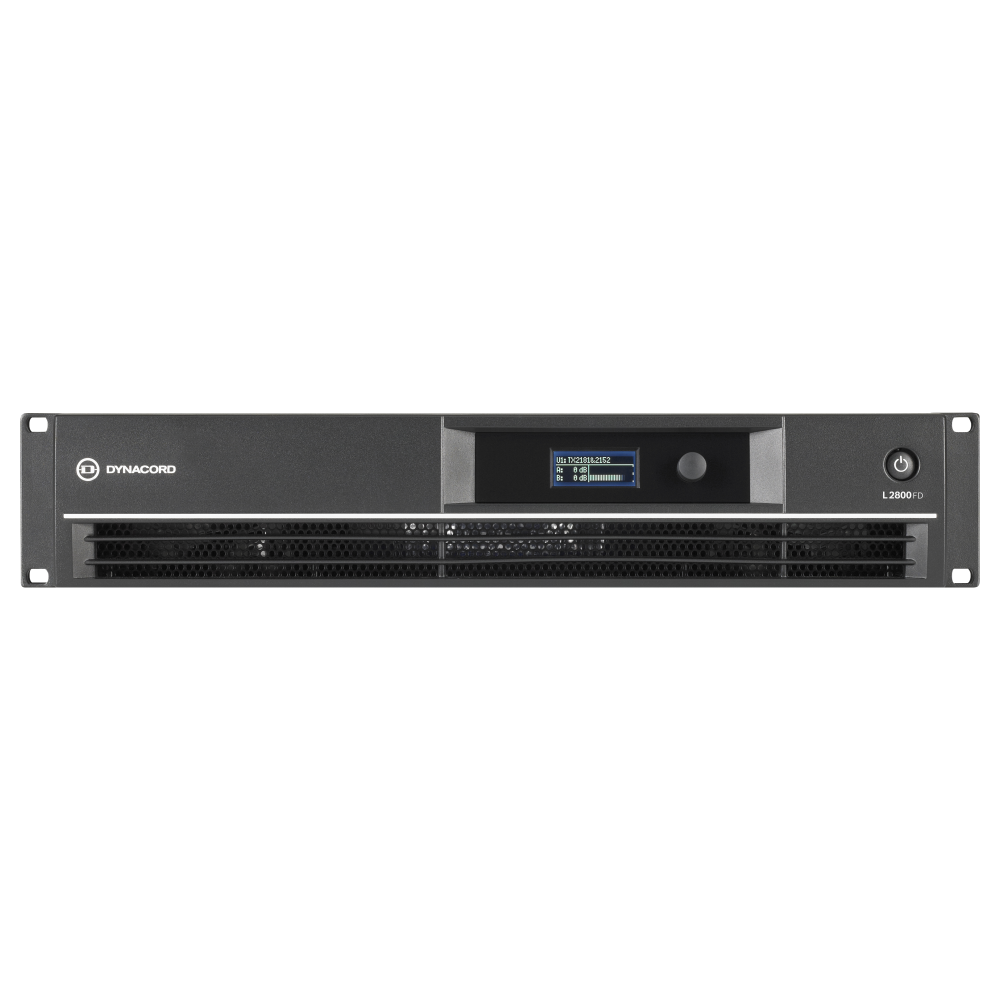

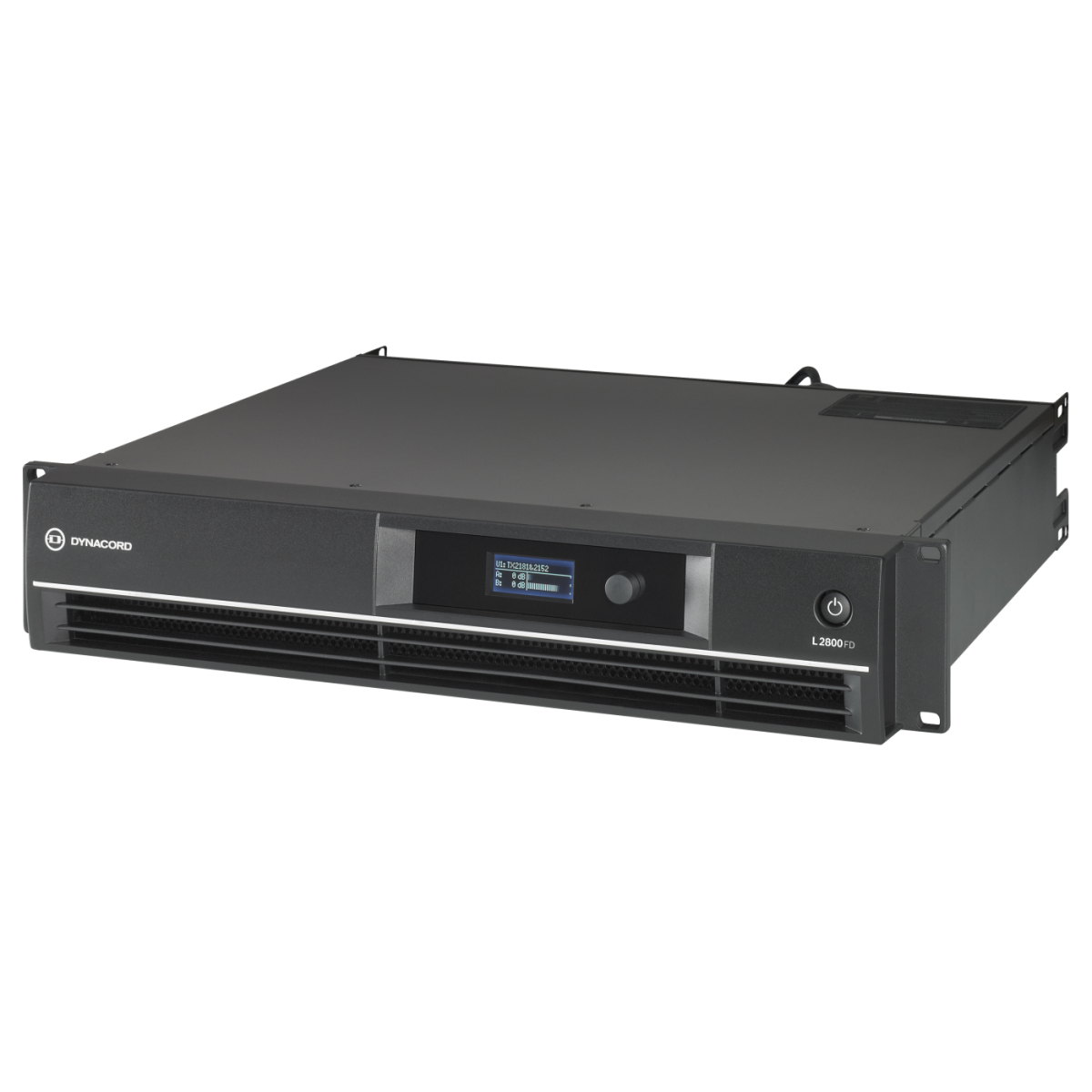

Dynacord L2800FD Power Amplifier 1400 Watts x 2

Features

• Professional DSP amplifier for live and mobile application
• Fully integrated professional speaker processing with FIR drive technology
• Market-leading acoustic performance and rock solid reliability
• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Specification

• 2 Ω
  • Maximum Output Power, Single Channel: 2300 W
  • Maximum Output Power, Dual Channel: 2200 W
  • Maximum Output Power, Bridged: n/a
• 2.7 Ω
  • Maximum Output Power, Single Channel: 2000 W
  • Maximum Output Power, Dual Channel: 1800 W
  • Maximum Output Power, Bridged: n/a
• 4 Ω
  • Maximum Output Power, Single Channel: 1400 W
  • Maximum Output Power, Dual Channel: 1300 W
  • Maximum Output Power, Bridged: 4400W
• 8 Ω
  • Maximum Output Power, Single Channel: 700 W
  • Maximum Output Power, Dual Channel: 650 W
  • Maximum Output Power, Bridged: 2600W

• Maximum RMS Voltage Swing THD = 1%, 1 kHz: 78.8 V
• Voltage Gain Ref.1 kHz: 32.0 dB
• THD at 900 W/4 Ω MBW = 80 kHz, 1kHz: < 0.05%
• IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
• DIM30, 3.15 kHz, 15 kHz: < 0.05%
• Maximum Input Level: +21 dBu
• Crosstalk ref. 1 kHz, at 100W/4 Ω: < -80 dB
• Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
• Input Impedance, Active Balanced: 20 k Ω
• Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω: >107 dB
• Output Noise, A-weighted: < -68 dBu
• Output Stage Topology: Class H
• Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz(factory configured)
• Power Consumption: ⅛ Maximum Output Power @ 4 Ω 700 W
• Mains Fuse: 240 V/230 V: T15AH; 120 V/100 V: T25AH
• Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
• Cooling: Front-to-rear, 3-stage-fans
• Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)
• Safety Class: I
• Color: Black
• Product Dimensions (W x H x D), mm: 483 x 88 x 462.4
• Product Weight: 16.2 kg (35.7 lb)
• Signal Processing: FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
• Remote Control: SONICUE sound system software **
• Accessories: RMK15 (rear rack mount kit)
