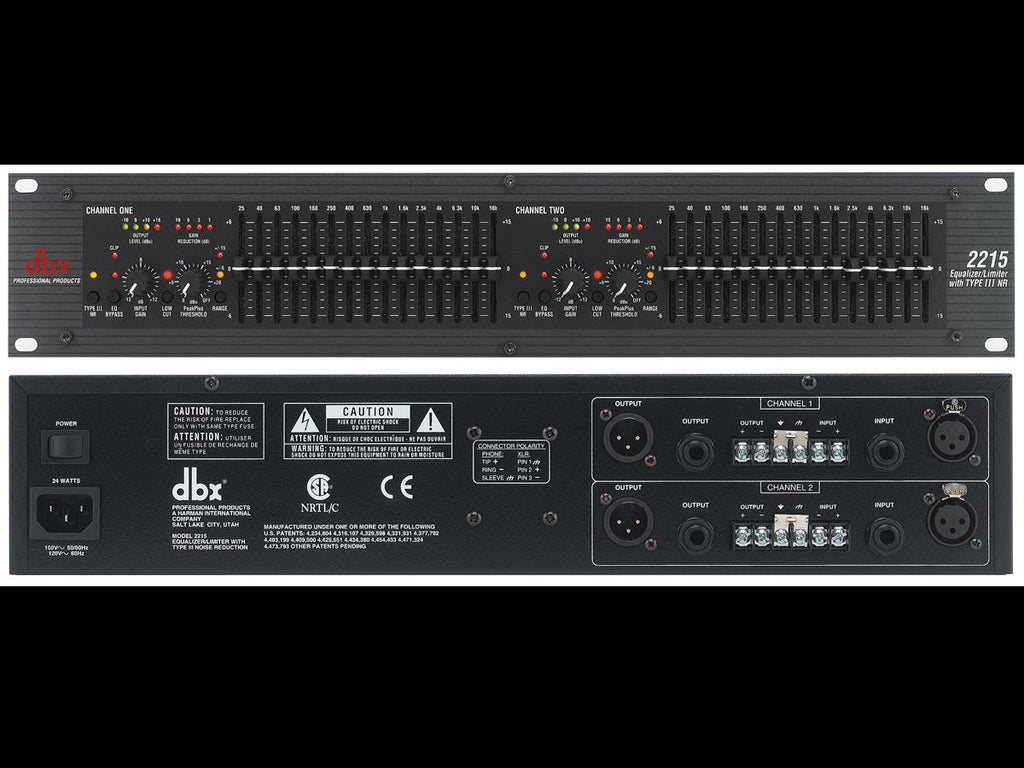

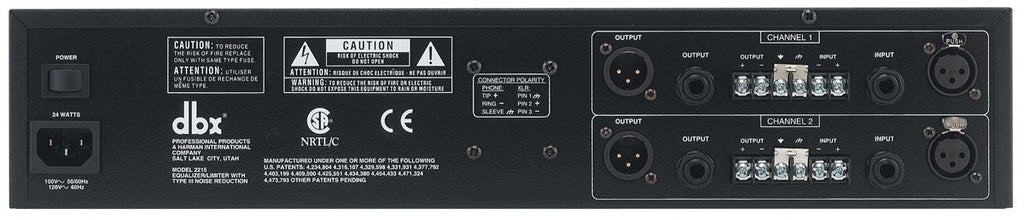

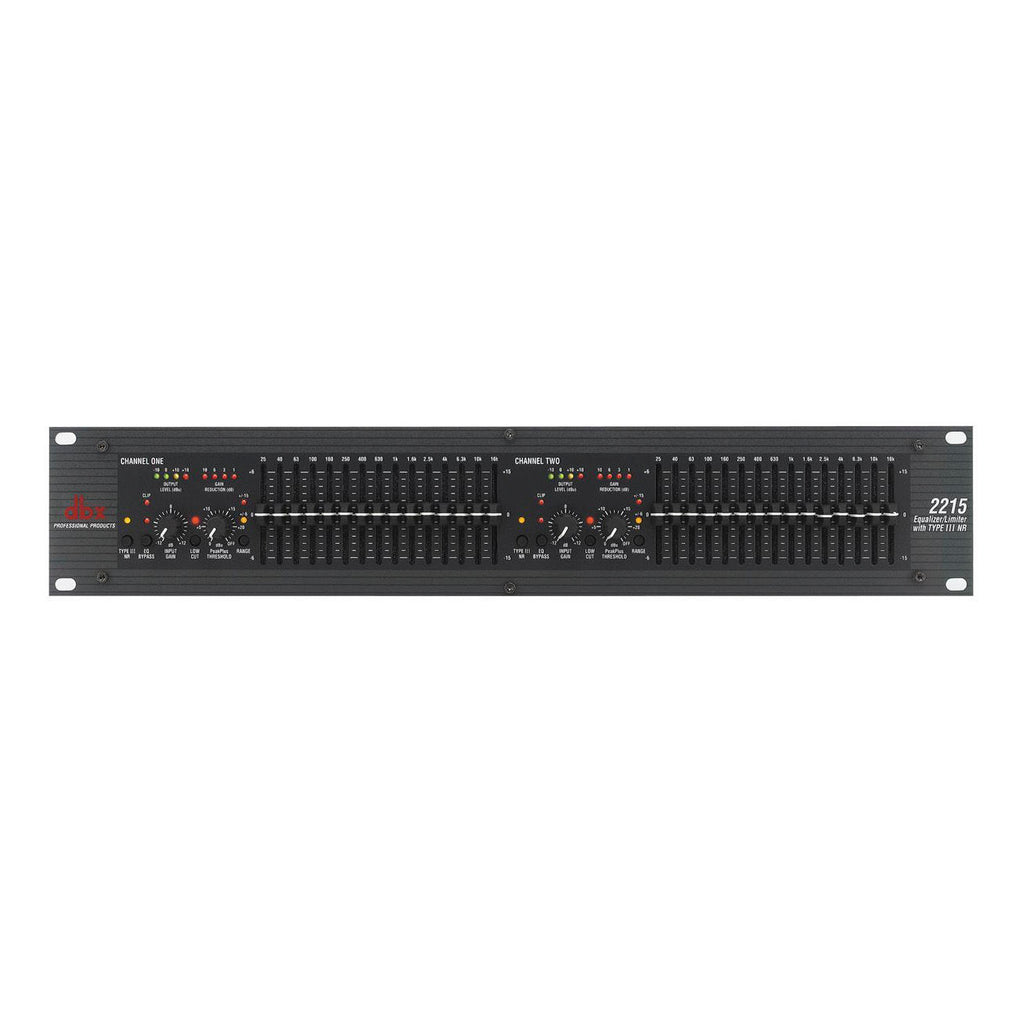

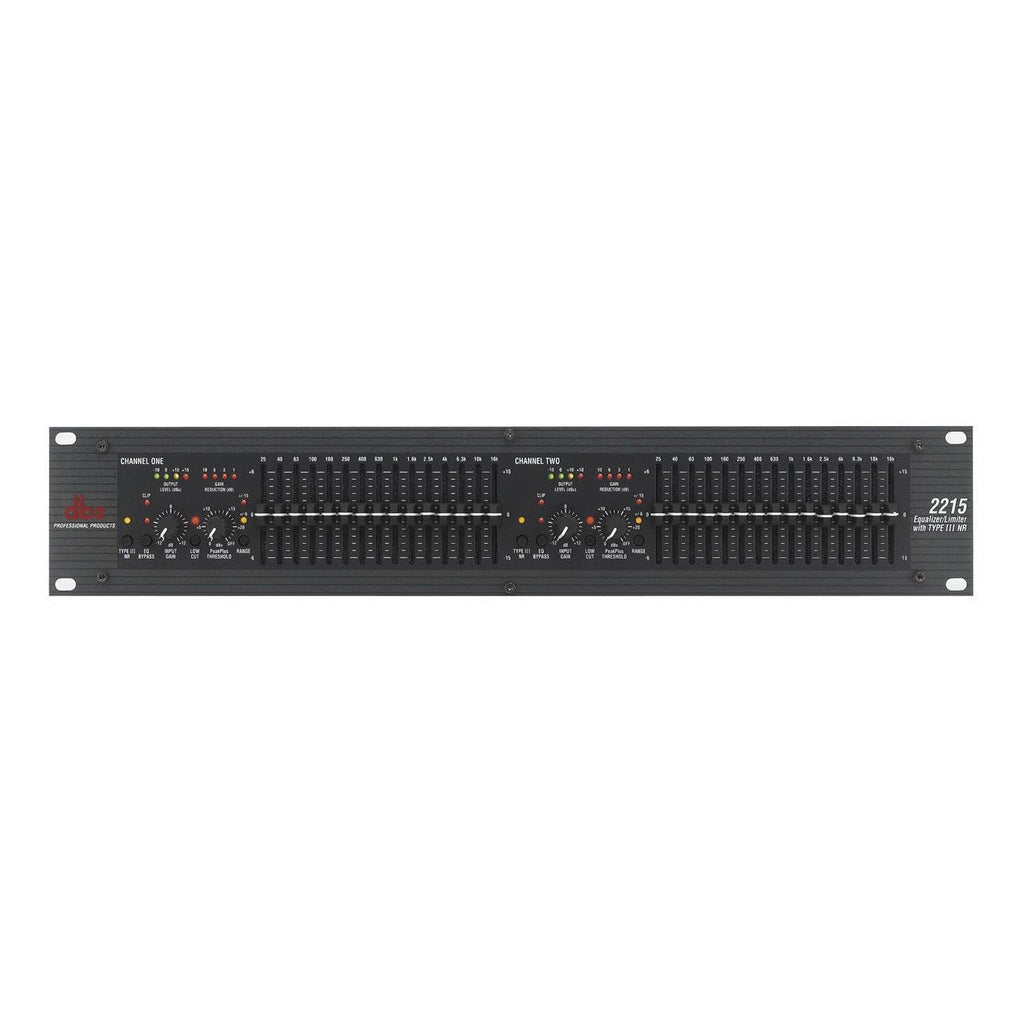

It's amazing. One little button. So much effect. dbx® Type III® Noise Reduction is an entirely new concept... virtually instantaneous encode/decode within the circuitry of the box. We started out to build the finest EQs possible, boxes with the heritage and performance to rival our famous 30 Series EQs. And to no one's surprise they came out awfully darn good. (Ask to see the Audio Precision plots compared to the competition.) But then, Roger (our chief engineer, a nice guy, as far as engineers go) got the crazy idea of putting this new noise reduction stuff in the box. We listened to it and were amazed. The EQs sounded great without it but with it the performance was nothing short of incredible. Check it out yourself and see. Features Revolutionary instant encode/decode Type III® Noise Reduction in-circuit at the push of a button. Increases S/N ratio by up to 20dB Patent-pending PeakPlus™ Limiter threshold range from 0dBu to +24dBu (off) can transparently tame the wildest hits or the subtlest nuances of any signal An extremely high quality EQ, patent-pending Type III® Noise Reduciton, and the elegant new PeakPlus™ Limiter all in one great sounding box Four segment LED bargraph for BOTH Gain Reduction AND Output Level offers the most comprehensive visual feedback available Status LEDs offer visual feedback for all settings on the front panel Specifications Input Connectors: 1/4 TRS, female XLR (pin 2 hot), and barrier terminal strip Input Type: Electronically balanced/unbalanced, RF filtered Input Impedance: Balanced 40 kOhm, unbalanced 20 kOhm Max Input: >+21dBu balanced or unbalanced CMRR: >40dB, typically >55dB at 1kHz Output Connectors: 1/4 TRS, male XLR (pin 2 hot), and barrier terminal strip Output Type: Impedance-balanced/unbalanced, RF filtered Output Impedance: Balanced 200 ohm, unbalanced 100 ohm Max Output: >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) Bandwidth: 20Hz to 20kHz, +/-0.5dB Frequency Response: <10Hz to >50kHz, +0.5/-3dB Signal-to-Noise: (NR In: +/-6 and +/-15dB ranges) >102dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth Dynamic Range: (NR In: +/-6dB and +/-15dB ranges) >120dB, unweighted Signal-to-Noise: (NR Out: +/-6dB range) >94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth Dynamic Range: (NR Out: +/-6dB range) >112dB, unweighted Signal-to-Noise: (NR Out: +/-15dB range) >90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth Dynamic Range: (NR Out: +/-15dB range) >108dB, unweighted THD+Noise: <0.04%, 0.02% typical at +4dBu, 1kHz Interchannel Crosstalk: <-80dB, 20Hz to 20kHz Noise Reduction: Up to 20dB of dynamic broadband noise reduction NR Switch: Activates dbx Type III Noise Reduction Bypass Switch: Bypasses the graphic equalizer section in the signal path Low cut Switch: (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter Range Switch: (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range I/O Meter: 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu Gain Reduction Meter: 4-LED bar graph (all Red) at 0, 3, 6, and 10dB Indicators: NR Active (Yellow); EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red) Operating Voltage: 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz Power Consumption: 28W Power Connector: IEC receptacle Dimensions: 3.5 H X 19 W X 7.9 D (8.9cm x 48.3cm x 20.1cm) Unit Weight: 8.5 lbs. (3.9 kg) Shipping Weight: 9.5 lbs. (4.3 kg)
