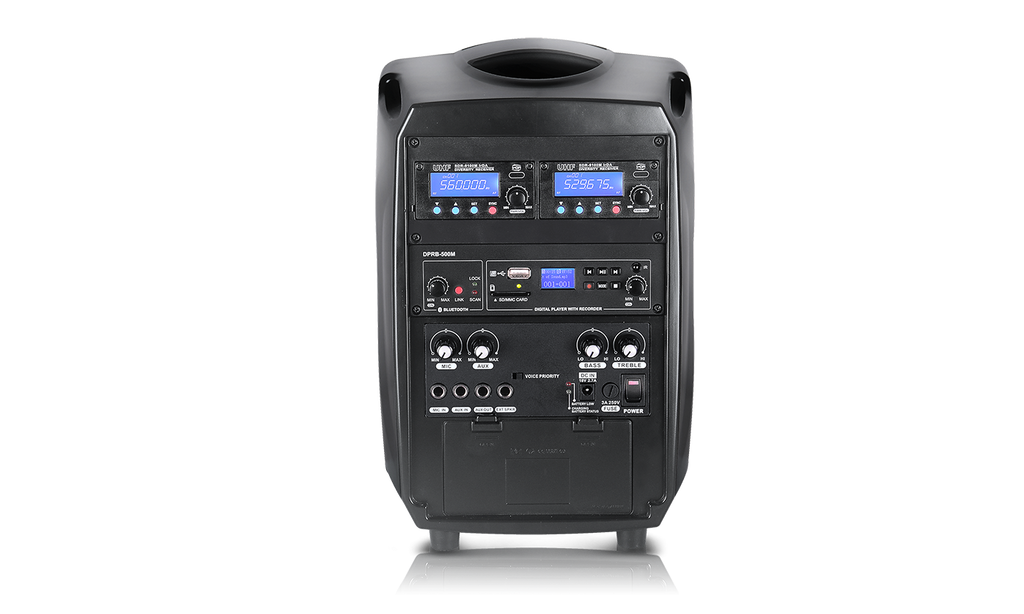

Chiayo Focus PA System - 566MHz

The FOCUS PRO is a versatile, high-performance amplifier designed to meet the demands of any occasion. Whether you're hosting a conference, leading a lecture, teaching a class, or organizing an indoor event, it delivers powerful, crystal-clear sound for audiences of 300 to 1000 people.

Equipped with multiple receiver modules, it offers seamless connectivity with a range of audio devices, ensuring maximum flexibility. Its built-in high-efficiency lithium battery provides up to 20 hours of continuous operation—ideal for all-day use without interruption.

Lightweight and portable, the FOCUS PRO is easy to transport and set up, giving you professional-grade sound and effortless operation wherever you need it.

Features

• 70W Class-D power amplifier.
• 6 ½” full range speaker.
• 2-band equalizer (BASS / TREBLE) for all audio inputs.
• VOICE PRIORITY automatically ducks music when a microphone is used (switchable).
• Unique optional combination
• SLOT 1: Receiver module (SDR-8200/8100M IrDA/DWR-5410M).
• SLOT-2: Repeater (RP-5100M) or receiver (SDR-8200/8100M IrDA/DWR-5410M) module.
• SLOT 3: Bluetooth-MP3 module (DPRB-500M).
• 6.3mm jack connector for microphone input.
• AUX IN (6.3mm jack).
• LINE OUT (6.3mm jack) for external audio recording.
• SPEAKER OUT (6.3mm jack) for an external 4-8Ω passive speaker.
• Up to 20 hours operating time per charge with lithium battery.
• Battery compartment design for simple battery replacement.

Specifications

• Max power output 70W, 4Ω load (class-D)
• Speaker system 6 ½" full range
• Frequency response 50Hz-20KHz±3dB
• T.H.D. < 0.5%
• Audio input MIC in (Ø6.3mm),
• AUX in (Ø6.3mm)
• Audio output AUX out (Ø6.3mm)
• External speaker 4~8Ω (Ø6.3mm)
• Power supply 100-240V AC, 19V DC / 3.42A
• Battery Lithium (14.8V / 5.2Ah) x1
• Operating time 9-11 hours in music, 11-20 hours in speech
• Charging time about 8 hours
• Dimensions (mm) 220 x 215 x 313
• Weight (kg) 3.8
