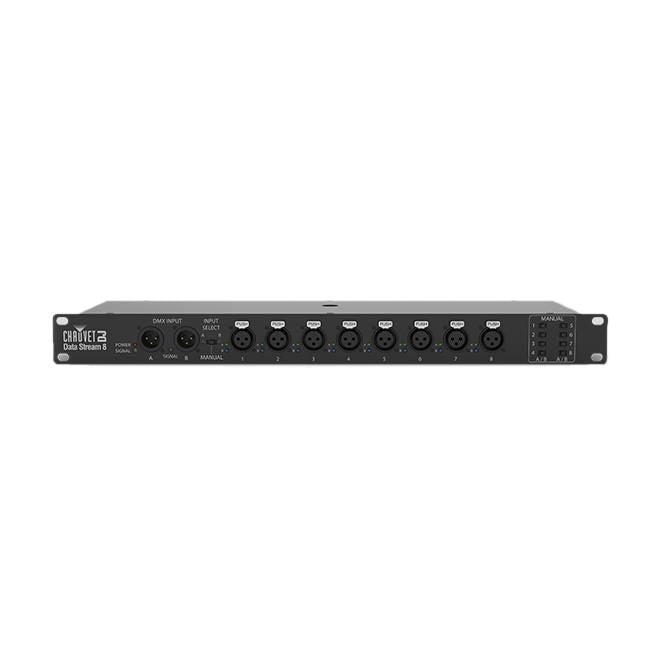

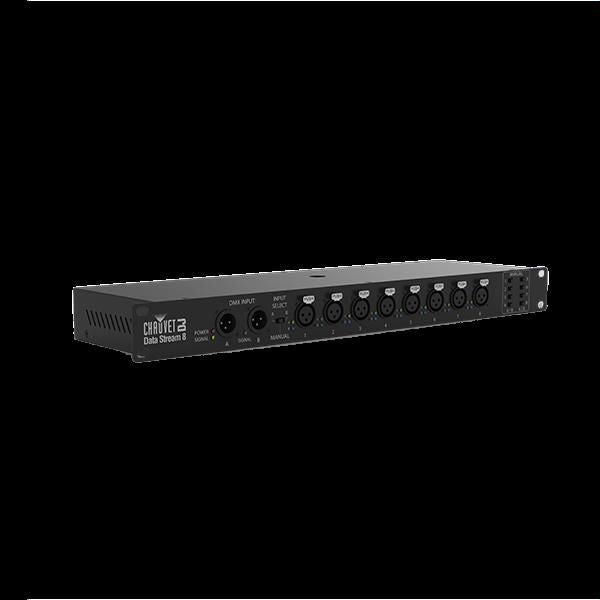

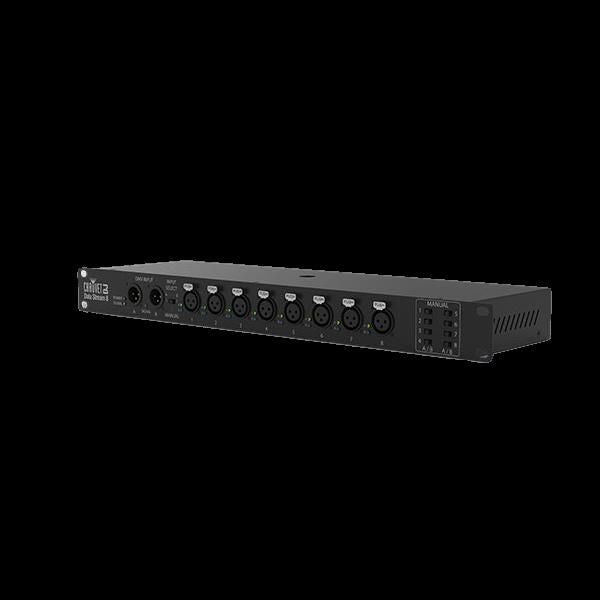

Chauvet Data Stream 8 Flexible Universal DMX Splitter

Features

• Flexible DMX splitter provides up to 8 outputs from dual inputs
• Each input can be used simultaneously and sent to any output
• Master 3-position switch quickly sends A or B input to all 8 outputs
• Individual 2-position switches send data from either the A or B input
• Optically isolated outputs provide protection in the event of a short
• Threaded insert safely secures to overhead truss

Specifications

• DMX Connectors: 3-pin XLR
• Rackmount: 1U
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 2 W, 0.04 A @ 120 V, 60 Hz
  2 W, 0.03 A @ 230 V, 50 Hz
• Weight: 4.6 lbs (2.1 kg)
• Size: 19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
• Approvals: CE
