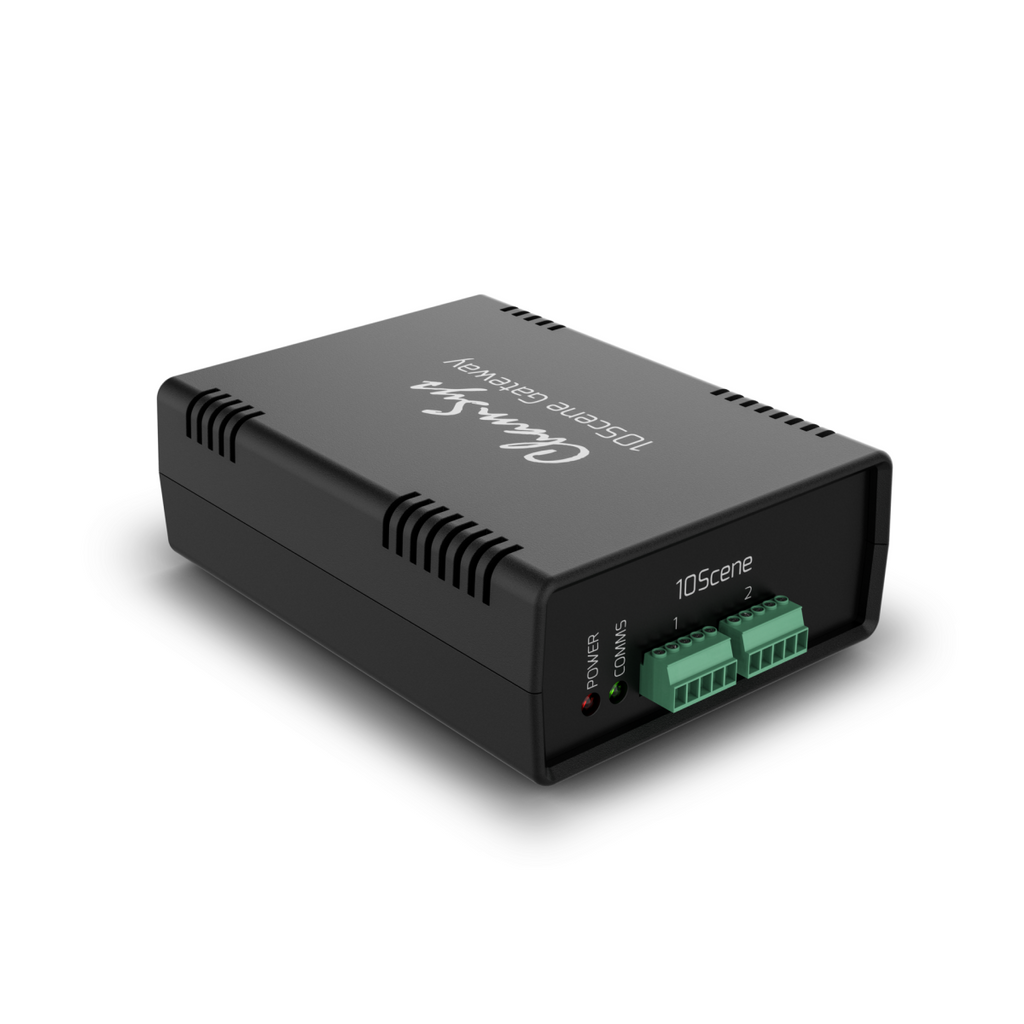

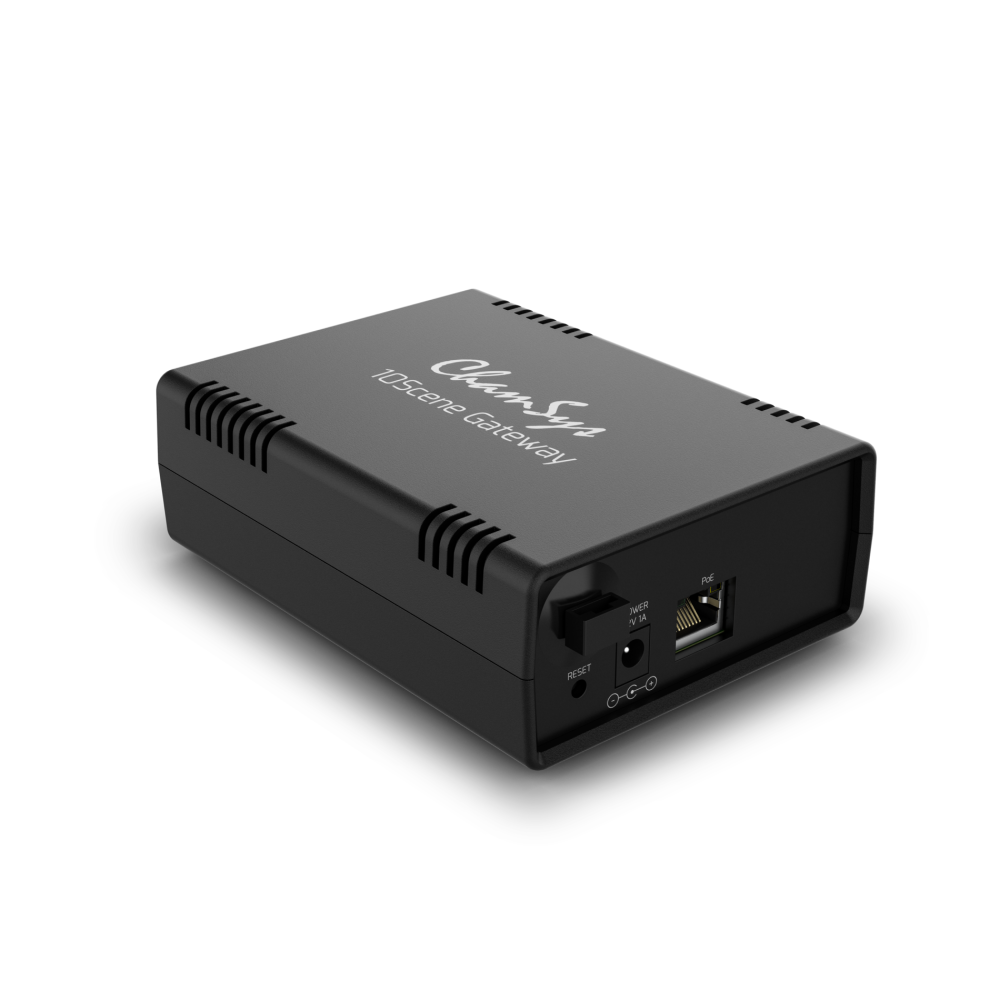

The 10Scene Gateway is the ultimate connectivity solution for integrating 10Scene wall plates with MagicQ and QuickQ lighting systems, ensuring seamless communication and effortless control over your lighting setup. Designed for professional installations, this powerful interface supports up to 20 wall plates via its two 10Scene ports, making it the perfect choice for theaters, live venues, houses of worship, and architectural lighting applications.
Built for flexibility and convenience, the 10Scene Gateway offers dual power options—external power supply or Power over Ethernet (PoE), allowing for easy integration into any system. Whether you're expanding your lighting control or streamlining operations, this versatile, user-friendly interface delivers unmatched reliability and performance in any professional lighting environment.
Features
- Two 10Scene ports
- Connection for up to 20 wall plates
- One Network port
- Powered via external power supply or via PoE
- Compatibile with both MagicQ & QuickQ systems
Specifications
Hardware
- 10Scene Ports: 2
- Max no of 10Scene Wall Plates Supported: 20
- Contact Trigger Inputs: 2
- Network Port: 1
- Unlocks MagicQ PC from ‘Demo Mode’: No
- PoE Voltage Supported: 37-57v
- PoE Supported Types: 802.3af Type1, 802.3at Type 2, 802.3bt Type 3 and 4
Console Weights and Dimensions
- Width: 133mm (5.3 inches)
- Depth: 88mm (3.4 inches)
- Height: 45mm (1.7 inches)
- Weight: 0.175kg (0.3 lb)
Included Accessories:
