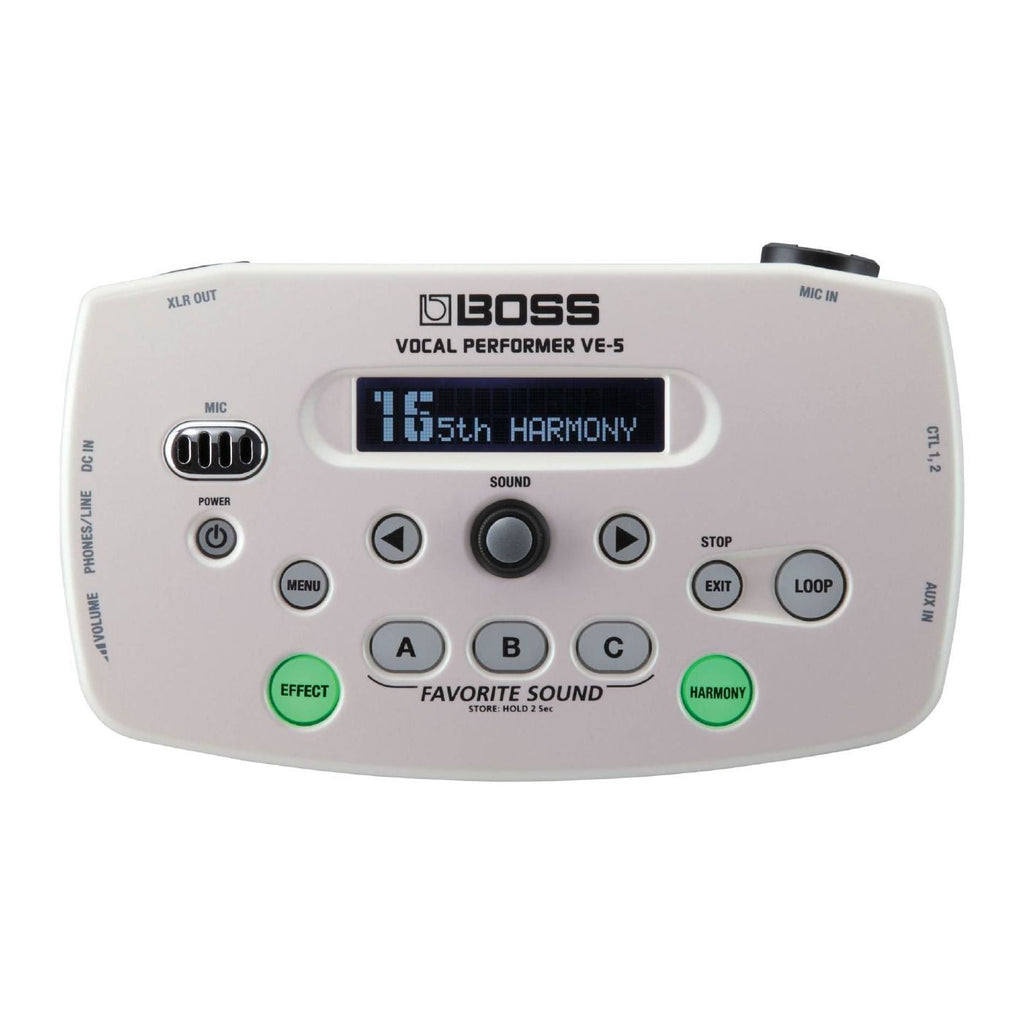

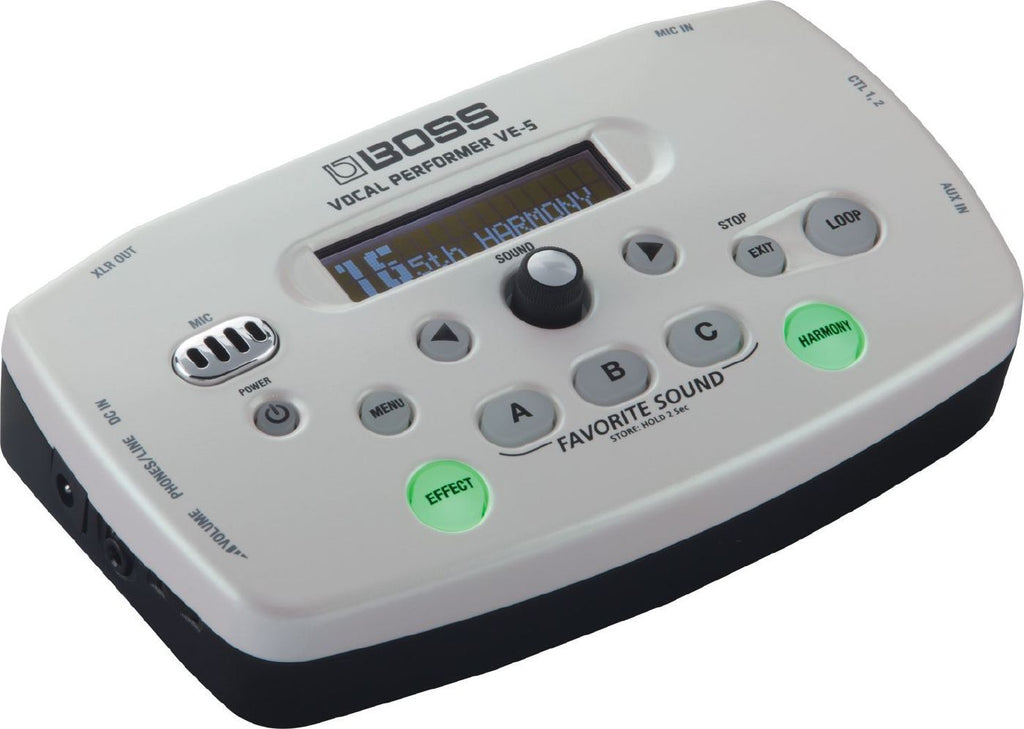

Featuring a simple-to-use tabletop design that can be easily attached to a mic stand for performing, the VE-5 is perfect for singers, rappers, beatboxers, webcasters, and anyone that wants to have fun with processing vocal sounds.
Its physical design is small and light, yet its effects are heavyweight class, derived from the popular VE-20 Vocal Performer. With battery operation and built-in phrase looping, the VE-5 is also an ideal tool for street performers who want to bring a new dimension of creativity to their act.
Features
- Easy one-touch operation
- Six types of high-quality vocal effects inherited from the VE-20 – Reverb, Delay, Double/Harmony, Dynamics, Pitch Correct, and Tone/SFX
- Phrase Looper adds impact to real-time vocal performances, including harmonizing and layered beatboxing
- Favorite Sound function provides immediate access to preferred sounds
- Ideal for live performance, as well as tabletop setups; mic-stand mount included
- Internal microphone for instant gratification
- Aux input for blending external music
- Battery operation for street performance (AC adapter sold separately)
Specifications
- Nominal Input Level:
- MIC IN: -40 dBu (MicSens = 40)
- AUX IN: -20 dBu
- Input Impedance:
- MIC IN: 4 k ohms
- AUX IN: 22 k ohms
- Nominal Output Level:
- XLR OUT: -40 dBu
- PHONES/LINE: TBD
- Output Impedance:
- XLR OUT: 600 ohms
- PHONES/LINE: 66 ohms
- Memory: Sound: 50
- Effect Types: DYNAMICS, PITCH CORRECT, TONE/SFX, DOUBLE/HARMONY, DELAY, REVERB
- Phrase Loop: 38 sec. (Mono only)
- Display: 16 characters, 2 lines (backlit LCD)
- Connectors:
- MIC IN jack/XLR type (balanced, phantom power: DC 48 V, 10 mA Max), 1/4 inch TRS phone type (balanced)
- AUX IN jack (Stereo miniature phone type)
- XLR OUT jack (XLR type)
- PHONES/LINE jack (Stereo miniature phone type)
- CTL 1, 2 Jack (1/4" TRS phone type)
- DC IN Jack (DC 9 V)
- Current Draw: 190 mA (9 V max.)
- Expected battery life under continuous use: Rechargeable Ni-MH Battery (AA, HR6): Approx. 20 hours (phantom power: OFF)/Approx. 9 hours (phantom power: ON)Alkaline (AA, LR6) : Approx. 13 hours (phantom power: OFF)/Approx. 6 hours (phantom power: ON) * These figures will vary depending on the specifications of the batteries and the actual conditions of use.
- Accessories:
- Owner’s Manual
- Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information)
- Mic Stand Holder (Screw x 2, Washer x 2, Spring Washer x 2)
- Audio Cable (Stereo Miniature Phone Type, Cable Tie Attached)
- Alkaline Battery (AA, LR6) x 4
- Options (sold separately):
- AC Adaptor (PSA series)
- Footswitch (FS-5U, FS-6, FS-7)
- Width: 178 mm; 7-1/16 inches
- Depth: 108 mm; 4-1/4 inches
- Height: 55 mm; 2-3/16 inches
- Weight: 460 g; 1 lbs. 1 oz.
WATCH: VE-5 Vocal Performer Overview
