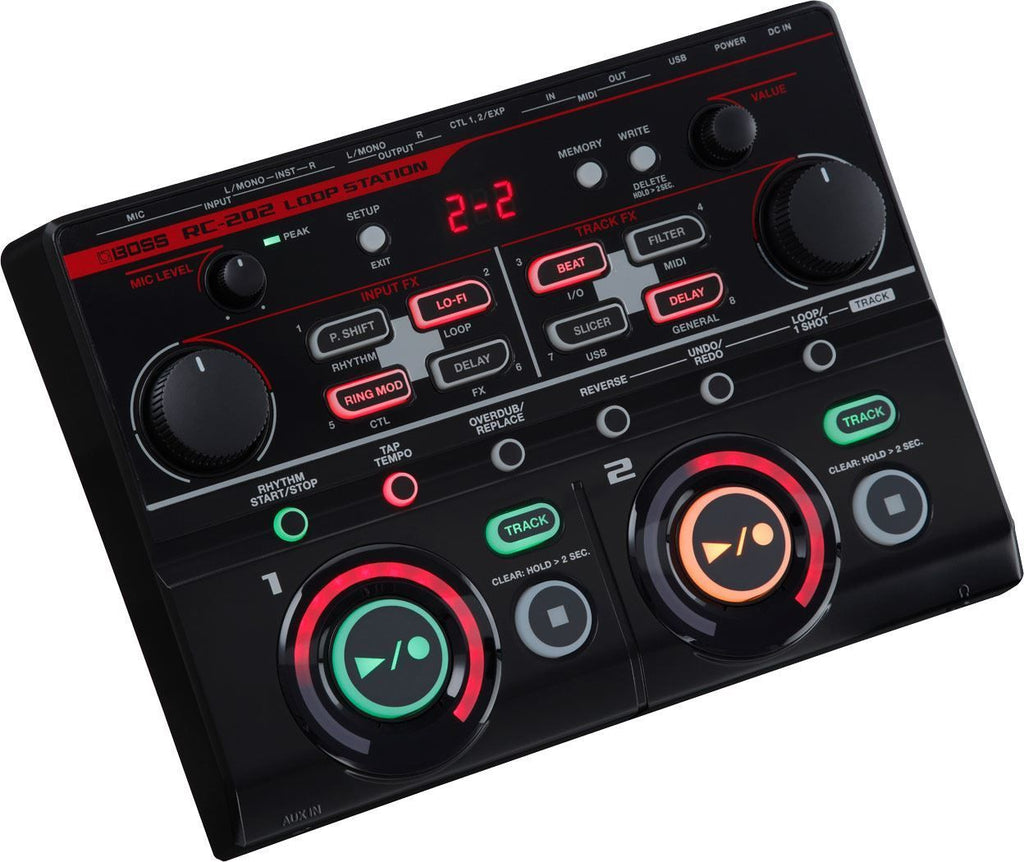

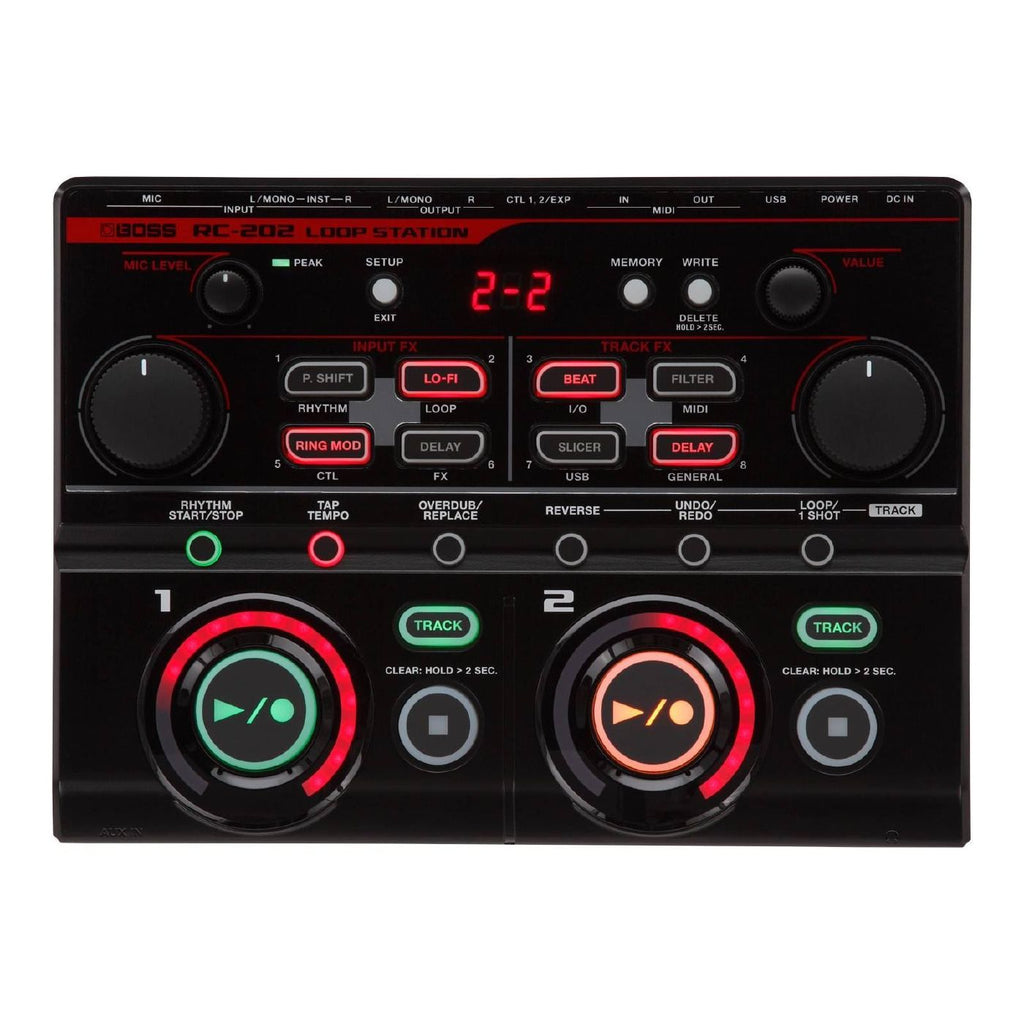

BOSS RC-202 Loop Station

Based on the popular RC-505 Loop Station, the two-track RC-202 offers the distinctive look and fingertip interface style of its big brother, plus a host of new features. Four Input FX and four Track FX are available at once, and loops can be saved to memories in real time for seamless creative expression while performing.

Expanded foot control and MIDI capabilities are also included, ideal for looping musicians who have their hands occupied with guitar, keyboards, and other instruments.

Features

• Advanced BOSS technology in a compact tabletop looper that can be operated with your hands
• Two simultaneous stereo phrase tracks with dedicated controls and loop status indicators
• Four Input FX and four Track FX simultaneously available for processing loops with DJ and sampler-style effects
• 64 phrase memories (8 memories x 8 banks), each containing two phrase tracks, custom effects/playback settings, and more
• Expanded external control via optional footswitches or expression pedal and MIDI
• XLR mic input with phantom power, mono/stereo instrument inputs, and stereo aux input
• 17 onboard rhythm patterns, including odd-measure beats
• USB for phrase import/export and DAW integration with computers

Specifications

Nominal Input Leve

• lINPUT MIC (variable): -40 dBu (typ.), -10 dBu (max)
• INPUT INST: -10 dBu
• AUX IN: -20 dBu

Input Impedance

• INPUT MIC: 4 k ohms
• INPUT INST: 1 M ohm
• AUX IN: 22 k ohms

Nominal Output Level

• OUTPUT: -10 dBu

Output Impedance

• OUTPUT: 1 k ohm

Recommended Load Impedance

• OUTPUT: 10 k ohms or greater

Recording/Playback

• Maximum Recording Time: Approx. 3 hours (stereo)
• Maximum Phrase Memory: 8 Memory x 8 Bank
• Number of Tracks: 2
• Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Effect Type(INPUT FX/TRACK FX)

• LPF
• BPF
• HPF
• PHASER
• FLANGER
• SYNTH
• LO-FI
• RING MODULATOR
• GUITAR TO BASS
• SLOW GEAR
• TRANSPOSE
• PITCH SHIFT
• ROBOT
• VOCAL DIST
• VOCODER
• NATURAL COMP
• HARD COMP
• NATURAL LIM
• HARD LIM
• PHONE VOX
• EQ
• LOW ISOLATOR
• MID ISOLATOR
• HIGH ISOLATOR
• OCTAVE
• AUTO PAN
• MANUAL PAN
• TREMOLO
• SLICER
• DELAY
• PANNING DELAY
• TAPE ECHO
• GRANULAR DELAY
• ROLL
• CHORUS
• REVERB
• BEAT REPEAT *1
• BEAT SHIFT *1
• BEAT SCATTER *1
• VINYL FLICK *1

  *1 TRACK FX only

Effect Type (MASTER FX)

• COMP
• REVERB

Rhythm Type

• 17

Display

• 7 segments, 3 characters (LED)

USB

• Mass Storage Class
• Audio/MIDI

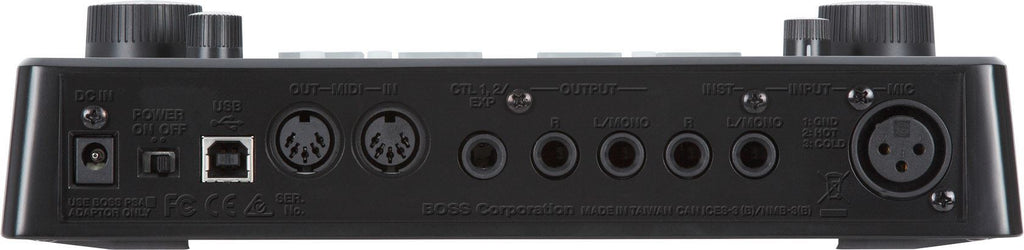

Connectors

• INPUT MIC jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max) INPUT INST (L/MONO, R) jacks: 1/4-inch phone type
• AUX IN jack: Stereo miniature phone type
• Phones jack: Stereo miniature phone type
• OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
• CTL 1, 2/EXP jack: 1/4-inch TRS phone type
• USB port: USB B Type
• MIDI (IN, OUT) connectors
• DC IN jack

Power Supply

• AC adaptor

Current Draw

• 400 mA

Accessories

• AC adaptor
• Owner''s manual
• Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

• Footswitch: FS-5U, FS-6, FS-7
• Expression pedal: Roland EV-5, FV-500L, FV-500H

Options (sold separately)

• Footswitch: FS-5U, FS-6, FS-7
• Expression pedal: Roland EV-5, FV-500L, FV-500H

Width: 239 mm; 9-7/16 inches

Depth: 175 mm; 6-15/16 inches

Height: 55 mm; 2-3/16 inches

Weight(excluding AC Adaptor): 0.95 kg; 2lbs. 2 oz.
