Crafted with the breakthrough design philosophy behind the acclaimed Katana guitar amp series, the Katana-210 Bass delivers premium sound and advanced features perfectly tuned for the needs of serious bassists.
Three unique amp characters and onboard BOSS effects provide a wide range of tones, delivered with 160 watts of assertive class AB stage power and a high-performance speaker system based around two 10-inch woofers.
And with comprehensive EQ, flexible connectivity, and more, the Katana-210 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.
Features
- Versatile combo bass amp with stage-ready sound and advanced features
- 160-watt class AB power amp delivers big, punchy tone
- Rock-solid combo cabinet with two custom 10-inch woofers and high-frequency tweeter with on/off switch
- Three selectable amp voicings cover a wide range of styles
- Shape switch with three tone characters: mid scoop, bright, and extended range
- Four independent effect sections: compressor, drive, and FX1/FX2 with a vast range of selectable effects
- Comprehensive four-band EQ with selectable low and high-mid frequency controls
- Studio-inspired Blend section enables you to mix in the dry sound for enhanced fatness and clarity
- Six memories for storing and recalling favorite sound setups
- Power Control realizes cranked-amp volume in any playing situation
- Adjust preamp and effect settings, organize sounds, and more with the dedicated BOSS Tone Studio editor for macOS and Windows
- USB and phones/recording outputs with mic'd cabinet emulation
- Balanced XLR direct output with selectable direct, pre, or post signal
- External speaker jack
- Optional GA-FC footswitch for deep performance control
- Edit sounds from a smartphone with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor
Specifications
- Rated Power Output: 160 W
- Nominal Input Level:
- INPUT: -10 dBu (1 M ohm)
- POWER AMP IN: -10 dBu (20 k ohms)
- AUX IN: -10 dBu (20 k ohms)
- RETURN IN: -10 dBu (100 k ohm)
- Speaker:
- WOOFER: 25 cm (10 inches) x 2
- TWEETER: x 1

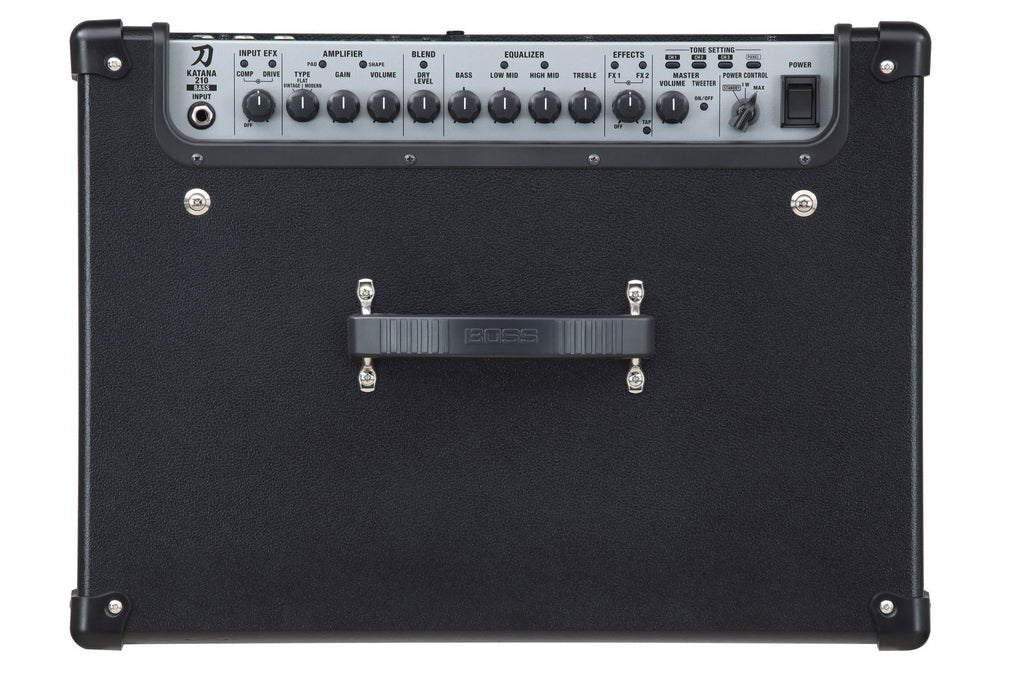

- Controls:
- POWER switch
- MASTER VOLUME knob
- POWER CONTROL switch (STANDBY, 1 W, MAX)
- TWEETER button
- [INPUT EFX]
- COMP button
- DRIVE button
- COMP knob
- DRIVE knob
- [AMPLIFIER]
- PAD button
- SHAPE button
- TYPE knob (VINTAGE, FLAT, MODERN)
- GAIN knob
- VOLUME knob
- [BLEND]
- BLEND button
- DRY LEVEL knob
- [EQUALIZER]
- LOW MID button
- HIGH MID button
- BASS knob
- LOW MID knob
- HIGH MID knob
- TREBLE knob
- [EFFECTS]
- FX1 button
- FX2 button
- TAP button
- FX1 knob
- FX2 knob
- [TONE SETTING]
- CH1 button
- CH2 button
- CH3 button
- PANEL button
- [BALANCED OUT]
- GND LIFT switch (OFF, ON)
- SELECT switch (POST, PRE, DIRECT)
- Indicators:
- COMP
- DRIVE
- PAD
- SHAPE
- BLEND
- LOW MID
- HIGH MID
- FX1
- FX2
- TAP
- CH1
- CH2
- CH3
- PANEL
- TWEETER
- Connectors:
- INPUT jack: 1/4-inch phone type
- POWER AMP IN jack: 1/4-inch phone type
- BALANCED OUT jack: 1/4-inch phone type
- SEND jack: 1/4-inch phone type
- RETURN jack: 1/4-inch phone type
- REC OUT/PHONES jack: Stereo 1/4-inch phone type
- EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
- GA-FC jack: 1/4-inch TRS phone type
- AUX IN jack: Stereo miniature phone type
- USB port: USB B type
- BLUETOOTH ADAPTOR SLOT: BluetoothⓇ Audio MIDI Dual Adaptor
- AC IN jack
- Power Consumption: 117 W
- Dimensions (Include handle and rubber feet): 490 (W) x 360 (D) x 620 (H) mm; 19-5/16 (W) x 14-3/16 (D) x 24-7/16 (H) inches
- Weight: 21.8 kg; 48 lbs 1 oz
- Accessories:
- Owner's Manual
- Power cord
- GA-FC sticker
- Options (sold separately)
- Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
- Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
- GA FOOT CONTROLLER (GA-FC)
- BluetoothⓇ Audio MIDI Dual Adaptor (MODEL BT-DUAL)
- * 0 dBu=0.775 Vrms
