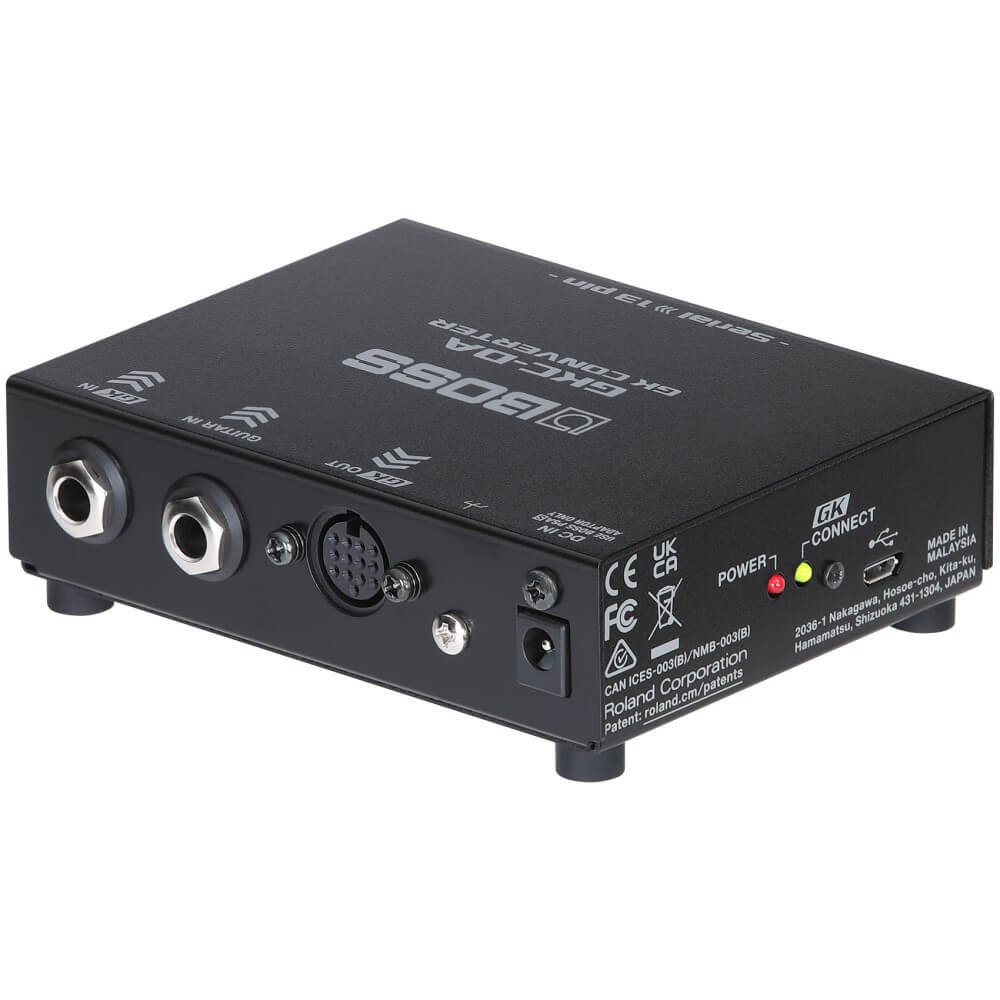

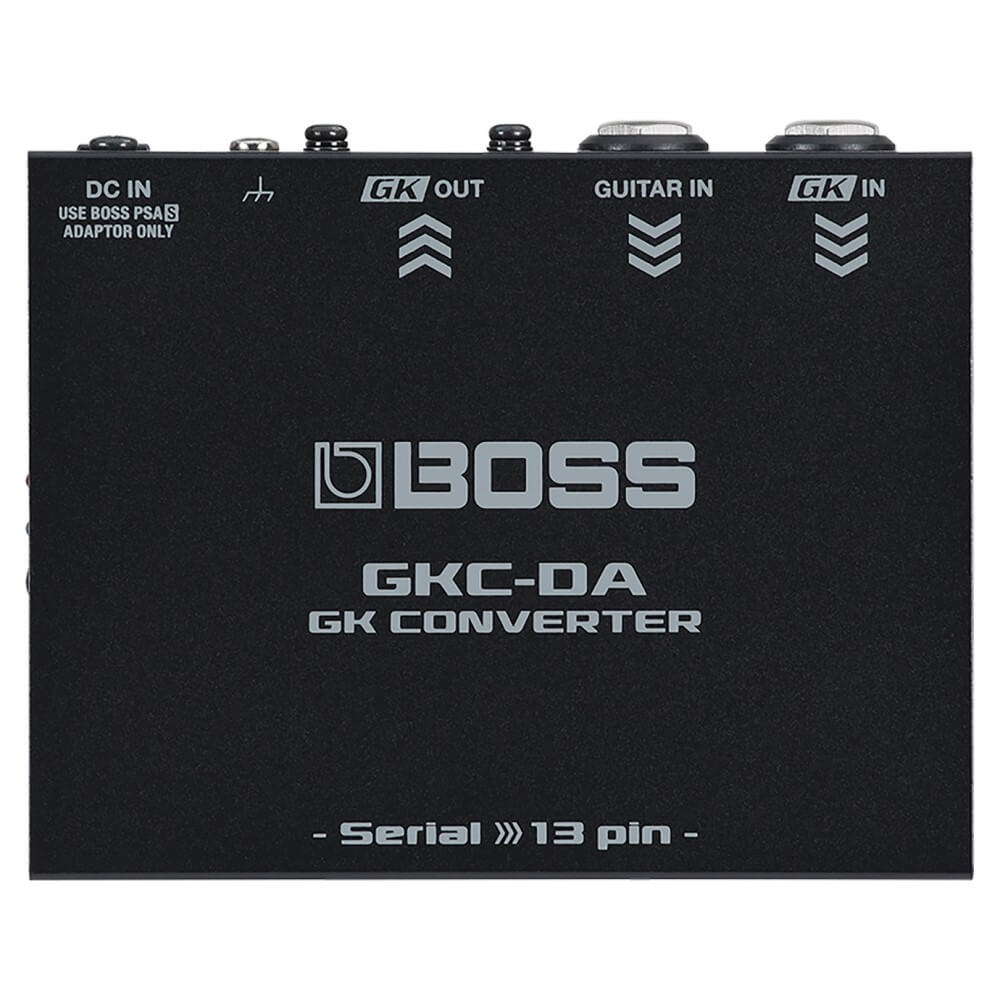

BOSS GKC-DA Serial GK DA Converter

BOSS' latest guitar synthesizer products utilize the Serial GK digital interface - a newly-developed connection protocol that delivers evolved performance compared to the analog 13-pin GK interface featured in previous BOSS and Roland guitar synth and modeling products. The all-new GKC-DA GK Converter allows you to drive a 13-pin GK device, like the BOSS SY-1000 or GP-10 via the Serial GK output of a GK-5 or GK-5B Divided Pickup, or the GM-800 Synthesizer.

• Converts the Serial GK digital interface to the classic 13-pin analog GK interface
• Serial GK input and 13-pin GK output
• Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output
• Compact and rugged metal design

Supported Products

The GKC-DA is compatible for use with the following 13-pin GK products with Serial GK devices:

• BOSS Products
  • SY-1000 Guitar Synthesizer
  • GP-10 Guitar Processor
• Roland Products
  • GR-55 Guitar Synthesizer and other legacy products with a 13-pin GK input

• Connectors
  • GK IN: ¼" TRS Phone Type (for BGK Cable Only)
  • GK OUT: 13-Pin DIN Type
  • GUITAR IN: ¼" Phone Type
  • DC IN Jack
  • USB Port: USB Micro-B (Program Update Only)
• Nominal Input Level: -10dBu
• Maximum Input Level: +16dB
• Input Impedance: 1MΩ
• Power
  • Power Supply: AC Adaptor
  • Current Draw: 390mA
• What's in the Box?
  • AC Adaptor
  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
• Dimensions
  • 115mm (W) x 92mm (D) x 36mm (H)
  • 340g
