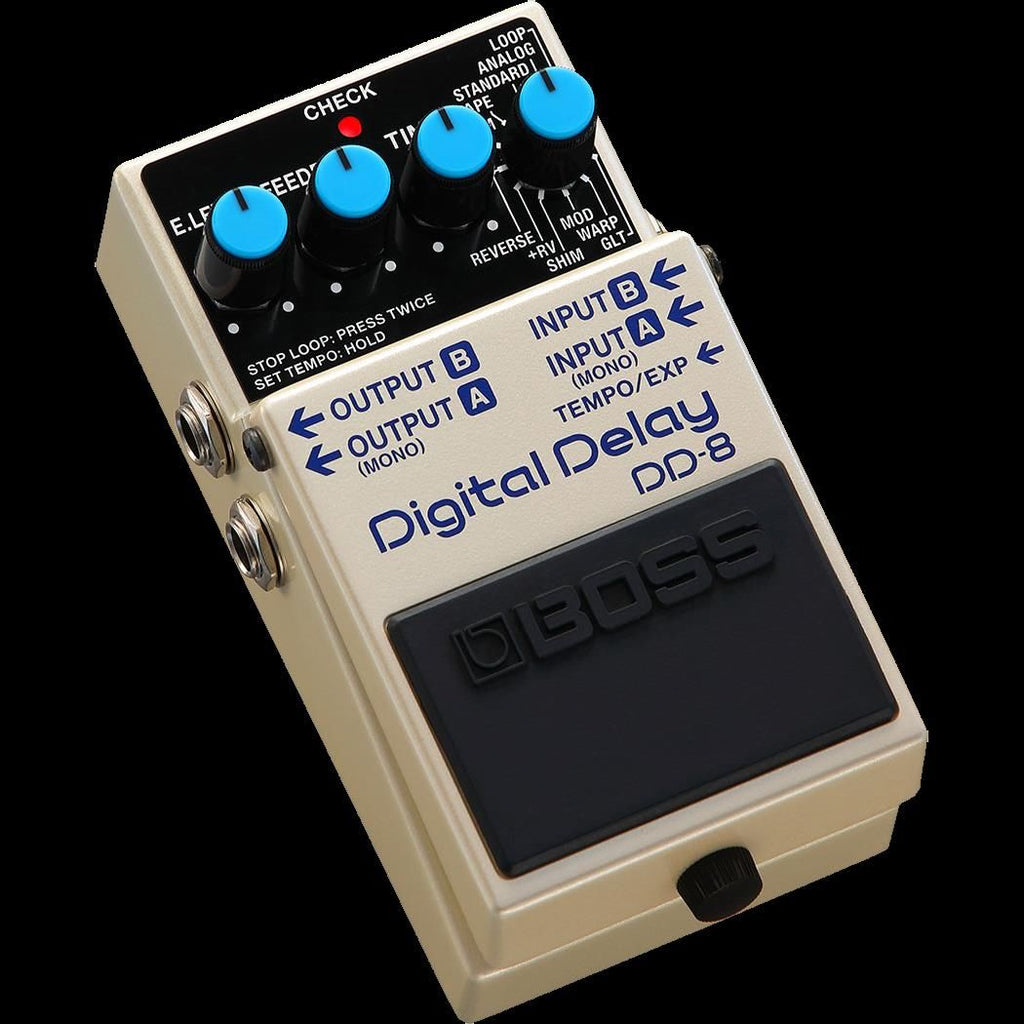

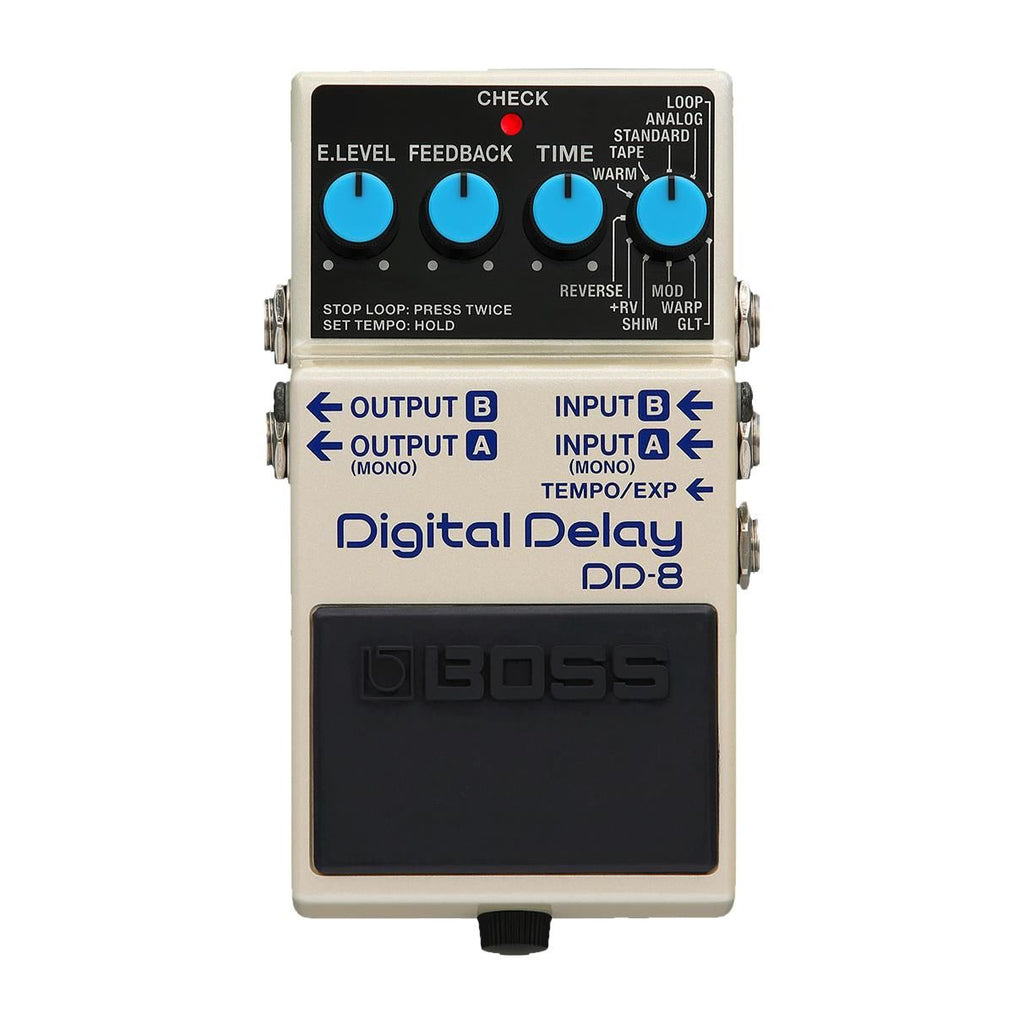

BOSS DD-8 Digital Delay Guitar Effects Pedal

This loaded pedal delivers more of everything—more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup.

Eleven modes provide delay colors from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there’s no better delay stomp than the DD-8.

Features

• Updated version of the industry-standard DD-3, with enhanced functionality for modern players
• Ultra-easy operation for fast sound creation
• Delay time of 12.5 to 800 ms, divided into three ranges for quick setup
• Tap in tempos with the onboard pedal switch or an external footswitch
• Short Loop setting for creating phrase loops (same as the Hold function on the original DD-3)
• Direct output for sending dry and wet sounds to separate amps
• Main and direct output jacks now positioned on one side of the pedal
• BOSS five-year warranty

Specifications

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

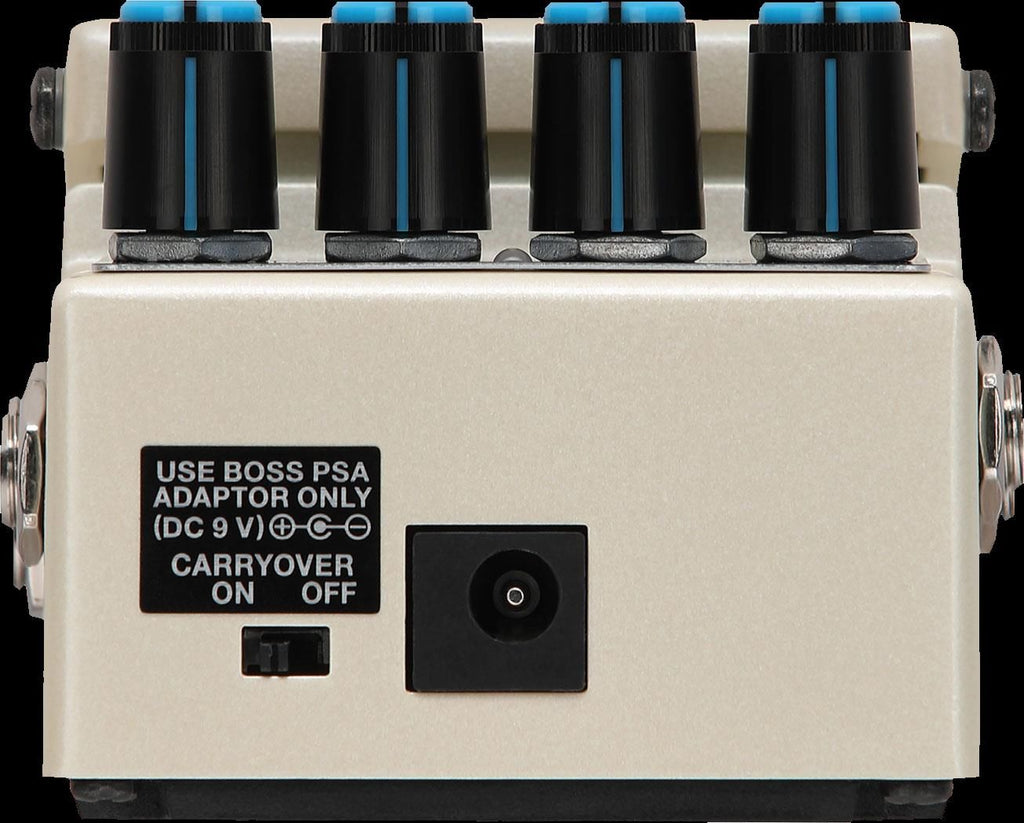

• Controls: MODE knob; TIME knob; FEEDBACK knob; E.LEVEL(Effect Level) knob; CARRYOVER SWITCH; Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors: INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type; OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type; TEMPO/EXP jack: TRS 1/4-inch phone type; DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61); AC adaptor (PSA series: sold separately)
• Current Draw: 65 mA
• Expected battery life under continuous use: Alkaline: Approx. 5 hours;
  *These figures will vary depending on the actual conditions of use.
• Accessories: Owner's manual: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"): Alkaline battery (9 V, 6LR61)
• Options (sold separately)AC adaptor: PSA series; Footswitch: FS-5U, FS-6, FS-7; Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
• Width: 73 mm; 2-7/8 inches
• Depth: 129 mm; 5-1/8 inches
• Height: 59 mm; 2-3/8 inches
• Weight: (including battery)440 g: 1 lb
