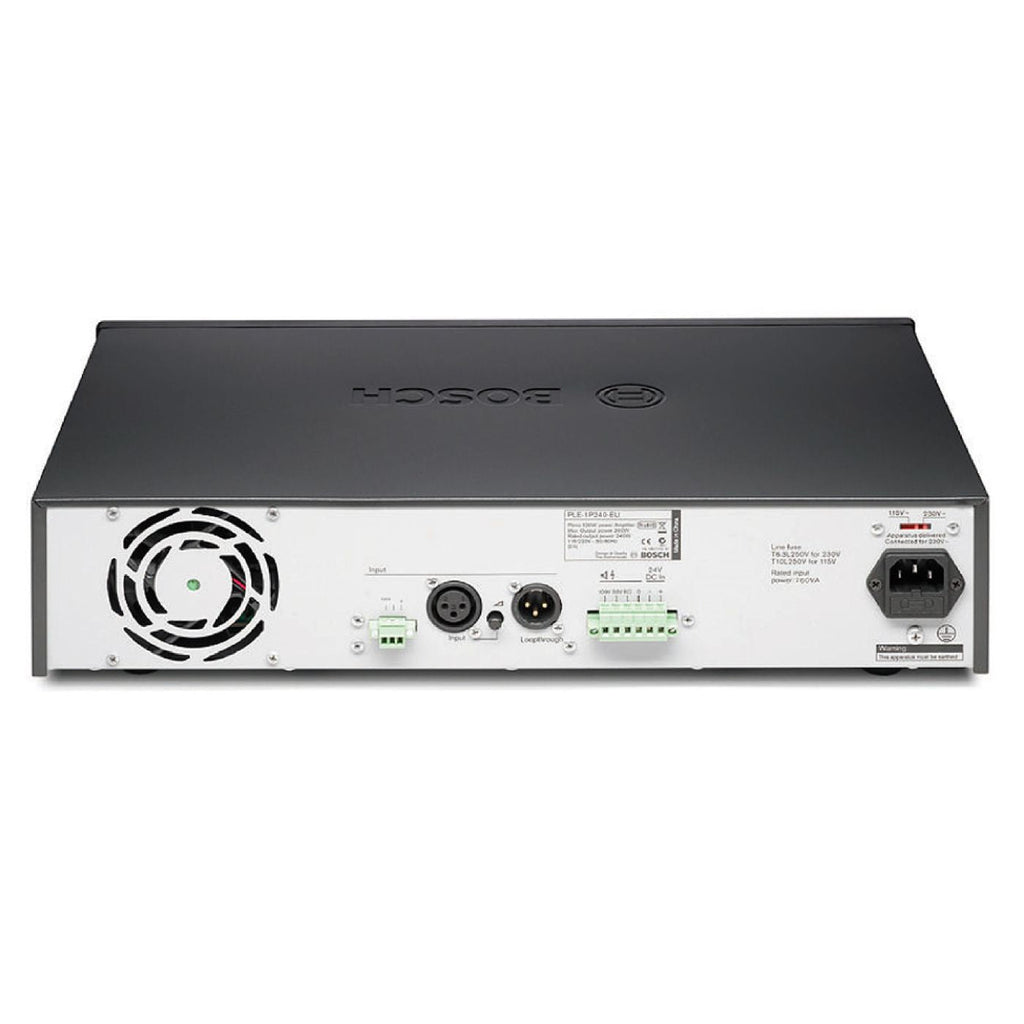

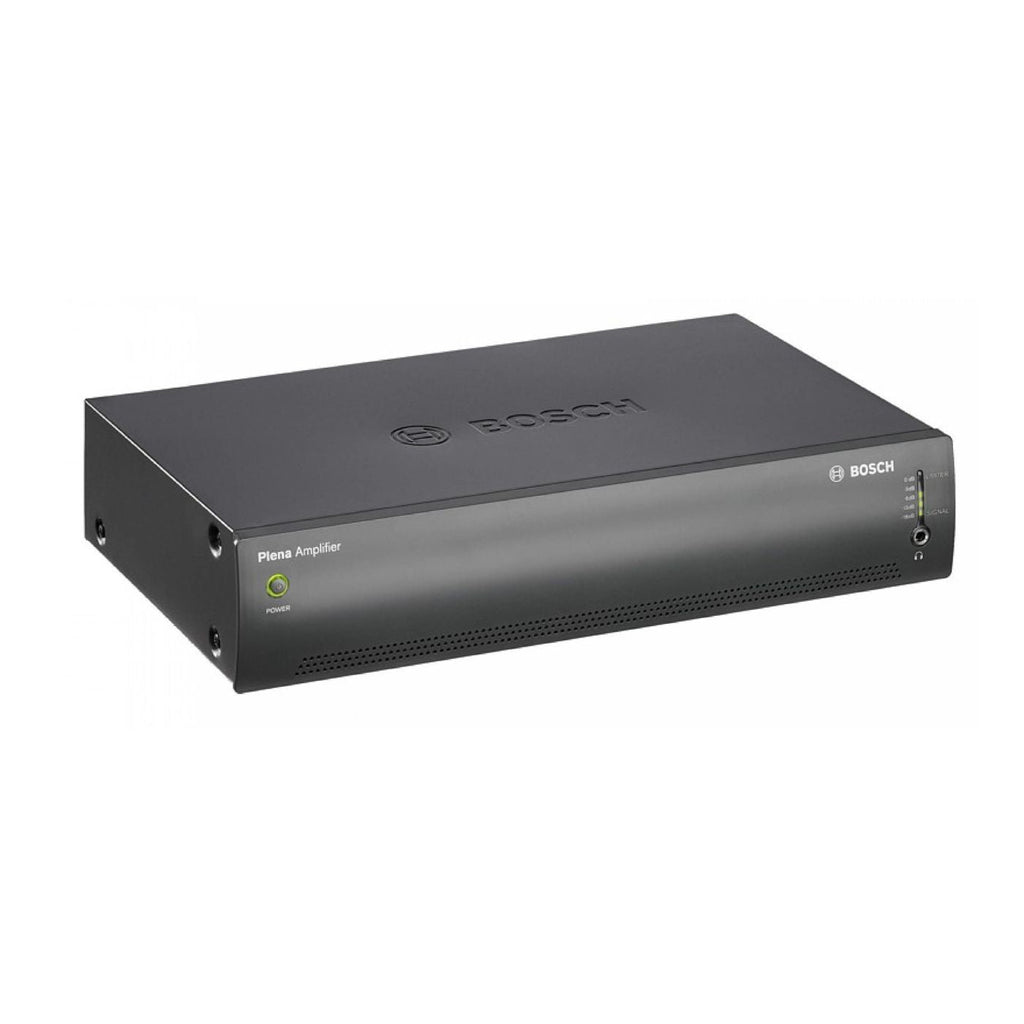

The amplifier offers straight 1 V and 70 V line inputs, and 25 and 70 V and 4 ? outputs. It can extend the power of the PLE- series mixer-amplifier or be combined with the PLE-10M2 mixer, or work anywhere where more power on an existing 70 V line is needed, or when a line level signal is provided. If you own a Bosch 70-volt amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen. Features 120 watts, 100 volt line Very high audio performance power amps Can be used to boost Plena Voice alarm systems with system monitoring XLR input and XLR loop through output 100 volt line input (euro connector), ideal for remote location booster amps 100v, 70v and 8 ohm outputs Headphone monitoring socket Temperature controlled fan AC and 24VDC operation Built-in battery charger LED VU Meter 19 rack mount brackets Specifications Output power: 120 watts Impedance: 100v, 70v and 8 ohm outputs No. Inputs: XLR input Output zones: 1 zone Rack mountable: Included Power supply: 230VAC & 24VDC Dimensions (HxWxD): 100mm x 430mm x 270mm ‘U’ height: 2U Weight: 10.5Kg
