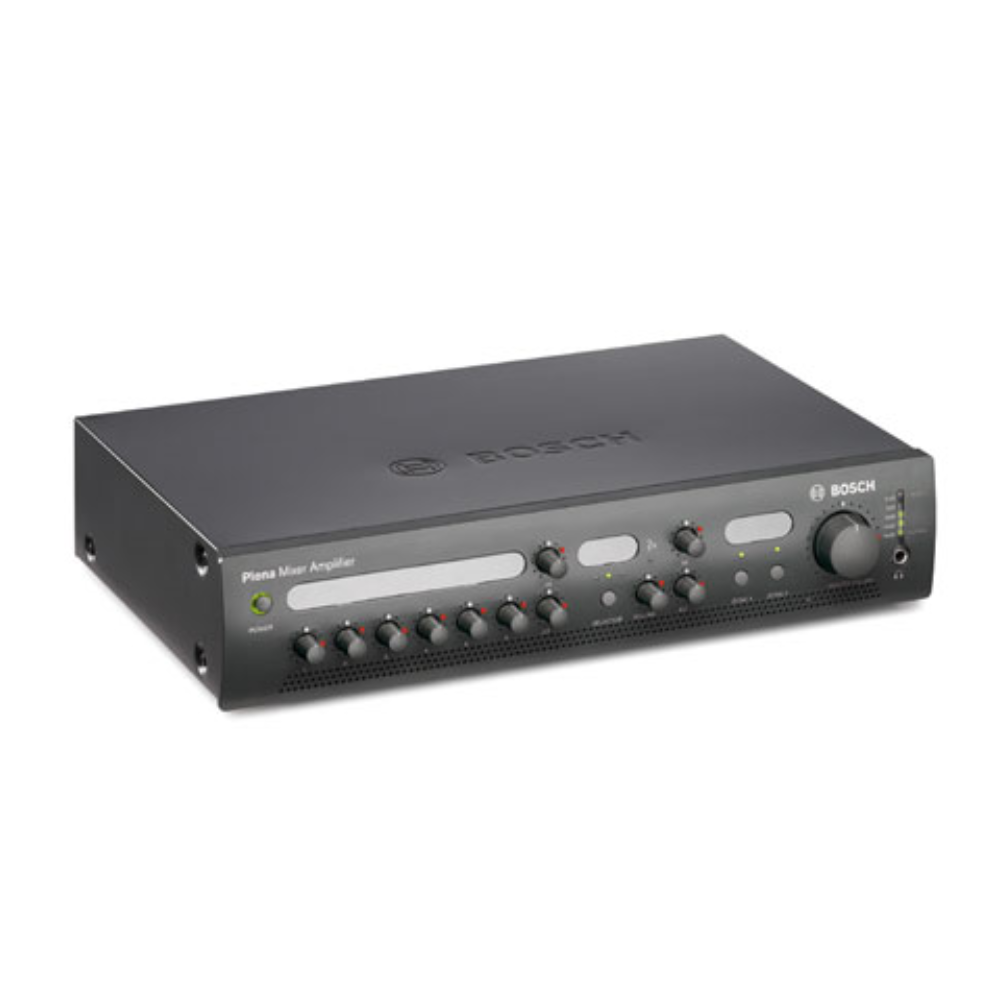

Bosch PLE-2MA120 Plena Mixer Amplifier 120 Watt (Two-Zone)
1/2
  • Bosch PLE-2MA120 Plena Mixer Amplifier 120 Watt (Two-Zone)
  • Bosch PLE-2MA120 Plena Mixer Amplifier 120 Watt (Two-Zone)
Bosch PLE-2MA120 Plena Mixer Amplifier 120 Watt (Two-Zone)
backorder

Bosch PLE-2MA120 Plena Mixer Amplifier 120 Watt (Two-Zone)

$1,099.00 AUD
Brand: Bosch
SKU: PLE-2MA120

or from $10/week with

or Rent from $30/week with
Backorder

Mega Music Myaree

Backorder

Mega Music Wangara

Backorder

Bosch PLE-2MA120 Plena Mixer Amplifier 120 Watt (Two-Zone)

Mega Music Myaree

Backorder

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Backorder

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236
Description
They are easy to use, taking complexity away from the user and putting it where it should be: in your device. Delivering clear conversations and music is as easy as turning on the radio. The amplifiers are also surprisingly affordable without sacrificing features like ducking, priority, and flexibility. Features 6 microphone/line inputs plus 3 music source inputs 100 V, telephone and a call station input with priority & VOX 2 zones and announcement only output Voice activated emergency override High output power 120 Watts 2-tone chime built in (7 more chimes optional with call station) Outputs for line out, music only out and insert point 24 V backup input with built in 24 V charger Separate tone controls for microphones and music sources Specifications Electrical Mains power supply Voltage: 115 - 230 VAC ±10%, 50/60 Hz Inrush Current PLE-2MA120-EU: 8/16 A (230/115 VAC) Inrush Current PLE-2MA240-EU: 9/19 A (230/115 VAC) Battery power supply Voltage: 24 VDC, +10% / -15% Current PLE-2MA120-EU: 6 A Current PLE-2MA240-EU: 12 A Charge current: 0.5 ADC Charge float voltage: 27.3 VDC Power consumption PLE-2MA120-EU (mains): 400 VA PLE-2MA240-EU (mains): 800 VA Performance Frequency response: 50 Hz to 20 kHz (+1/-3 dB @ -10 dB ref. rated output) Distortion: <1% @ rated output power, 1 kHz Low Control: Max -12/+12 dB (frequency is setting dependent) Hi Control: Max -12/+12 dB (frequency is setting dependent) RJ-45 input 2 x Call station input For PLE-2CS(MM) Wall panel input For PLE-WP3S2Z Mic/line input 6 x Input 1 (Push-to-talk contact with ducking functionality: 5-pin Euro style, balanced, phantom  --  3-pin XLR, balanced, phantom Input 2-6 (VOX with ducking functionality on input 2): 3-pin XLR, balanced, phantom Sensitivity: 1 mV (mic); 1 V (line) Impedance: >1 kohm (mic); >5 kohm (line) S/N (flat at max volume): 63 dB S/N (flat at min volume/muted): >5 dB Dynamic range: 93 dB S/N (flat at max volume): >63 dB (mic); >70 dB (line) S/N (flat at min volume/muted): >75 dB CMRR (mic): >40 dB (50 Hz to 20 kHz) Headroom: >17 dB Speech filter: -3 dB @ 315 Hz, high-pass, 6 dB/oct Phantom power supply: 16 V via 1.2 kohm (mic) Speech filter: -3 dB @ 315 Hz, high-pass, 6 dB/oct VOX (input 1 & 2): attack time 150 ms; release time 2 s Music inputs 3x Connector: Cinch, stereo converted to mono Sensitivity: 300 mV Impedance: 22 kohm S/N (flat at max volume) >70 dB S/N (flat at min volume/muted): >75 dB Headroom: >25 dB Emergency / telephone 1 x Connector: 7-pin, Euro style pluggable screw terminal Sensitivity tel: 1 V maximum Sensitivity: 100V 100 V maximum Impedance: >10 kohm S/N (flat at max volume): >65 dB VOX: threshold 50 mV; attack time 150 ms; release time 2 s Insert 1 x Connector: Cinch Nominal level: 1 V Impedance: >10 kohm Master/music output 1 x Connector: 3-pin XLR, balanced Nominal level: 1 V Impedance: <100 ohm Loudspeaker outputs 100 V* Connector: Screw, floating Max / rated PLE-2MA120-EU: 180 W / 120 W Max / rated PLE-2MA240-EU: 360 W / 240 W Loudspeaker output 8 ohm* Connector: Euro style pluggable screw terminal, floating PLE-2MA120-EU: 31 V (120 W) PLE-2MA240-EU: 44 V (240 W) * Subtract 1 dB for 24 V battery operation. Mechanical Dimensions: (H x W x D) 100 x 430 x 270 mm (19 wide, 2U high) Mounting: Stand-alone, 19 rack Colour: Charcoal Weight (PLE-2MA120-EU): Approx. 10.5 kg Weight (PLE-2MA240-EU): Approx. 12.5 kg Environmental Operating temperature: -10 ºC to +45 ºC Storage temperature: -40 ºC to +70 ºC Relative humidity: <95% Acoustic noise level of fan: <33 dB SPL @ 1 m temperature controlled
