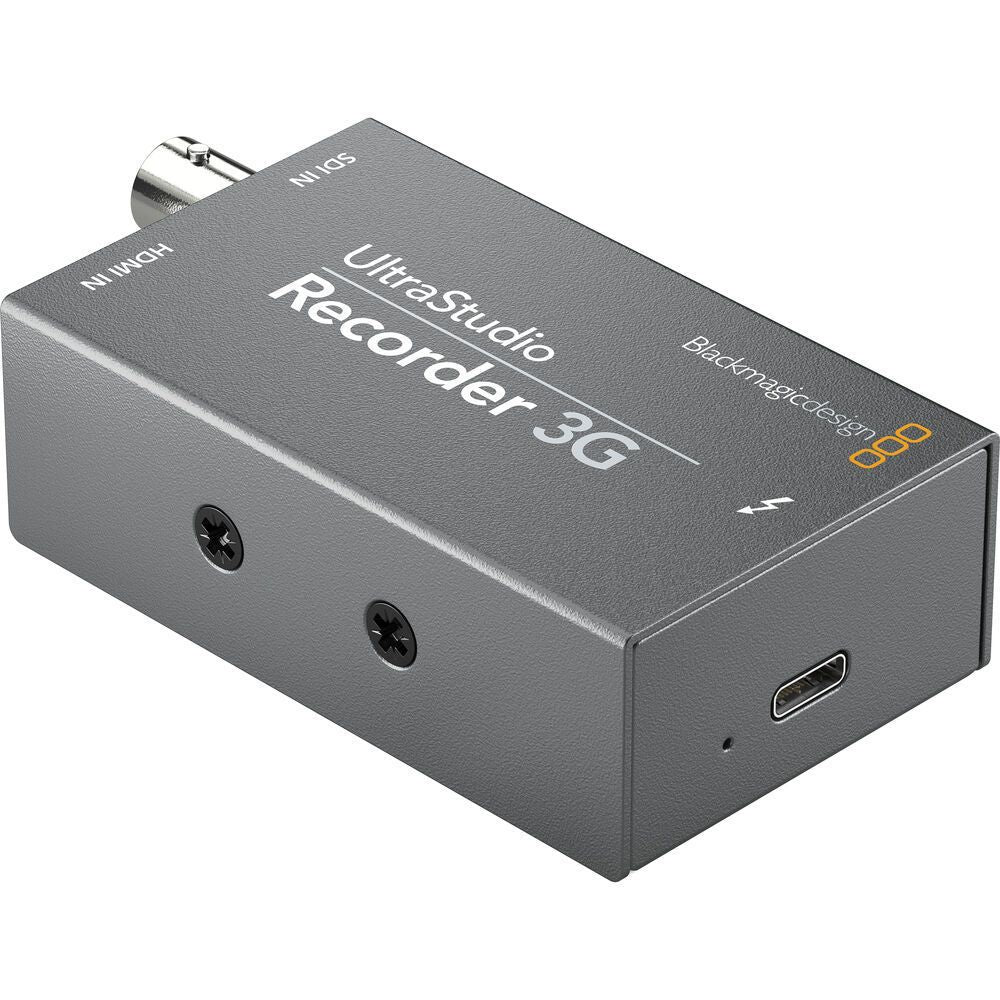

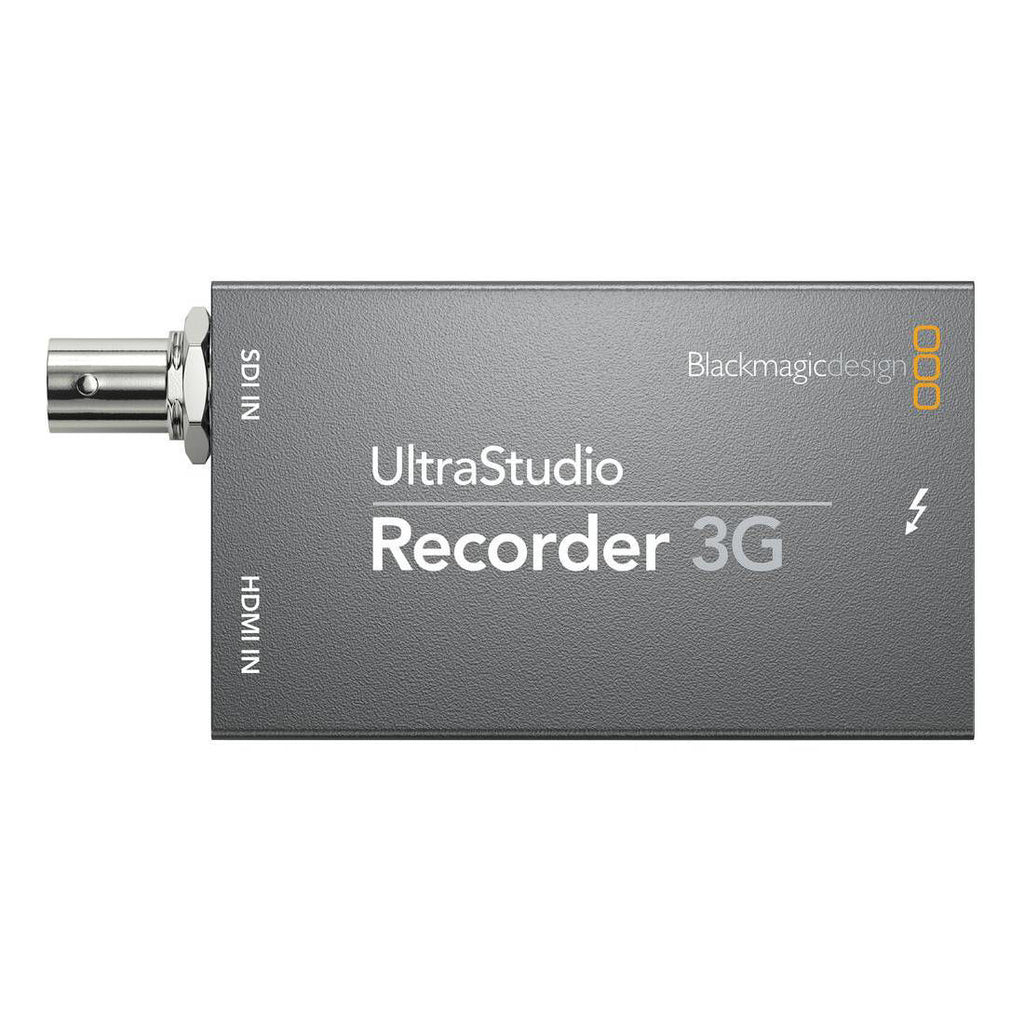

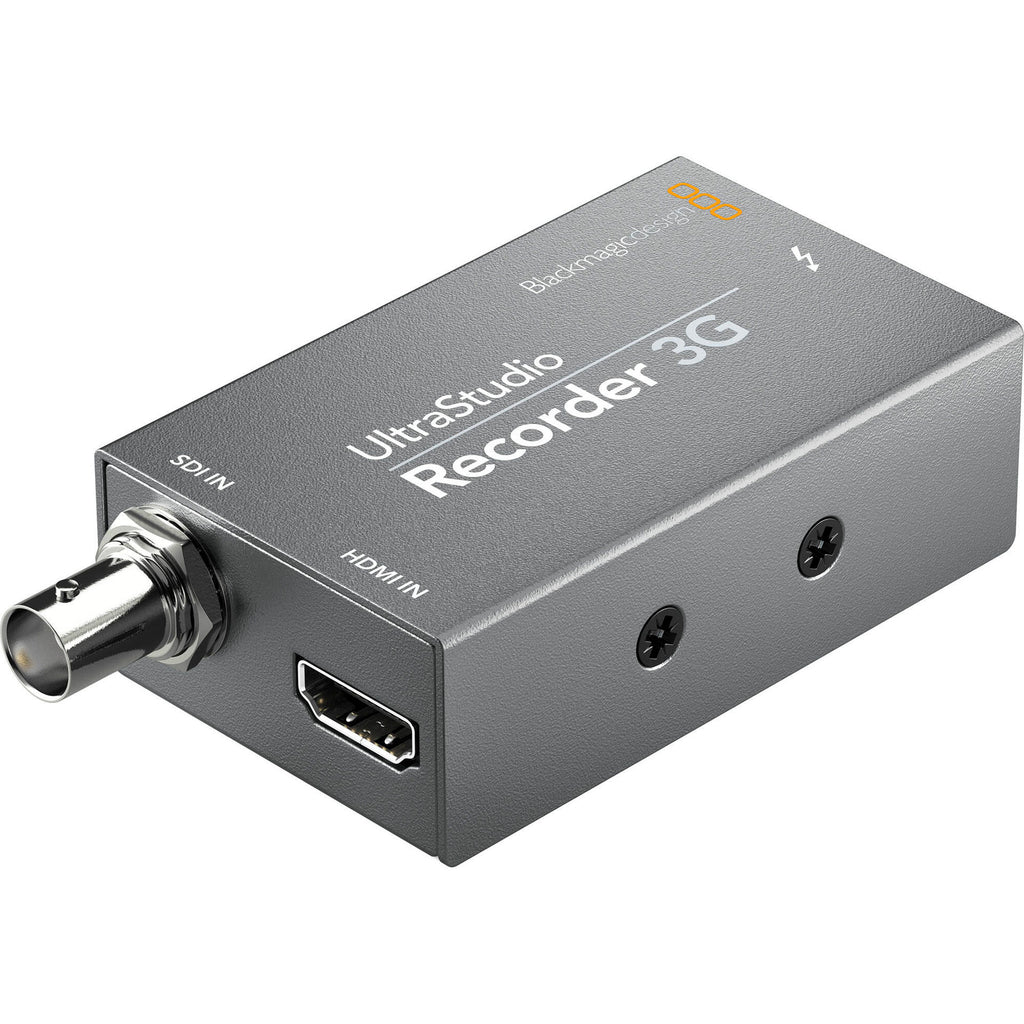

Blackmagic Design UltraStudio Recorder 3G

UltraStudio Recorder 3G features the highest quality 10 bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more! Great for streaming and capture from any HDMI or SDI broadcast quality video source, UltraStudio Recorder includes 3G-SDI and HDMI in all formats up to 1080p60. Specifications Connections SDI Video Inputs: 1 SDI Rates: 270Mb, 1.5G, 3G SDI Audio Inputs: 16 Channels embedded in SD/HD HDMI Video Inputs: 1 HDMI Audio Inputs: 8 Channels embedded in SD/HD Computer Interface: Thunderbolt™ 3 (Mac OS, Windows and Linux) Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. Software Software IncludedMedia Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. Internal Software UpgradeFirmware built into software driver. Software driver loads upgrades at system start or via updater software. SDI Video Standards SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling: 4:2:2, 4:4:4 SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space: REC 601, REC 709 and REC 2020 Multiple Rate Support: SDI video connection is switchable between SD and HD. HDMI Video Standards SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling: 4:2:2 and 4:4:4 HDMI Color Precision: 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Configuration: HDMI 2.0a supports Deep Color. HDMI Color Space: REC 601, REC 709 and REC 2020 Multiple Rate Support: HDMI video connection is switchable between SD and HD. Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. Hardware Frame Buffer: v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). Processing Colorspace Conversion: Hardware based real time. Physical Installation: Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements. Power Requirements: Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 USB-C port. Environmental Specifications Operating Temperature: 5° to 40° C (32° to 104° F) Storage Temperature: -20° to 45° C (-4° to 113° F) Relative Humidity: 0% to 90% non-condensing
