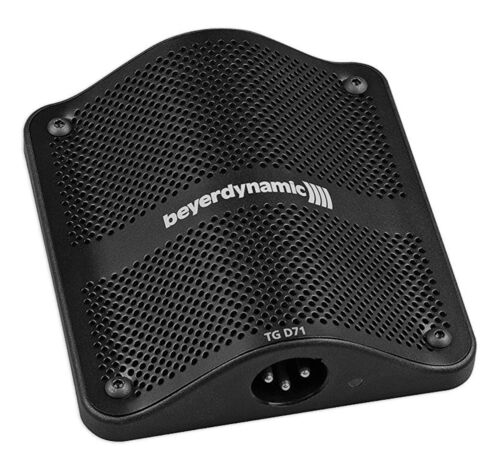

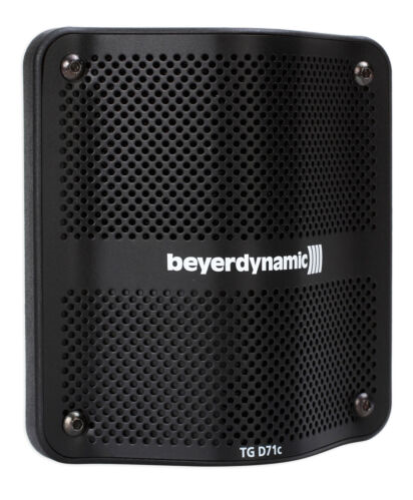

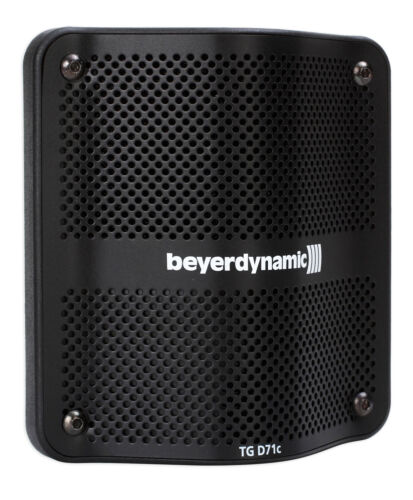

Beyerdynamic TG D71 Condenser Semi Cardioid Boundary Bass Drum Microphone

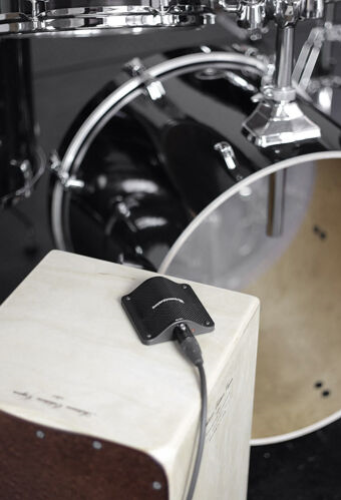

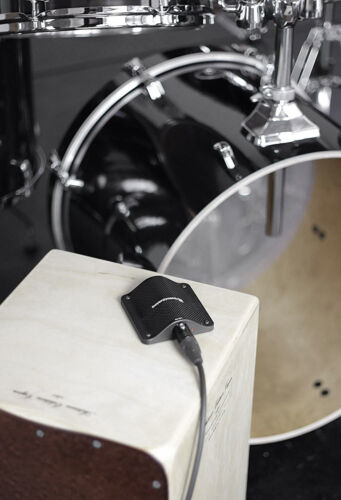

The TG D71c boundary microphone is primarily used for miking bass drums while placing it simply without any additional mounting material into the bass drum. The non-slip rubber bottom makes sure that the microphone cannot shift by itself. In addition to this the TG D71c can also be used for other low frequency instruments such as cajon, grand piano or upright piano whereas the compact design and the half-cardioid polar pattern ensure easy positioning of the microphone. Due to its high impulse fidelity, a low attack time and a maximum sound pressure level of 148 dB, the TG D71c is suitable for miking percussion instruments. The rugged housing in a slim, compact design protects the microphone against damages in the rough daily use on stage. For a permanent installation on a surface there are two mounting holes at the bottom of the microphone. The microphone is provided with an integrated pre-amp and can be powered on microphone inputs supplying 11 to 52 V phantom power. A red illuminating status LED displays the applied phantom power and in this way the operating status of the microphone. Features: Extremely rugged housing in a compact, slim design Optimal for Bass or Cajon drums Flexible use with low-frequency instruments Half-cardioid polar pattern for maximum gain before feedback High impulse fidelity and low attack time Undistorted transmission of even high volumes Powerful, natural sound Integrated pre-amp Phantom power 11 - 52 V Non-slip rubber bottom Specifications: Transducer type . . . . . . . . . . . . . . . . Condenser (back electret) Operating principle . . . . . . . . . . . . . Pressure gradient Polar pattern . . . . . . . . . . . . . . . . . . Half-cardioid Frequency response . . . . . . . . . . . . . 25 - 20,000 Hz Open circuit voltage . . . . . . . . . . . . . 1.5 mV/Pa Nominal impedance . . . . . . . . . . . . . < 200 ohm Load impedance. . . . . . . . . . . . . . . . ‚Äö1 k ohm Max. SPL at 1 kHz . . . . . . . . . . . . . . 148 dB [SPL@1% THD] Signal-to-noise ratio . . . . . . . . . . . . . 63 dBA, RMS Wiring . . . . . . . . . . . . . . . . . . . . . . . bal. with 3-pin XLR male Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR connector Power supply . . . . . . . . . . . . . . . . . . Phantom power Power consumption . . . . . . . . . . . . . < 3.2 mA
