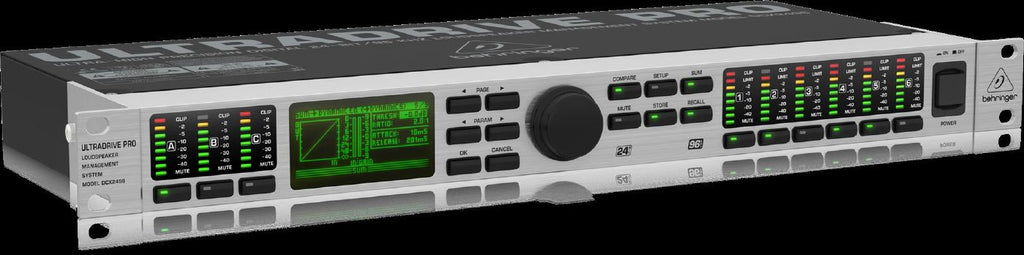

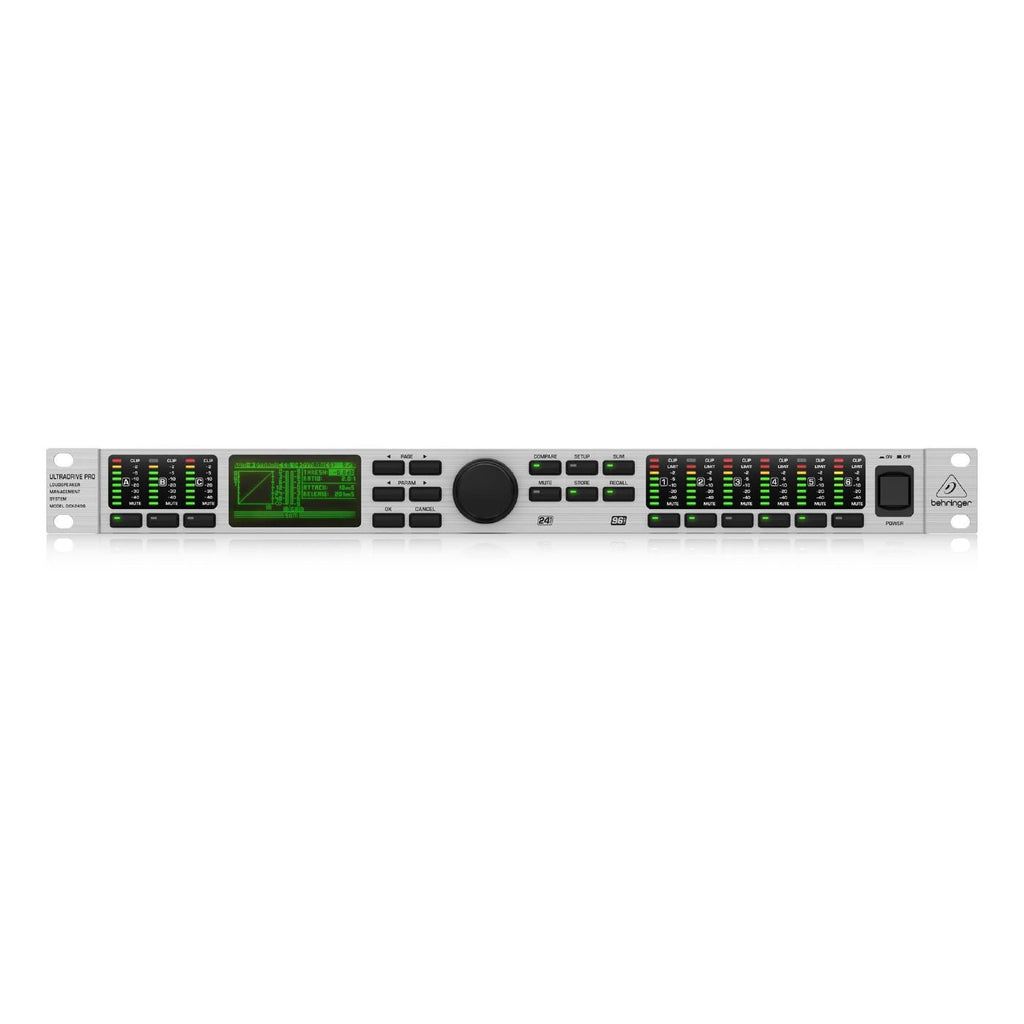

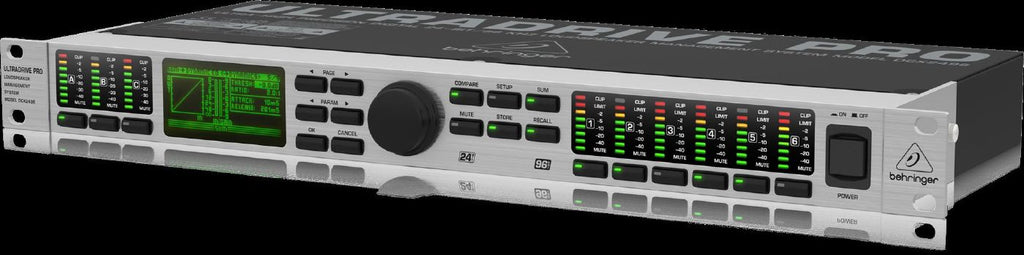

Behringer Ultradrive Pro DCX2496 Processor

The ULTRADRIVE PRO DCX2496 is the answer to making your venue sound like it was tuned by the pros. Over the past years the DCX2496 has become an industry standard and several hundred thousand units have been employed in high-end touring as well as install applications.

The DCX2496 is the perfect way to manage a multi-speaker sound system in any sized venue – from cinema to sanctuary to concert hall. Featuring 2 inputs, 6 outputs and 24-bit/96 kHz high-end AD/DA converters, this state-of-the-art processor will take your system to the next level and beyond.

Features

• 3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility
• High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB)
• Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz
• Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs
• Several types of EQs (LP/BP/HP) for each input and output
• "Zero"-attack Limiters on all output channels for optimal speaker protection
• Four different mono and stereo output operating modes
• Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
• Adjustable Delays for all inputs and outputs?allow manual or automatic correction for room temperature, phase and arrival time differences
• Additional Sum signal derived from the A/B/C inputs offers a fourth internal input signal
• Free ULTRADRIVE PRO software enables total control via PC through RS-232 and RS-485 interfaces
• Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs
• 60 user-defined internal presets storable
• Servo-balanced, gold-plated XLR connectors for all inputs and outputs
• Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• 3-Year Warranty Program*
• Designed and engineered in Germany

WATCH: ULTRADRIVE PRO DCX2496 Digital 24-Bit/96 kHz Loudspeaker Management System
