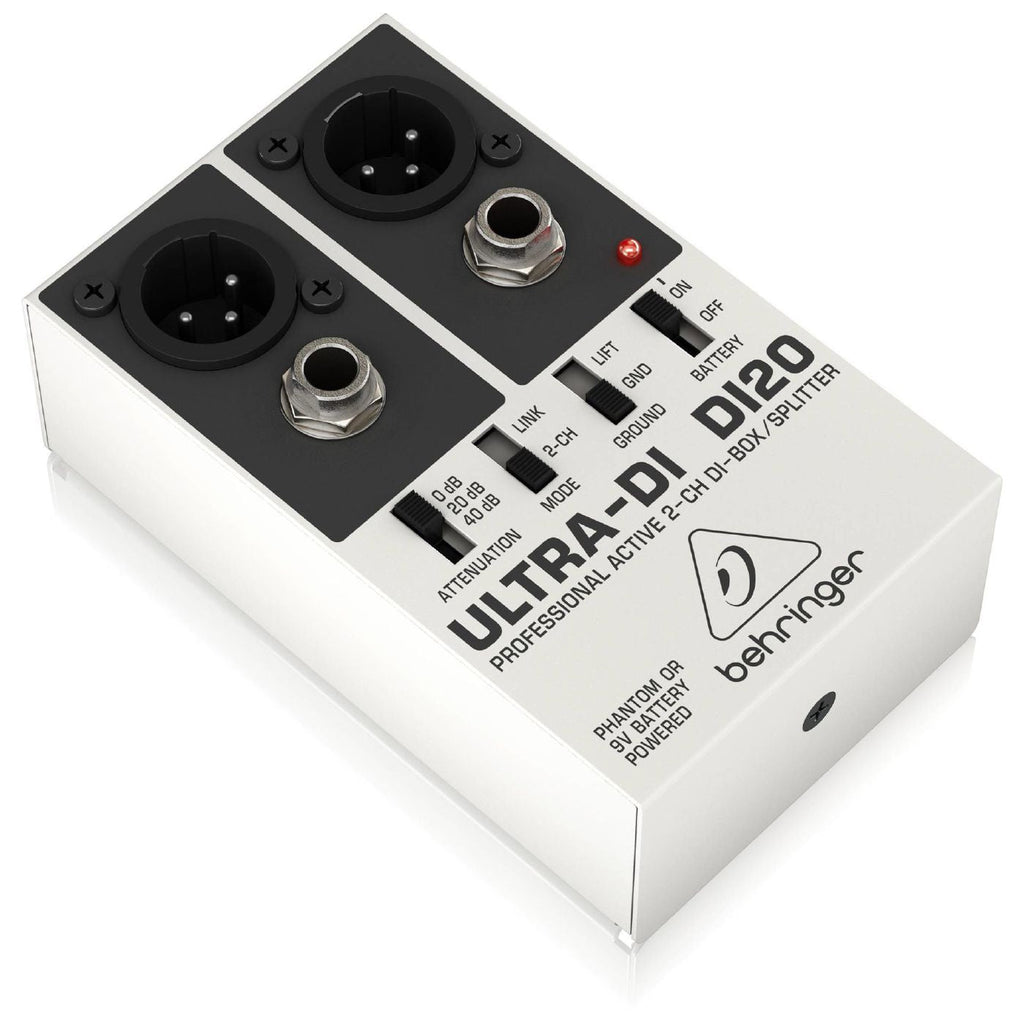

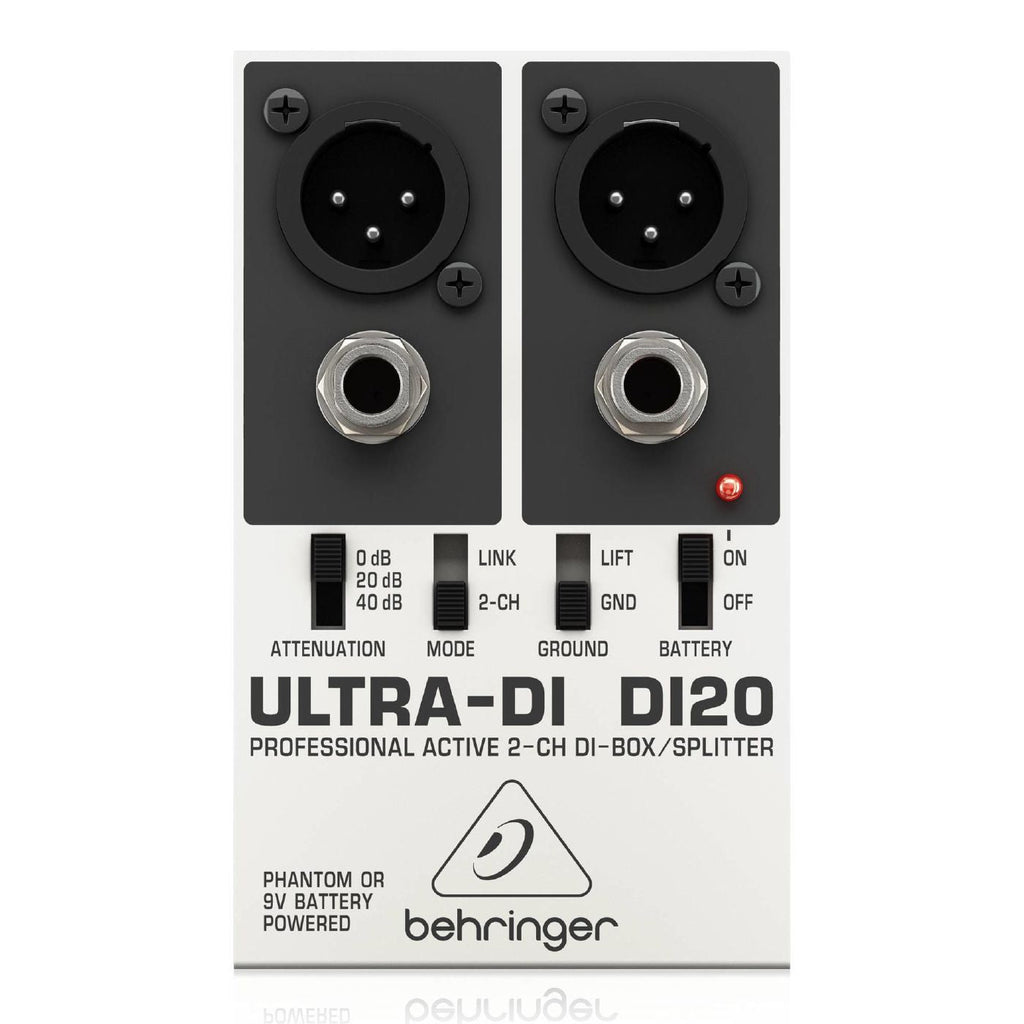

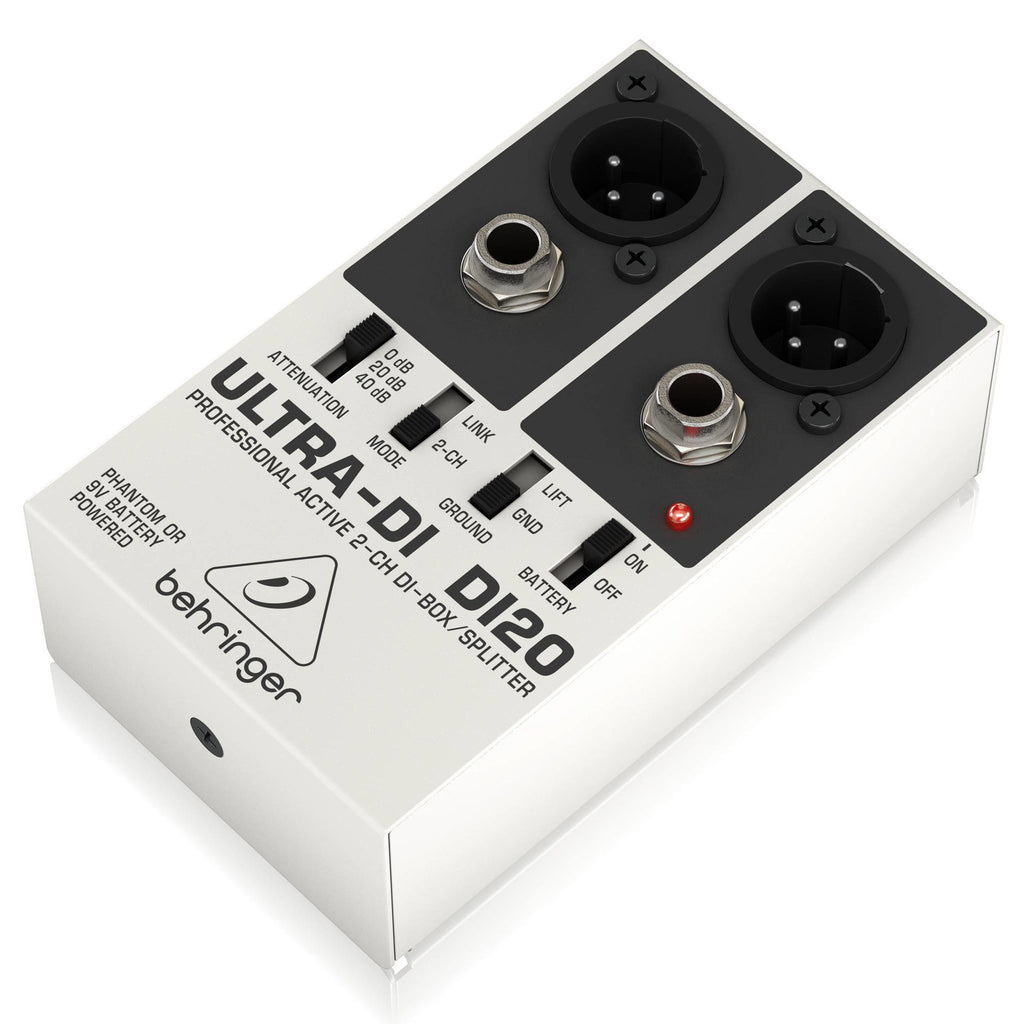

Behringer Ultra-DI DI20 DI Box

The ULTRA-DI DI20 is a one-of-a-kind DI (Direct Injection) box that can convert up to two separate, unbalanced ¼ " TRS lines into two balanced XLR outputs – or function as a signal splitter. Electric guitarists, keyboardists and bassists will love the flexibility the incredible DI20 provides both in the studio and on the stage.

Features

• Professional and multi-purpose direct injection box for stage and studio applications
• Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
• Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs
• Additional Split mode (channel 1 assigns signal to both XLR outputs)
• Ultra-flat frequency response due to servo-balanced operation
• Internal battery automatically shuts off when phantom power is applied
• Allows direct connection to speaker outputs with up to 3,000 Watts
• Ground Lift switch eliminates typical ground loop problems
• Input 2 usable as channel 1 Link output (additional to XLR output)
• TRS and gold-plated XLR connectors
• Ultra-rugged, road-suitable metal case
• 3-Year Warranty Program*
• Designed and engineered in Germany

Specifications

• Frequency Response: 10 Hz to 70 kHz (-3 dB)
• Noise: 100 dBu
• Distortion: <0.014% (1 kHz, 0 dBu in)
• Input resistance: >250 kO
• Connection impedance >600 O
• Input: 1/4" mono jack
• Output: XLR balanced
• Max. input level: +12/+32/+52 dBu
• Phantom power: 18 V DC to 48 V DC
• Battery power: 9 V 6LR91
• Dimension: approx. 6 x 5 x 2 3/8"; approx. 150 x 130 x 60 mm
• Weight: approx. 240 g
