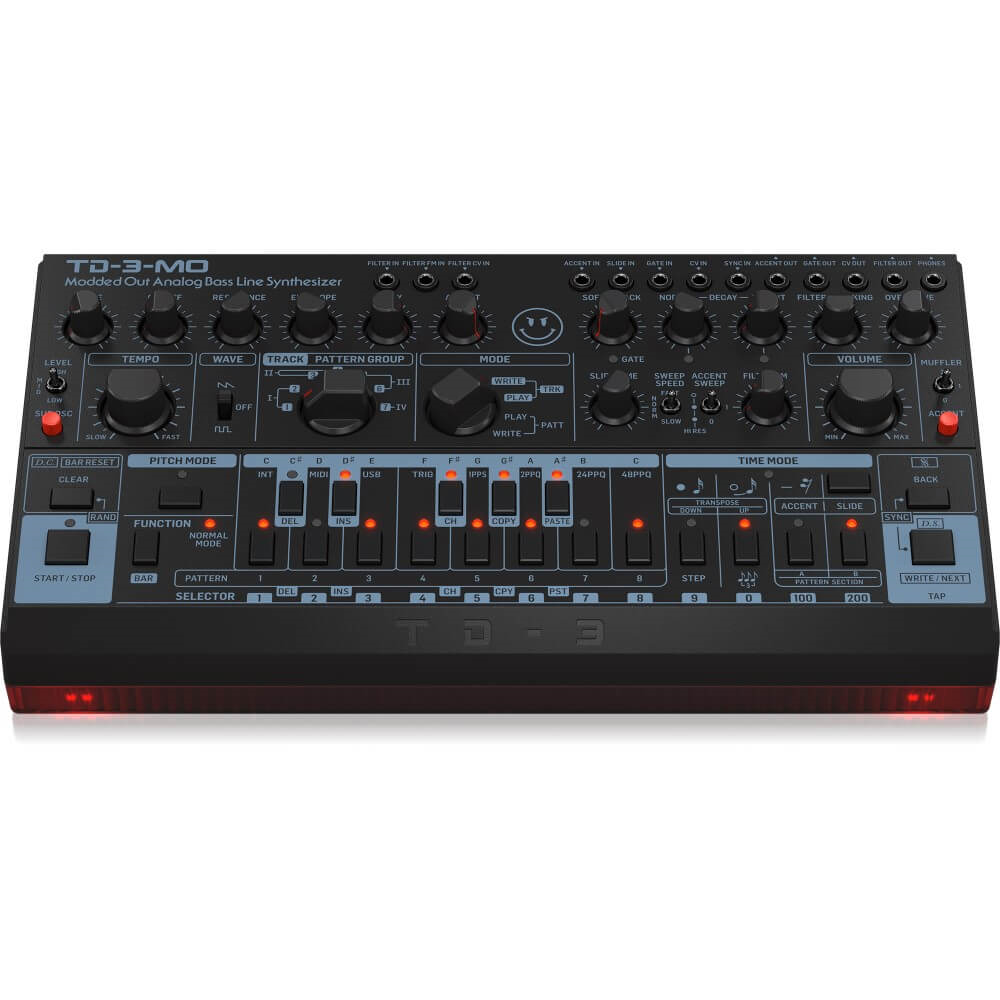

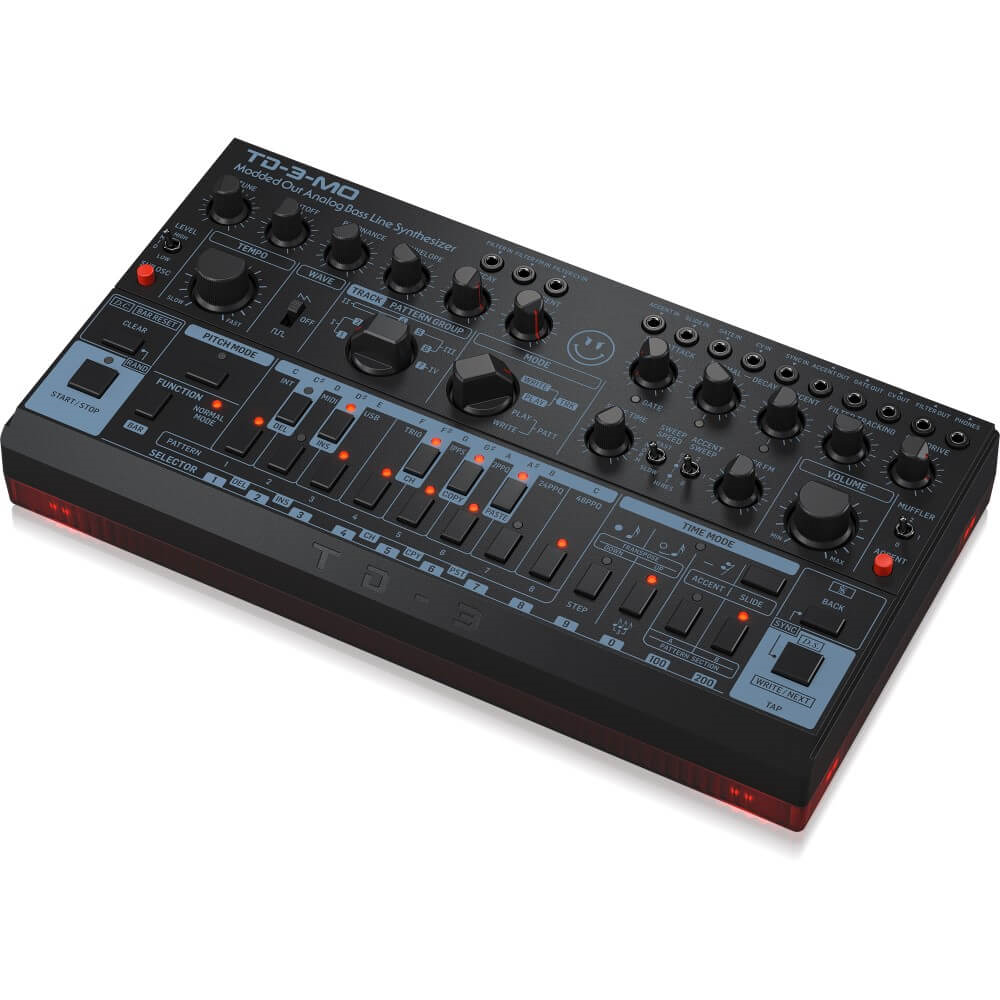

Behringer TD-3-MO-BK Modified Analog Bass Line Synthesizer - Black

Following the release of the original TB-303, users began to squeeze more out of an already incredible bass machine, creating new sounds that were unique to themselves. As word began to spread about third-party modifications which expanded the functionality and sound shaping options, synth lovers all across the globe started chasing these modded TB-303s. The Behringer TD-3-MO-BK gives you access to that elusive "modded-out" sound, in a highly-affordable and faithful tribute to that legendary synthesizer - now in a sleek black housing.

Boasting a pure analog signal path, 16-step sequencer, and genuine VCO, VCF, and VCA filters, the TD-3-MO-BK may just be your new favorite synthesizer.

• “Modded Out” Bass Line synthesizer featuring the most legendary modifications
• Pure analog signal path based on legendary VCO, VCF and VCA designs
• Sawtooth and square waveform VCO with transistor wave-shaping circuitry
• Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls
• Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns
• Filter frequency fully controllable via MIDI CC
• Earth-shattering sub-harmonics oscillator with switchable output level
• Authentic analog slide circuitry with external slide control
• Slide Time control allows for variable slide time (up to 6 times longer)
• Sweep Speed switch features 3 accent speed modes (slow, norm, fast)
• Accent Sweep switch features 3 sweep combinations with high resonance mode
• Filter FM control modulates frequency of the filter from the audio output of the VCA
• Muffler circuitry features post VCA distortion with full bass response
• Dedicated Accent push button to manually activate the accent
• Soft Attack control for wide range of attack times for non-accented notes
• Normal control for wide range of decay time for non-accented notes
• Accent control for wide range of decay time for accented notes
• Filter Tracking control for filter frequency tracking of the current note
• Overdrive control adds insane spice and edge to your sounds
• Massive amount of CV and Gate in/outs for extreme creativity
• 16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
• Premium quality VRs featuring high resolution and metal shafts for long life cycle
• 15 controls and 33 switches to give you direct and real-time access to all important parameters
• MIDI and USB implementation with MIDI channel and Voice Priority selection

Pure Analog Signal Path

From the true-to-the-original VCO, VCF, and VCA filters, to the all-analog circuitry with matched transistors, the TD-3-MO-BK has been meticulously engineered to deliver incredibly versatile sound shaping capabilities. Covering a broad spectrum, this powerful synth lets you create funky bass lines and thumping rhythms to keep you and your audience dancing all night long.

Rock Right Out of the Box!

Thanks to default signal routing, the TD-3-MO-BK is ready to go without needing a single patch cable to immediately start creating incredible sounds. Effortlessly harness the inspiring sounds of '80s and '90s wave, EDM, and synth-pop tracks that changed the course of music history via the intuitive control layout, or build your own fat and original sounds and become a legend in your own right!

Vintage Oscillator

With a highly versatile sawtooth and square waveform Voltage Controlled Oscillator (VCO) that can be tuned, shaped, or driven any way you like, the TD-3-MO-BK also features a powerful 4-pole low-pass resonant filter with control over cutoff, resonance, envelope, decay, and accent that you can tweak and adjust to add tension or flair to your songs. Tapping the Sub Oscillator button allows you to go even lower - giving you an  additional octave, greater low end, and a deeper sound.

More Features

This "modded-out" version of the original TD-3 hosts a myriad of impressive new features to take you music to new heights, like a MIDI C/C controllable filter, variable slide time control, three-mode Sweep Speed switch, Accent Sweep Switch, a Soft Attack control, and more. Truly an incredible addition to any collection or setup, the TD-3-MO-BK gives you the tools to create catchy beats and infectious basslines like never before.

Onboard Sequencer & Arpeggiator

Featuring 7 tracks, the integrated sequencer lets you program up to 16 steps of notes and rests, and store them as a Pattern. Record, save, and recall up to 250 Patterns, all of which are storable in the 4 Groups. Play your sequences in Keyboard mode, where you can create and save the pattern, or interact while composing a pattern with Step mode. The on-board Arpeggiator allows you to build moving patterns for virtually endless sound effect options. The TD-3-MO-BK is fun, captivating, and completely addictive...

16-Note Poly Chain Ready

While the TD-3-MO-BK is a monophonic synthesizer, the convenient 16-note Poly Chain function allows you to connect multiple synthesizers for up to 16-voice polyphony, as well as offering greatly improved reliability and stability over it's '70s and '80s ancestors.

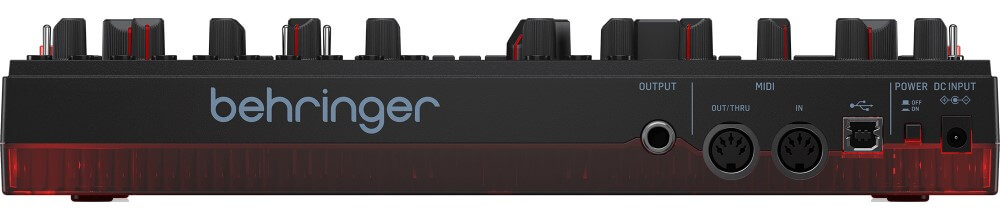

Controls & Connectivity

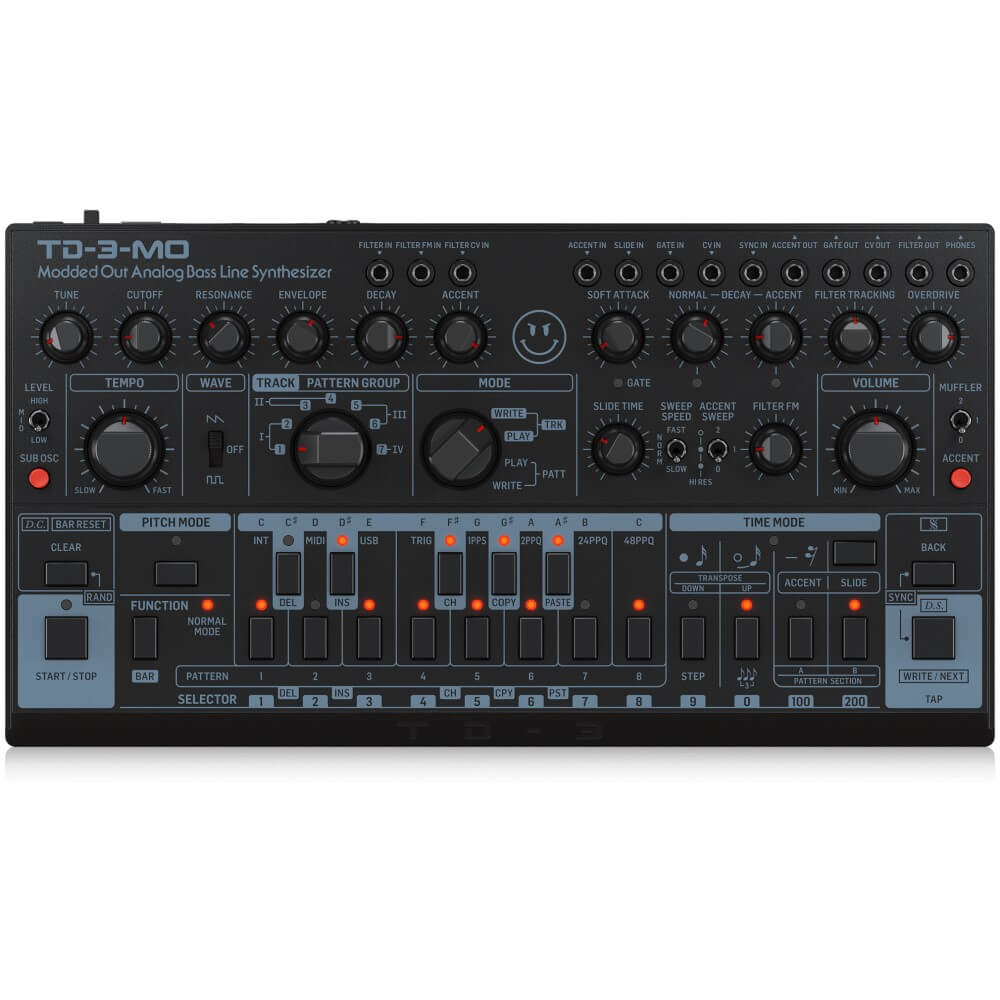

TD-3-MO-BK features an intuitive control layout with 15 controls and 33 switches, offering instant, direct tactile access to all crucial parameters and settings to bring the enjoyment back to music creation. The multi-I/O patchbay expands the tone-shaping capabilities to the limits of your imagination, letting you connect external devices.

Unleash Your Imagination

Not only does the TD-3-MO-BK create envelopes, it pushes them. It gives your imagination a voice. When modern performance needs that classic analog sound, the highly-affordable Behringer TD-3-MO-BK has you covered. Music never felt so good!

• Synth Architecture
  • Number of Voices: Monophonic
  • Type: Analog
  • Oscillators: 1
• Connectivity
  • Power Input: DC Input Connector
  • Power Switch: Push Button On/Off
  • MIDI In/Thru: 5-Pin DIN
  • USB (MIDI): USB 2.0, Type-B
  • Line Output: ¼" TRS, Unbalanced, Max. +8dBu
  • Output Impedance: 1.5kO
  • Headphones: ?" TRS (Max. 50mW, 32O)
  • Headphone Impedance: 15O
• USB
  • Type: Class Compliant USB 2.0, Type-B
• Supported Operating Systems
  • Windows 7 or Higher
  • Mac OS X 10.6.8 or Higher
• Inputs (TS ?")
  • Filter In: -6V to +6V
  • Filter FM In: 0V to +12V
  • Filter CV In: 0V to +12V
  • Accent In: Off: 0V, on: +12V
  • Slide In: Off: 0V, on: +3.3V
  • Gate In: Off: 0V, on: +3.3V
  • CV In: +1V to +5V
  • Sync In: More Than 2.5V
• Outputs (TS ?")
  • Accent Out: Off: 0V, on: +6V
  • Gate Out: Off: 0V, on: +12V
  • CV Out: +1V to +5V (1 volt/oct)
  • Filter Out: -400mV to +400mV
• Power Requirements
  • External Power Adapter: 9V DC, 670mA
  • Power Consumption: 4W Max.
• Dimensions
  • 56mm (H) x 305mm (W) x 165mm (D)
  • 0.9kg
