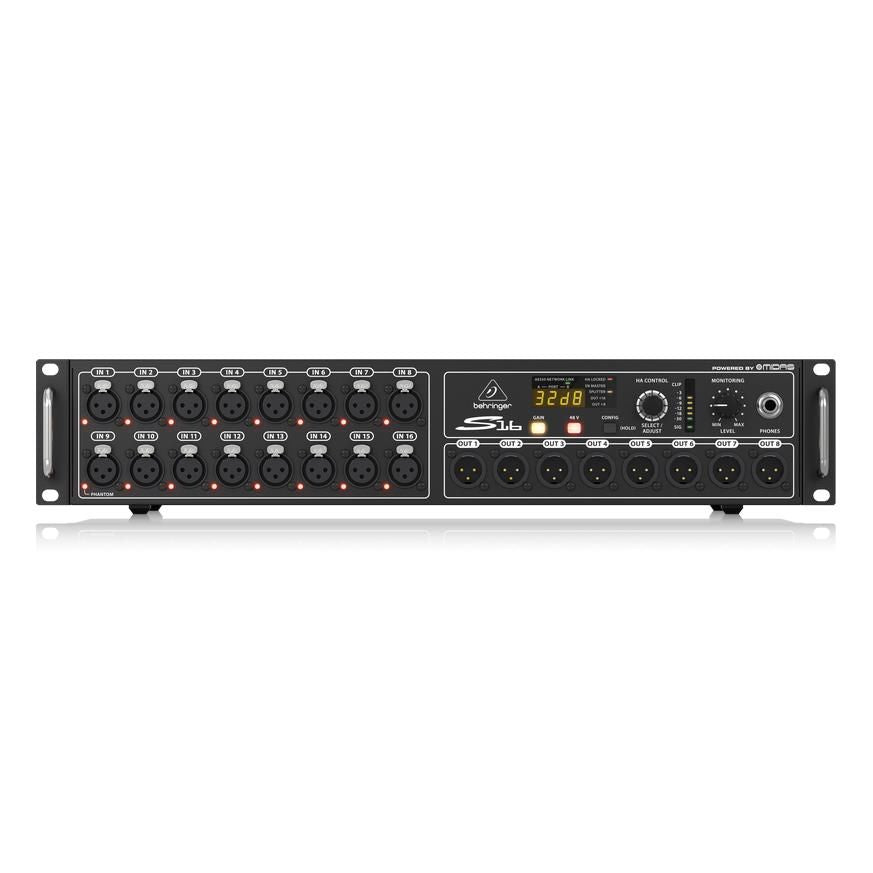

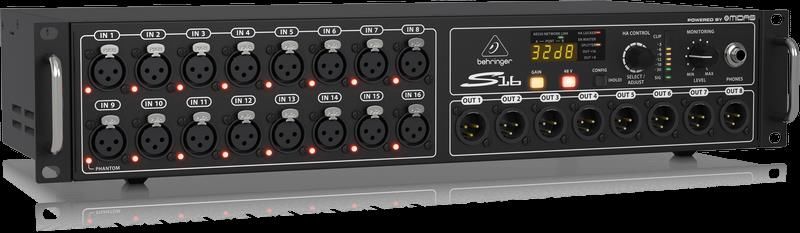

Behringer S16 Digital Snake Interface Rackmount

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. Now we have come up with the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the ultra-cool and ultra-affordable S16 Digital Snake!

The S16 provides 16 MIDAS-designed remote-controllable mic preamps, plus 8 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the SuperMAC technology that made it all possible – our superb scale of production makes the S16 so very aff ordable.

Features

• 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 8 analogue, servo-balanced XLR outputs
• AES50 network ports featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency
• ULTRANET connectivity for Behringer''s P16 personal monitoring system
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Dual AES50 ports for cascading additional S16, SD16 or SD8 stageboxes—no merger or router required
• Precise LED metering plus 7-segment displays for signal control on stage
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Phones output assignable to any of the inputs/outputs for on-stage monitoring
• MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• USB connector for system updates via PC
• "Planet Earth" switching power supply for maximum flexibility (100
  - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• "Built like a tank" yet compact, all-steel 2U rack-mount chassis
• 3-Year Warranty Program*
• Conceived and designed by Behringer Germany

WATCH: S16 I/O Box with 16 Remote-Controllable MIDAS Preamps, 8 Outputs and AES50 Networking
