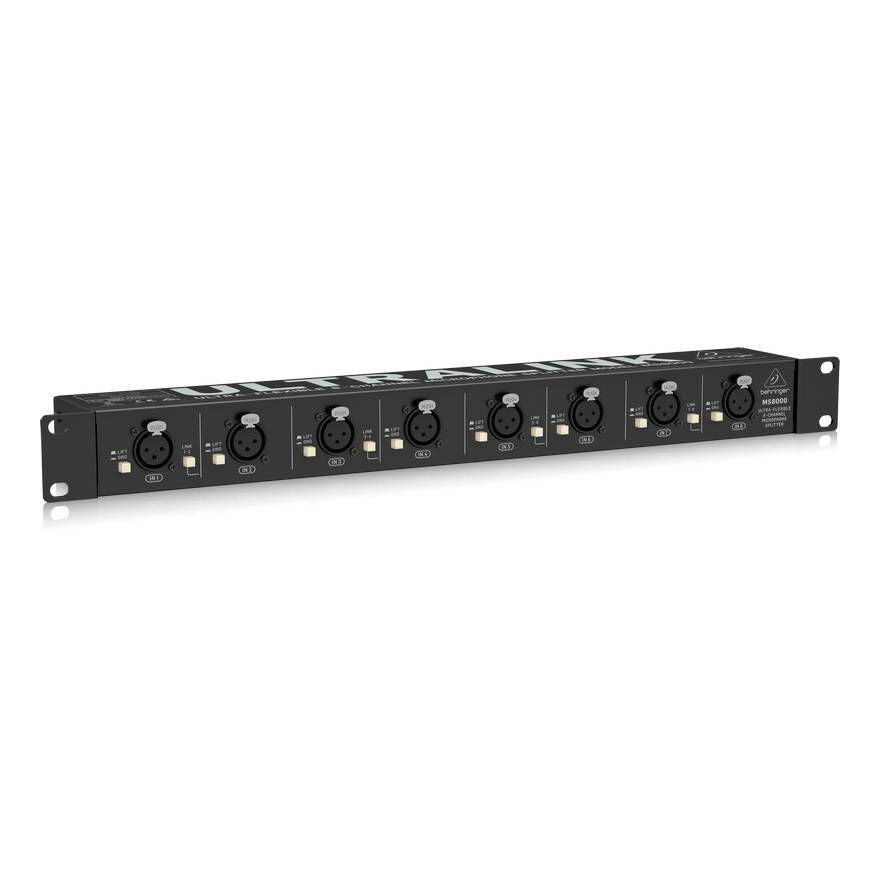

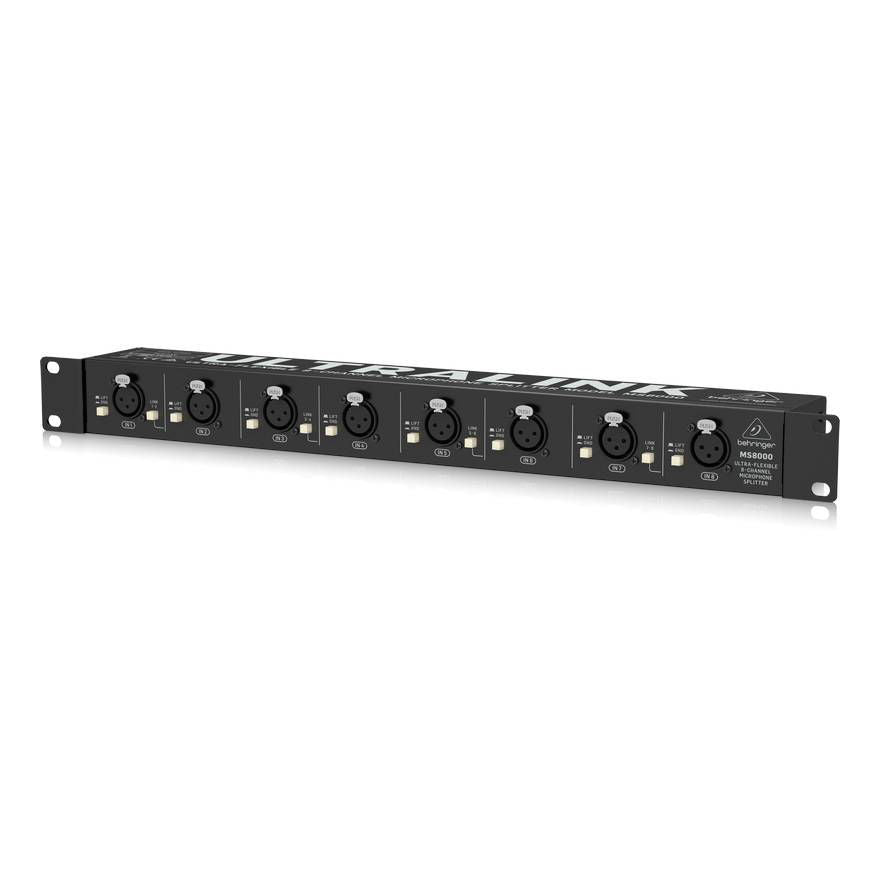

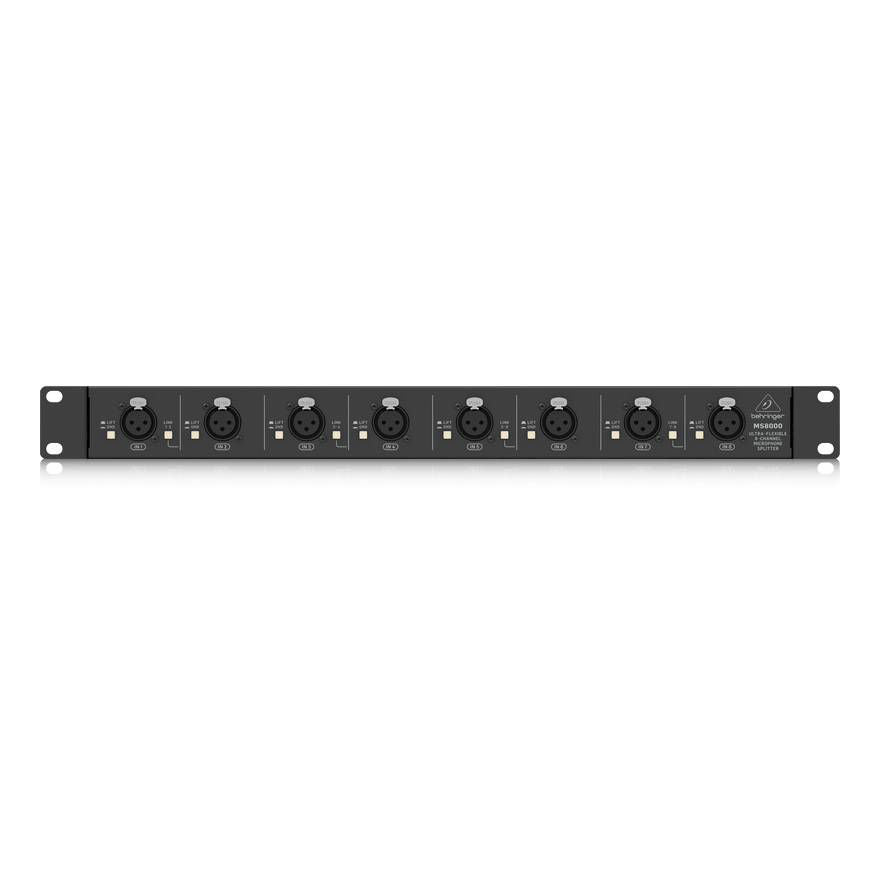

Behringer MS8000 8-Channel Microphone Splitter Rackmount

When it comes to connectivity on the stage or in the studio, you can never have too much – and that’s where the ultra-flexible MS8000 8-Channel Microphone Splitter makes all the difference.

The Behringer  MS8000 provides the ideal solution for live and recording musicians who need to send signals to multiple locations, including mixing and recording consoles, In-Ear-Monitors (IEMs), floor wedges, broadcast trucks and much more.

With 8 Inputs and 16 Outputs, the MS8000 easily connects you to the Front of House (FOH) console – and sends duplicate signals to your choice of destination devices.

Features

Specifications

Audio Inputs

• Connectors: 8 x XLR
• Impedance: 1 kO, balanced
• Max. input level: 30 dBu @ 1 kHz
• Controls: Link; Lift/Ground

Audio Outputs

• Link connectors: 8 x XLR, parallel to inputs
• Direct out connectors: 8 x XLR
• Voltage transformation ratio: 1:1.1
• Impedance: 2.7 kO, balanced
• Max. output level: 39 dBu @ 1 kHz

System

• Frequency response: 30 Hz to 30 kHz (±0.5 dB @ + 4 dBu)
• THD + N (Distortion): 0.02% @ 1 kHz, input level +4 dBu
• Signal-to-noise ratio: 104 dBu
• CMRR: >80 dB, typical
• Insertion loss: +8 dB @ 100 kO; -5 dB @ 600 O
• Power requirement: Passive

Dimension/Weight

• Dimension (HxWxD): 44 x 483 x 65 mm (1.7 x 19 x 2.6")
• Weight: 1.1 kg (2.4 lbs)
