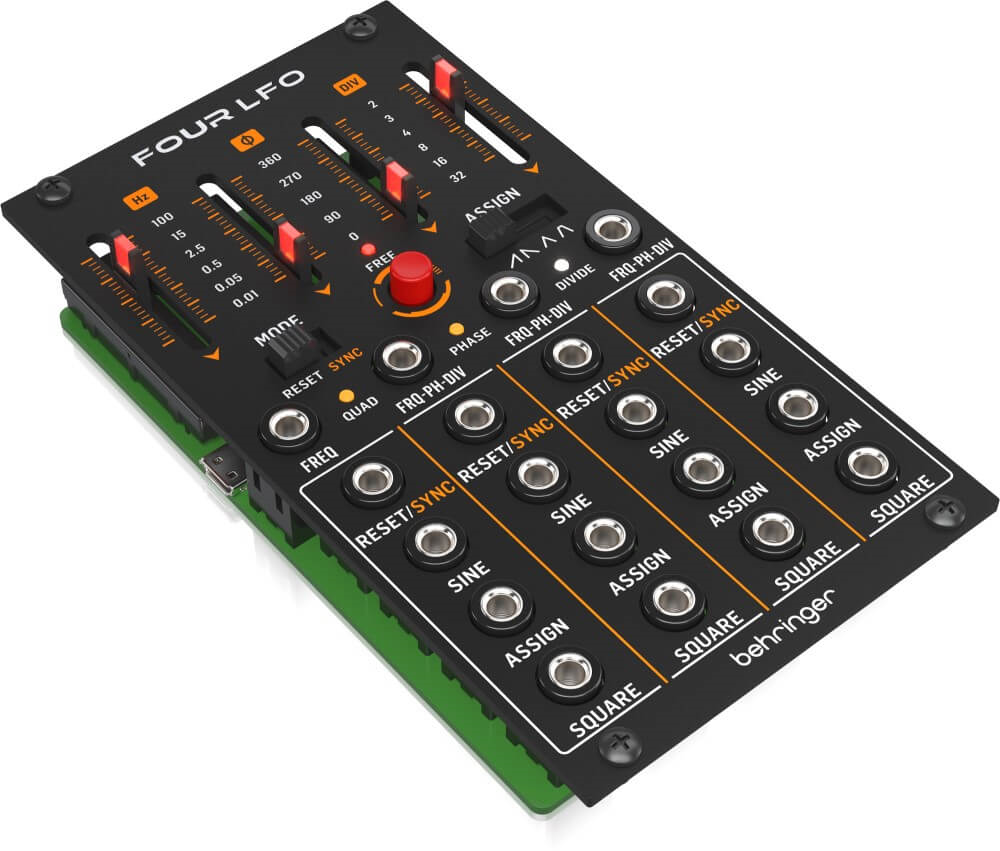

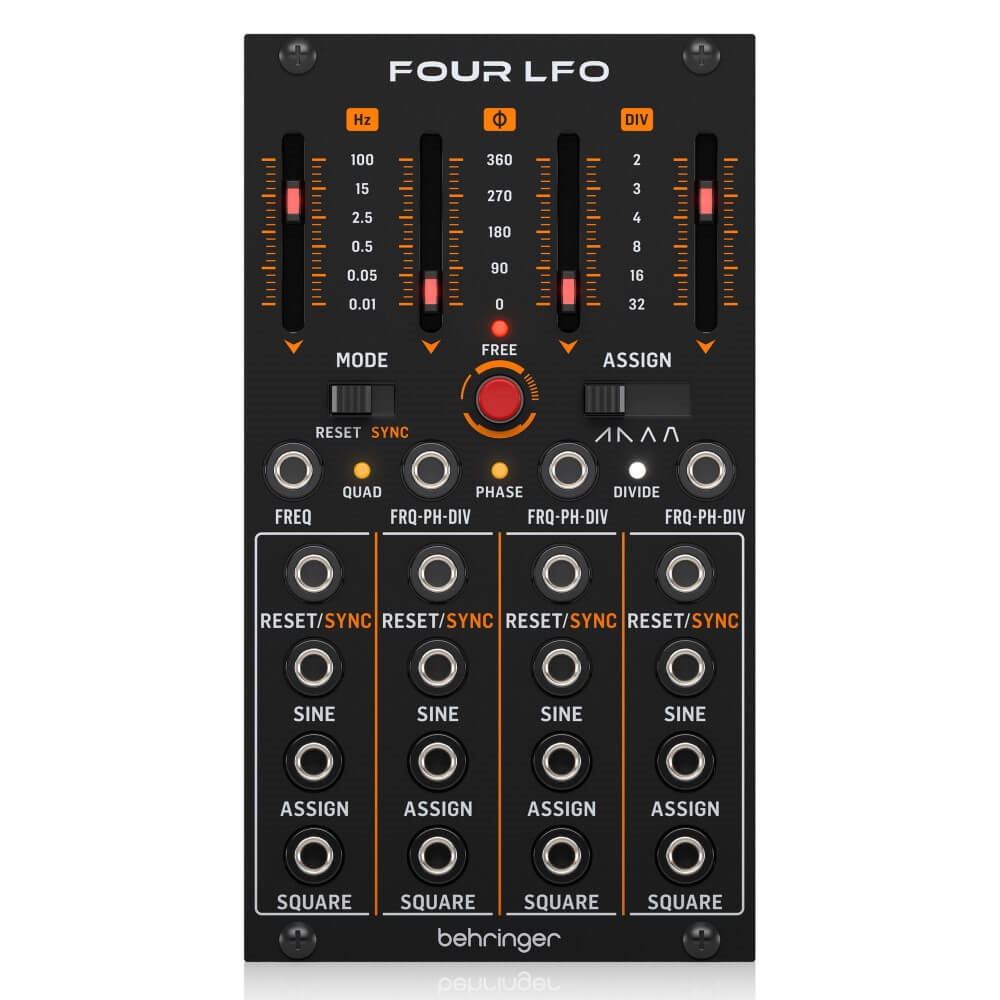

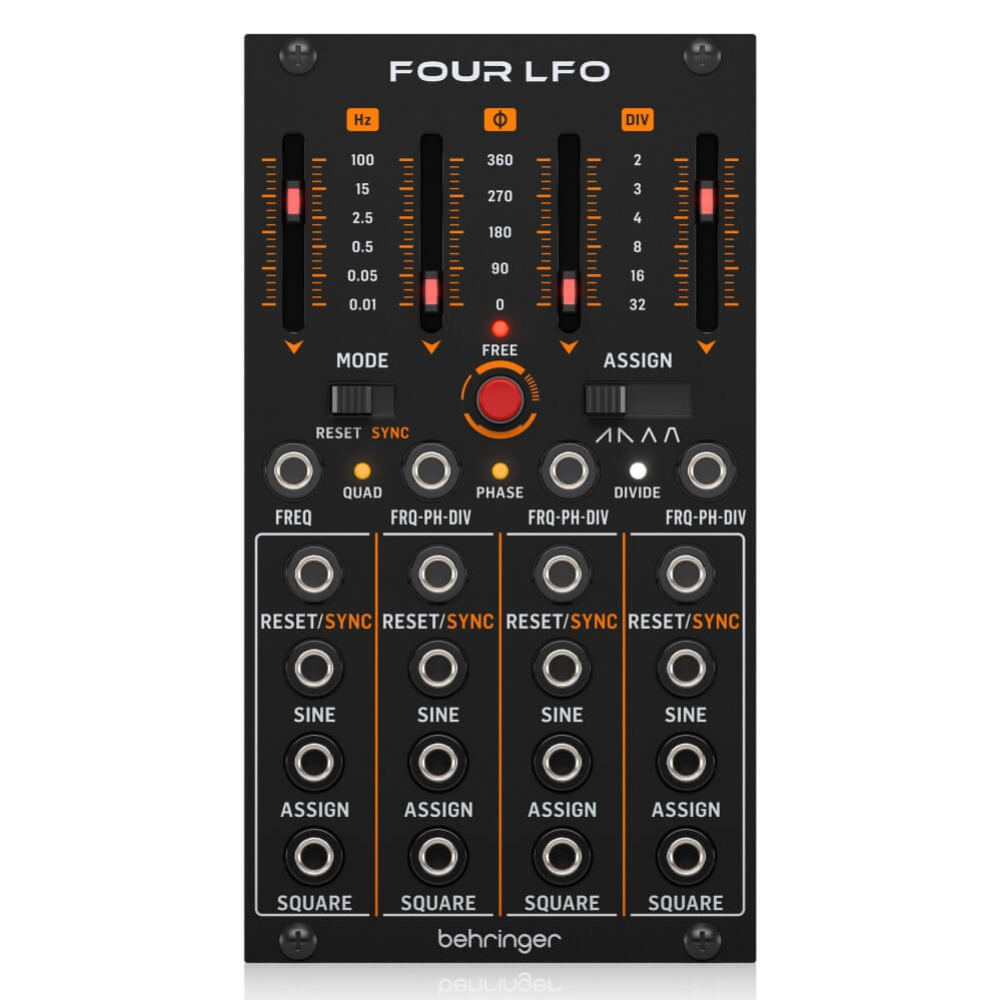

Behringer FOUR LFO Eurorack Module

Create intricate effects and expand your synth rig with the FOUR LFO from Behringer - a compact Eurorack module with 4 voltage-controlled LFOs based Xaoc Devices' outstanding open source Batumi. Each LFO contains separate user-definable waveforms and provides a plethora of options to carve distinct sequences and waveforms.

• 4 voltage-controlled LFOs with user-assignable waveforms based on open source Xaoc Batumi*
• 4 faders to control ultra-wide LFO rates from 500 Hz to 28 hours
• Free, quadrature, phase and divide modes for creative sound shaping
• Zoom mode for precise frequency settings
• Reset and sync input for each channel
• Assignable reset and tap tempo inputs
• Sine, square and assignable waveshape outputs
• User-assignable LFO waveforms featuring saw, ramp, triangle and trapezoid
• USB connector for easy firmware update
• 4 controls and switches give you real-time access to all important parameters
• Eurorack specs: 12 HP, 95 mA +12 V, 69 mA -12 V

Ready for Any Signal

Providing a uniquely versatile platform, the FOUR LFO allows you to alter and shape various waveforms and patch them into different effects to create wild and interesting soundscapes from out of this world. Each of the LFO's faders control frequency ranges from 500Hz all the way up to an astonishing 28 hours! Get even further sound shaping with the Free, Quadrature, Phase and Divide modes.

Controls

The FOUR LFO also includes a zoom mode, allowing you to dial in frequency settings with precision, a reset and sync input for each channel, individually assignable reset and tap tempo inputs and LFO saw, ramp, triangle and trapezoid wave shapes.

Eurorack Ready

Designed to fit into a standard Eurorack case, simply connect the FOUR LFO power cables to the power supply and mount the module with the included screws - allowing users to mix FOUR LFO with other synth modules for a truly personalized setup.

• CV Input
  • Type: 4 x 3.5mm TS jacks, DC coupled
  • Impedance: >1MO, unbalanced
  • Max input level: 10V p-p
• Reset/Sync In
  • Type: 4 x 3.5mm TS jacks, DC coupled
  • Impedance: >1MO, unbalanced
  • Max input level: 10V p-p
• Sine Out
  • Type: 4 x 3.5mm TS jacks, DC coupled
  • Impedance: >1MO, unbalanced
  • Max input level: 10V p-p
• Assign Out
  • Type: 4 x 3.5mm TS jacks, DC coupled
  • Impedance: >1MO, unbalanced
  • Max input level: 10V p-p
• Square Out
  • Type: 4 x 3.5mm TS jacks, DC coupled
  • Impedance: >1MO, unbalanced
  • Max input level: 10V p-p
• Controls
  • Sliders: 4x Function Attenuator
  • Switches: Mode (Reset/Sync)/Assign (ramp, saw, triangle, trapezoid)
  • Buttons: Function (Free, Quad, Phase, Divide)
  • LED: Function (Free, Quad, Phase, Divide)
