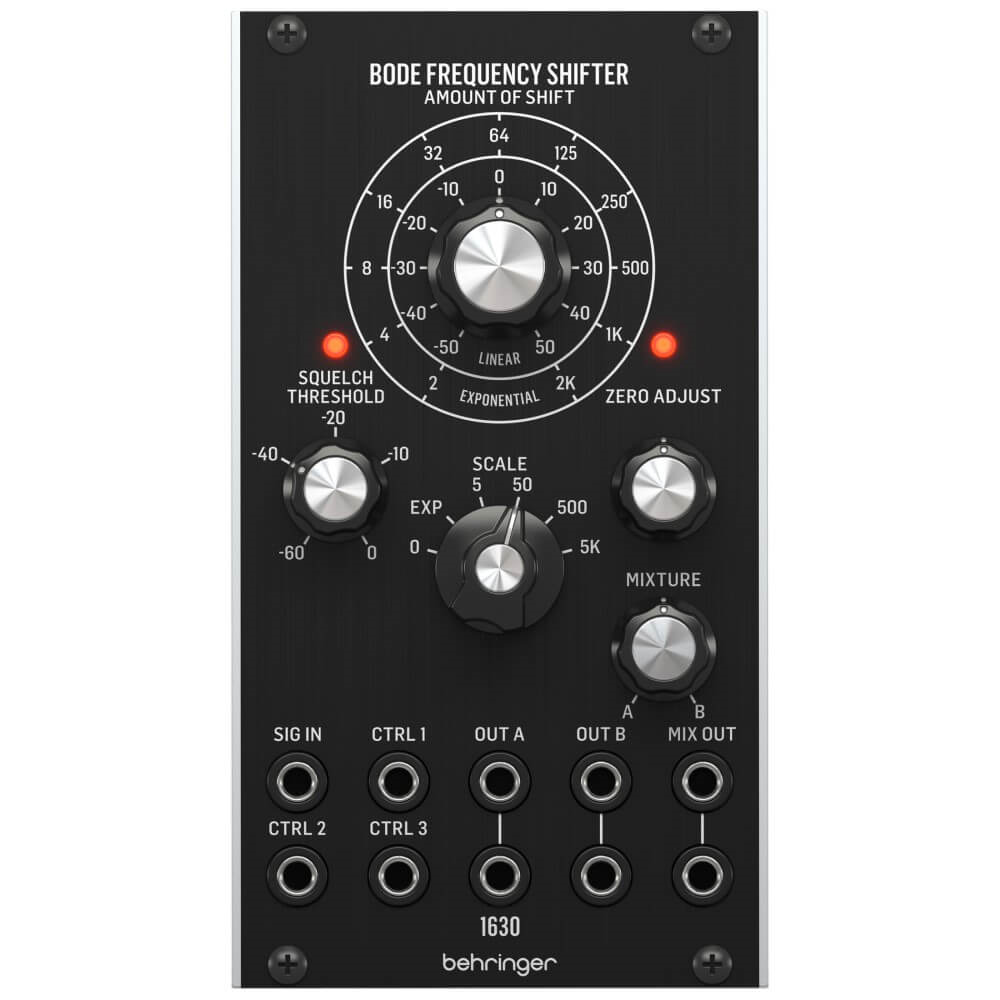

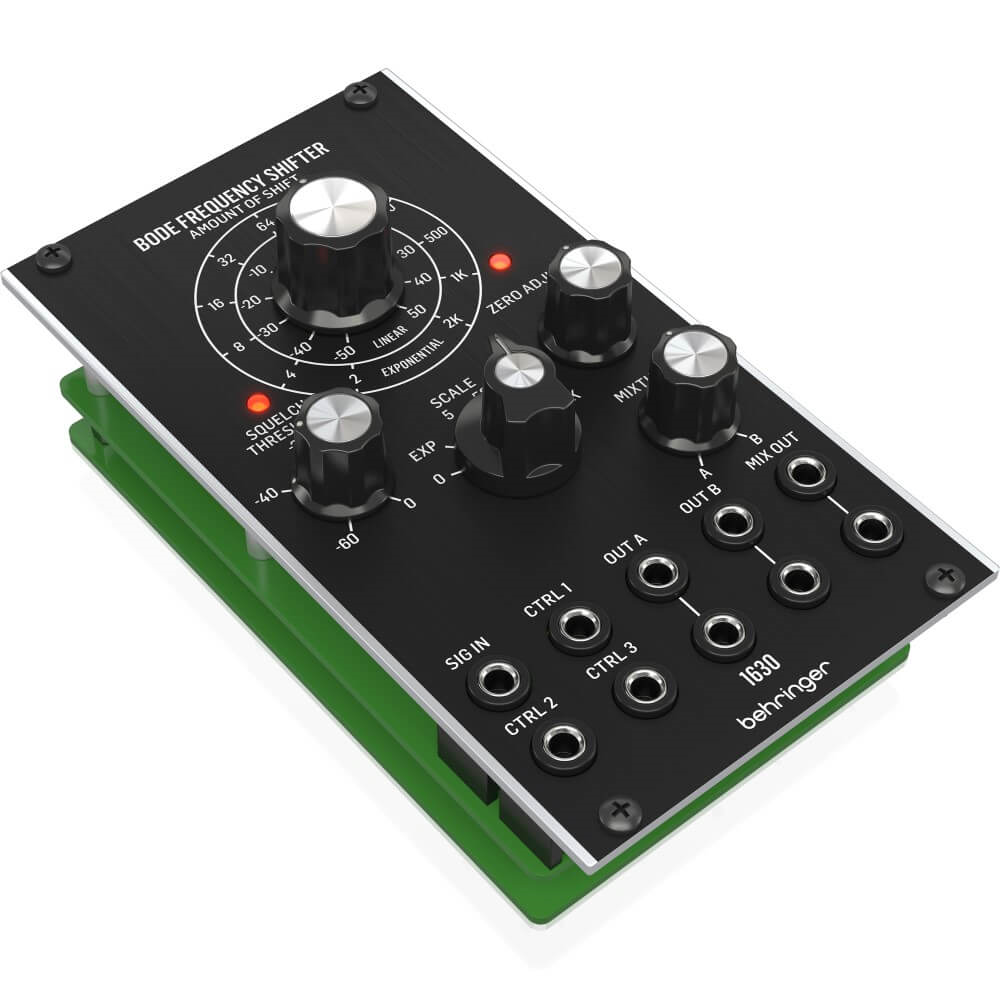

Behringer BODE FREQUENCY SHIFTER 1630 Analog Frequency Shifter Eurorack Module

Shift into top gear and prepare for that drop - the Behringer BODE FREQUENCY SHIFTER 1630 has arrived! Expand your rig with a faithful recreation of a classic '70s module, constructed with state-of-the-art circuitry - including a voltage-controlled beat frequency quadrature oscillator. The BODE FREQUENCY SHIFTER may just be the missing piece in your setup!

• Authentic recreation of the famous Bode frequency shifter from the '70s
• Accurately shifts the entire frequency spectrum continuously variable from -5 to +5 kHz
• State-of-the-art circuitry includes voltage-controlled beat frequency quadrature oscillator
• Accurately shifts input signals over the audio frequency range of 30 Hz - 16 kHz
• Amount of shift is accurately voltage-variable with linear or exponential control
• Variable threshold squelch minimizes apparent carrier bleed-through due to input signal background noise
• Less than 1% total unwanted modulation and distortion products

Ready for Any Signal

The BODE FREQUENCY SHIFTER shifts the whole frequency spectrum of any input signal from -5kHz to + 5kHz with impressive precision. Just connect any audio signal, and begin turning the large knob to lower or raise the frequency. You can also vary the amount of shift via the Scale knob, which allows you to select between linear or exponential control.

Controls

BODE FREQUENCTY SHIFTER features additional controls such as a variable threshold squelch, which reduces carrier bleed-through, and can be used to creatively change the characteristics of the input signal. You can connect up to three control voltages, along with up to four output signals.

Eurorack Ready

Designed to fit into a standard Eurorack case, BODE FREQUENCY SHIFTER can be combined with other synth modules for a truly unique setup. Simply connect the power cables and mount the module with the included screws!

An Amazing Value

The BODE FREQUENCY SHIFTER offers more unique ways to expand and vary your synth rig - a truly incredible module that opens up a world of possibilities!

• Signal Input
  • Type: 1x ?" TS Jack, AC Coupled
  • Impedance: 50kO, Unbalanced
  • Maximum Input Level: +12dBu
• Control Inputs
  • Type: 3x ?" TS Jack, DC Coupled
  • Impedance: 100kO, Unbalanced
  • CV range: 10V
• Outputs A
  • Type: 2x ?" TS Jack, DC Coupled
  • Impedance: 1kO, Unbalanced
  • Maximum Output Level: +12dBu
  • Output Signal: None Inverted Frequency Shift
• Outputs B
  • Type: 2x ?" TS Jack, DC Coupled
  • Impedance: 1kO, Unbalanced
  • Maximum Output Level: +12dBu
  • Output Signal: Inverted Frequency Shift
• Mix Outputs
  • Type: 2x ?" TS Jack, DC Coupled
  • Impedance: 1kO, Unbalanced
  • Maximum Output Level: +12dBu
  • Output Signal: Output A or B or a Mix of Both
• Test Connector
  • Type: 1x 12-Pin 0.1" Male Header
  • Impedance: 1kO, Unbalanced
  • Available Signals: Var Osc, Fixed Osc 1&2, BFO filters 1&2, Dome filters 1&2, Out 1&2, Squelch enable link, GND
• Controls and Indicators
  • Amount of Shift: Frequency Shift to a Maximum of ±5kHz
  • Zero Adjust: Fine Frequency Shift ±220Hz
  • Zero Adjust LED: Flashes Once per Carrier Cycle
  • Scale Rotary Switch: 0 (off), Exponential +2Hz to +2kHz, 1V/Octave Linear ±5Hz, ±50Hz, ±500Hz, ±5kHz
  • Squelch Threshold: -60dBu to 0dBu
  • Squelch Threshold LED: Lights for Input Signals Above the Threshold Level
  • Mixture: Pans Between Outputs A and B
• System
  • Frequency Range: <30Hz - >16kHz
  • Input to Output Gain: Unity Gain
  • Control Input Matching: Better than 0.1%
• Power
  • Power Supply: Eurorack
  • Current Draw: 110mA (+12V), 110mA (-12V)
