Behringer 297 Portamento Controller & CV Utilities Module for Eurorack

Modular Synthesis
The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.

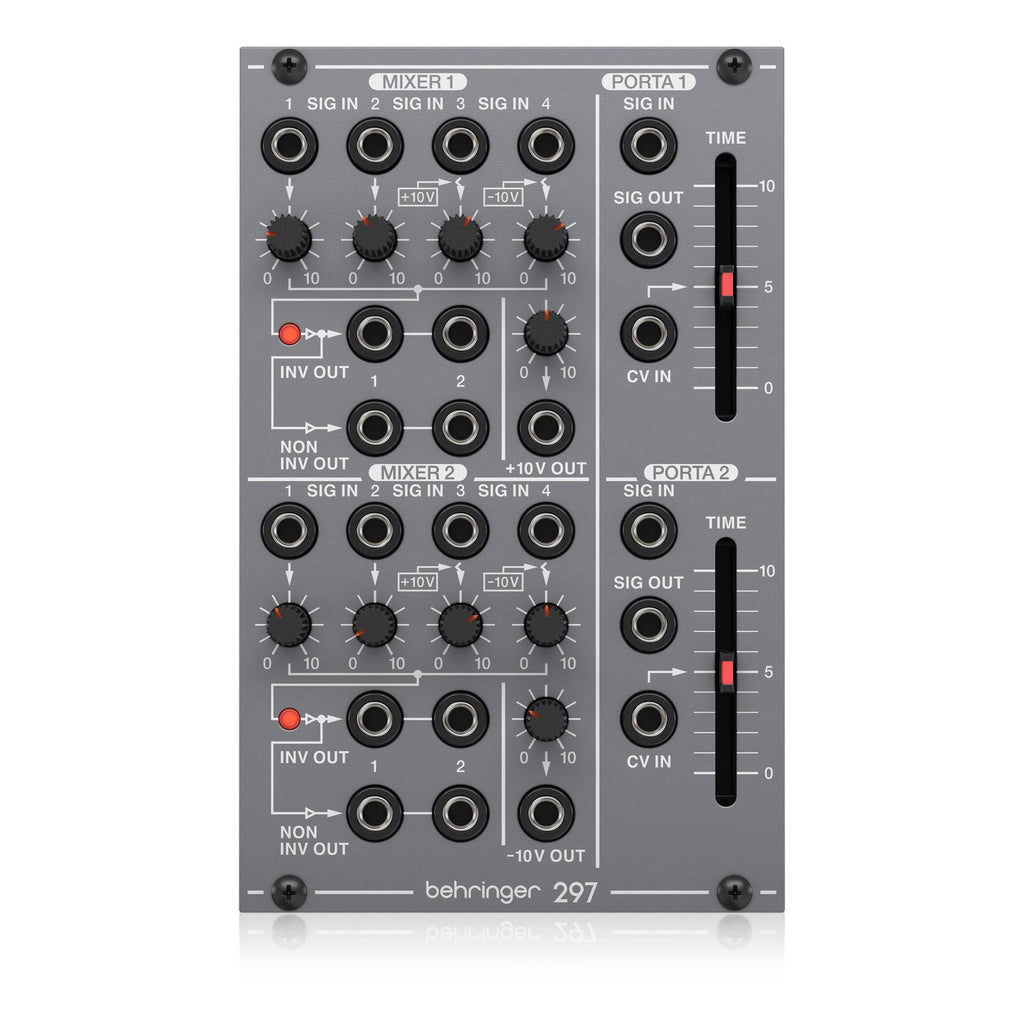

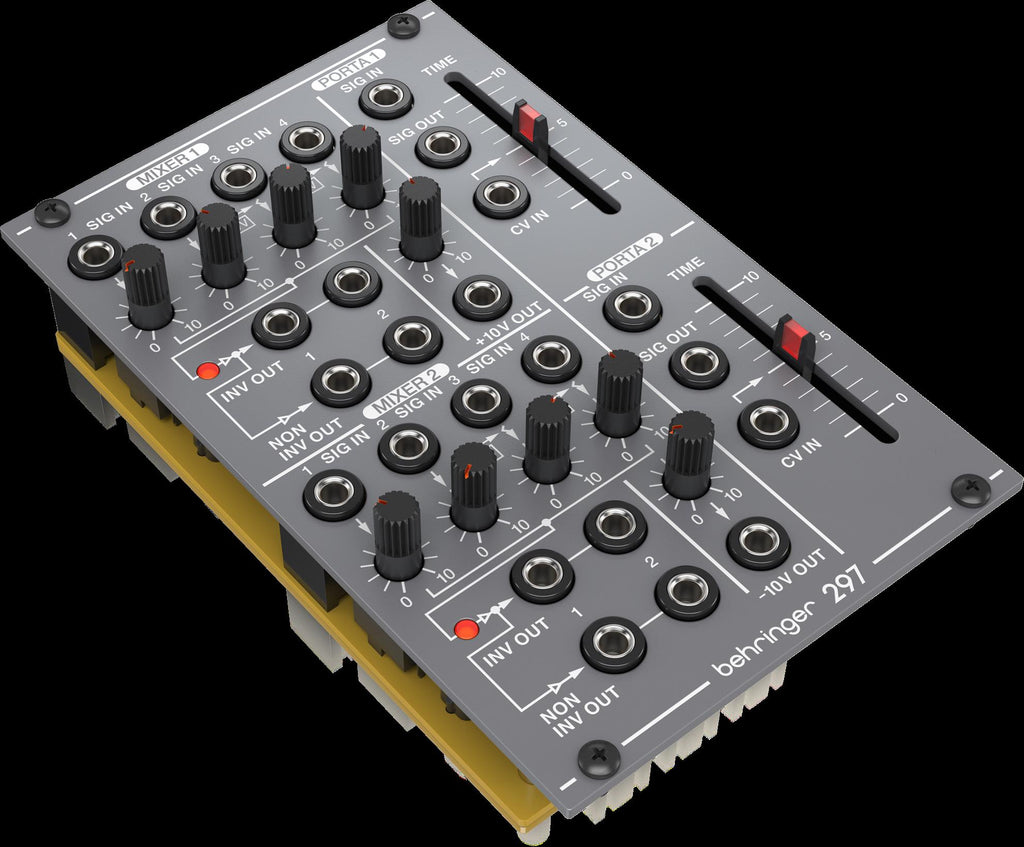

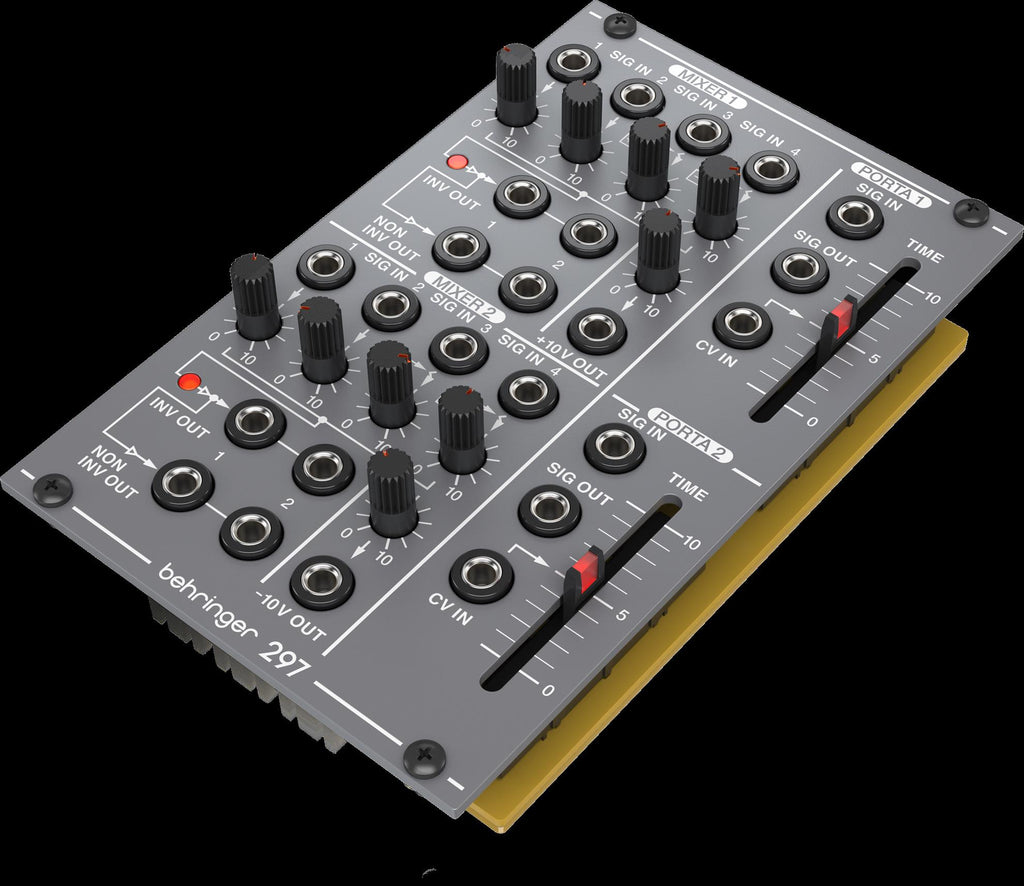

SYSTEM 100 297 DUAL PORTAMENTO/CV UTILITIES
This is the Behringer System 100 297 DUAL PORTAMENTO/CV UTILITIES Module. A portamento and mixer combo and authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price! Mix the 297 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Mix Them All
The 297 features two independent mixers for CV signals. These come with four inputs, each with their own attenuators, where you can connect incoming signals from various different sources. The CV mixers also allow you to send mixes of inputs 1-4 in inverted and non-inverted versions for extra versatility.

Specifications

Mixer signal input

• Type: 8 x 3.5 mm TS jacks, DC coupled
• Impedance: >50 kO, unbalanced
• Max input level: ±10 V

Portamento signal input

• Type: 2 x 3.5 mm TS jacks, DC coupled
• Impedance: 95 kO, unbalanced
• Max input level: +10 V

Portamento CV input

• Type: 2 x 3.5 mm TS jacks, DC coupled
• Impedance: 2 MO, unbalanced
• CV input level: +10 V

Mixer outputs, inverted & non inverted

• Type: 8 x 3.5 mm TS jacks, DC coupled
• Impedance: 50 O, unbalanced
• Max output level: ±10 V

Portamento signal output

• Type: 2 x 3.5 mm TS jacks, DC coupled
• Impedance: 250 O, unbalanced
• Max output level: +10 V

+10 V output

• Type: 3.5 mm TS jack, DC coupled
• Impedance: 1 kO, unbalanced
• Max output level: +10 V

-10 V output

• Type: 3.5 mm TS jack, DC coupled
• Impedance: 1 kO, unbalanced
• Max output level: -10 V

Controls

• Mixer input level: -8 to unity gain
• Portamento time: 10 ms to 3 s
• +10 V output voltage control: 0 V to +10 V
• -10 V output voltage contro: 0 V to -10 V

Power

• Power supply: Eurorack
• Current draw: 70 mA (+12 V), 60 mA (-12 V)

Physical

• Dimensions: 38 x 81 x 129 mm: (1.5 x 3.2 x 5.1")
• Rack units: 16 HP
• Weight: 0.18 kg (0.4 lbs)
