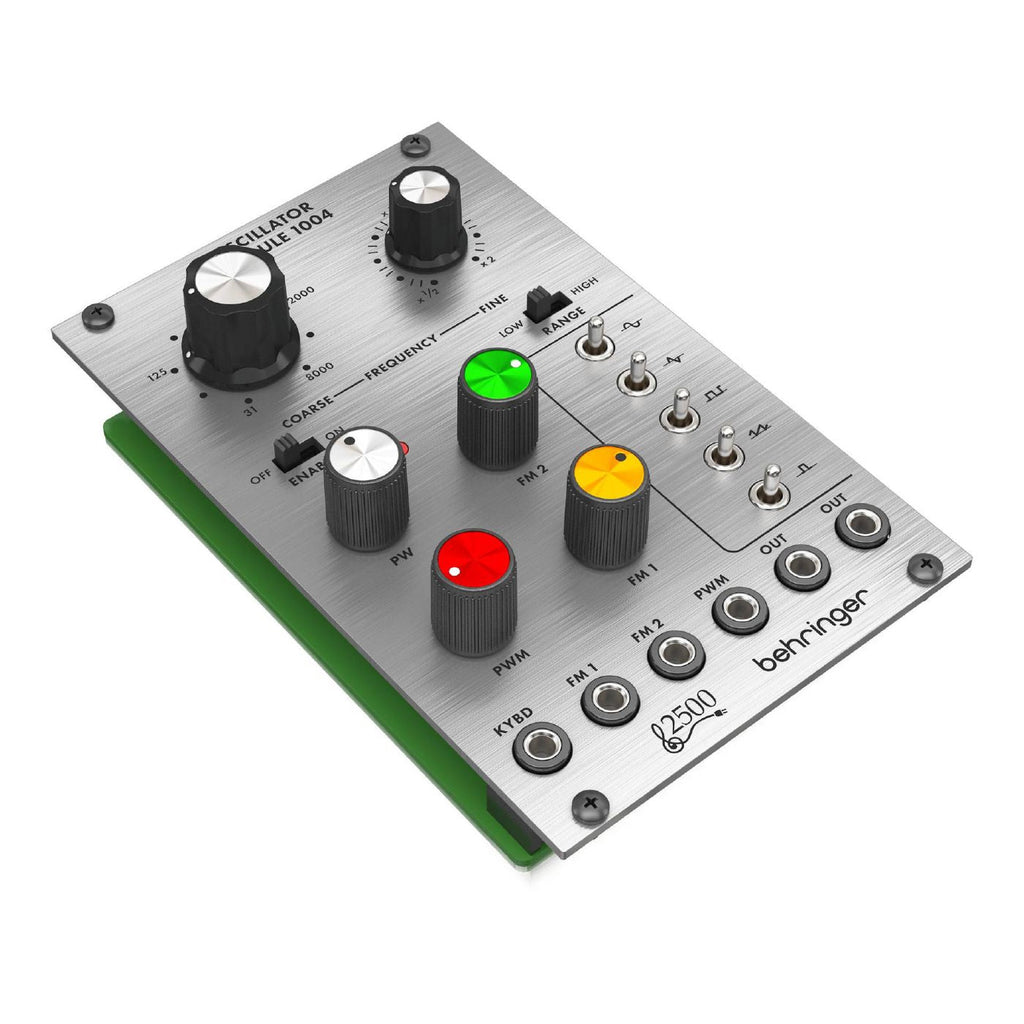

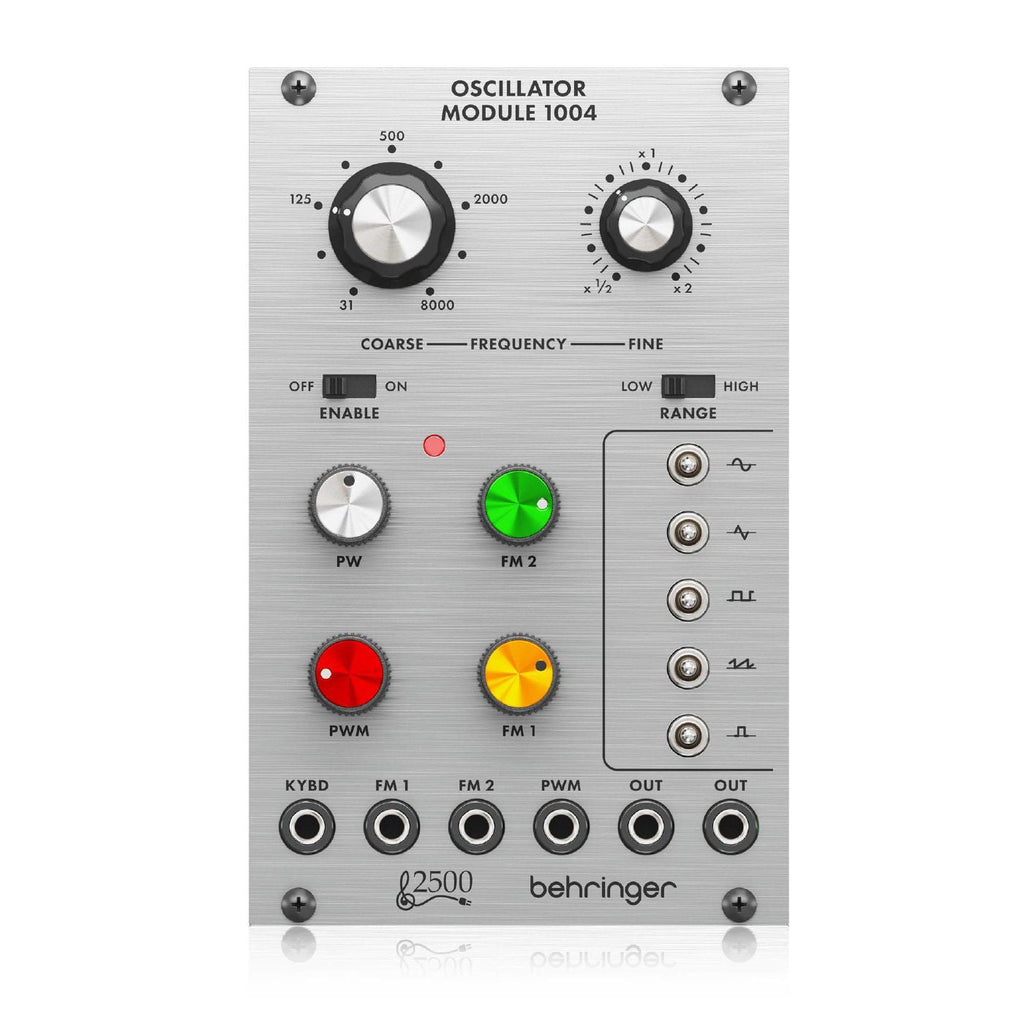

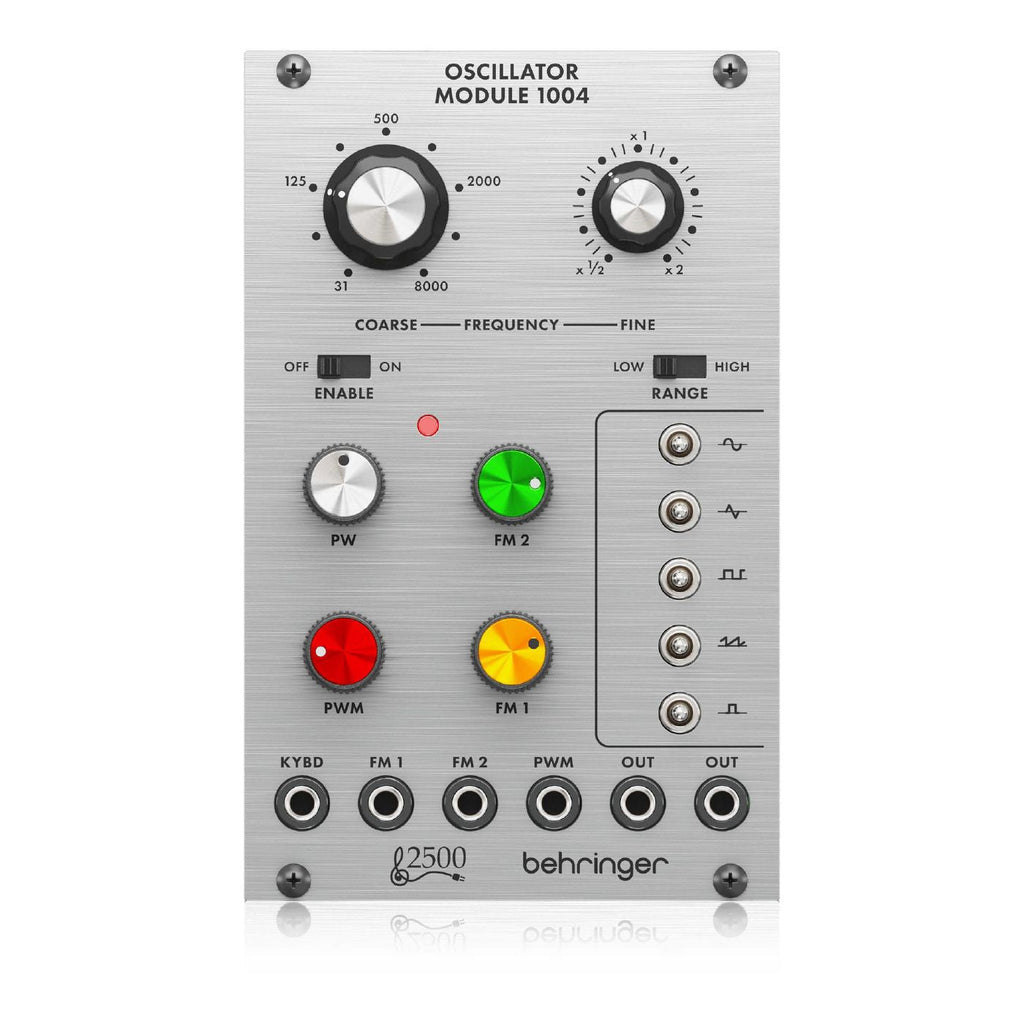

Behringer 1004 Oscillator Module

Features

• Classic 1004 dual analog VCO module from the 70s
• Authentic reproduction of the circuitry from the 2500 Series
• VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse
• Waveforms can be combined and inversed into the audio outputs
• Output frequency range from 0.03 Hz to 16 kHz in 2 ranges
• VCO range selectable between Low (LFO) or High (Audio)
• Coarse frequency control allows adjustment over 10 octaves
• Fine frequency control adjusts over +/- 1 octave
• Frequency modulation with 2 inputs and controls responding to 1 V/octave
• The width of the pulse waveform can be set manually and controlled dynamically
• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

Specifications

Inputs

FM 1/2

• Type: 2 x 3.5 mm TS jacks
• Impedance: 50 kO, unbalanced
• Max input level: 10 V, 1 V/octave

Keyboard

• Type: 3.5 mm TS jack
• Impedance: 50 kO, unbalanced
• Max input level: 10 V, 1 V/octave

PWM

• Type: 3.5 mm TS jack
• Impedance: 50 kO, unbalanced
• CV range: ±10 V, 10% per volt

Outputs

Out

• Type: 2 x 3.5 mm TS jacks
• Impedance: 1 kO, unbalanced
• Max output level: 10 V p-p

Controls

• Coarse: Sets oscillator frequency (8 octave range)
• Fine: Oscillator fine adjustment (±1 octave)
• Range: Select LFO (0.06 Hz - 16 Hz) or audio band (31 Hz - 8 kHz)
• Enable: Oscillator on/of
• PW: Pulse width adjustment (5% - 95%)
• PWM: Modulation depth adjustment (-8 to unity gain)
• FM 1/2: Attenuate FM inputs (-8 to unity gain)
• Waveform switches: Select up to 5 waveforms (sine, tri, square, saw, pulse)

Power

• Power supply: Eurorack
• Current draw: 60 mA (+12 V), 50 mA (-12 V)

Physical

• Dimensions: 46 x 81 x 129 mm (1.8 x 3.2 x 5.1")
• Rack units: 16 HP
• Weight: 0.17 kg (0.37 lbs)
