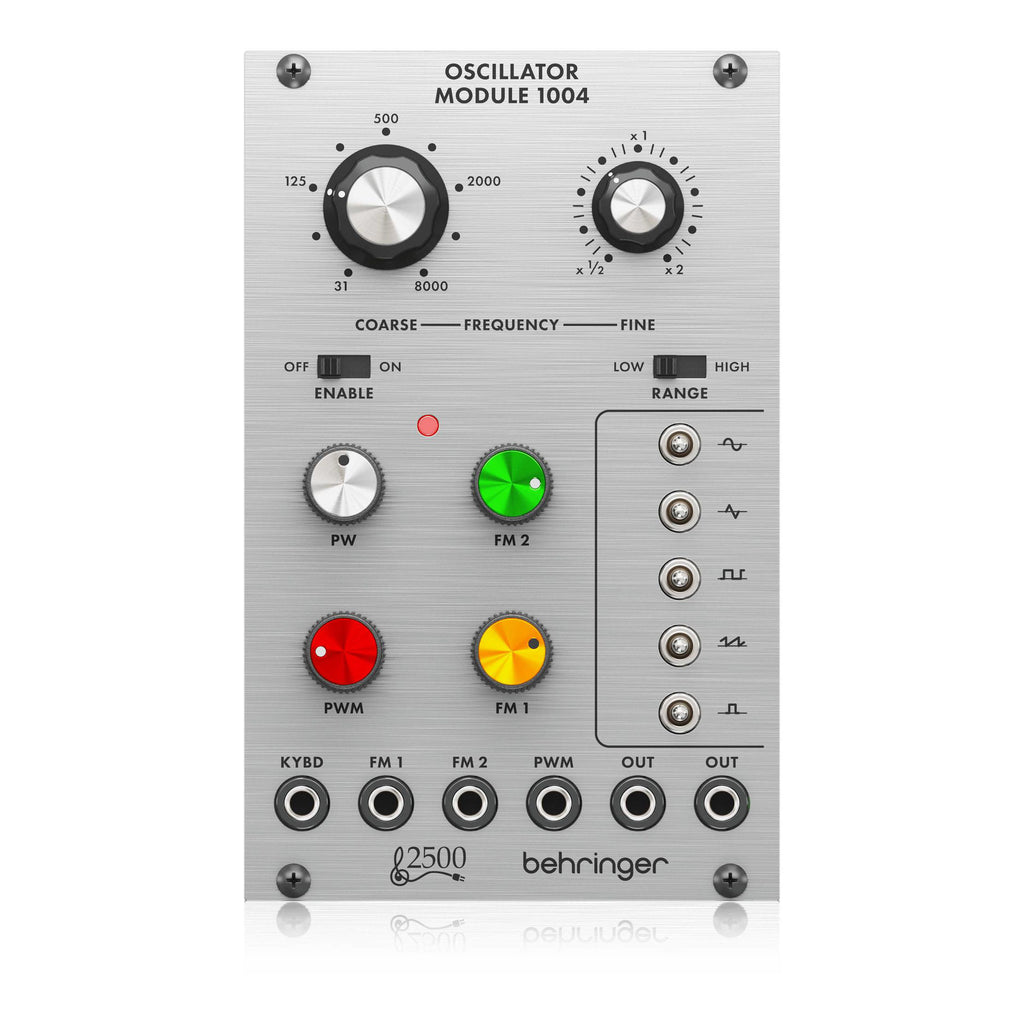

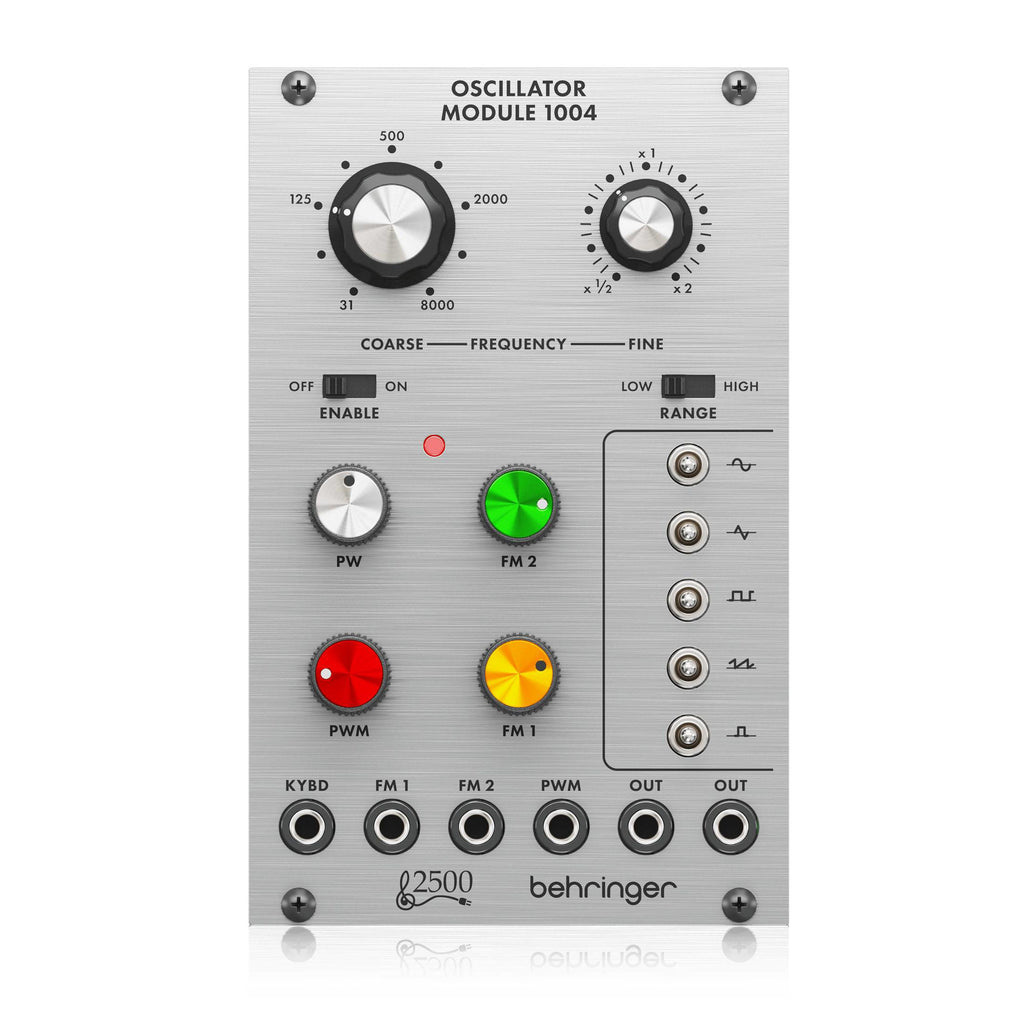

Behringer 1004 Oscillator Module

Brand: Behringer

Behringer 1004 Oscillator Module

SKU: 450657
$119.00
Enquire now
Enquire now
Price Match

  • Rent from

  • $9.92/mth for 12 months interest free

    Fees apply

  • $29.75 Pay in 4 interest-free

    Late fees apply

  • $29.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

Features

  • Classic 1004 dual analog VCO module from the 70s
  • Authentic reproduction of the circuitry from the 2500 Series
  • VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse
  • Waveforms can be combined and inversed into the audio outputs
  • Output frequency range from 0.03 Hz to 16 kHz in 2 ranges
  • VCO range selectable between Low (LFO) or High (Audio)
  • Coarse frequency control allows adjustment over 10 octaves
  • Fine frequency control adjusts over +/- 1 octave
  • Frequency modulation with 2 inputs and controls responding to 1 V/octave
  • The width of the pulse waveform can be set manually and controlled dynamically
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

Specifications

Inputs

FM 1/2

  • Type: 2 x 3.5 mm TS jacks
  • Impedance: 50 kΩ, unbalanced
  • Max input level: 10 V, 1 V/octave

Keyboard

  • Type: 3.5 mm TS jack
  • Impedance: 50 kΩ, unbalanced
  • Max input level: 10 V, 1 V/octave

PWM

  • Type: 3.5 mm TS jack
  • Impedance: 50 kΩ, unbalanced
  • CV range: ±10 V, 10% per volt

Outputs

Out

  • Type: 2 x 3.5 mm TS jacks
  • Impedance: 1 kΩ, unbalanced
  • Max output level: 10 V p-p

Controls

  • Coarse: Sets oscillator frequency (8 octave range)
  • Fine: Oscillator fine adjustment (±1 octave)
  • Range: Select LFO (0.06 Hz - 16 Hz) or audio band (31 Hz - 8 kHz)
  • Enable: Oscillator on/of
  • PW: Pulse width adjustment (5% - 95%)
  • PWM: Modulation depth adjustment (- to unity gain)
  • FM 1/2: Attenuate FM inputs (- to unity gain)
  • Waveform switches: Select up to 5 waveforms (sine, tri, square, saw, pulse)

Power

  • Power supply: Eurorack
  • Current draw: 60 mA (+12 V), 50 mA (-12 V)

Physical

  • Dimensions: 46 x 81 x 129 mm (1.8 x 3.2 x 5.1")
  • Rack units: 16 HP
  • Weight: 0.17 kg (0.37 lbs)
