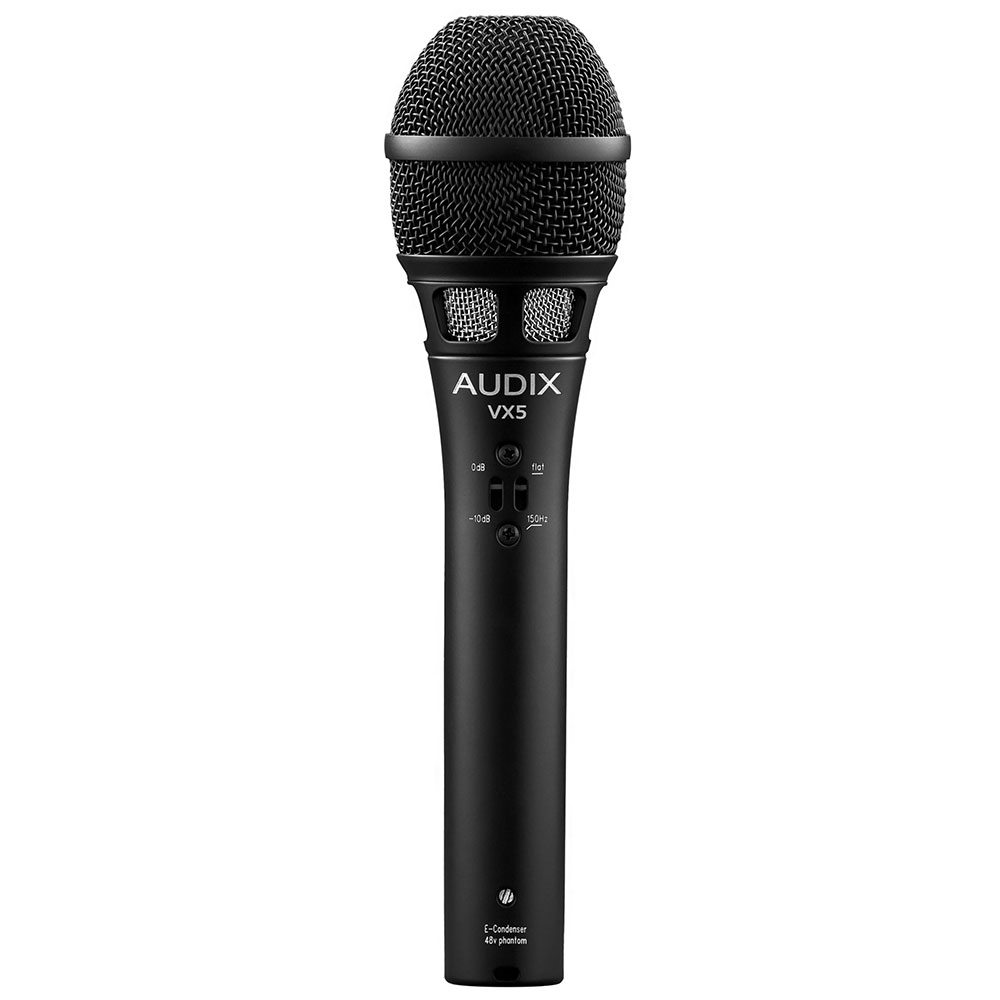

Audix VX5 Electret Condenser Vocals And Acoustic Instruments. Supercardioid

The VX5 is characterized with a tight and uniformly controlled supercardioid polar pattern which helps to isolate the vocals from the rest of the instruments on stage. With a wide frequency range of 40 Hz - 16.5 kHz, the VX5 has a very clean and natural sound with exceptional transient response. This mic requires 9 - 52 volts phantom power. Other features include a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grill with multi-stage pop filter and a -10 dB pad and bass roll-off filter. The VX5 will handle sound pressure levels in excess of 140 dB (with pad and roll-off engaged) and will provide over 20 dB of ambient noise rejection on live stages. In addition to vocal applications, the VX5 is ideally suited to capture acoustic instruments such as guitar, woodwinds, brass, percussion toys, drum overheads, hi-hat and piano. It is a very versatile mic for home studio recording. The VX5 is well balanced, comfortable to hold, durable, and designed with very high standards and tight tolerances. The VX5 is manufactured with a precision die cast zinc alloy body, durable black E-coat finish and gold plated XLR connector. Applications Stage or studio Lead or background vocals Speech Acoustic instrumentals Features Premium electret condenser for vocals and acoustic instruments Smooth accurate frequency response Switches for -10 dB pad and bass roll-off Suited for acoustic music as well as loud stages Designed, assembled & tested in the USA 3 year warranty Specifications Transducer Type Pre-Polarized Condenser Frequency Response 40 Hz - 16.5 kHz Polar Pattern Supercardioid Output Impedance 150 ohms Sensitivity 5 mV / Pa @ 1k Equivalent Noise Level 26 dB (A-weighted) Signal to Noise Ratio 68 dB Off Axis Rejection >20 dB Maximum SPL =140 dB (w/ -10 pad) Power Requirements 9-52 V Connector 3-pin XLRm Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector Materials / Finish Zinc Alloy & Machined Brass / Black Finish Product Weight 277 g / 8 oz Product Length 181 mm / 7.1 in
