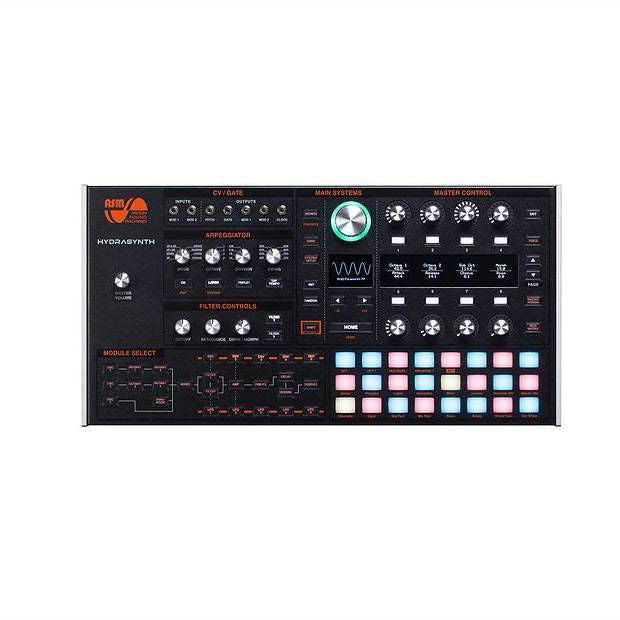

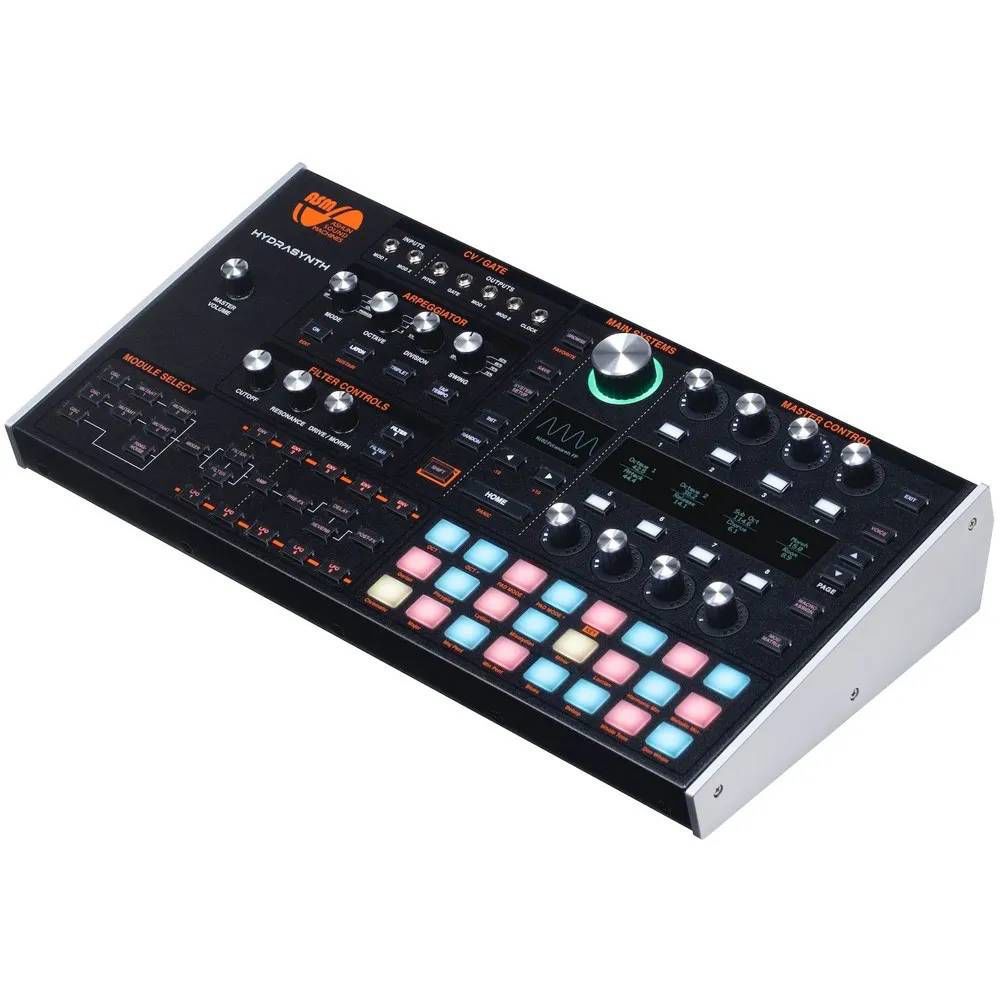

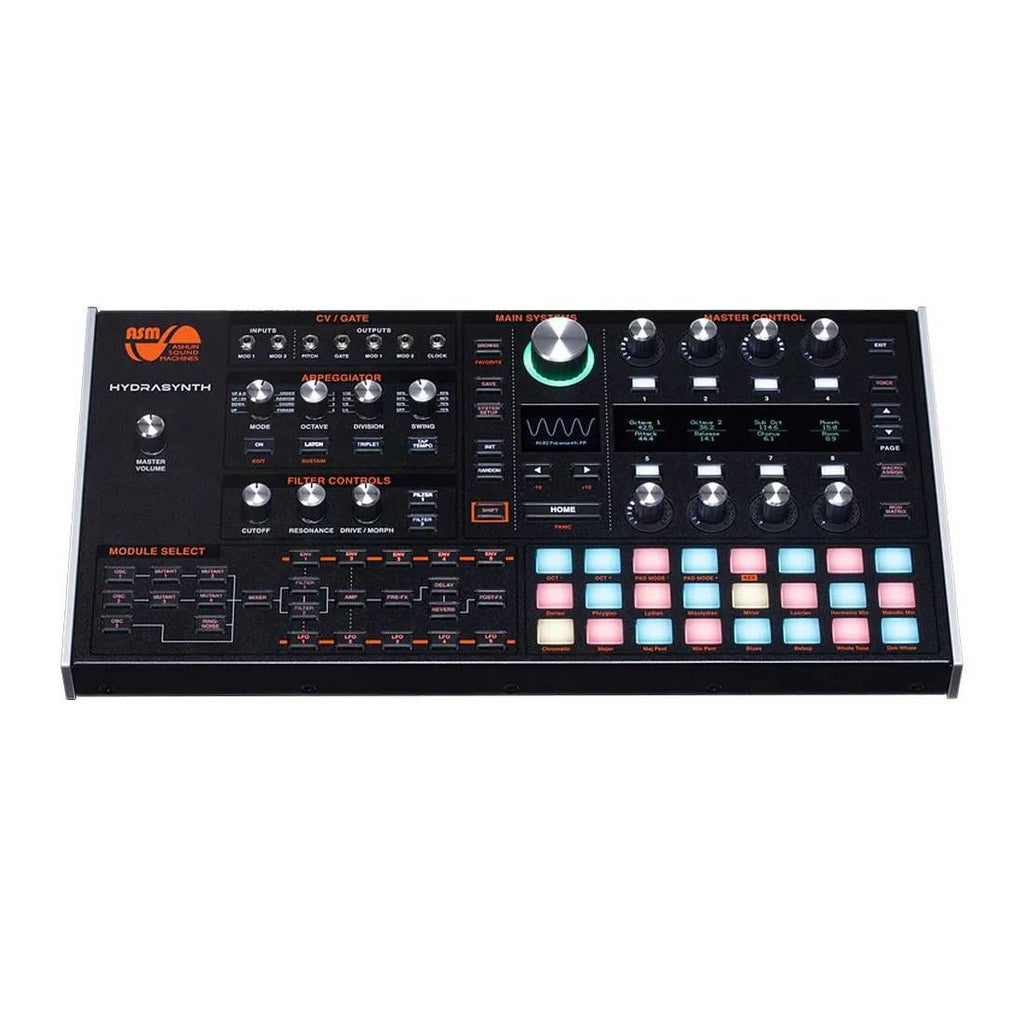

ASM Hydrasynth Desktop 8-Voice Polyphonic Wave Morphing Synth
1/6
backorder

ASM Hydrasynth Desktop 8-Voice Polyphonic Wave Morphing Synth

$1,229.00 AUD
Brand: ASM
SKU: ASM-HYDRASYNTHDSK

or from $10/week with

or Rent from $30/week with

Backorder

Mega Music Myaree

Available to Order In

Mega Music Wangara

Available to Order In

Mega Music Warehouse

Available to Order In

ASM Hydrasynth Desktop 8-Voice Polyphonic Wave Morphing Synth

Mega Music Myaree

Available to Order In

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Available to Order In

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236

Mega Music Warehouse

Available to Order In
Description

The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.

​Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, The Hydrasynth Desktop / Rack has 24 polyphonic pressure touch pads so that you can play the unit without needing to connect a keyboard or other controller. Using multiple pad layout modes as well as quick to access scale modes, the Hydrasynth Desktop / Rack is easy to make music on.

​The Hydrasynth Desktop / Rack comes with rack ears so that you can mount it in a standard 19" rack.


Features

  • Poly Pressure Touchpads
  • 3 oscillators with a selection of 219 single cycle waveforms
  • Oscillators 1 & 2 are routed into MUTATORS
  • Mutators allow you to modulate, bend and sculpt the sound in new (and old) ways
  • Oscillators are fed into a mixer along with the Noise generator and Ring Modulator
  • 2 filters that can be configured in series or parallel
  • 1st filter has 16 different filter models
  • 2nd filter is a 12db per octave
  • 2nd filter sweeps from low pass > bandpass/notch > high pass
  • 5 Low-Frequency Oscillators
  • LFO’s feature a STEP mode that allows you to create patterns with up to 64 steps
  • 5 DAHDSR Envelopes
  • Mod Matrix w/ 32 user-definable modulation routings
  • Almost everything in the synth engine can be a modulation destination
  • Arpeggiator w/ a phrase arpeggio built-in
  • Import MIDI tuning standard files for microtonal productions
  • MIDI IN/OUT/THRU
  • CV: Supports the standard voltages for Eurorack as well as some of the Japanese Volts>HZ products
  • MOD in and outs allow for modulation from DC to full audio ranges, expanding your modulation capabilities
  • 8 assignable encoders and buttons
  • 5 banks of 128 patches w/ 256 factory patches
  • Full FX suite – reverbs, chorus, delay, flanger, EQ, distortion, compressor, and many more

Specifications

Metal Chassis
  • Steel top and bottom
  • Aluminum side panels
  • 5U in rack

24 PolyTouch pads

  • 24 velocity and pressure sensitive pads
5 banks of 128 patch memories
CV gate input and outputs
  • Support multiple CV/GATE standards
    • CV
      • 1v per octave +/-5V
      • 1V per octave 0-10V
      • Hz to Volts +/-5V
      • Hz to Volts 0-10V
      • 1.2V per octave
    • Gates
      • V-trig, S-trig
      • 3V, 5V, 10V
    • Mod In/Out range
      • +/5V, 0-10V, 0-5V, 0-1V
  • Clock in and out
    • 1PPS, 2PPQ, 24PPQ, 48 PPQ
    • Clock Voltage - 3v, 5V, 10V
MIDI IN/OUT/THRU
  • Voice overflow mode for expanding voices with another Hydro synth
Expression pedal input
Sustain pedal input
  • Polarity sensing input
DC input jack

USB port
  • Supports USB MIDI In/Out
Dimensions
44 x 22.3 x 7 cm
(17.32 x 8.78 x 2.76 inches)

Weight
3.6kg (7.94 lbs)
