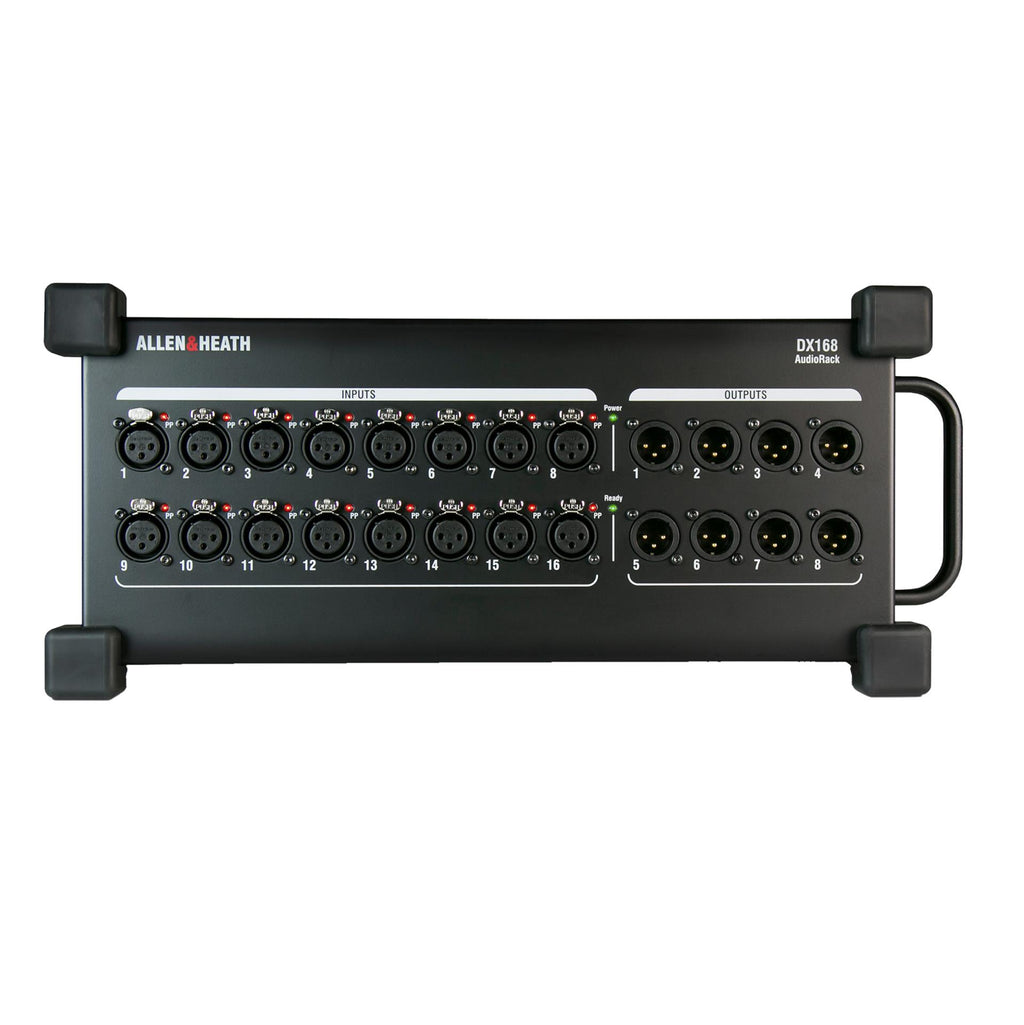

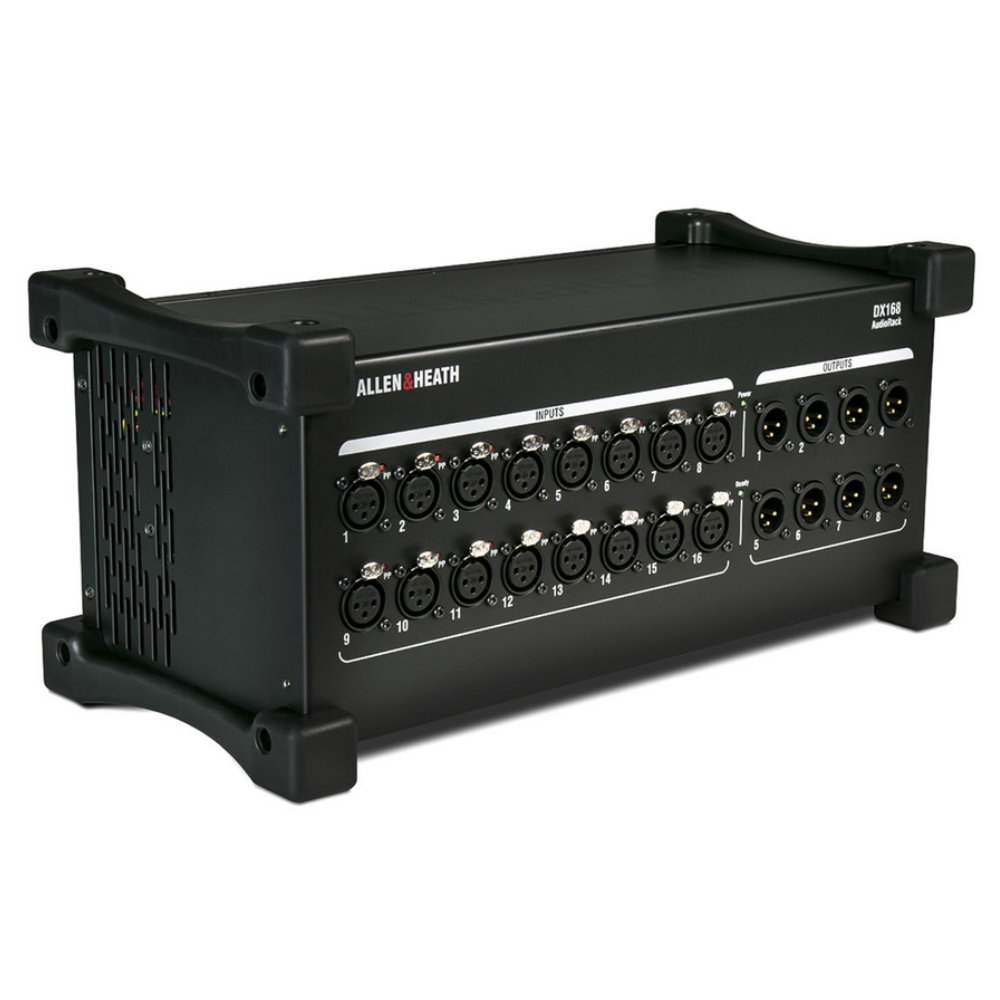

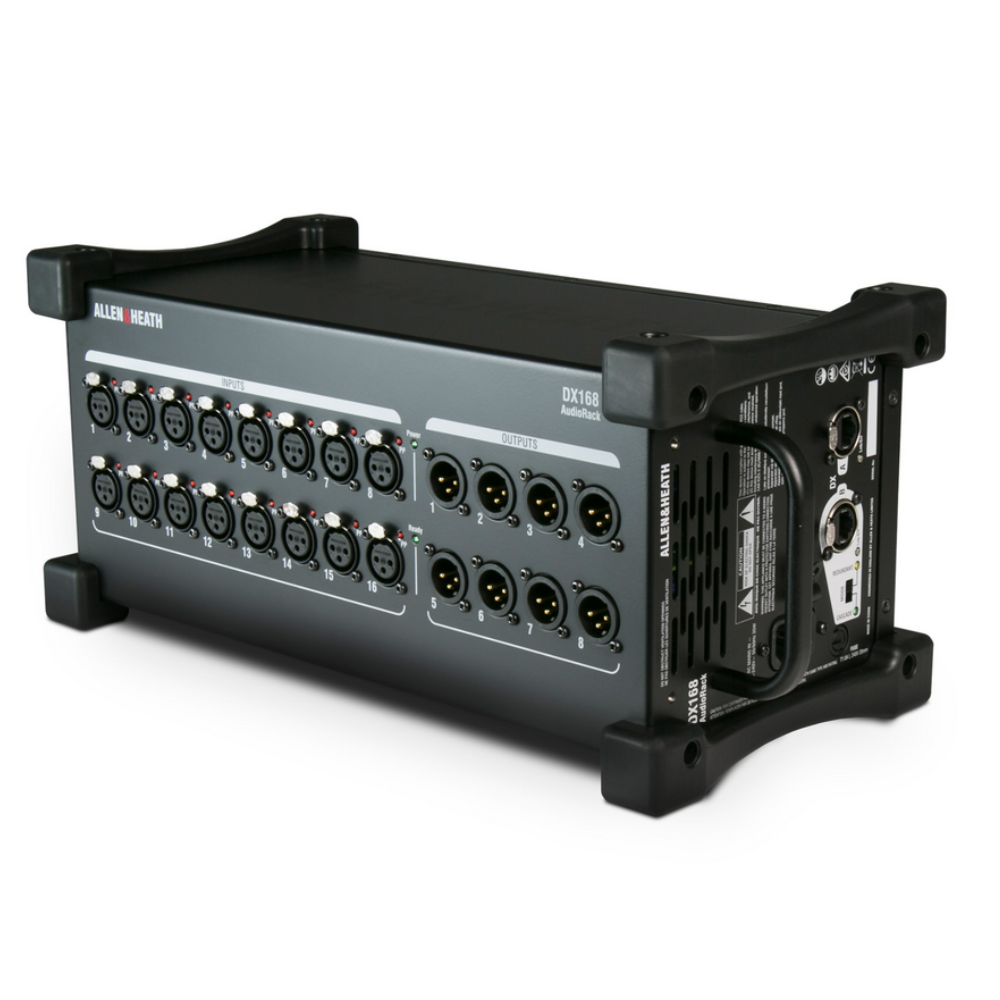

Allen & Heath DX168 96k 16in/8out Portable IO Expander

Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack, SQ mixer or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O. The Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in industry standard 19-inch racks. With dLive Up to 6 DX168 units can be connected directly to a dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface. More units can be connected via the dLive DX Link card or DX Hub. With SQ Two units can be daisy chained and connected directly to an SQ SLink port, with the optional SLink card for SQ enabling more connections. For a more distributed system, a DX Hub can handle up to 8 DX168 units which can be freely patched to the SQ’s 48 input channels. Features 16 High end, low noise preamps Independent 48v indicator 96khz Auto firmware matching Ethernet L2 compatible Rack mount (optional kit) Up to 46 expanders in a system Can be connected thru a VLAN Can live on the building IT network No noise (fanless) Specifications 16 Mic Preamps on XLR Phantom Power LED per Input 8 XLR Line Outs DX A connection with locking Ethercon port DX B locking Ethercon port for daisy chaining or redundancy Rubber bumpers Carry handle Optional rack mount kit available
