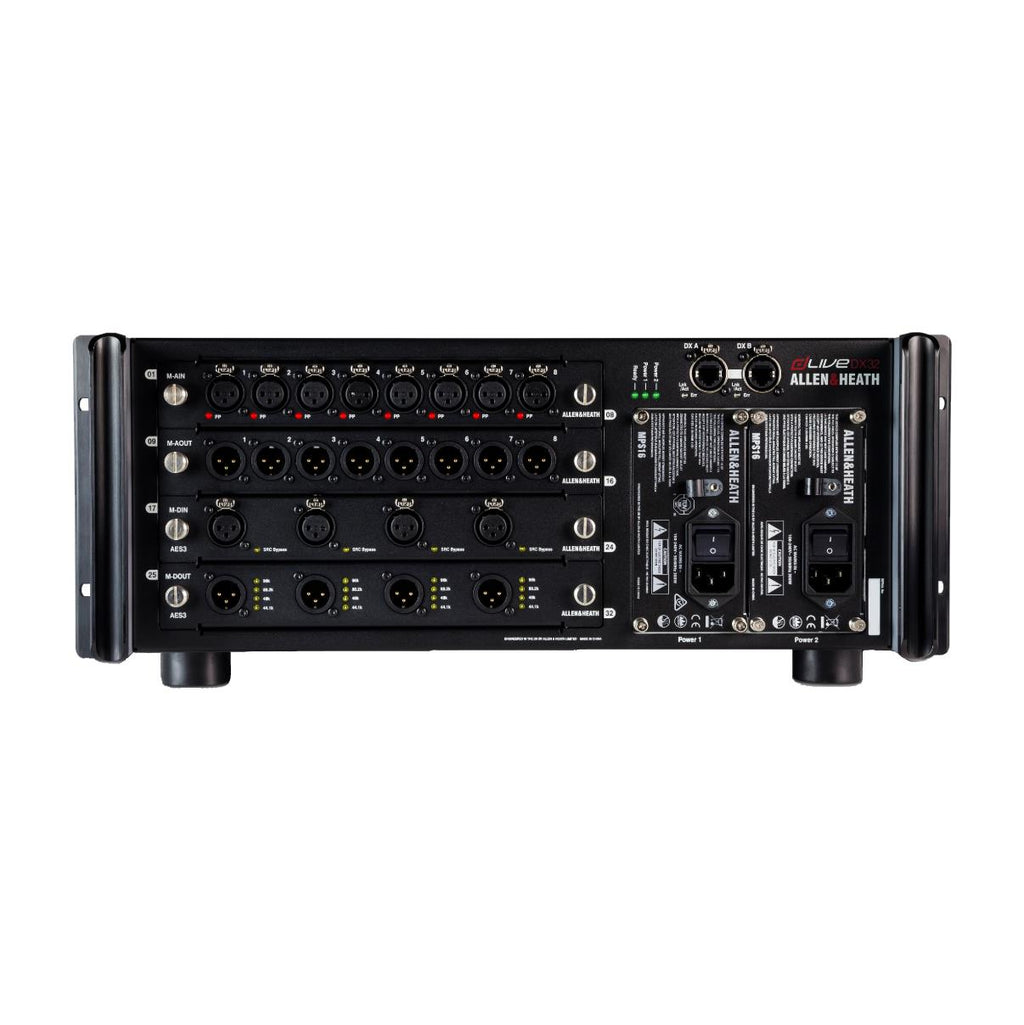

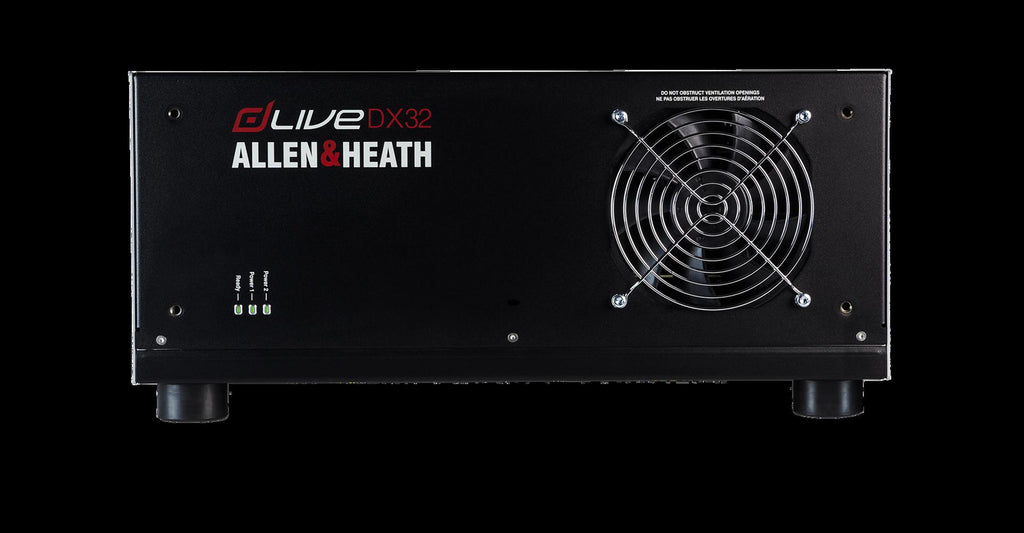

Allen & Heath dLive DX32 expander frame with 4 module capacity and 1 PSU (SQ, dLive)

The DX32 connects via a single Cat5e cable to the dLive Surface, MixRack, SQ Slink port or DX Hub via a secure etherCON port. Two cables can be used for redundant connection to compatible dLive hardware. With dLive Up to 2 DX32 Expanders can be connected directly to a dLive MixRack, and a further DX32 can be connected to the Surface. More units can be added to a dLive system via a DX Link card or DX Hub. With SQ A single DX32 can connect directly to an SQ SLink port. Up to 4 units can be added to an SQ system via a DX Hub. Features High end, low noise preamps Independent 48v indicator Auto firmware matching Ethernet L2 compatible Up to 32 inputs or outputsRedundant connection & PSU Independent sample rate on AES3 Can be connected thru a VLAN Analogue or AES/EBU input & outputs Hot swappable I/O cards  Specifications dLive modular Expander 4x slots, up to 32ch Any combination of analogue / digital I/O modules New preamp design for extra transparency Unique Active PAD circuit for consistent performance with any source Redundant Cat5 connection to dLive MixRack or Surface Dual redundant, hot swappable power supply Can be rack-mounted or used on stage floor
