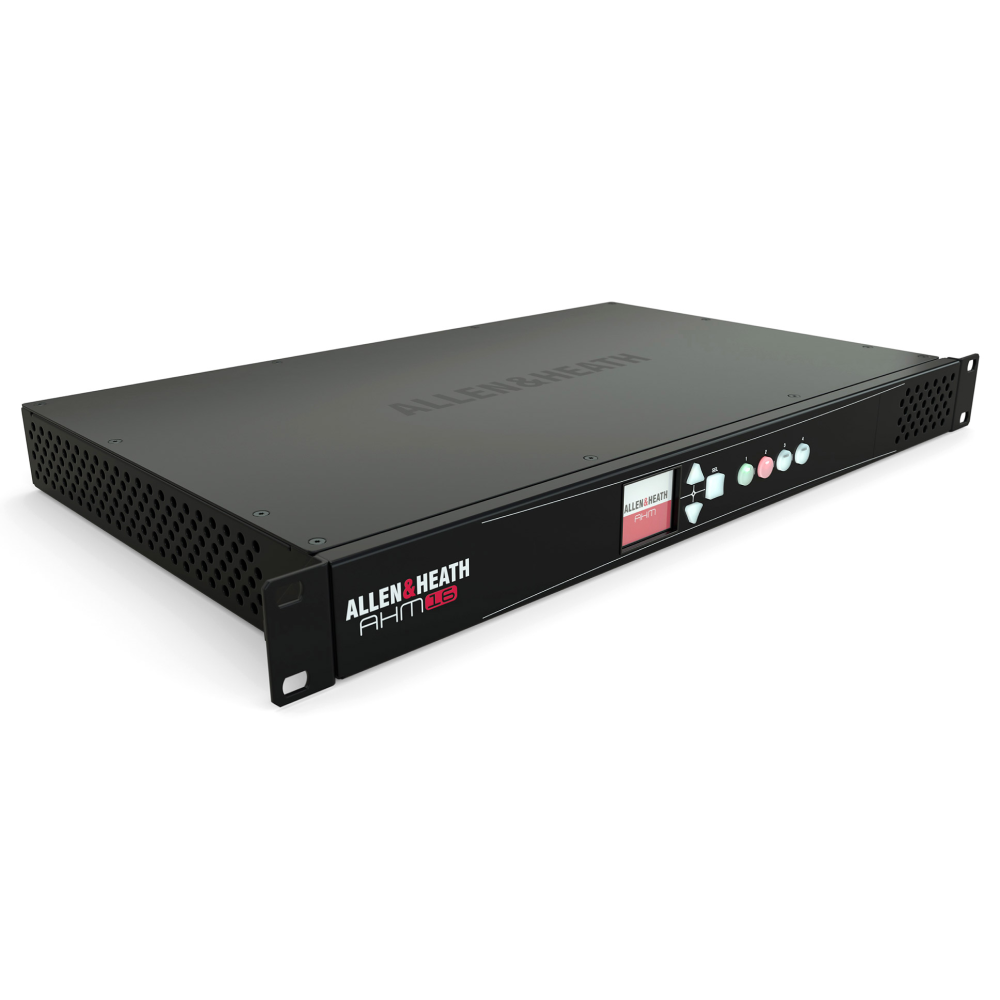

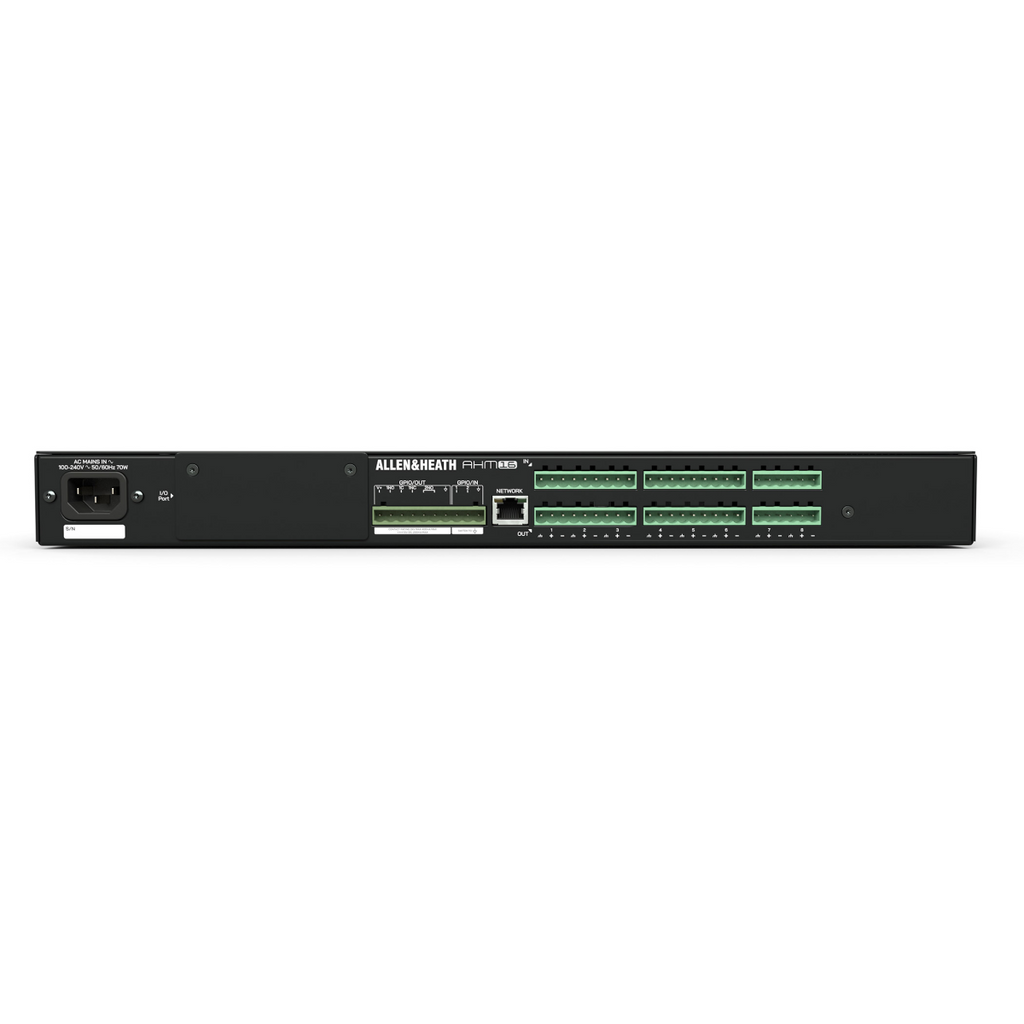

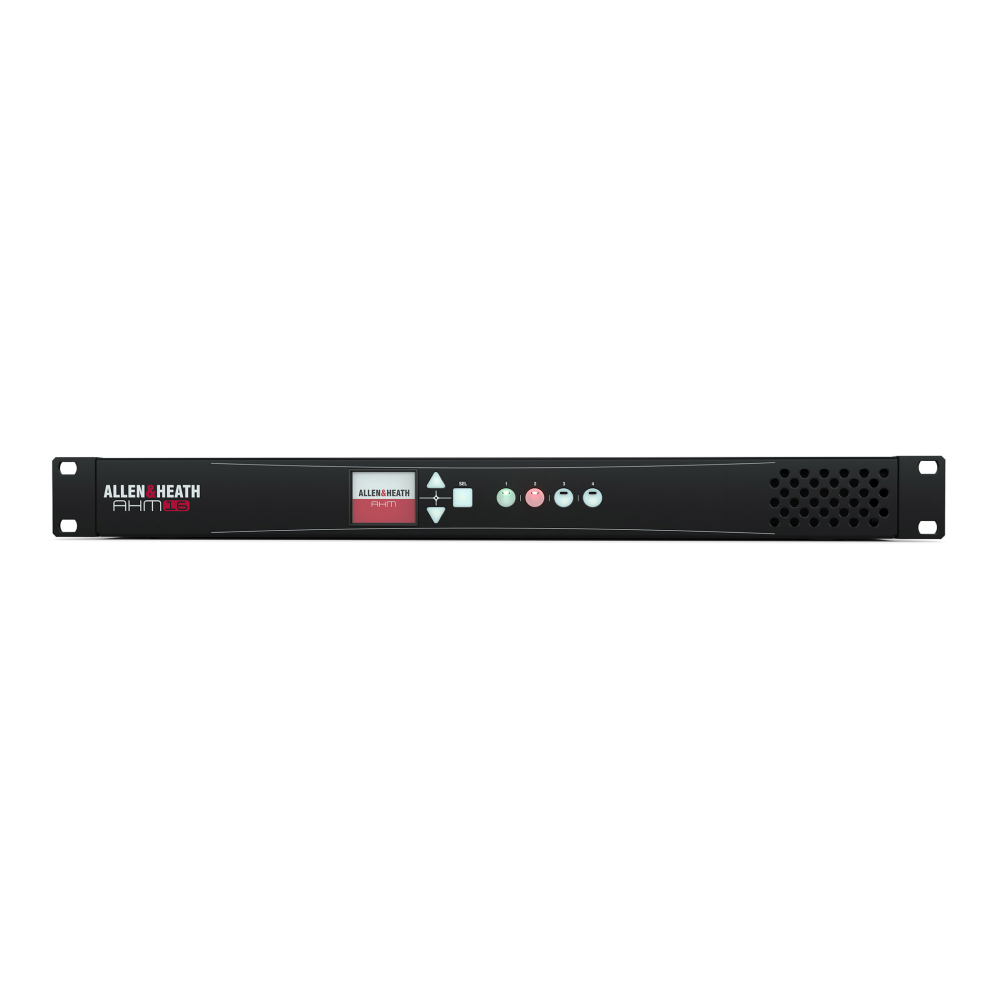

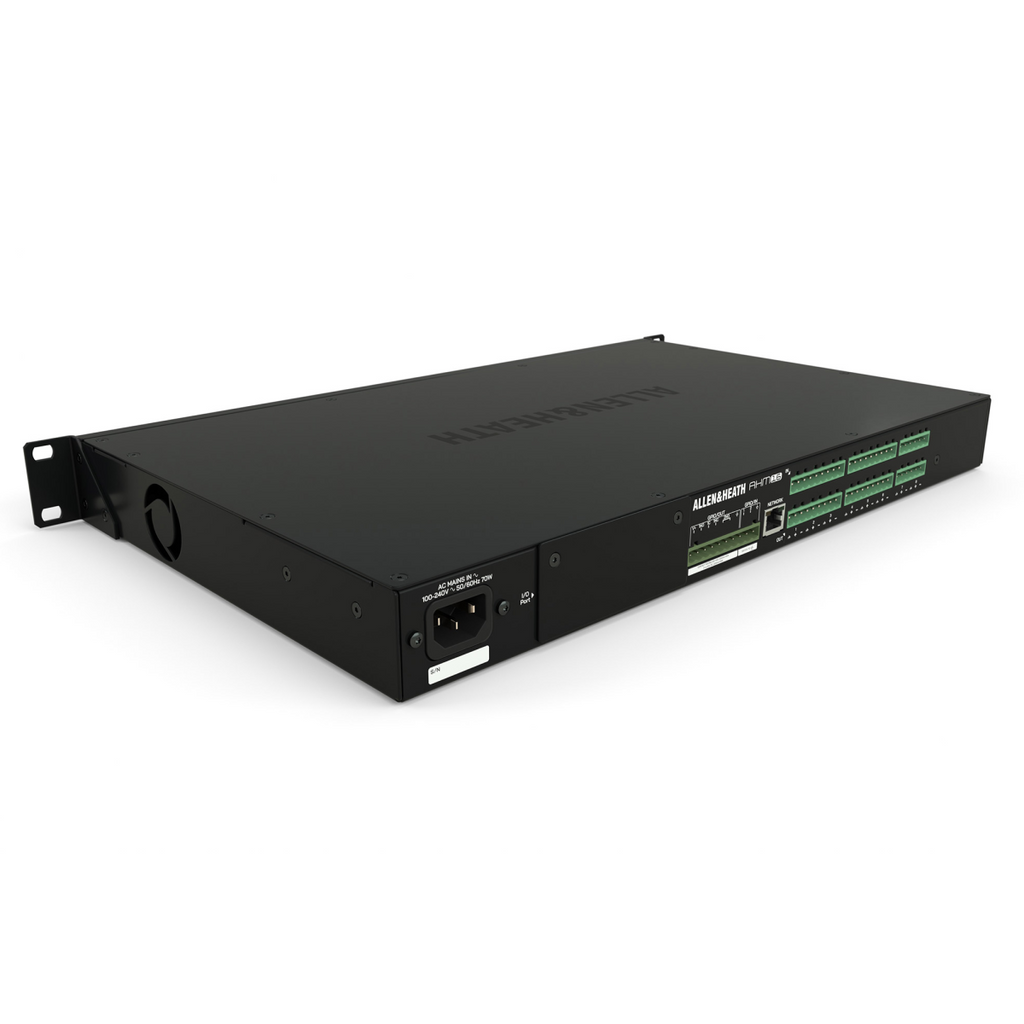

Allen & Heath AHM 16 - 16x16 Audio-Matrix Processor

Features 16×16 Processing Matrix Flexible routing with configurable processing on all 16 outputs. 8×8 Local Analogue I/O 8x mic/line inputs and 8x relay protected line outputs on Phoenix connectors. Audio Networking I/O Port Card options include Dante, MADI, Waves and SLink. Specifications Feature Summary: 16×16 Processing Matrix 8×8 Local Analogue I/O I/O Port for Audio Networking (Up to 128×128) Dante 96kHz Option Card (AES67 and DDM Ready) SLink 128×128 Option Card for Audio Expansion 16 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing 96kHz FPGA Core With Ultra-low Latency Front Panel Screen and Navigation 4x SoftKeys Compatible With IP1, IP6, IP8 Remote Controllers 2×2 Local GPIO Plus Networkable GPIO Interface TCP/IP Protocol for Third Party Integration Crestron, AMX and Extron Drivers Mac / Windows System Manager Software Custom Control app and Editor for BYOD 4 User Profiles Integrated Stereo Playback Event Scheduler Inputs Mic/Line Inputs - Balanced, +48V phantom power Mic/Line Preamp - Fully recallable Input Sensitivity  - -60 to +15dBu Analogue Gain - +5 to +60dB, 1dB steps Pad - -20dB Active PAD Maximum Input Level - +30dBu (PAD in) Input Impedance - >3kO (Pad out), >8kO (Pad in) Mic EIN -127dB with 150? source System Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter) Dynamic Range - 108dB System Signal to Noise - -92dB Frequency Response - 20Hz - 20kHz +0/-0.5dB THD+N (analogue in to out) - 0.005% @ +16dBu output, 1kHz+5dB gain Headroom - +18dB Sampling Rate - 96kHz +/- 20 PPM Acoustic Noise Typical loading, 22 deg C ambient No I/O Port installed - 31dBA With I/O Port installed - 33dBA Outputs Analogue Outputs - Balanced, Relay protected Output Impedance - <75O Nominal Output - +4dBu = 0dB meter reading Maximum Output Level - +21dBu Residual Output Noise - -92dBu (muted, 22-22kHz)
