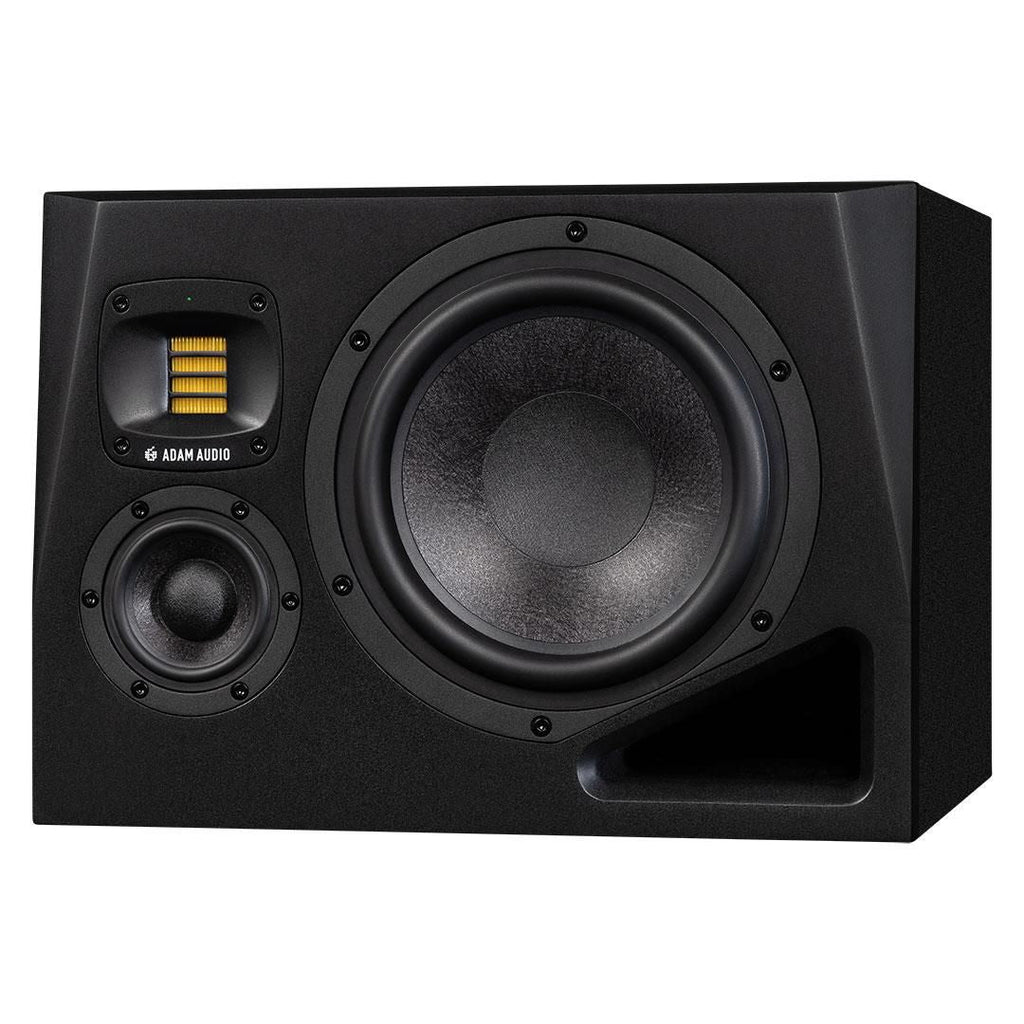

The pinnacle of the A Series, the A8H is a 3-way speaker that delivers the extremely accurate and analytical sound required for critical-listening environments. The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fiber woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response.
Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when you’re looking for the most detailed representation of your audio.
Features
German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
8'' Woofer (Multi-Layer Mineral)
3.5" DCH Midrange Driver
Cumulated Amp. Power Peak: 340 W
Frequency Response @ -6 dB: 31 Hz – 45 kHz
Max. peak SPL per speaker at 1 m: 105 dB SPL
Technical Specifications
- Display: Front panel multi-colour LED
- Cabinet Design: Single front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 15 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 500 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 13.6 kg (30 lb)
- Dimensions (Height x Width x Depth): 274 mm x 382 mm x 329 mm (9 3/4? x 15? x 13?)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A8H loudspeaker, power cable, Quick Start Guide
