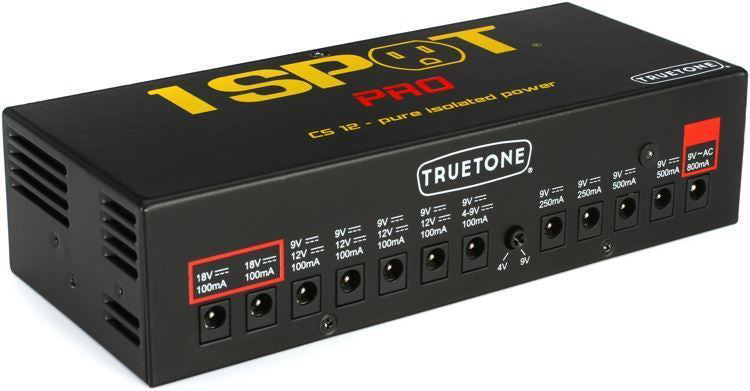

1 Spot Pro CS12 Power Supply, 12 Isolated Outputs (1SPOTPRO12)

The 1 Spot CS12 Power Supply is your power solution for up to twelve.

This Truetone 1 Spot Pro CS12 pedalboard power brick unit will power up pretty much any guitar effects pedal.

Not only that, the power outlets are isolated, and that means it will keep the noise in your rig to a minimum.

You get ten 9-volt outputs and two that are 12-volt.

It comes equipped with all your different sized cables and mount so you can plug in and go!

It's the flexible pedal board solution used by scores of guitarists.

Truetone 1 Spot Pro CS12 Pedal Power Supply Features:

• Power brick for effects pedals

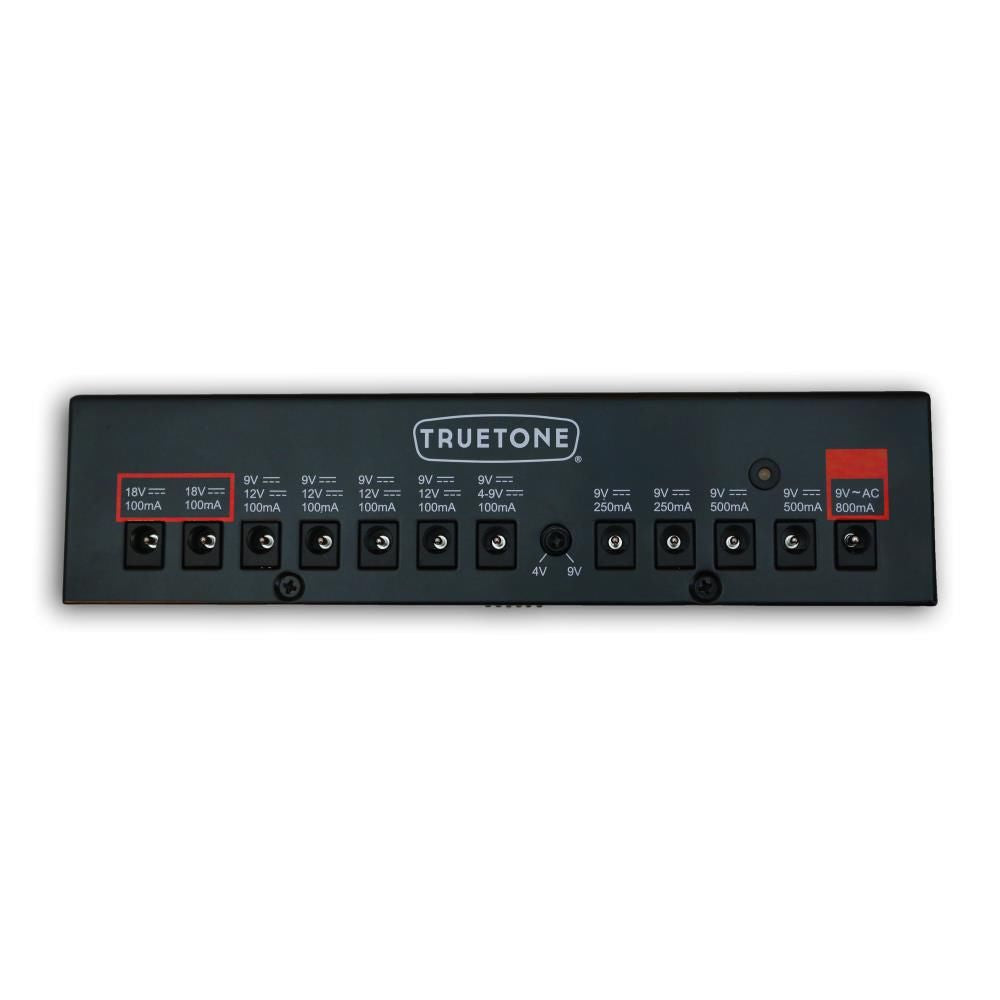

• 12 outlets total: 2 x 18-volt DC, 4 x 9-volt DC, 4 switchable 9-volt DC/12-volt DC, 1 variable 4-volt DC to 9-volt DC, and 1 x 9-volt AC
• Cables and converter plugs included for compatibility with virtually any effects pedals
• Mounting brackets for Pedaltrain pedalboards included
• Outputs are fully isolated to minimize noise

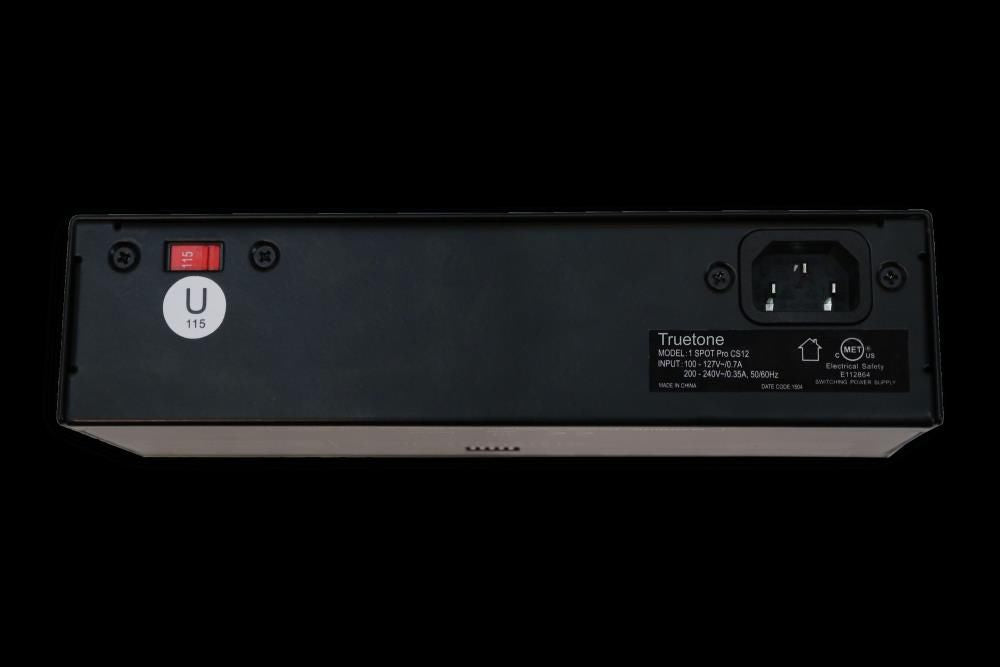

• Switchable input voltage for worldwide use

Truetone 1 Spot Pro CS12 Pedal Power Supply Includes:

• Power Cables:
  • 2 DC26 (5.5x2.1mm barrel plugs; 26" (660mm) - Purple
  • 2 DC22 (5.5x2.1mm barrel plugs; 22" (559mm) - Blue
  • 4 DC18 (5.5x2.1mm barrel plugs; 18" (457mm) - White
  • 3 DC12 (5.5x2.1mm barrel plugs; 12" (305mm) - Yellow
  • 1 AC21 (5.5x2.5mm barrel plugs; 21" (533mm) - Red
  • Note: All power cables are center pin negative polarity.
• Converter Plugs:
  • 1 CL6 - (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity) - Green (Line 6 DL4/M9 and some Eventide)
  • 1 CYR - (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity) - Red (reverse polarity converter)
  • 2 C35 - (5.5x2.1mm barrel input, 3.5mm male output; tip positive) - Black (3.5mm / 1/8" plug converter)
  • 1 CBAT - (5.5x2.1mm barrel input, black battery clip output) (connects to batter clip wires inside pedals that do not have DC jacks)
  • Note: Do NOT connect to a battery!

Get power to your pedalboard with the Truetone 1 Spot Pro CS12.
