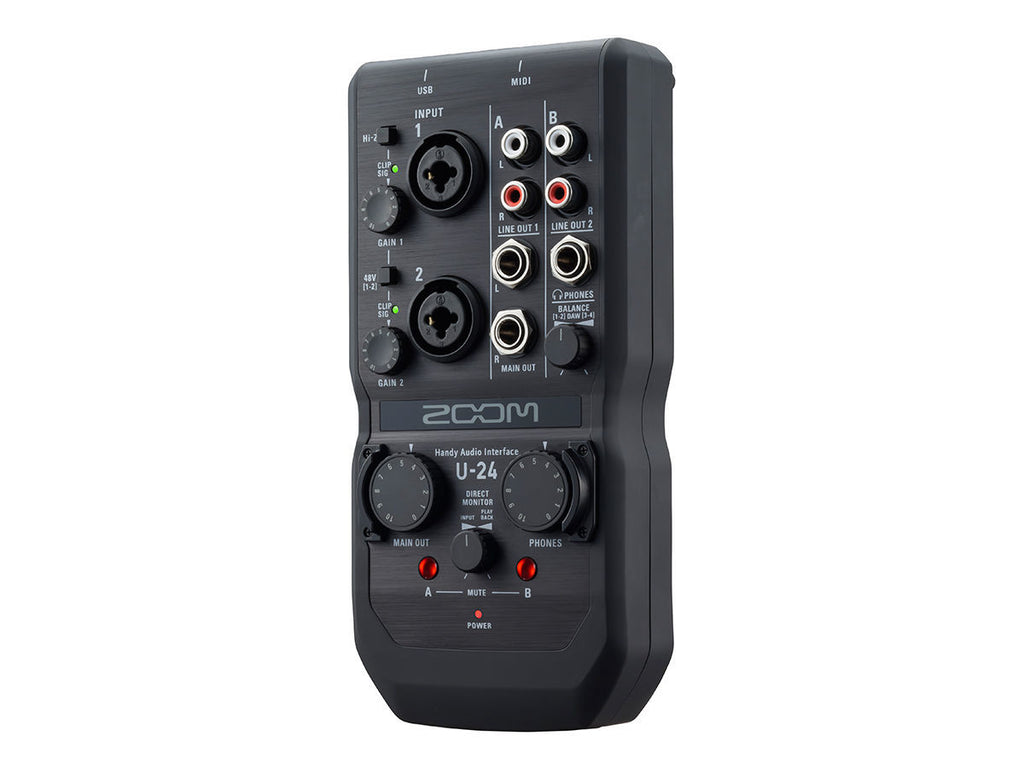

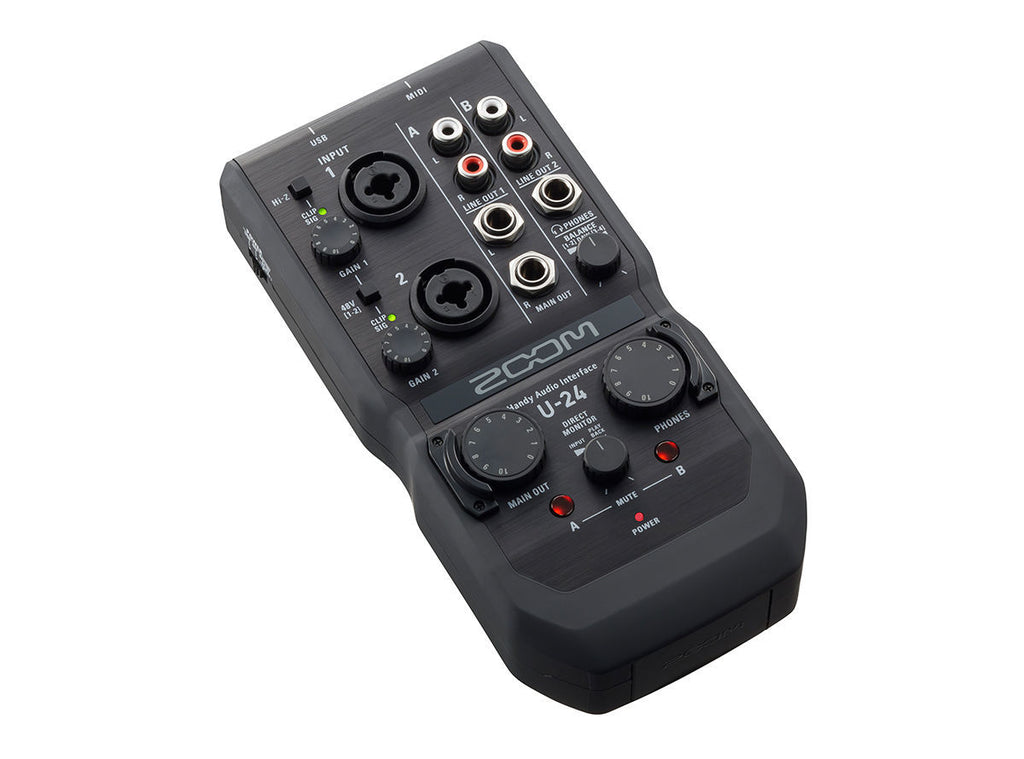

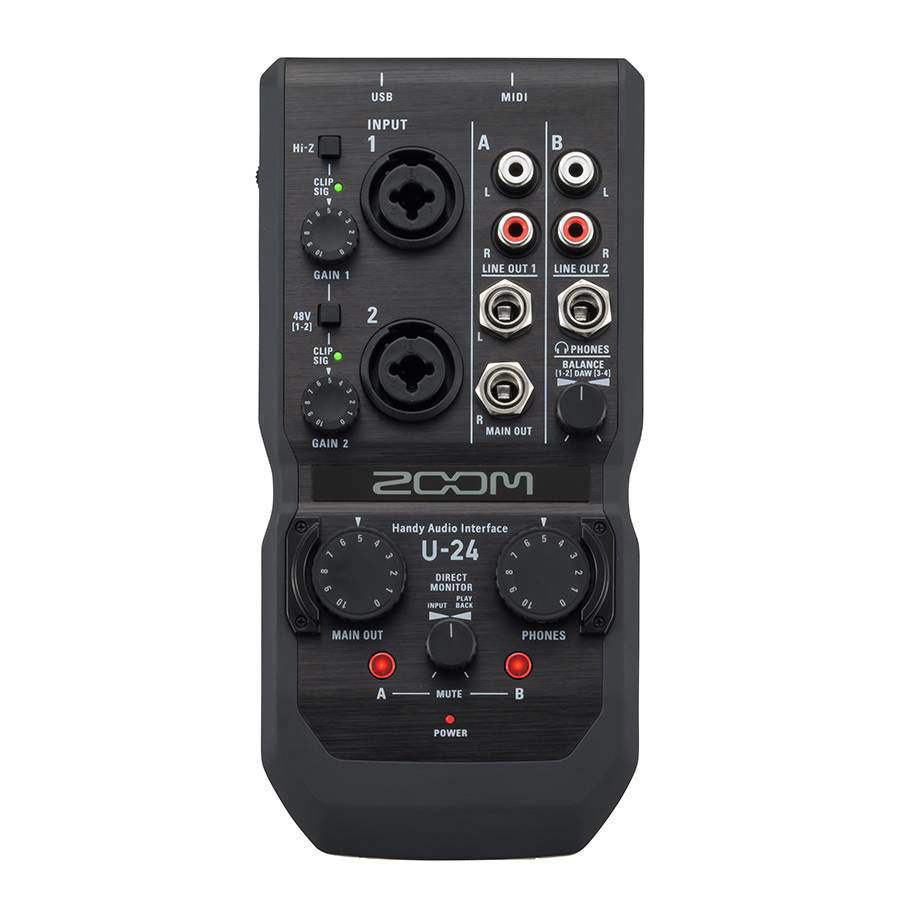

Zoom U-24 Handy Audio Interface

Brand: ZOOM

Zoom U-24 Handy Audio Interface

SKU: FXS024
$155.00
Available to Order
Price Match

  • Rent from

  • $12.92/mth for 12 months interest free

    Fees apply

  • $38.75 Pay in 4 interest-free

    Late fees apply

  • $38.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

Features

  • Multi-channel and stereo USB audio interface for PC/Mac/iPhone/iPad
  • Connect to iPhone/iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
  • Two mic/line inputs with high performance mic preamps
  • High quality recording and playback at resolutions up to 24-bit/96 kHz
  • Approximately 4 hours of operation with 2 AA alkaline batteries
  • Includes download code for Ableton Live 9 Lite
  • Two-channel simultaneous inputs
  • Hi-Z support (input 1)
  • Zero-latency direct monitoring
  • Two TRS phone jack outputs
  • Dedicated RCA L/R and headphone outputs
  • MIDI I/O
  • Gain control knobs for each input
  • +48V phantom power for inputs 1 and 2
  • Accepts standard AA alkaline or NiMH rechargeable batteries

Specifications

ANALOG IN: INPUT 1/2

  • Connector: TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)
  • Input gain: 0 – 43 dB
  • Input impedance: 2.6 k Ω (MIC IN) 1.1 M Ω (when Hi-Z ON)
  • Maximum input level: +2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)
  • Phantom power: +48V

ANALOG OUT: MAIN OUT L/R

  • Connector: TRS phone jacks (unbalanced)
  • Maximum output level: +10 dBu (at 0 dBFS)
  • Output impedance: 330 Ω

ANALOG OUT: LINE OUT 1/2

  • Connector: RCA (coaxial)
  • Maximum output level: +8 dBu (at 0 dBFS)
  • Output impedance: 1k Ω

ANALOG OUT: PHONES

  • Connector: Standard stereo phone jack 30 mW x 2 (into 32 Ω load)
  • Maximum output level: +10 dBu (at 0 dBFS)
  • Output impedance: 33 Ω

OTHERS

  • Frequency characteristics:
    • At 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
    • At 96 kHz: -3.5 dB: 20 Hz - 40 kHz
  • Input conversion noise: Measured EIN: -119.5 dB (IHF-A) at 43 dB, 150 Ω input
  • Number of audio recording and playback channels:
    • Recording: 2 channels
    • Playback: 4 channels
  • Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
  • Bit depth: 24-bit
  • Interface: USB 2.0
  • MIDI IN/OUT: 5-pin DIN jack
  • Power Source:
    • USB bus power (Type B)
    • Zoom AD-17 (Micro-B)
    • DC 5V power supply (Micro-B)
    • 2 AA batteries (4 hours continuous operation with phantom power off)
  • Power consumption: 5W maximum
  • Dimensions: 191.8 mm (D) x 92.3 mm (W) x 42.7 mm (H)
  • Weight (main unit only): 285 g
    • *0dBu=0.775Vrms

U-24 SYSTEM REQUIREMENTS

  • Windows: :
    • OS： Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
    • CPU: Intel® Core i3 or faster*
    • USB: USB 3.0/USB 2.0**

* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

  • Mac:
    • OS： Mac® OS X 10.9.5 or later / 10.10 / 10.11 / 10.12 / 10.13 / 10.14
    • CPU: Intel® Core i3 or faster
    • USB: USB 3.0/USB 2.0*

* Operation is not guaranteed when used with USB hubs or expansion cards.

  • iPhone/iPad: OS： iOS 7.1 or later

* Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter.
