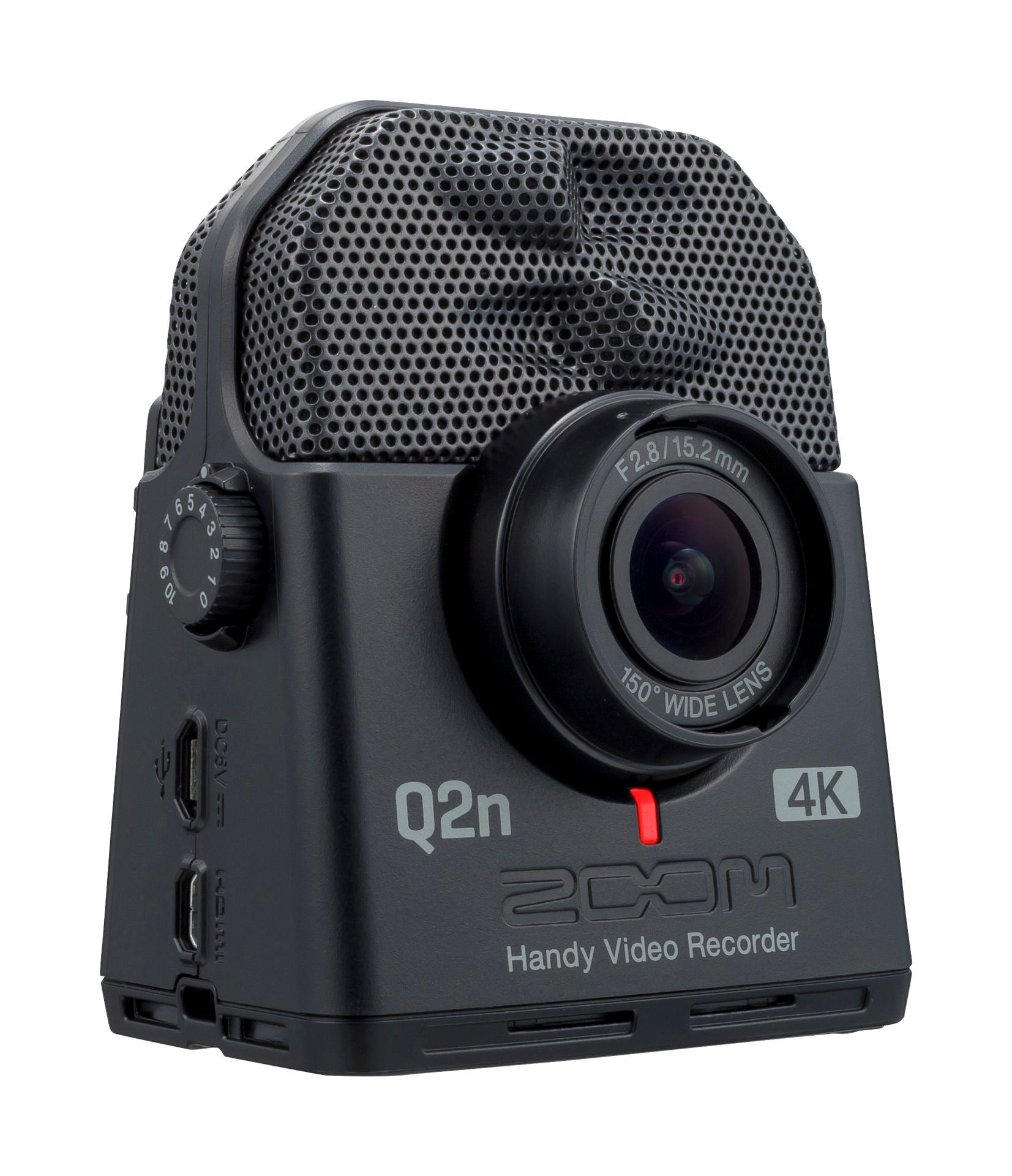

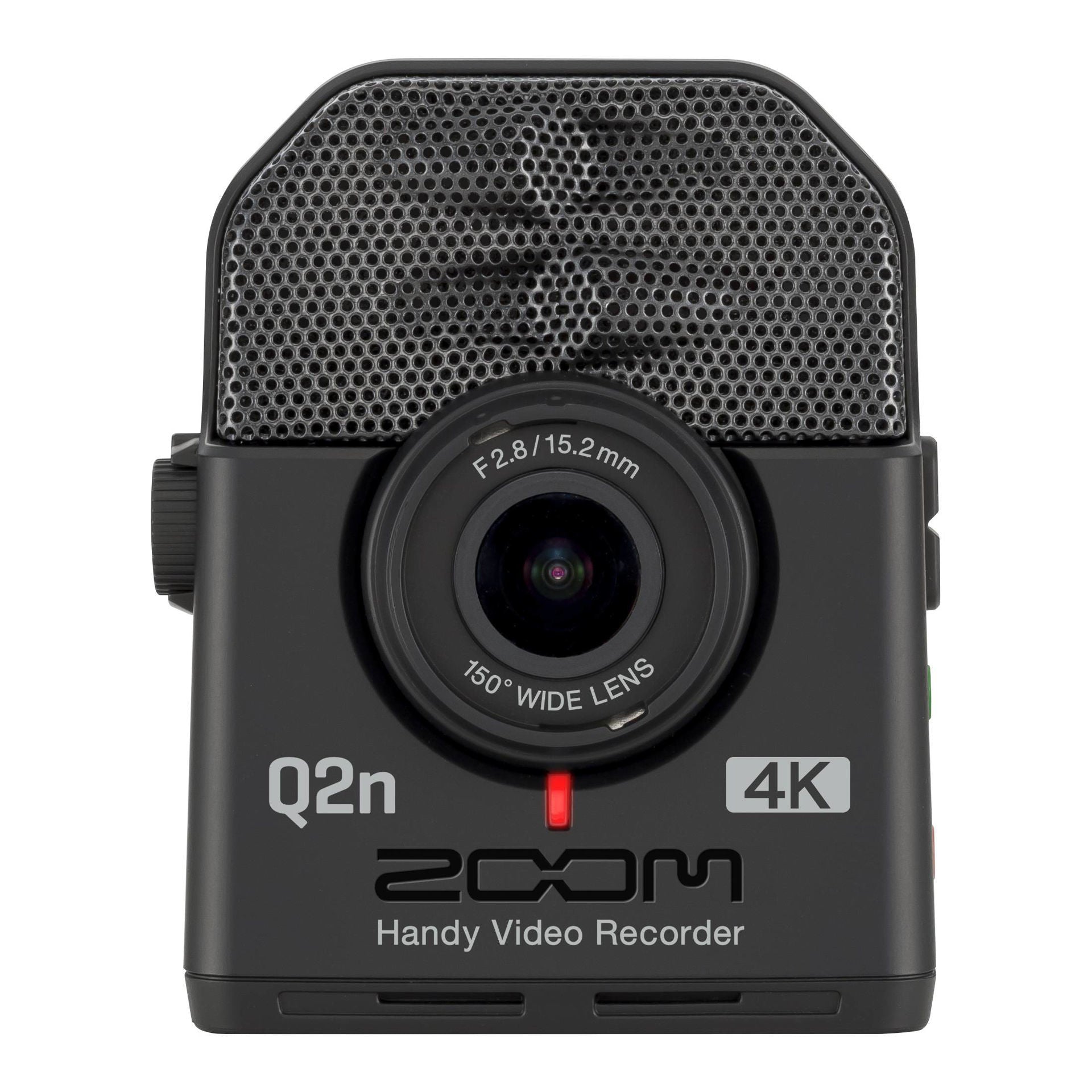

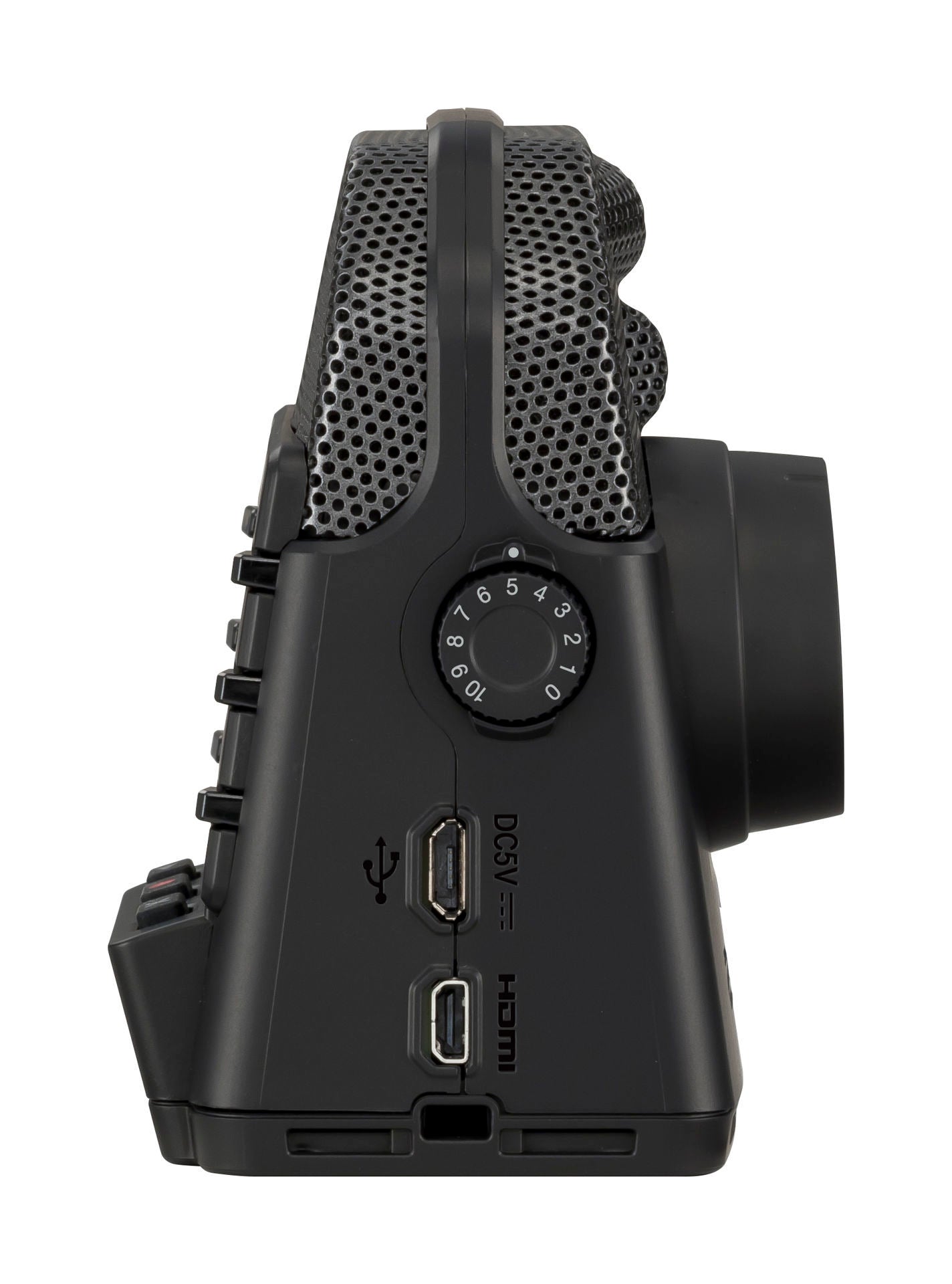

Zoom Q2n-4K Handy Video Recorder

Features

• High-quality 150° wide-angle lens (f2.8/15.2 mm)
• 12 ‘Scene’ options for use in different lighting environments, including ‘Auto’ setting that intelligently adapts to your environment
• Built-in X/Y stereo microphones capable of handling sound levels up to 120 dB SPL
• Can be used as standalone audio recorder with data saved in WAV format up to 24-bit/96 kHz
• 5 field of view (FOV) settings
• Records directly to microSD, microSDHC and microSDXC cards up to 256 GB for extended recording times
• Easy one-button recording
• Color LCD
• Support for three HD video modes: 720p, 1080p and 4K
• Video bitrates up to 76 Mbps for improved image quality
• Frame rates: 4K/30fps, 4K/25fps, 4K/24fps, 1080p/60fps, 1080p/50fps, 1080p/30fps, 1080p/25fps, 1080p/24fps, 720p/30fps, 720p/25fps
• HDMI video output for connection to HDTVs, selectable between NTSC and PAL
• Records video (with audio) in MOV format
• Analog-style level control with onscreen digital metering
• Auto Gain function gives automatic control over audio input level
• Stereo input for use with external devices plus support for plug-in power
• Headphone/line-level output for fast audio monitoring
• Low-cut filter for the elimination of low-frequency noise and rumble
• USB interface for live streaming and data transfer
• Compatible with OBS Open Broadcaster Software, Skype and other popular streaming applications
• USB mic function (with low-latency direct monitoring) when used with computers and iOS devices (Apple Camera Connection Kit or Lightning to USB Camera Adapter required for use with iOS devices)
• Operates with two AA batteries
• Built-in standard tripod mount

Specifications

Image Sensor:
1/2.3" 16 M-flexible CMOS sensor

Lens:
F 2.8, 150° FOV

Video Format:
MPEG-4 AVC/H.264 (MOV)

Video resolutions:
4K: 30 p, 25 p, 24 p
1080: 60 p, 50 p, 30 p, 25 p, 24 p
720: 30 p, 25 p

Audio Formats:
WAV: 96 kHz/24-bit, 48 kHz/24-bit, 44.1 kHz/16-bit

Audio Functions:

• LO-CUT: Off, 80 Hz, 120 Hz, 160 Hz
• AUTO GAIN: OFF, CONCERT, SOLO, MEETING
• DELAY: 0.0 F, 0.5 F–10.0 F (only during web camera use)
• DIRECT MONITOR ON/OFF (only during USB mic use)

Image functions:
FOV (5 steps): WIDE–0–TELE

SCENE Settings

• AUTO
• OUTDOOR
• SUNSET
• NIGHT
• CONCERT LIGHT
• JAZZ CLUB,
• DANCE CLUB
• MONOCHROME
• SEPIA
• FILM
• X-PROCESS
• FLAT

Display:
1.77" four-color LCD (160 × 128)

Audio inputs:

• Mic

  • Fixed 120° XY stereo mic
  • Maximum sound pressure: 120 dBSPL
  • Input gain: − db – +39 dB
• Line

  • Input connector: stereo mini jack (supports plug-in power)
  • Input gain: − db – +39 dB
  • 2 kΩ or higher input impedance
  • Plug-in power (2.5 V) supported

Output connector:
Combined headphone/line stereo mini jack
HDMI micro Type D

Built-in speaker:
300 mW 8 Ω mono speaker

Recording media:
microSDHC/microSDXC (class 10 or higher, 256 GB maximum)

USB:
Connector: USB2.0 Micro-B

WEBCAM
Class: UVC 1.0 + UAC 1.0
Formats: 720 p WVGA video, 48 kHz/16-bit audio

CARD READER
Class: USB Mass Storage

USB MIC
Class: UAC 1.0
Format: 44.1 kHz/16-bit
Note: Card reader and USB mic functions support iOS/iPadOS devices

Supported cable: USB2.0 Micro-B cable
Use cables for data transfer. Cables for battery-charging cannot be used for the above purpose.

Power:
2 AA batteries : alkaline LR6 (1.5 V), nickel metal hydride HR6 (1.2 V) or lithium FR6 (1.5 V)
AC adapter (ZOOM AD-17): DC 5 V/1 A
Note: USB bus power supported

Estimated continuous recording time using batteries:

Audio quality: 48 kHz/24-bit

• The above values are approximate.
• Continuous battery operation times were determined using in-house testing
methods. They will vary greatly according to use conditions.

External dimensions:
Main unit (maximum dimensions): 58.7 mm (D) × 68.5 mm (W) × 83.0 mm (H)

Weight (main unit only):
124 g
