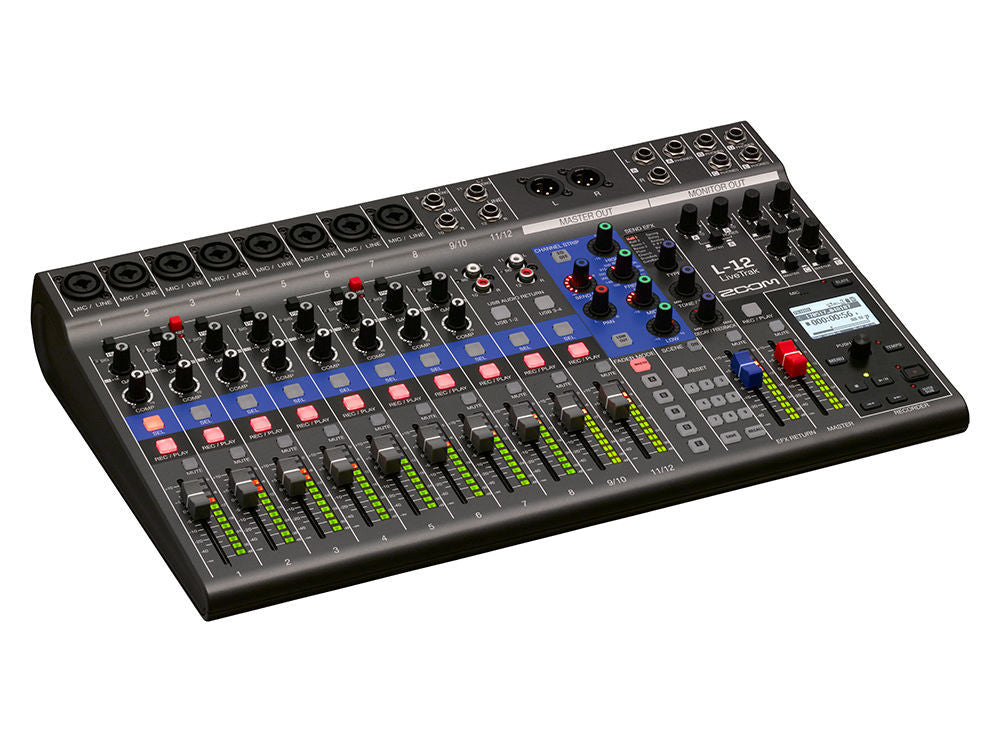

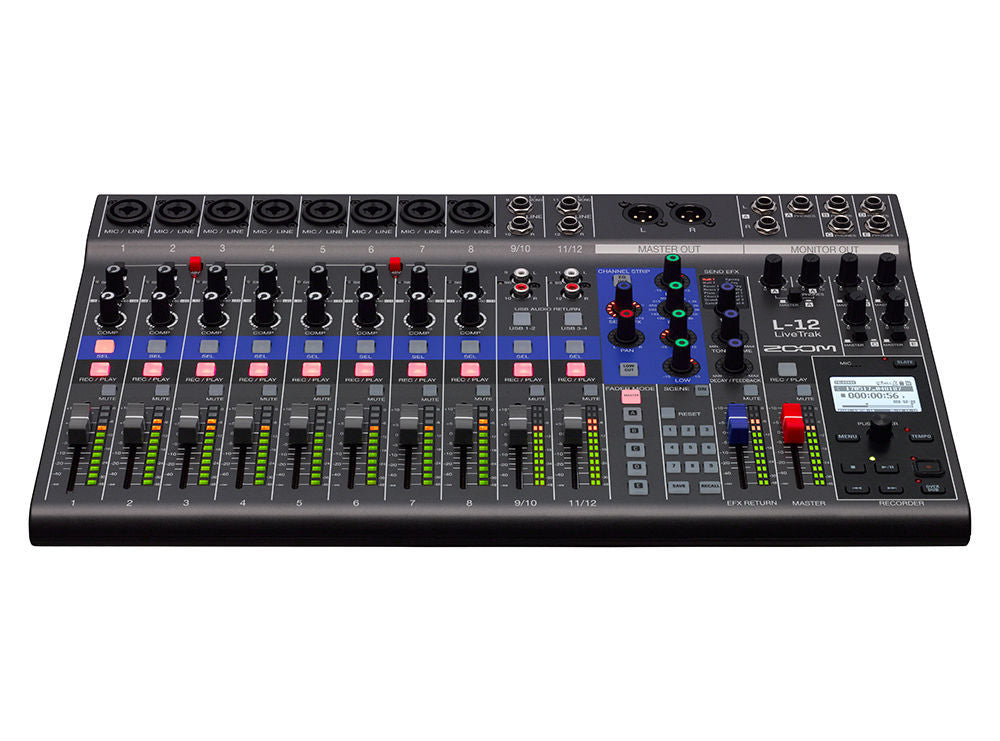

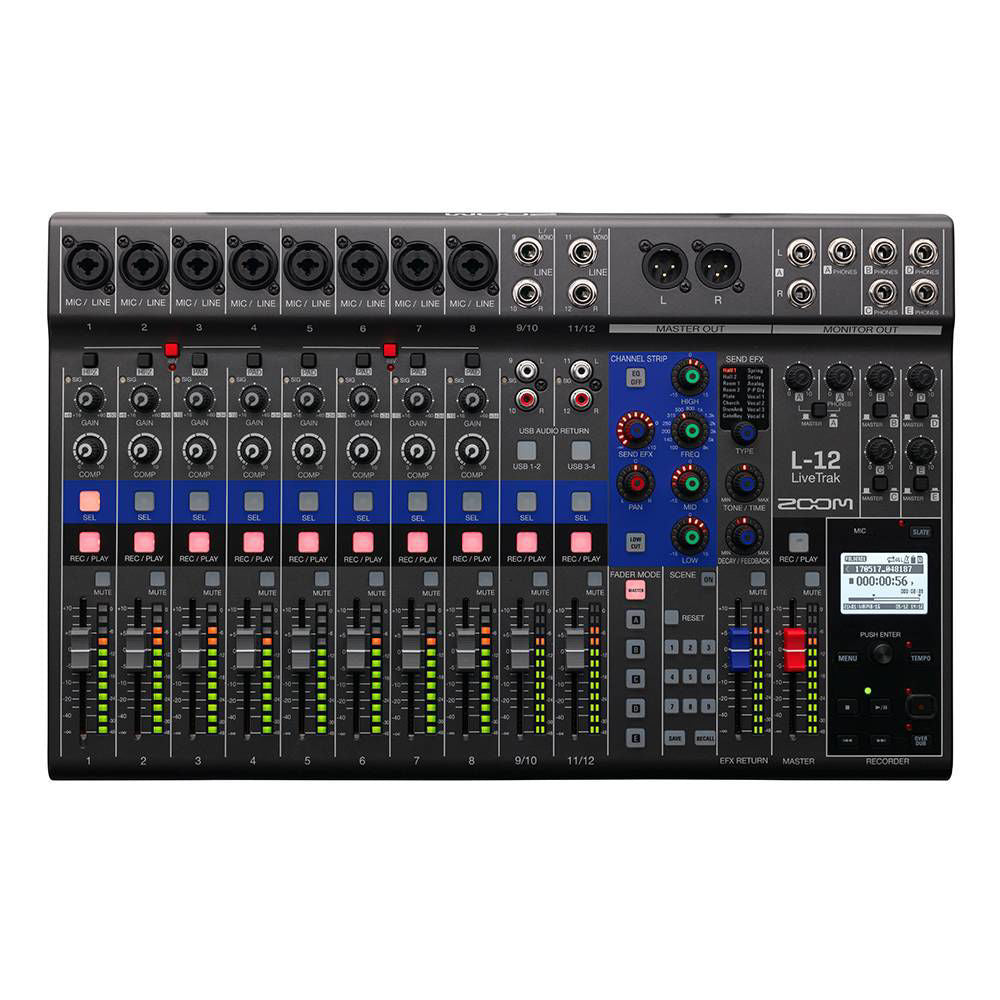

Zoom Livetrak L-12

Features

• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TRS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to -0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch

Specifications

NUMBER OF INPUT AND OUTPUT CHANNELS

• Inputs:

  • Mono (MIC/LINE): 8
  • Stereo (LINE): 2
• Outputs:

  • MASTER OUT: 1
  • MONITOR OUT: 5

INPUTS

• Mono (MIC/LINE):

  • Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
  • Input gain

    • PAD OFF: +16 - +60 dB
    • PAD ON: −10 – +34 dB
    • Hi-Z ON: +6 - +50 dB
  • Input impedance

    • XLR: 3 kΩ
    • TRS: 10kΩ/1 MΩ (when Hi-Z ON)
  • Maximum input level

    • PAD OFF: 0 dBu (at 0 dBFS)
    • PAD ON: +26 dBu (at dBFS)
• Phantom Power: +48 V
• Stereo (LINE):

  • Type: TRS phone/RCA pin (unbalanced) jacks
  • Maximum input level +10 dBu

OUTPUTS

• MASTER OUT :

  • Type: XLR jacks (balanced)
  • Maximum output level: +14.5 dBu
  • Output impedance: 100 Ω
• MONITOR OUT A (TRS):

  • Type: TRS phone jacks (balanced)
  • Maximum output Level: +14.5 dBu
  • Output impedance: 100 Ω
• MONITOR OUT A-E (PHONES):

  • Type: Standard Stereo phone jacks
  • Maximum output level: 42 mW + 42 mW at 60 Ω
  • Output impedance: 100 Ω

BUSES

• MASTER: 1
• MONITOR: 5
• SEND EFX: 1

CHANNEL STRIP

• COMP:
• LOW CUT:
• 75 Hz, 12 dB/OCT
• EQ:

  • HIGH: 10 kHz, ± 15 dB, shelving
  • MID: 100 Hz-8 kHz, ±15 dB, peaking
  • LOW: 100 Hz, ± 15 dB, shelving

LEVEL METERS

• Level segments: 12

SEND EFFECTS

• Effects:
• 16 types:
• Hall 1 & 2 (reverb)
• Room 1 & 2(reverb)
• Plate (reverb)
• Church (reverb)
• DrumAmb (reverb)
• GateRev (reverb)
• Spring (reverb)
• Delay (delay)
• Analog (delay)
• P-P Dly (delay)
• Vocal 1-4 (delay + reverb)

RECORDER

• Maximum simultaneous recording tracks:

  • 14 at 44.1/48 kHz (12 channel + stereo mix)
  • 12 at 96 kHz
• Maximum simultaneous playback tracks: 12
• Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
• Recording media: 16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards

AUDIO INTERFACE

• 44.1/48 kHz:

  • Recording: 14 channels
  • Playback: 4 channels
• Bit depth: 24-bit
• Interface: USB 2.0

SYSTEM REQUIREMENTS

• Windows:

  • OS： Windows® 7 SP1 or later / 8.1 / 10

    • (32bit/64bit)
    • CPU: Intel® Core i3 or faster*
    • USB: USB 3.0/USB 2.0**
  • * Operation is not guaranteed with CPUs
    from Atom, Celeron or Pentium series or CPUs
    made by AMD.
  • ** Only USB host controllers with Intel Chipsets are
    supported. Operation is not guaranteed when used
    with USB hubs or expansion cards.
• Mac:

  • OS： Mac® OS X 10.10 / 10.11 / 10.12
  • CPU: Intel® Core i3 or faster
  • USB: USB 3.0/USB 2.0*
    • * Operation is not guaranteed when used
      with USB hubs or expansion cards.
• iPhone/iPad: OS： iOS 8 / 9 / 10
  • * Apple Lightning-to-USB
  • Camera Adapter required.

CARD READER

• Class:

  • Mass storage
  • USB 2.0 High Speed

USB HOST

• Class: USB 2.0 High Speed

SAMPLING RATE

• Sampling rate: 44.1/48/96 kHz

FREQUENCY CHARACTERISTICS

• 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
• 96 kHz: -3.0 dB: 20 Hz - 40 kHz

EQUIVALENT INPUT NOISE

• Actual measurements: -128 dB EIN (IHF-A) with +60 dB/150 Ω input

GENERAL

• Display: LCD with backlight (128x64 resolution)
• Power supply: ZOOM AD-19 AC adapter (DC12 V/2 A)
• Power consumption: 17W maximum
• External dimensions:

  • 445 mm (W) x 282 mm (D) x 70.5 mm (H)
  • 17.5” (W) x 11.1” (D) x 2.78” (H)
• Weight (main unit only): 2.53 kg / 5.58 lbs
