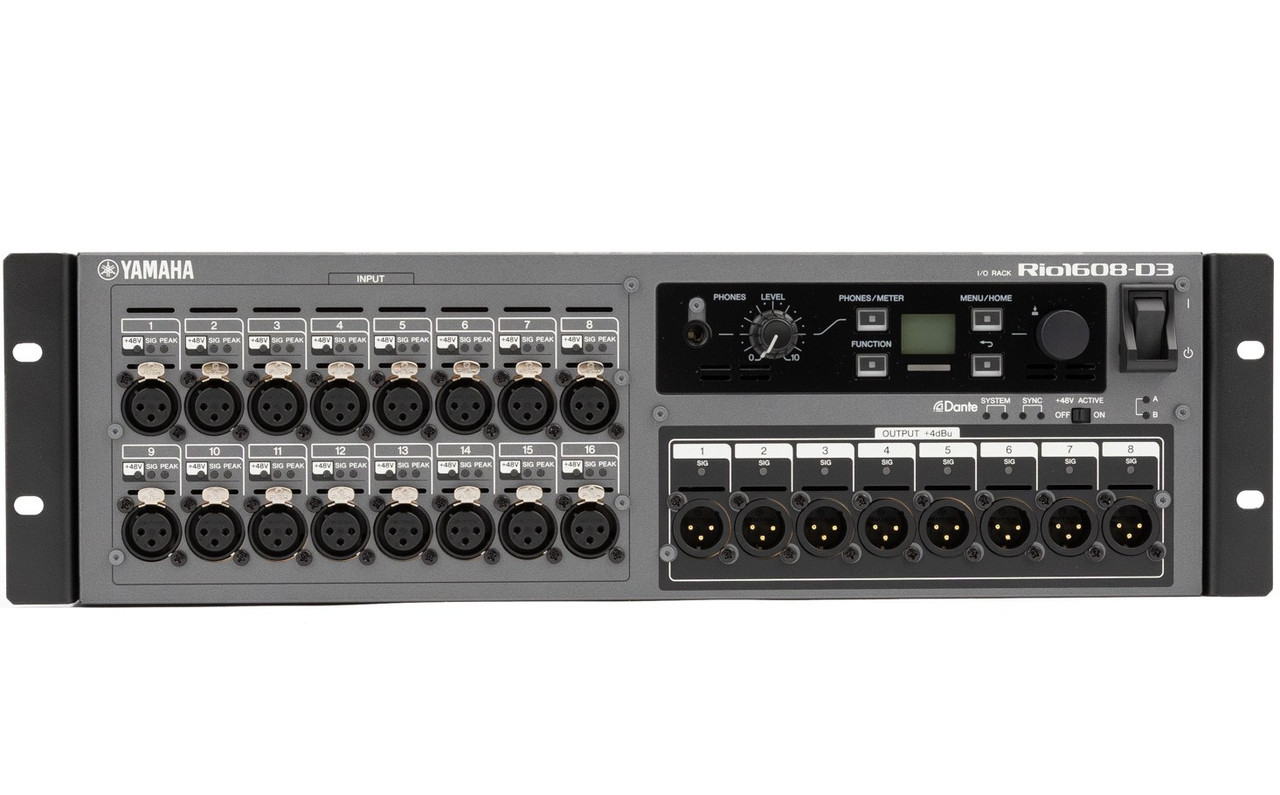

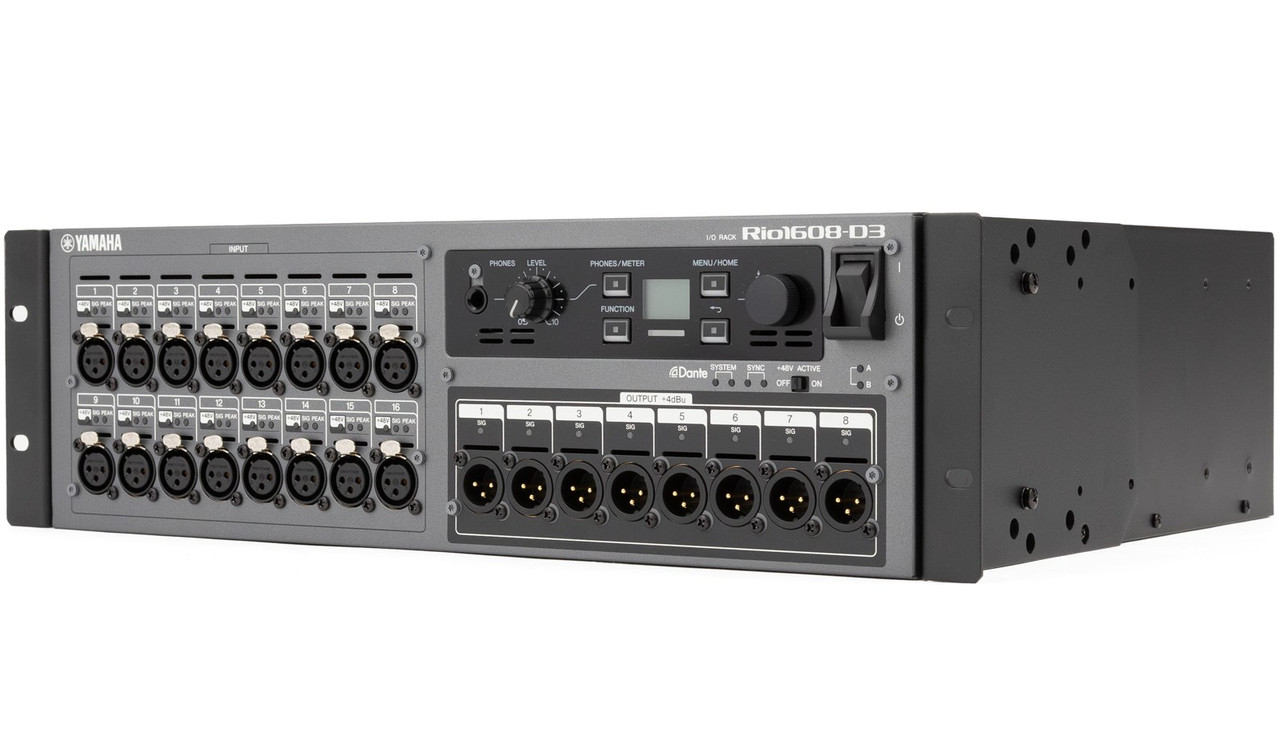

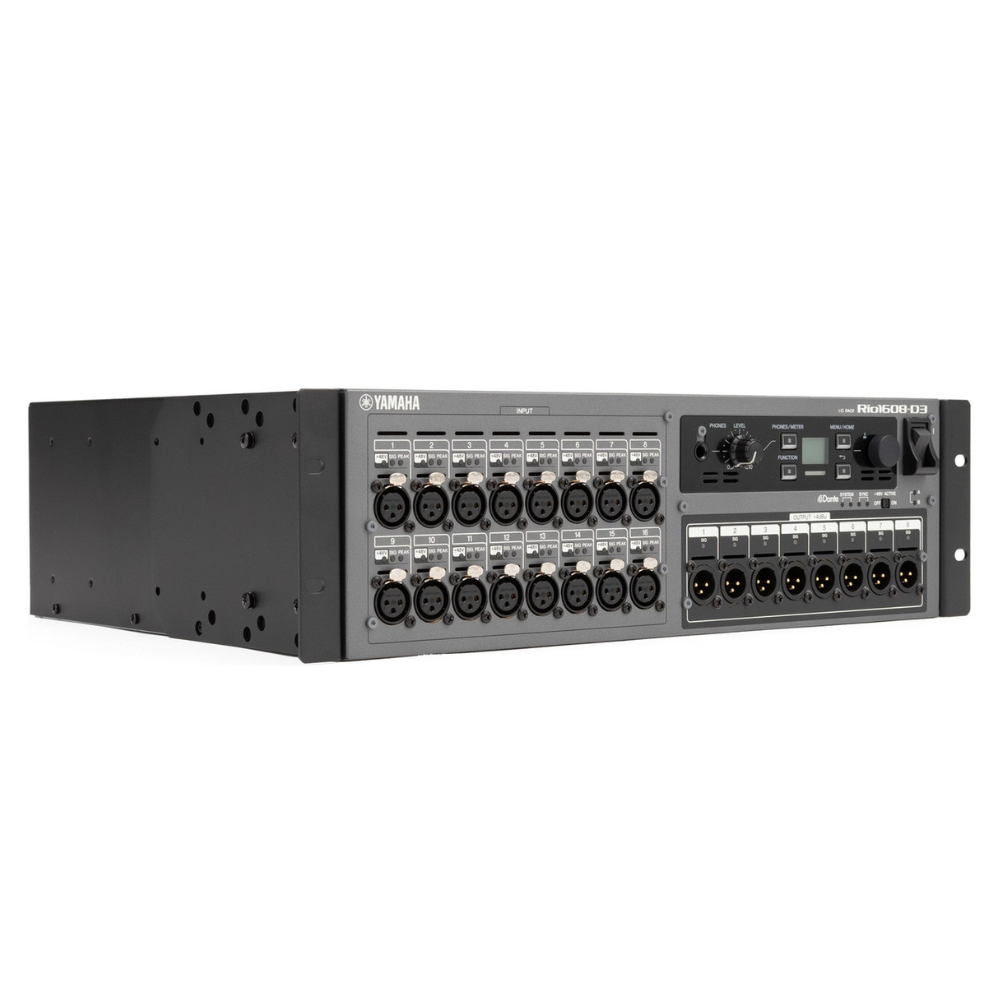

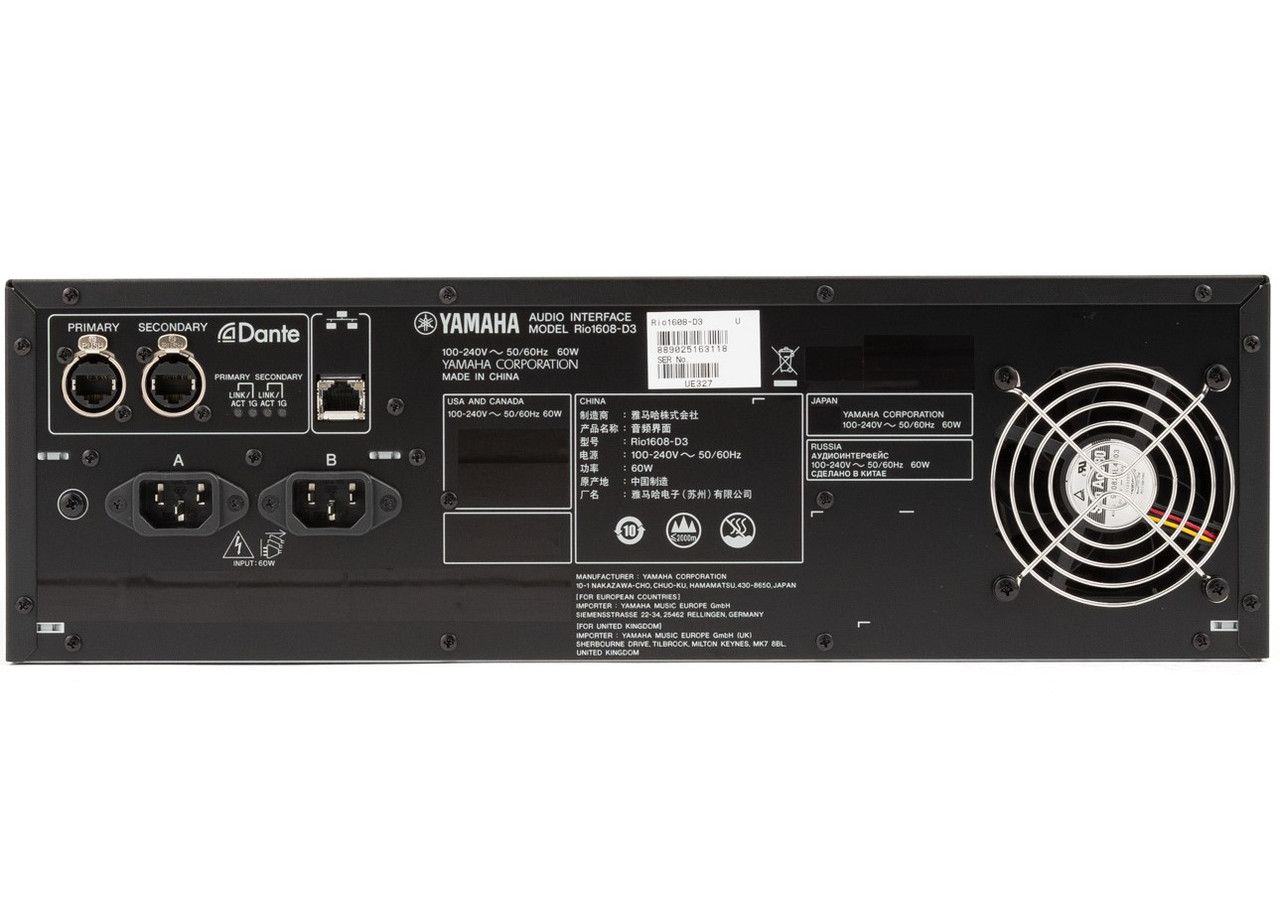

Yamaha Rio1608-D3 16-input/8-output Dante Stage Box

The Yamaha Rio1608-D3 is the third-generation evolution of Yamaha’s high-performance I/O rack systems, now enhanced with built-in Dante audio networking for maximum flexibility and scalability. Engineered to deliver exceptional sonic transparency that reflects Yamaha’s renowned “natural sound” philosophy, the Rio1608-D3 plays a crucial role in unlocking the full potential of compatible digital mixing consoles. Its 16 inputs and 8 outputs, housed in a rugged, compact form factor, offer versatile connectivity for a wide range of professional applications. Designed for seamless integration, it provides extensive freedom in system placement, supports multi-unit configurations, and features redundant networking capabilities to ensure rock-solid reliability—even in demanding live or broadcast environments. A core component of the RIVAGE PM7 Digital Mixing System, the Rio1608-D3 is also fully compatible with Yamaha’s DM7 Series consoles, making it a powerful and future-ready solution. Whether used on stage or in the studio, it maximizes the capabilities of Dante networking while delivering pristine, natural audio every time. Features Improved dynamic range and lower noise floor Delay/Polarity/Gain function on the output port I/O setting available on the LCD Headphone port for listening to the sound on the I/O box Additional network port dedicated to the control (ProVisionaire and other control) Redundant power supplies 32bit AD/DA Specifications Number of Analog Inputs: 16 Number of Analog Outputs: 8 AES/EBU: 0 Phones: 1 Sampling Frequency: 44.1 kHz/48kHz/88.2kHz/96kHz ±200 ppm +4.1667% Range of Sampling Frequency for External Clock: +0.1%, -0.1%, -4.0% ±200 ppm Signal Delay: Less than 1.7 ms Power Requirements: 60W Heat Radiation: 52 kcal/h Dimensions (WxHxD): 18.9 x 5.2 x 14.57 (480mm x 132mm x 370mm) Weight: 21.16lbs (9.6kg) NC Value:- Fan Speed LOW: 15- Fan Speed HIGH: 25 Operating Temperature Range: Min: 32°F, Max: 104°F (Min: 0°C, Max: 40°C) Storage Temperature Range: Min: -4°F, Max: 140°F (Min: -20°C, Max: 60°C)
