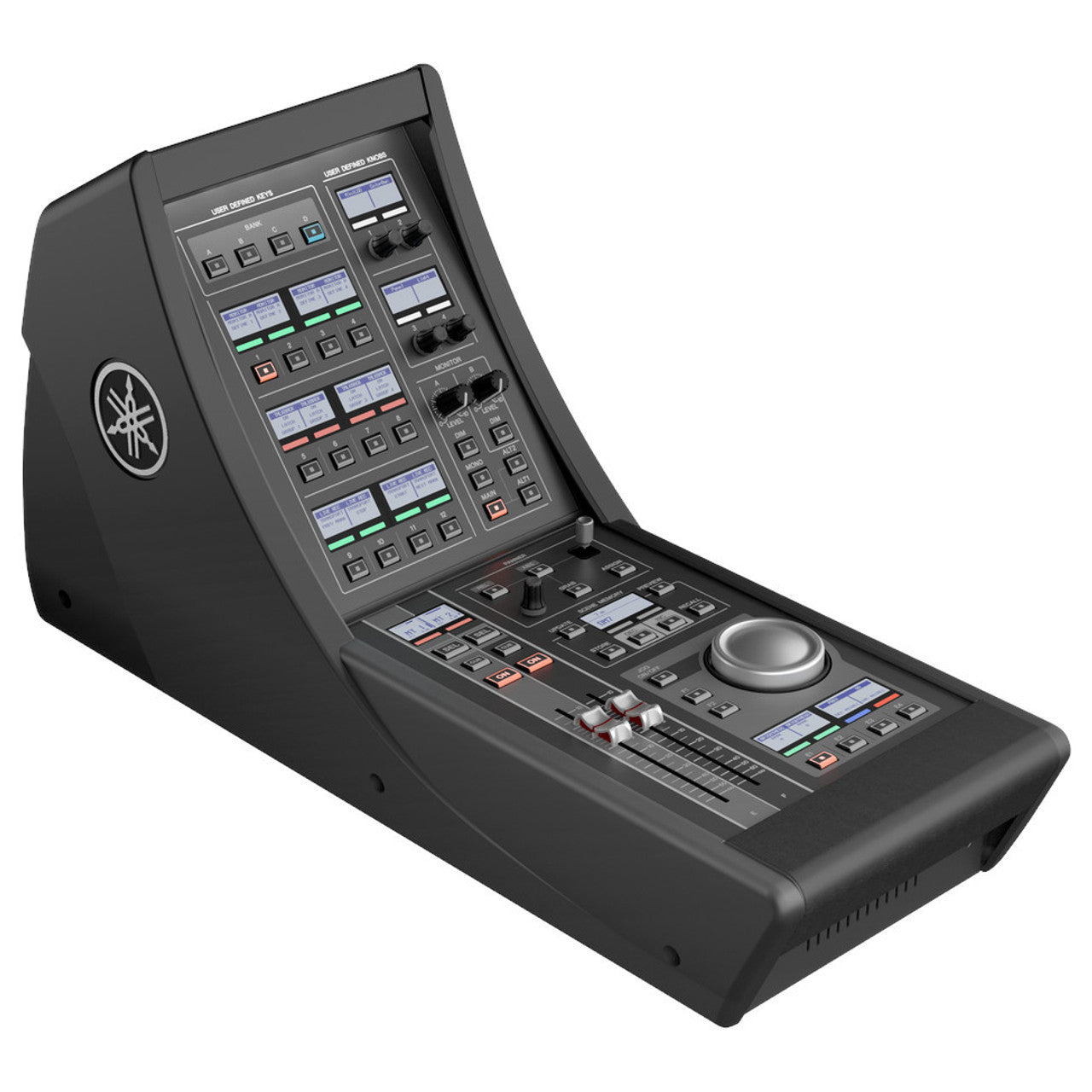

Yamaha Expansion Controller to suit DM7 Series

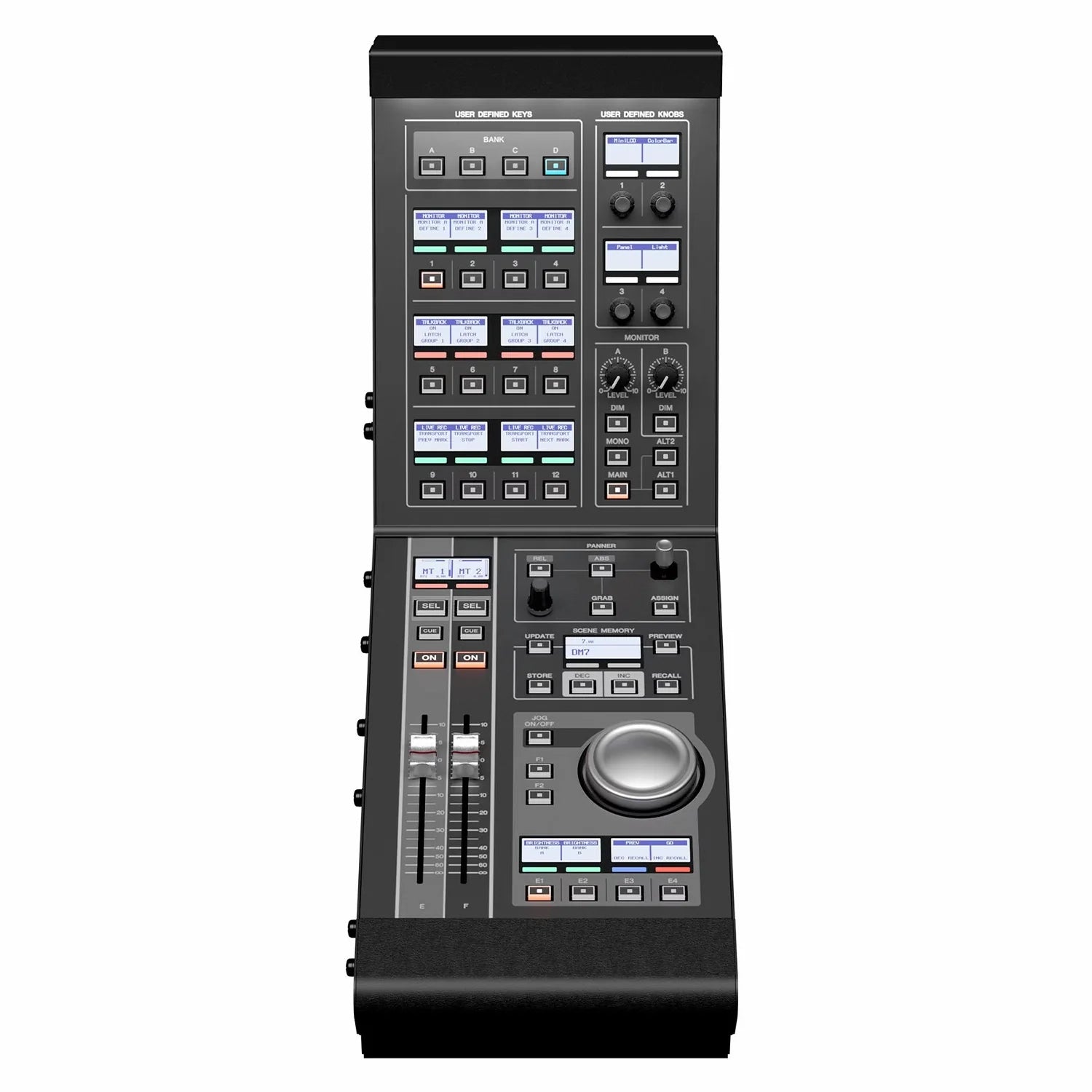

The Yamaha CTL-DM7 is a powerful control expansion module designed to elevate the capabilities of your DM7 or DM7C digital console. By adding an extra arm packed with four banks of 12 fully customizable knobs—totaling 48 precision controls—it puts unparalleled parameter management at your fingertips, boosting your workflow efficiency.

Beyond the extensive knob banks, the CTL-DM7 features a programmable jog wheel, two assignable faders, and quick access to scene, immersive, and surround controls, offering seamless navigation and hands-on control. Tailored for professional audio environments, this versatile expansion delivers enhanced flexibility and precision, making it an essential companion for any DM7 or DM7C setup.

Features

• Offers effective control expansion for Yamaha's DM7 and DM7C digital mixers
• Increases your ability to perform key actions with lightning-fast efficiency
• 4 banks of 12 user-defined knobs give you a total of 48 independent user-defined knobs
• Programmable jog wheel and 2 assignable faders
• Fast, easy access to scene controls; immersive and surround controls
• Flexible, dedicated monitor controls

Specifications

• Fader: 3.94" touch-sensitive motorized fader × 2

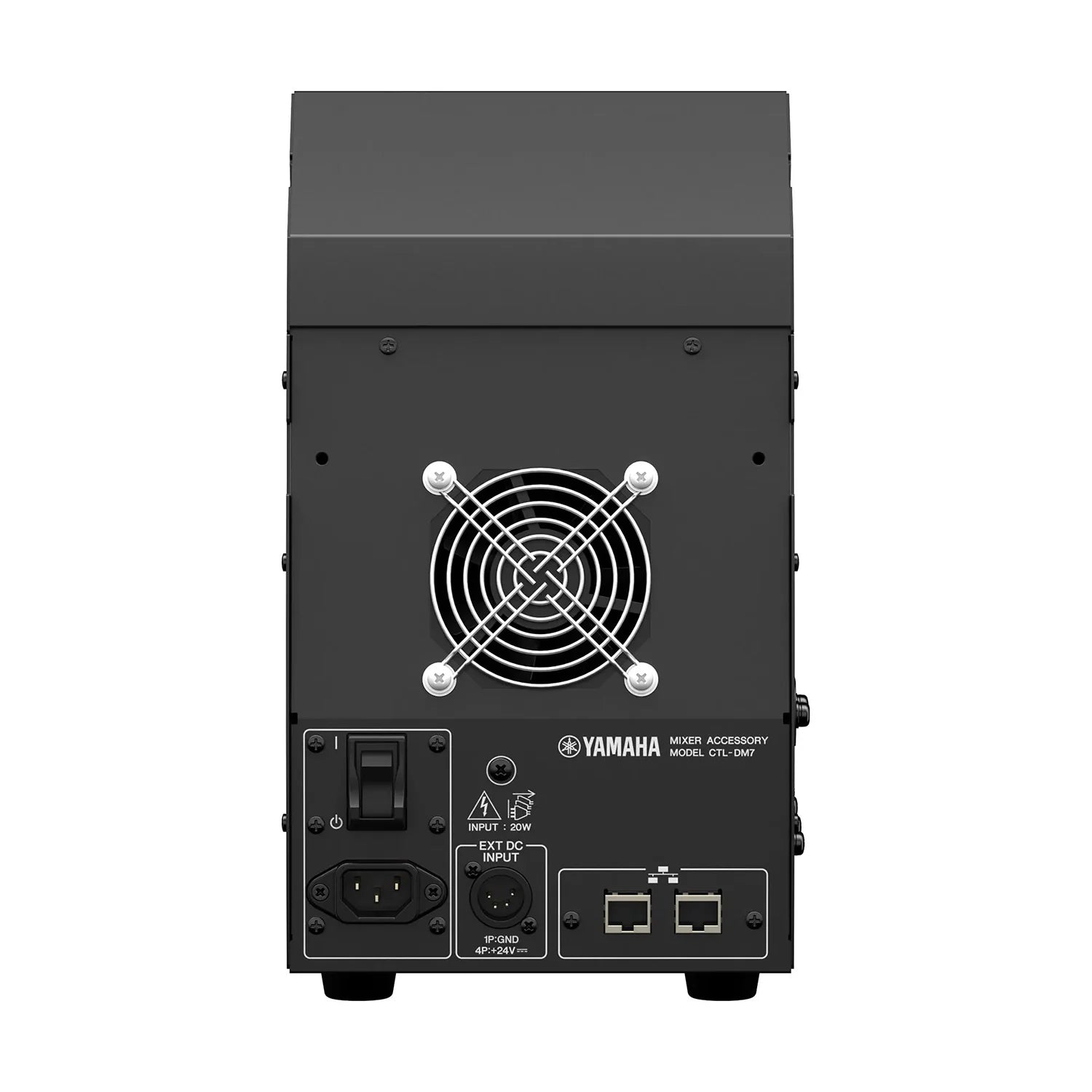

• Power Requirements
• AC INPUT: 100-240 V, 50/60 Hz; AC power input: V-lock type
• EXT DC INPUT: DC 24 V±1.2 V, 0.78 A or higher, XLR 4-pin chassis connector*1
• Power Consumption: 20 W

Dimensions (W H D):

• DM7 CONTROL: 7.52" × 12.72" × 22.12"
• Linked with DM7: 38.3" × 12.75" × 22.2"
• Linked with DM7 COMPACT 25.51" × 12.75" × 22.2"
• Weight: 15.43 lbs

NC Value

• Fan Speed LOW: NC=20
• Fan Speed HIGH: NC=30
• Operating Temperature Range: Min: 0°C, Max: 40°C
• Storage Temperature Range: Min: −20°C, Max: 60°C
