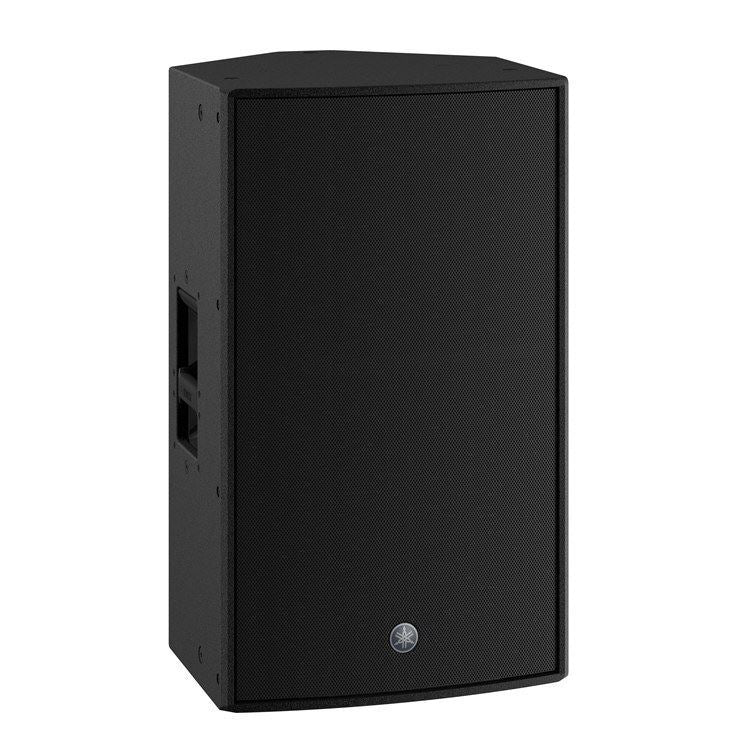

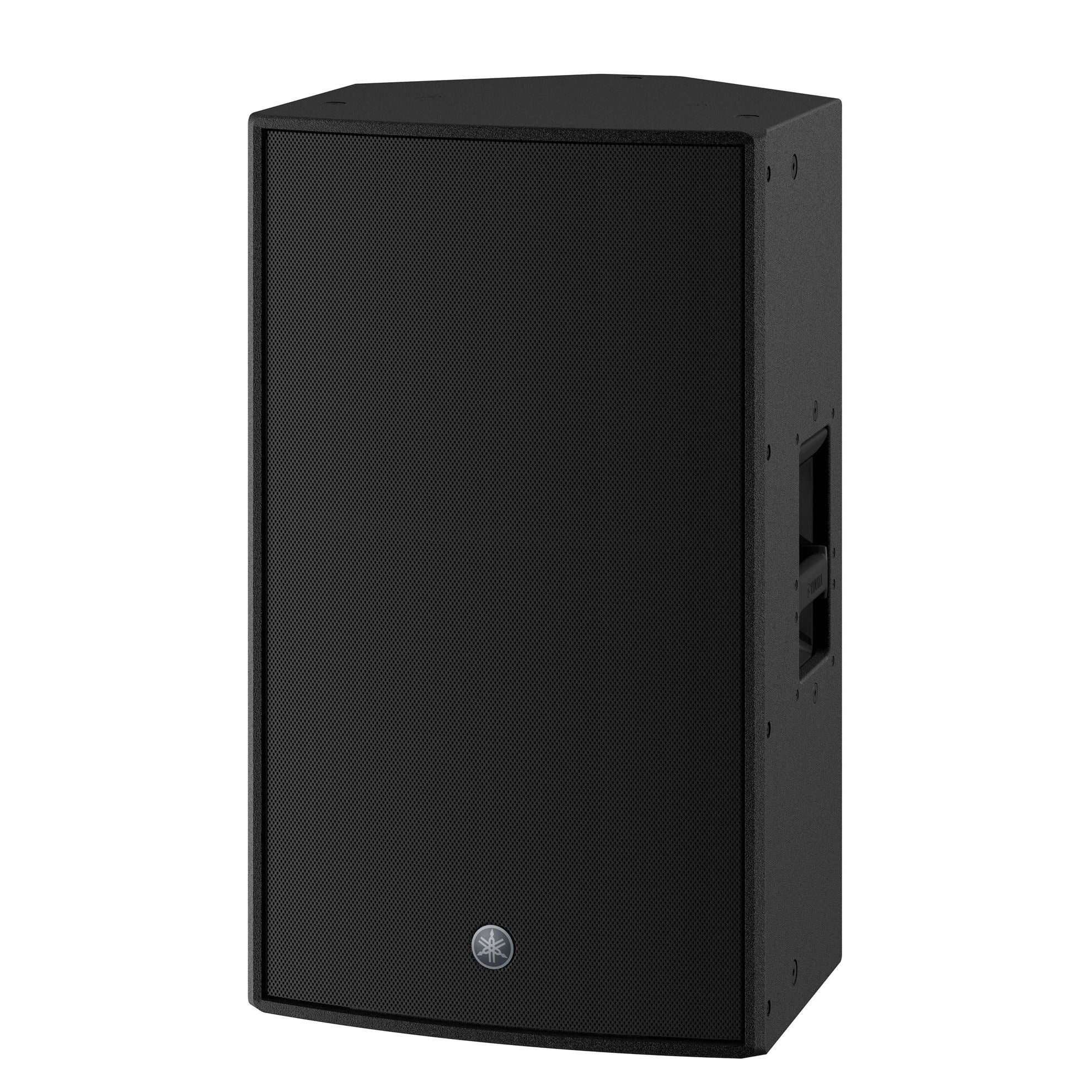

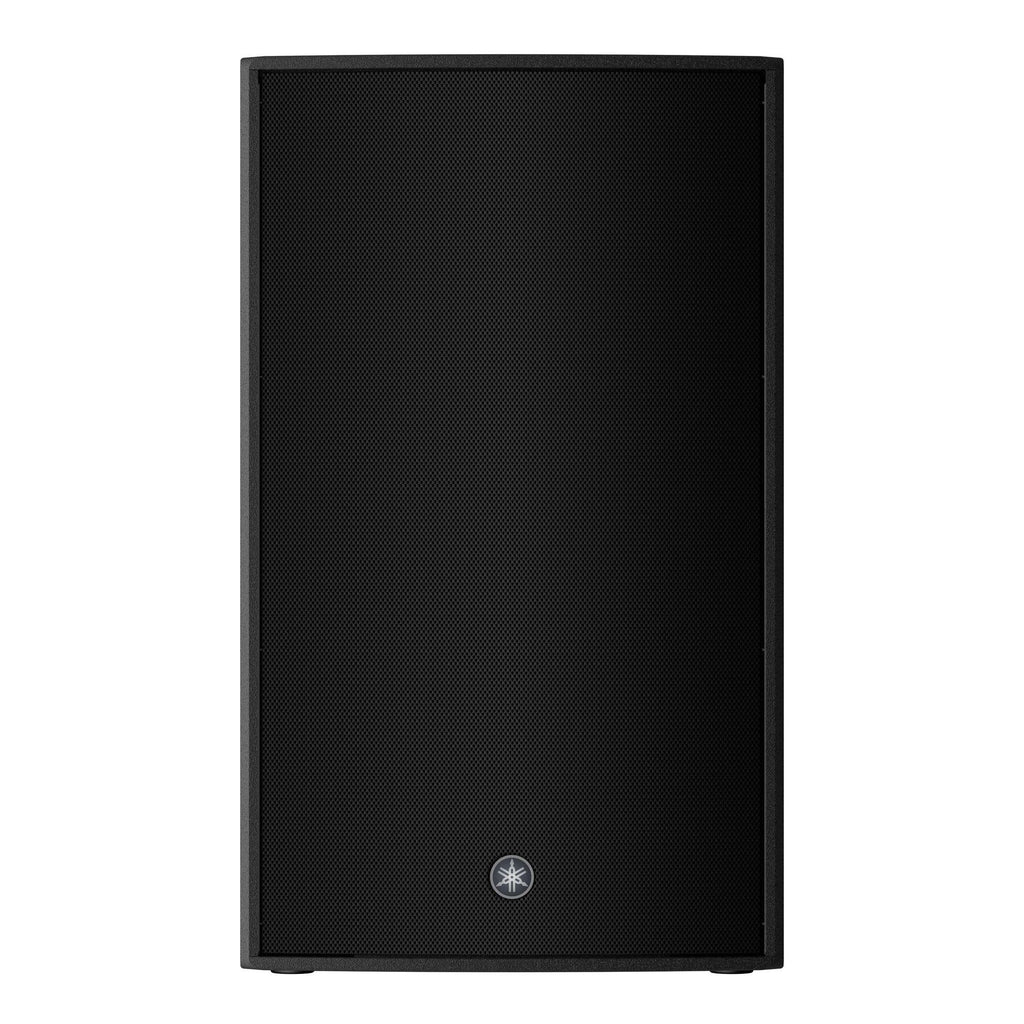

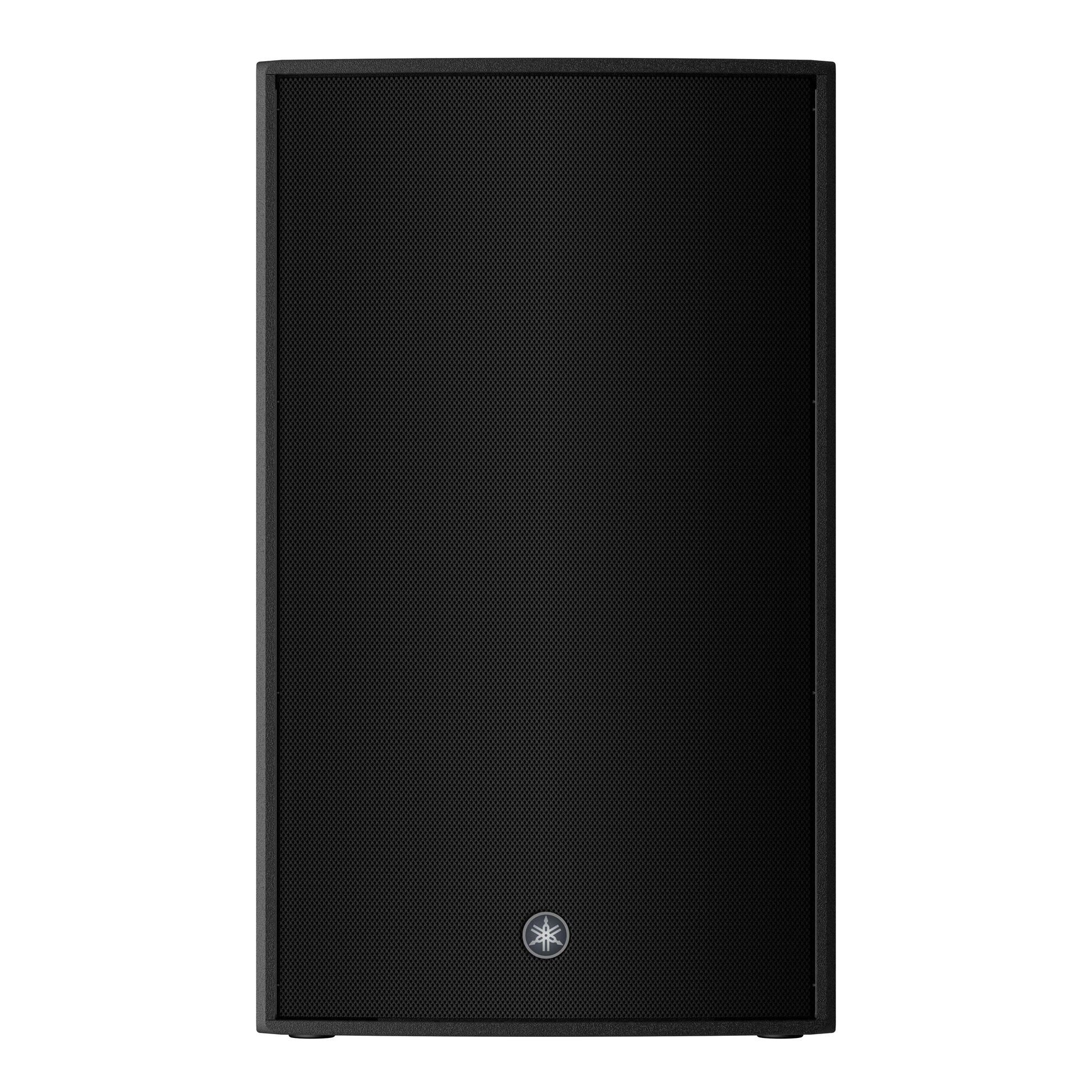

With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR15-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Features
- 2-way powered loudspeaker with a 2” HF and a 15" LF
- Maximum 139dB SPL and 34Hz-20kHz frequency range is ideal for today''s professional audio demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR15)
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
- Durable Black or white finish
Specifications
- Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
- Frequency range (-10dB): 34Hz - 20kHz
- Coverage area: H90ﾟ x V50ﾟ (Rotatable)
- Low Frequency: 15" Cone, 3" Voice Coil, Neodymium magnet
- Mid Frequency: -
- High Frequecy: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
- Crossover: 1.7kHz (FIR-X)
- Internal Sampling Freqency Rate: 96kHz and FIR Filter
- A/D D/A Converters: 96kHz AD/DA
- Maximum output level (1m; on axis): 139dB SPL *1
- SRC: Yes
- Dynamic Power: 2000W (LF: 1000W, MF/HF: 1000W) *2
- Burst Power (20ms): 1100W (LF: 1000W, MF/HF: 100W)
- Continuous Power: 950W (LF: 850W, MF/HF: 100W)
- Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
- Others I/O: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC I/O: IEC AC inlet x1 (V-Lock)
- Amplifier class: Class-D
- Cooling: Fan cooling, Variable speeds
- Power consumption: 45W (Idle), 150W (1/8)
- Handle: Aluminium die-cast, Side x2
- Rigging: M10 x12
- Width: 450 mm (17.7")
- Height: 761 mm (30.0") (with rubber feet)
- Depth: 460 mm (18.1")
- Net weight: 25.2kg (55.6lbs)
- Options: U-bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
- Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
- Floor Monitor Angle: 50° Symmetrical
- Pole socket: Φ35 mm x2 (0° or -7°)
