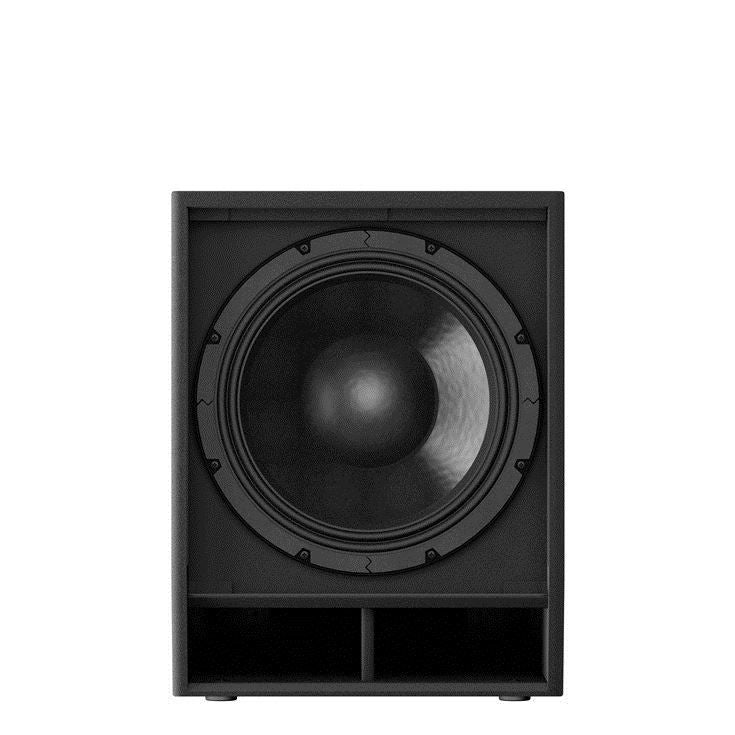

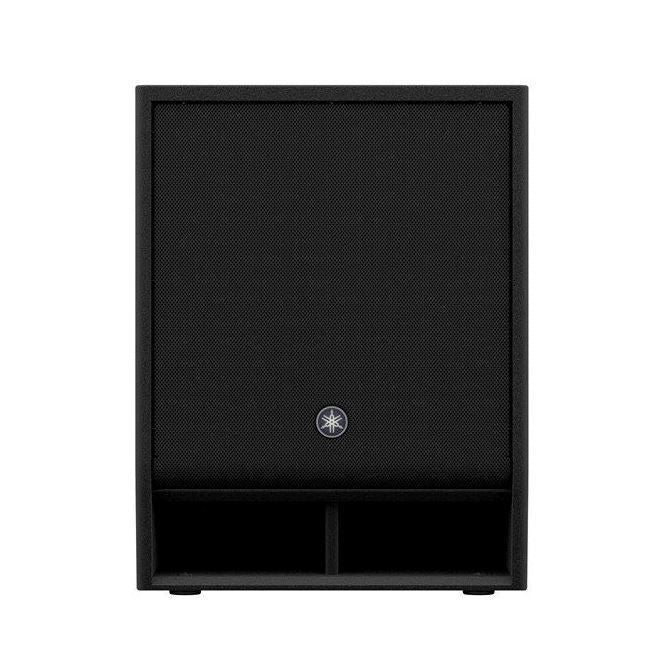

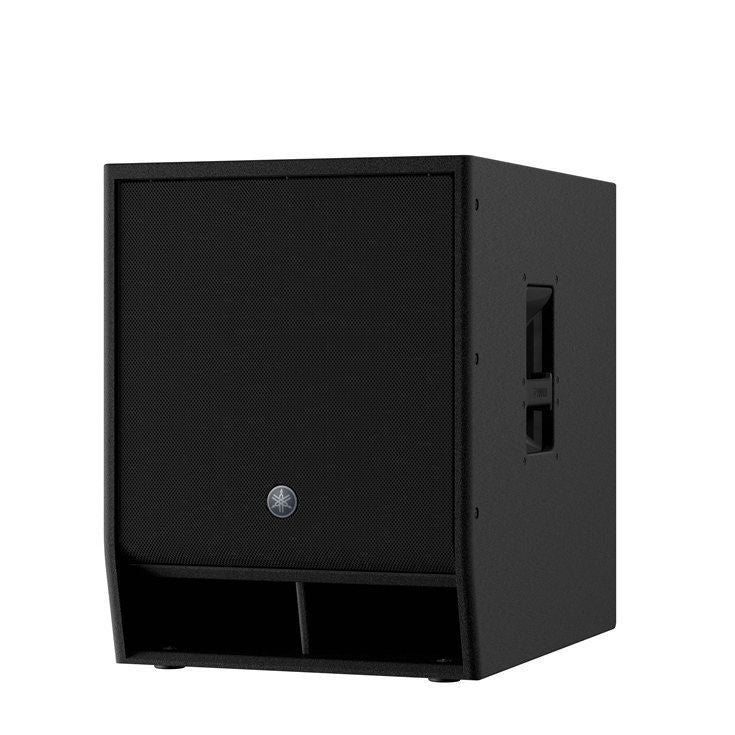

Yamaha DXS15XLF 15-inch powered PA subwoofer with 1600 watt amplifier, showing the black speaker enclosure and control panel.
  • Yamaha DXS15XLF 15-inch powered PA subwoofer with 1600 watt amplifier, showing the black speaker enclosure and control panel.
  • Yamaha DXS15XLF 15-inch powered PA subwoofer with 1600W, showing a black speaker with control panel on top.
  • Yamaha DXS15XLF 15-inch powered PA subwoofer with 1600W output, showing the black speaker cabinet and control panel.
Yamaha DXS15XLF 15 inch Powered PA Subwoofer (1600 Watt)

Brand: Yamaha

Yamaha DXS15XLF 15 inch Powered PA Subwoofer (1600 Watt)

SKU: ZU33770
$2,049.00 (21% off RRP)
RRP $2,599.00
Available to Order
Price Match

  • Rent from

  • $170.75/mth for 12 months interest free

    Fees apply

  • $512.25 Pay in 4 interest-free

    Late fees apply

  • $30–$2000 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

Watch: Overview of the new Yamaha DZR and DXS XLF Powered PA Speaker Range:

*NOTE: Yamaha have also created a DXS XLF Series with Dante Networking capability.

Yamaha DXS XLF - Flexible, Powerful, Road-Ready

Powerful DSP for flexible control
Like the full-range DZR models, the DXS XLF subwoofers are also driven by 96kHz high power DSP processors and utilize the dynamic EQ. Onboard D-XSUB LF processing gives you total management of your lower frequencies with NORMAL mode set for ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass with some extra punch. XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from a cabinet of this size. Usually the higher the output, the more difficult it is to manage low frequency energy directivity, and significant stage-side sound pressure levels can seriously sabotage your monitoring, but with DXS XLF setups consisting of two or more subwoofers, selecting the Cardioid Mode effectively decreases the sound pressure on stage while increasing the bottom-end output directed towards the audience, resulting in a much cleaner stage monitoring environment. Without a doubt, your DZR full-range system will reach new performance heights when used with the pronounced, powerful lows of DXS XLF active subwoofers.
Acoustics and Utility
New Yamaha proprietary transducers with a durable die cast aluminum frame and 4” voice coil are crucial to achieving such impressive low frequency response, even at the highest output levels. A dual damper also helps to realize extraordinarily high linearity of the low frequencies by mitigating unwanted vibration during extreme output levels.
Durable, Portable, and Road-Ready
DXS XLF enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come. Additionally, the new, easy-to-grip aluminum handle, optional SPW1 wheel kit, and SPCVR speaker covers provide additional safety, portability, and peace of mind when you’re on the road.

Key Product Features

  • Powered 15” subwoofer with 4” Voice Coil
  • Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today’s sound engineering demands
  • High power 1600W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-definition sound with super low latency
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • Equipped with D-XSUB processing and cardioid mode capability
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

Product Specifications

Model DXS15XLF
Speaker type Powered Subwoofer, bass-reflex
Frequency range (-10dB) 33Hz - 150Hz
Coverage area -
Low Frequency 15" Cone, 4" Voice Coil, Ferrite magnet
Mid Frequency N/A
High Frequency N/A
Crossover N/A
Internal Sampling frequency rate 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 136dB SPL
Dynamic Power 1600W
Continuous Power 1230W
Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
Other I/O USB 2.0 Host 5V 500mA for USB memory DATA storage/load
AC I/O IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling/Variable speeds
Power consumption 40W (Idle), 180W (1/8)
Handle Aluminium die-cast, Side x2
Rigging -
Width 450 mm (17.7")
Height 587 mm (23.1") (with rubber feet)
Depth 600 mm (23.6")
Net weight 40.0kg (88.2lbs)
Options Cover: SPCVR-DXS15X, Caster: SPW-1
Other Features Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle -
Pole socket Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
