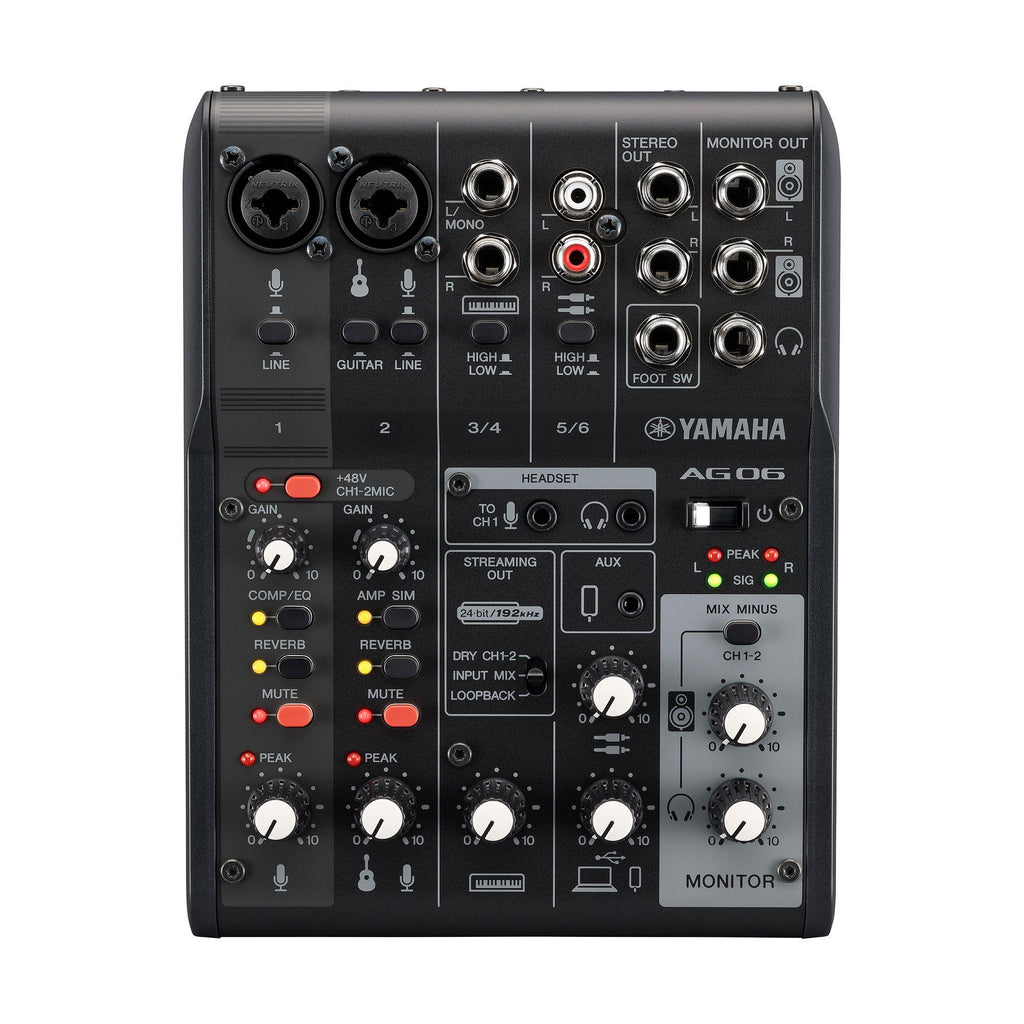

Yamaha AG06MK2 6-channel live streaming mixer with USB interface in black, featuring multiple audio input controls.

Yamaha AG06MK2 6 Channel Live Streaming Mixer with USB Interface - Black

Brand: Yamaha

Yamaha AG06MK2 6 Channel Live Streaming Mixer with USB Interface - Black

Name: Yamaha AG06MK2 6 Channel Live Streaming Mixer with USB Interface - Black
Brand: Yamaha
SKU: VEQ5350
Price: 265.00 AUD
Availability: InStock

SKU: VEQ5350

$265.00 (12% off RRP)

RRP $299.99

Available to Order

Price Match

Rent from
$22.08/mth for 12 months interest free

Fees apply
$66.25 Pay in 4 interest-free

Late fees apply
$66.25 Pay in 4 interest-free

No fees or interest

Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

0 Mega Music Myaree
0 Mega Music Wangara
0 Mega Music Warehouse

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!

Two heads are better than one, and when it comes to live streaming, the same can be said for microphone inputs. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom powered mic inputs for condenser microphones. Combined with flexible connectivity including an upgraded 4-pole mini I/O, the AG06MK2 opens up a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can’t cover. With a design similar to a mixing console, the AG06MK2 is equipped with a variety of physical controls that help you shape and manage the audio you stream to your audience. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it, and can even be controlled using Yamaha’s FC5 dedicated foot switch (sold separately) which can also add reverb to your signal while keeping your hands free for other tasks.

Features

Two condenser microphones can be used simultaneously
+48 V phantom power on CH1-2 input for condenser mics or Dl boxes
Hi-Z input for guitars on CH2
High resolution (24-bit, 192 kHz) 2-track audio recording and playback
4-pole mini input/output (TRRS) to support a wider range of streaming applications
Flexible inputs and LOOPBACK function ideal for live streaming or recording
Mute button for convenient live streaming
Easy control and pro sound with 1-TOUCH effects (COMP/EQ, REVERB and Amp Simulator)
AG Controller (Windows/Mac/iOS ) for precise parameter control
Windows/Mac support by USB-C connection
iOS connectivity via Apple Camera Adapter (requires external USB power supply)
Android supported by 4-pole mini input/output (TRRS)
USB-C power input (5 V DC, 900 mA)
Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available

Specifications

Input Channels
- Mono[MIC/LINE]: 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
- Stereo[LINE]: 2 - L/R Stereo: Phone, RCA
- Smartphone: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
- USB: 1
Output Channels
- Phones: 2 - PHONES / HEADSET PHONES *Cannot be used simultaneously
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- MONITOR OUT: 1
- STEREO OUT: 1
- USB: 1
Bus: Stereo
Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input: 1 - Type-C, 5 V DC, 900 mA
Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimension WxDxH: 152 mm (6.0") x 63 mm (2.5") x 201 mm (7.9")
Net weight: 0.9 kg (2.0 lbs)
Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others: Operating Temperature: 0 to + 40

Watch: Yamaha Live Streaming Mixer: AG06MK2, AG03MK2
