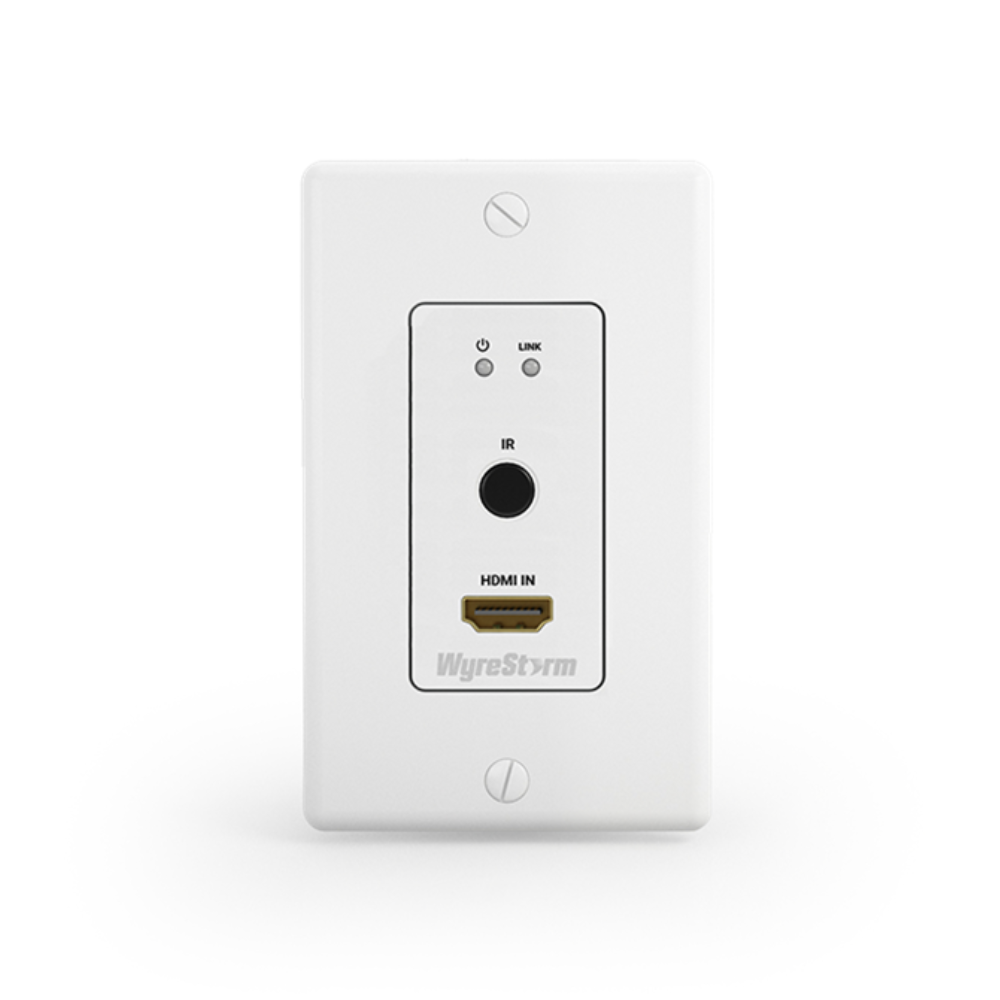

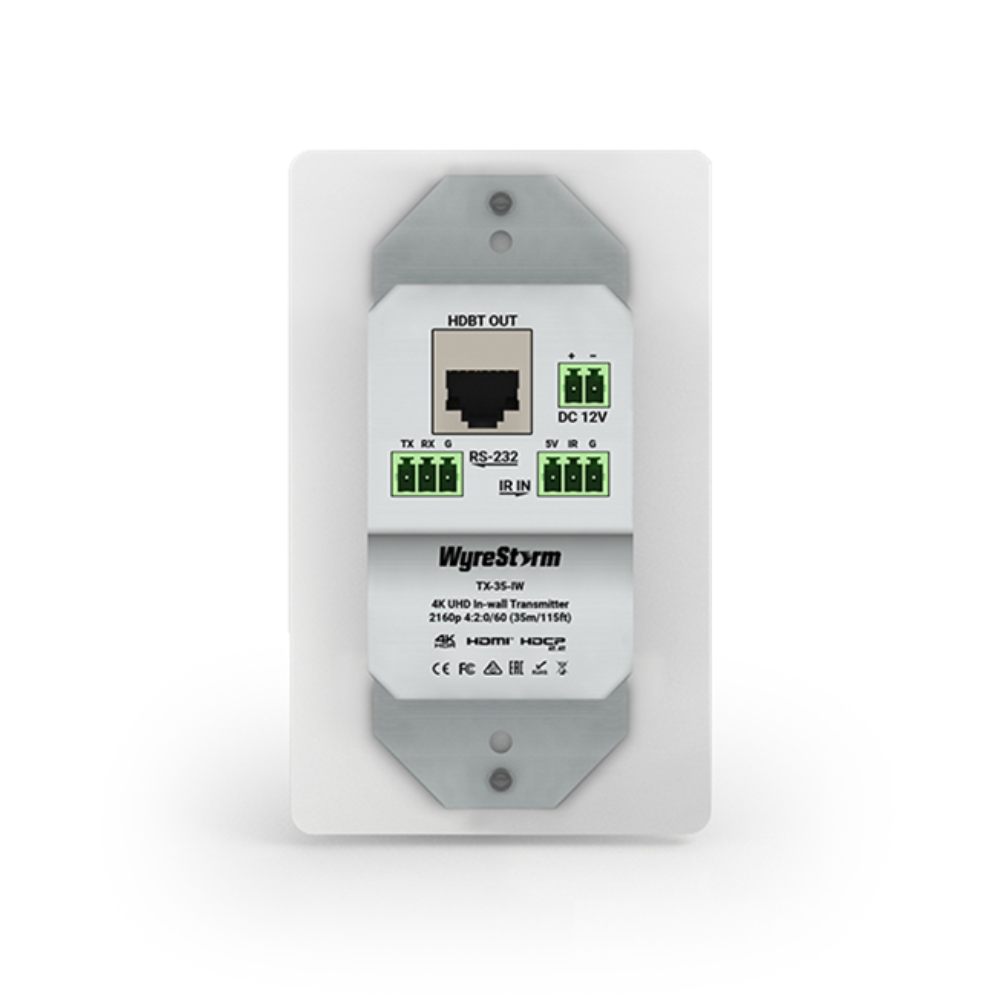

Wyrestorm TX35IW HDMI Wallplate - HDBT In Wall Transmitter - PoH

The TX-35-IW uses standardized HDBaseT and PoH technology, making it compatible with many WyreStorm models, including presentation receivers and H2XC series matrix switchers. The TX-35-IW is ideal for remote input applications, including education environments such as classrooms and conference rooms. It can be remotely controlled via a compatible HDBaseT receiver and features IR and RS-232 control signal pass-through. SMALL FOOTPRINT Powerful HDBaseT technology in the smallest footprint possible. Install the TX-35-IW into standard 1-Gang US sized wall boxes. Keep your installations looking professional and tidy. COST EFFECTIVE Retaining core functionality, the TX-35-IW has the capability you need and gets rid of those you don’t. Easily transmit HDMI content, control signals and power over a single category cable. POH The TX-35-IW features PoH technology which allows it to be powered from a compatible HDBaseT receiver. Eliminate the need for bulky DC power supplies and remotely power the TX over category cable. VERSATILITY Using standard technologies such as HDBaseT and PoH makes the TX-35-IW compatible with a myriad of WyreStorm receivers such as the SW-515-RX, or even as a remote input into the MX-H2XC for larger deployments. Features Reliable HDMI extension of 4K and HD sources from a 1-Gang US decora wall plate using HDBaseT transmission technology Class B HDBaseT™ supporting 4K transmissions up to 35m (115ft) PoH enables unit to be powered remotely from a compatible WyreStorm HDBaseT receiver (RX-35-POH recommended) Additional 12v DC phoenix connection for local power when used with a non-PoH receiver (12v 1a PSU sold separately) Built-in front panel IR receiver window and rear facing 3-pin phoenix connection for easy TV/projector control Bi-directional RS-232 passthrough via rear facing 3-pin phoenix connection Automatic EDID management HDCP 2.2 compatible Front panel LED indication for HDCP presence and transmission link between devices Conforms to IEEE-568B standards Compact design for convenient and unobtrusive installation Specifications Audio and Video HDMI (v1.4): TMDS Inputs: 1x HDMI In: 19-pin HDMI Type A 1x VGA In: 15-pin DE-15 Female 1x Audio In: 3.5mm (1/8in) TRS Stereo (VGA only) Outputs: 1x 8-pin RJ-45 (Transmission to RX) Maximum Pixel Clock: HDMI & HDBaseT: 297MHz Video Resolutions (Max) Video Resolutions 1920x1080p @60Hz 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:2:0 HDMI HDMI 15m/49ft 7m/23ft 5m/16ft 5m/16ft Cat6 Cat6 70m/230ft 35m/115ft 35m/115ft 35m/115ft Cat6a/7 Cat6a/7 70m/230ft 35m/115ft 35m/115ft 35m/115ft Supported Standards: DCI | RGB Audio Formats: 2ch PCM Multichannel LPCM DTS-X Dolby Atmos Maximum Sampling Rate: 192KHz Audio Return Channel (ARC): Not Supported Communication and Control HDMI: HDCP 2.2 | EDID | DVI/D supported with adapter EDID: Pass-Through, from RX IR: Passthrough; Front panel window, Rear 3-pin phoenix RS-232: 1x 3-pin Phoenix, Bi-directional passthrough Consumer Electronics Control (CEC): Not Supported Auto Low Latency Mode (ALLM): Not Supported Variable Refresh Rate (VRR): Not Supported Power Power Supply: PoH; 12V DC 1A (sold separately) Power-over-HDBaseT (PoH): Supported, 1-way from RX Local Power Supply Input: 2-pin Phoenix Max Power Consumption: 7.8W Environmental Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing StorageTemperature: -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing Maximum BTU: 2.29 BTU/hr Dimensions & Weight Rack Units/Wall Box: In-wall, 1-gang Height: 105mm/4.13in Width: 45mm/1.77in Depth: 38mm/1.55in Weight: 0.18kg/0.40lbs Regulatory Safety and Emission: CE | FCC | RoHS | RCM | EAC
